  • JMKE one side out shaft silent low rpm high torque 12volt dc worm gear motor

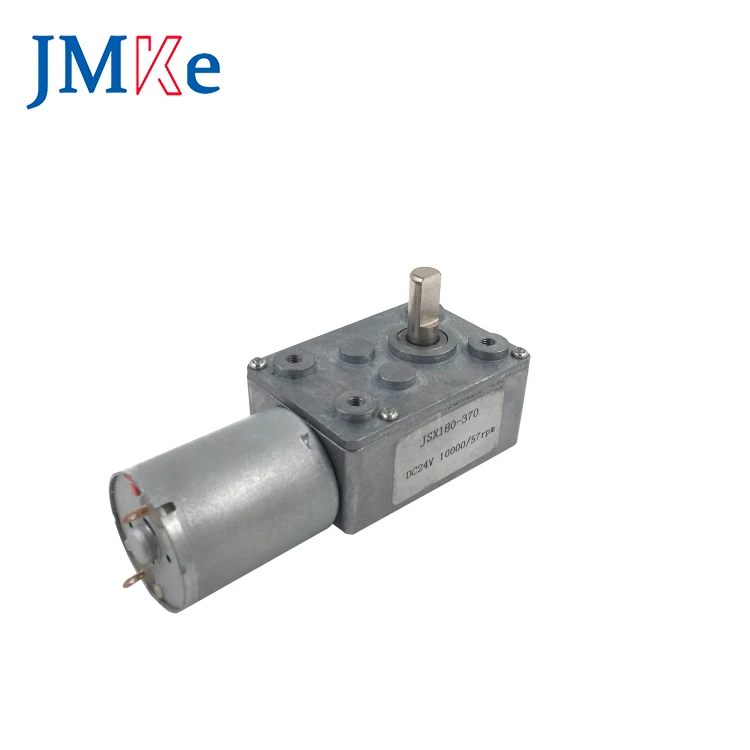

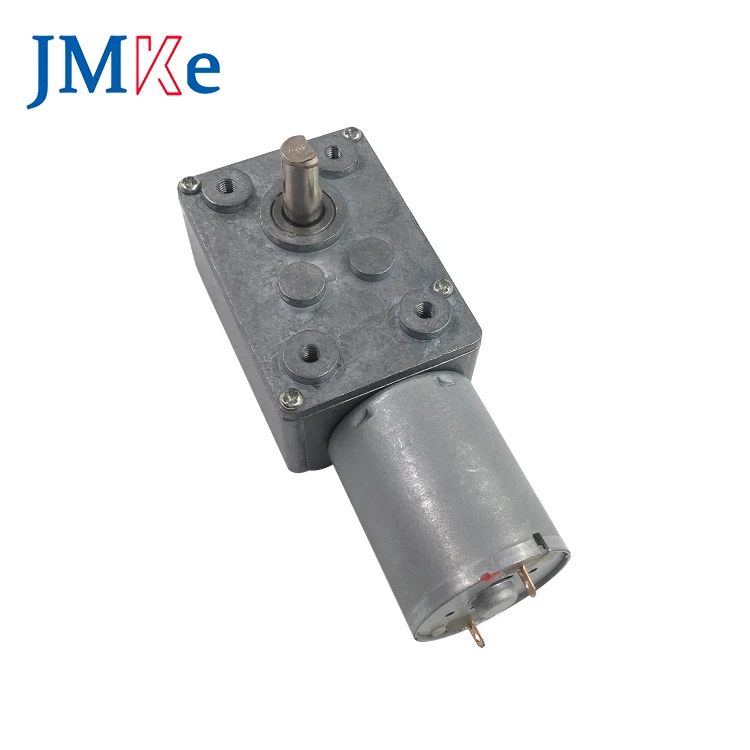

JMKE one side out shaft silent low rpm high torque 12volt dc worm gear motor
JMKE one side out shaft silent low rpm high torque 12volt dc worm gear motor
JMKE one side out shaft silent low rpm high torque 12volt dc worm gear motor
JMKE one side out shaft silent low rpm high torque 12volt dc worm gear motor

JMKE one side out shaft silent low rpm high torque 12volt dc worm gear motor

Share on (62175132142):


Price:$5.00 - $6.00

Quantity:


Product Overview

Description


JMKE one side out shaft silent low rpm high torque 12volt dc worm gear motor



Product Description


Micro gear motor with low noise and high torque


Solidly constructed and ready to install in numerous applications.





























































Motor



Speed ratio



1/189.5



1/335



1/939



1/1580



PMDC-370
(12V-5600R)



No Load (r/min)



30



17



6



3.5



Load (r/min)



25



14



5



3



Rated Torque(kgf.cm)



2.5



4



10



10



PMDC-370
(24V-4600R)



No Load (r/min)



25



14



5



3



Load (r/min)



21



12



4



3



Rated Torque(kgf.cm)



2.5



4



10



10




Application:


DC Worm Gear Motor

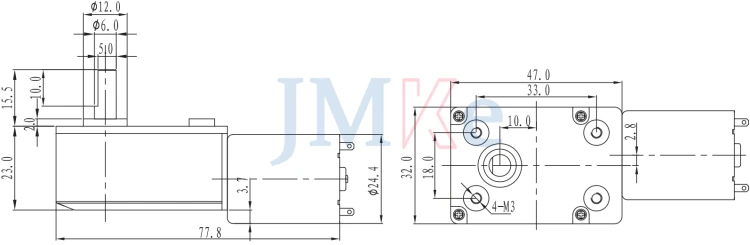

Drawing


DC Worm Gear Motor


Φ= 47mm


Installation Dimension:M3,


Central Output Shaft, Length=12mm




































Speed ratio



L



Deceleration level



Rated torque




mm




mN.m



kgf.cm



1/189.5




3



490



5



1/335~1/1580




4



980



10






SPEED ADJUSTABLE - The speed can be adjusted by dc motor speed controller.


If you need a lower or higher speed motor, please choose the right rpm to meet your needs. This motor is reversible so that you can switch positive and negative.
