Product Overview


Product Description

Optical fiber reels intelligent optical fiber reels automatically cable and reels


We have independently developed a new optical fiber drum intelligent optical cable drum,which has stable performance,automatic retractable reel.

Our latest version, we are now doing intelligent retracting, automatic closed loop, reel reel speed and aircraft speed is automatic matching, as long as the winch is powered on, the aircraft take off ---- winch synchronous retracting, aircraft descent ---- winch synchronous retracting, all the retracting process winch are their own control, You don't have to do it manually.


JARCH Plus Tethered Power System supporting high-voltage compensation and optical fibre transmission is designed to provide unlimited, reliable and redundant power source for drones, overcome the limitation of flight duration and payload capacity.  JARCH Plus tethered power system coupled with commercial drones can be applied in many different fields by loading different equipment. Mainly used as relay station, long time observation station in the air etc.

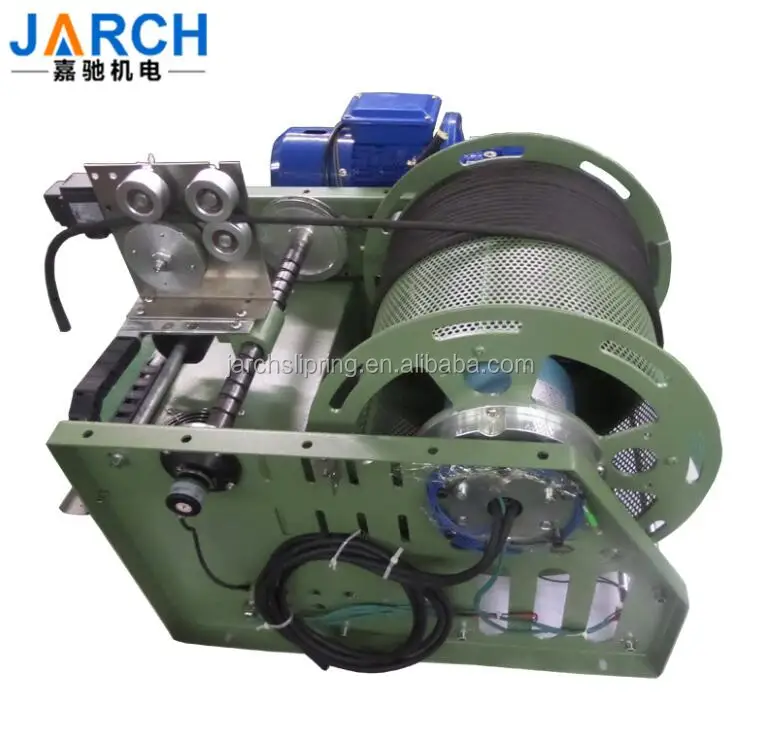

Optical fiber cable reel for tethered drones

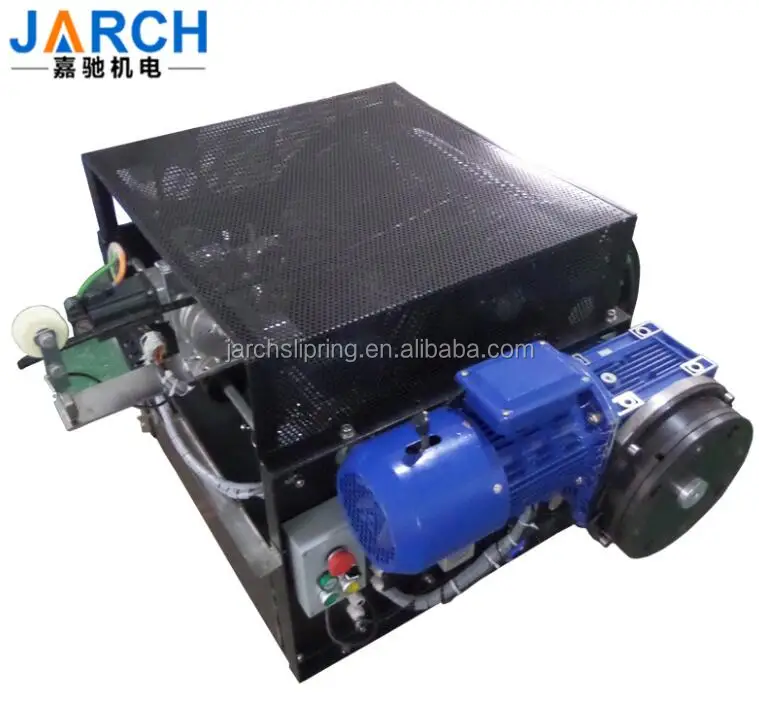

The JSR-JZ-FE0204-120 intelligent towing machine is used for intelligent control of the retractable cable in vehicles or other fixed places. The towing cable machine can control the speed and length of the retractable cable by the upper computer through commands. The cable reel can continuously transmit signals and current when rotating, and can be automatically adjusted by the tension closed loop when the speed of the retractable cable is not matched. Dynamic feedback of speed and length information to the host computer

 cable reel for UAV.jpgQQ20190621151034.jpgQQ20190621151118.jpgUAV cable reel.jpg


Optical fiber reels intelligent optical fiber reels automatically cable and reels


Optical fiber cable reel for tethered drones


The towing machine has been successfully applied to the power supply system of the UAV at the ground station, and the speed of the cable can reach 4m/s.


The cable reel that can be retracted by the cable can be a cable (power + signal), a cable (single or multi-core), a photoelectric hybrid cable, or the like.


A. With manual and automatic retractable functions;

B. It has hard command buttons to realize emergency functions such as receiving, discharging and stopping;

C. It can receive control commands such as receiving, discharging, stopping, and speed sent by the ground station, and control the receiving and discharging line device to operate according to the command;

E. It can provide the ground station with working status information such as the operating speed of the bobbin and the length of the wire take-up and pay-off;

F. It has the function of real-time length recording of receiving and discharging lines;

G. With active wire feeding function;

H. Has an orderly cable function;

I. has cable cooling device;

G. With automatic locking function, and carrying no more than 150n.m pulling force;

K. With mounting holes for fixed installation;

L. Lifting parts with lifting holes or lifting rings or handles;

M. With online receiving and discharging functions;

N. Has the function of transmitting power online.


Optical fiber cable reel for tethered drones Specifications:

The optical cable has a diameter of less than 12mm, and the smart reel has a cable length of 150 meters.


The intelligent retractable line device can realize the online receiving and discharging function of the cable, receive and execute the commands issued by the ground station, and feed back the specified information to the ground station.


Other special parameters:

a) RS485 communication mode or TC/IP network communication mode can be adopted between the control part of the electronically controlled retractable line device and the upper computer;

b) The electronically controlled retracting device algorithm needs to adopt closed-loop control mode, and the cable retracting length can be adjusted in real time according to the position information of the upper computer to ensure that the cable is not excessively stretched and excessively slackened.

c) The system has a tension sensor with a test cable pull. When the tension exceeds the threshold, the closed loop system can be adjusted in time.
