Supply Fast Speed Water Well 400m Water Well Drilling Rig
US $19000-$30000

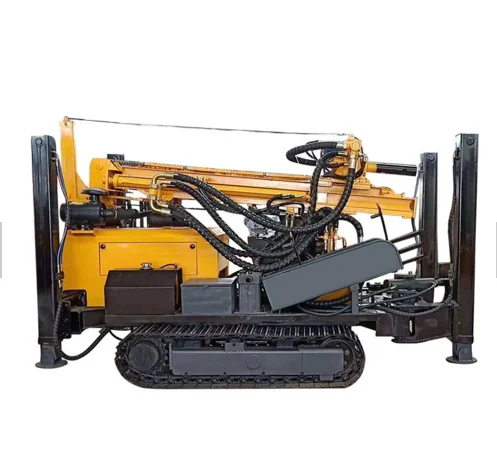

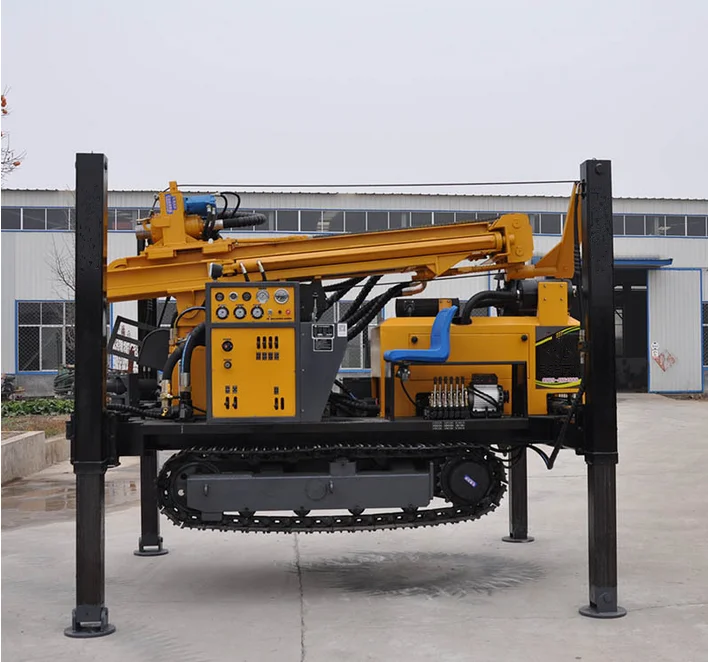

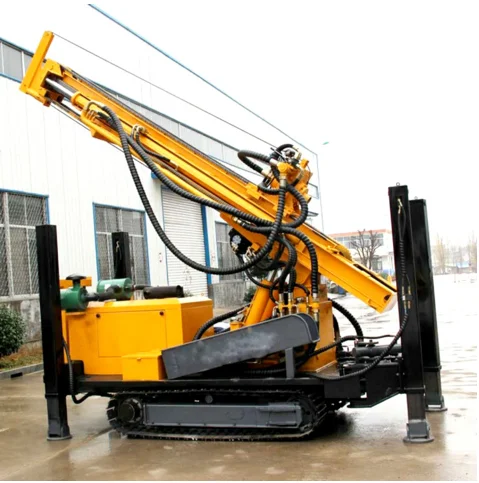

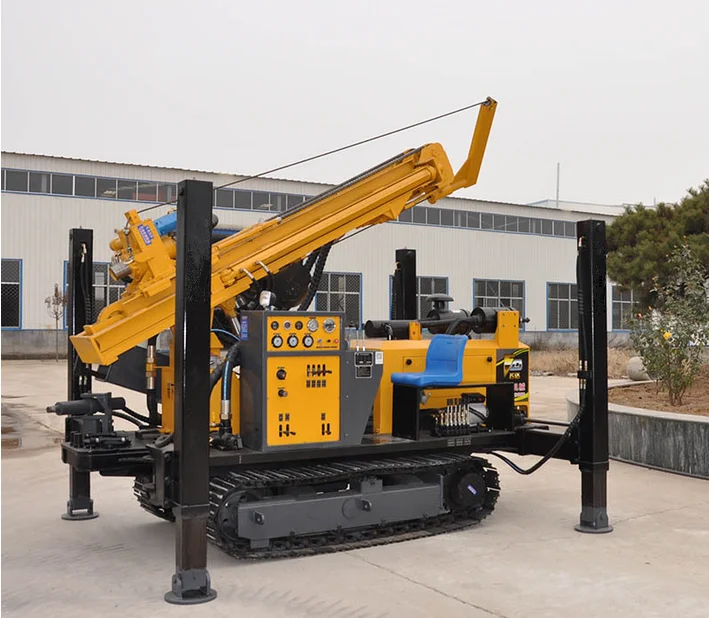

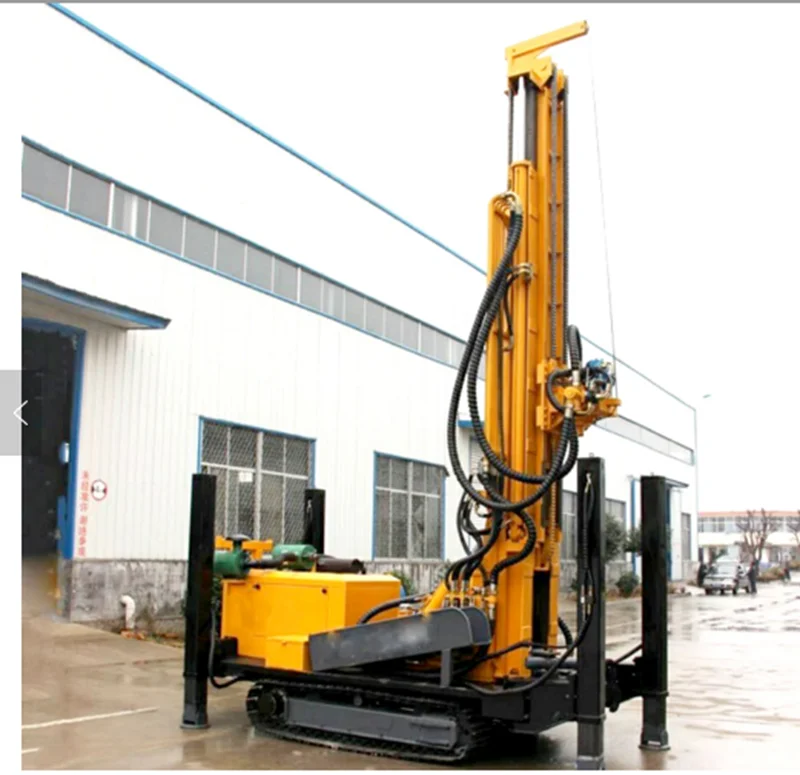

BDM 200T model track mounted DTH water well drilling rig
- Category: Mine Drilling Rig >>>
- Supplier: Shandong Better Drilling Machinery Co. Ltd.
Share on (62175423115):
Product Overview
Description
Product Description
Reasonable overall layout uses the Track-mounted or full ground chassis for transportation with good maneuverability.
Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, the shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation salvage work.
The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
BDM-200T moded track mounted DTH Water well drilling rig | |
type | BDM-200T |
The weight | 5.8T |
Dimension | 4000*17500*2450mm |
The hole diameter | 140-305mm |
Drilling depth | 200m |
One-time advance length | 3.4m |
Walking speed | 2.5KM/H |
Climbing angles | 30 |
Power | |
Using air pressure | 1.7-3.0MPA |
Air consumption | 17-30 |
Drill pipe length | 1.5m 2.0m 3.0m |
Drill pipe diameter | 76mm,89mm, |
Rig lifting force | 12T |
Drilling head rotary speed | |
Drilling head rotary torque | 3500-4800N.m |
Packaging & Shipping
Training service
Rig in worksite
Contact information
Shandong better drilling machinery co.,ltd
Contact person; Tony- sales director
Whatsapp wechat; 0086-13165490800
