Dry air cooled heat exchanger can be used without water.
Dry air cooled heat exchanger can meet the demanding requirements for heat transfer processes in chemical, oil and gas and power generation applications.
And it has two types: Forced draft type(fan on top) & Induced draft type(fan at below).
Operating Principle
Configuration
Finned Tube Bundle Screw Tube Header Louver Fan
Finned tube bundle, screw tube header, louver and fan are main parts of dry air cooled heat exchanger.
Applications
Dry air cooled heat exchanger can be widely used in different industrial fields for heat transfer processes, such as: chemical, oil & gas, power generation...
It is widely used in the desert oil industry air cooling system.

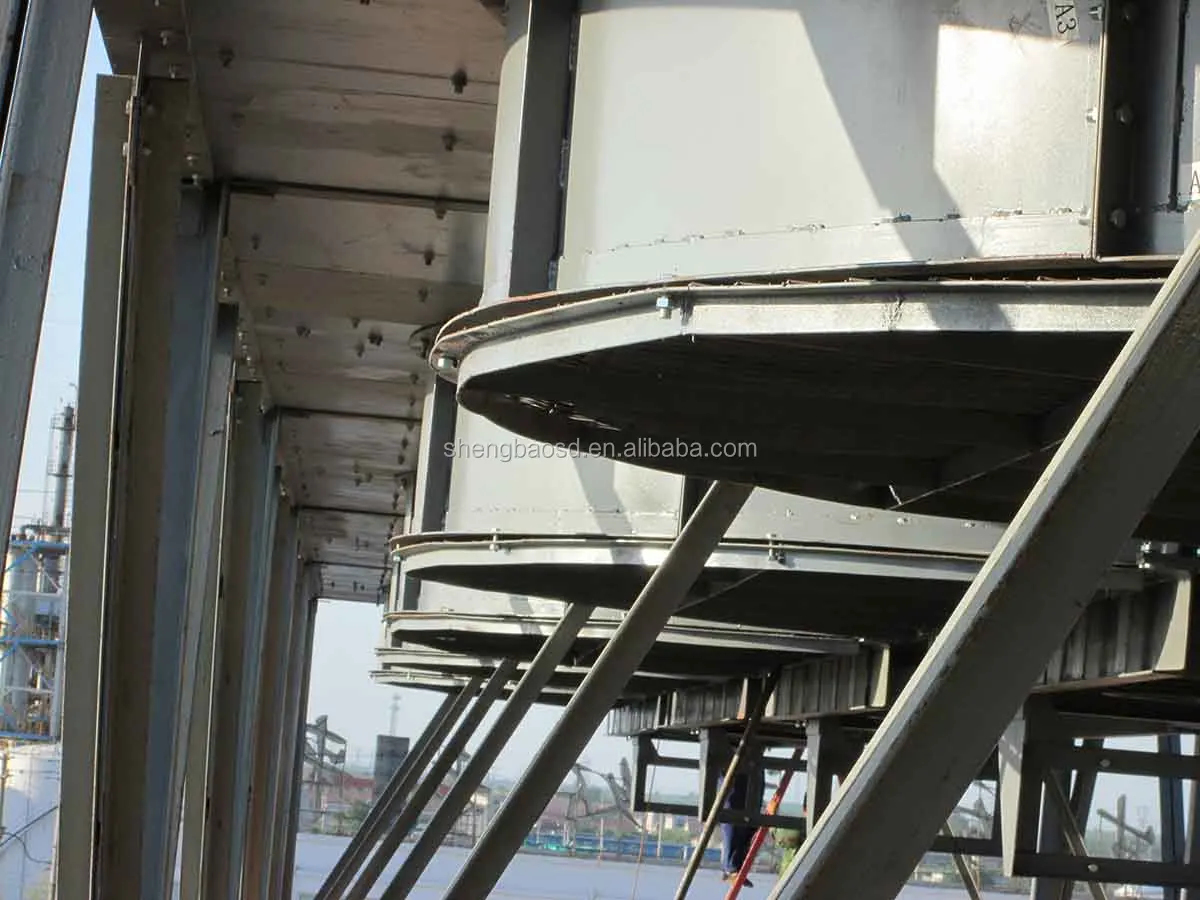

Some of our projects as bellow photos: .

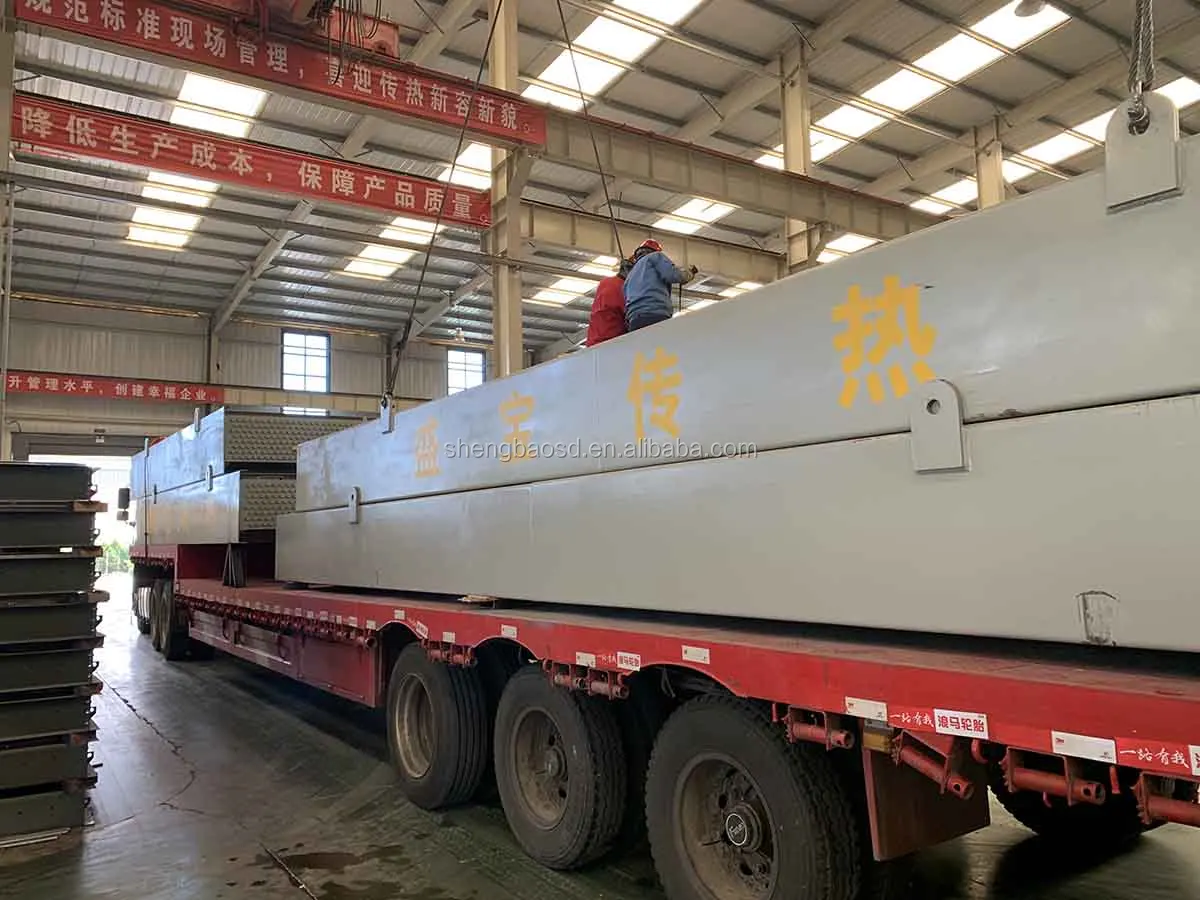

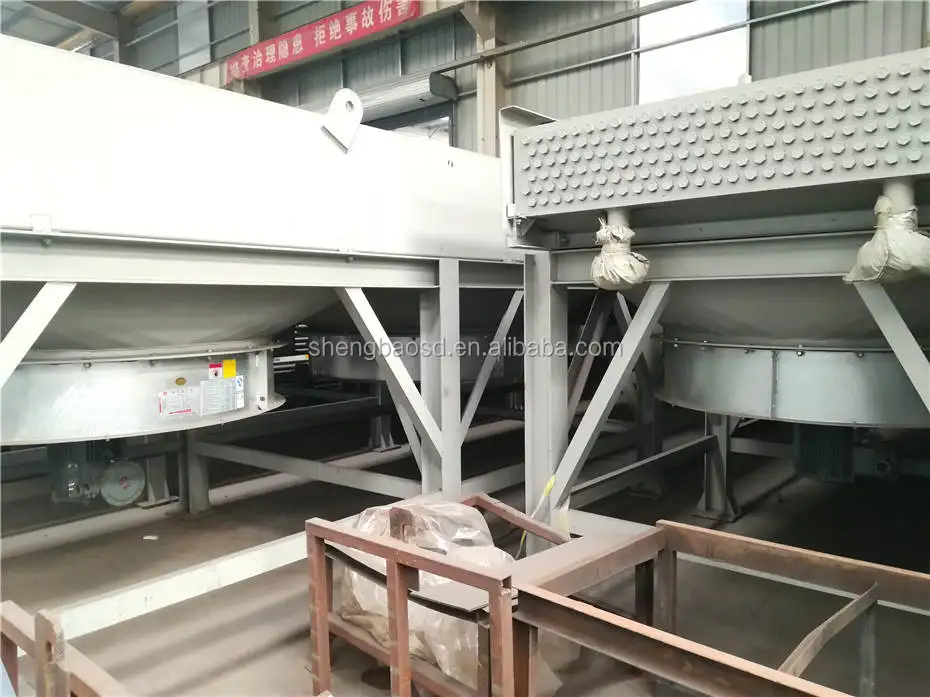

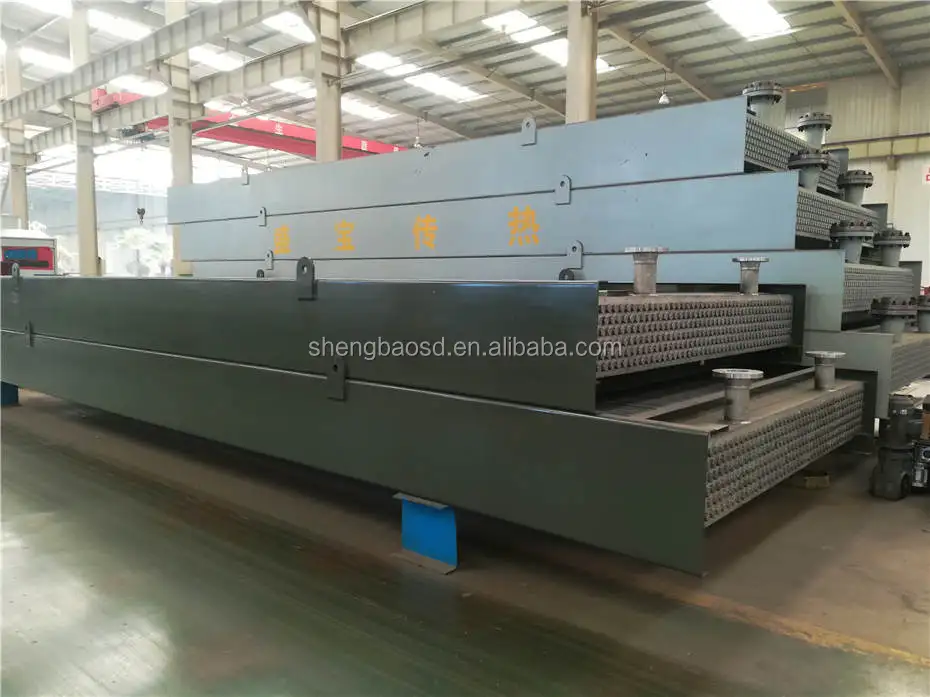

Factory Show
Product Model
Part Models
Tubes QTY
Pressure
(MPa)
Tube bank
QTY
Bare tube heat transfer area(m2)
Finned tube heat transfer area(m2)
GP12x3-4-172-1.6S-23.4/L(DR)-Ia
182
1.6
4
172
4025
GP12x3-4-172-2.5S-23.4/L(DR)-Ia
2.5
GP12x3-4-172-4.0S-23.4/L(DR)-Ia
4.0
GP12x3-8-344-4.0S-23.4/L(DR)-Ia
364
4.0
8
344
8050
GP9x2-6-126-1.6S-23.4/L(DR)-Ia
177
1.6
6
126
2948
GP6x1-8-52.2-4.0S-23.4/L(DR)-Ia
108
4.0
8
52.2
1221
Above models are just for your reference, and you can contact us for more details.
Before inquire, buyer should know below parameters:
