XCMG XCT12L4 12 ton truck crane
- Category: >>>
- Supplier: Xcmg E-Commerce Inc.
Share on (62175696559):
Product Overview
Description

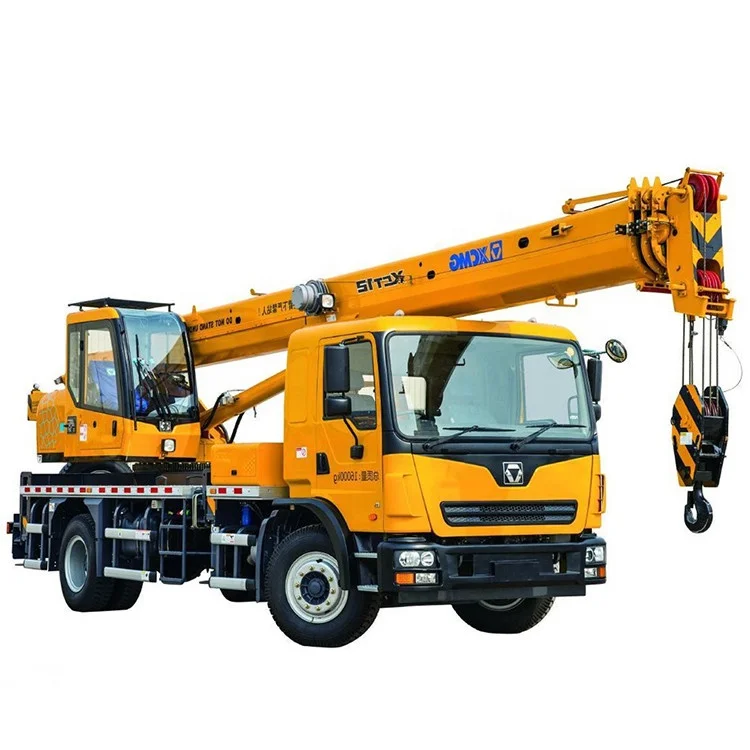

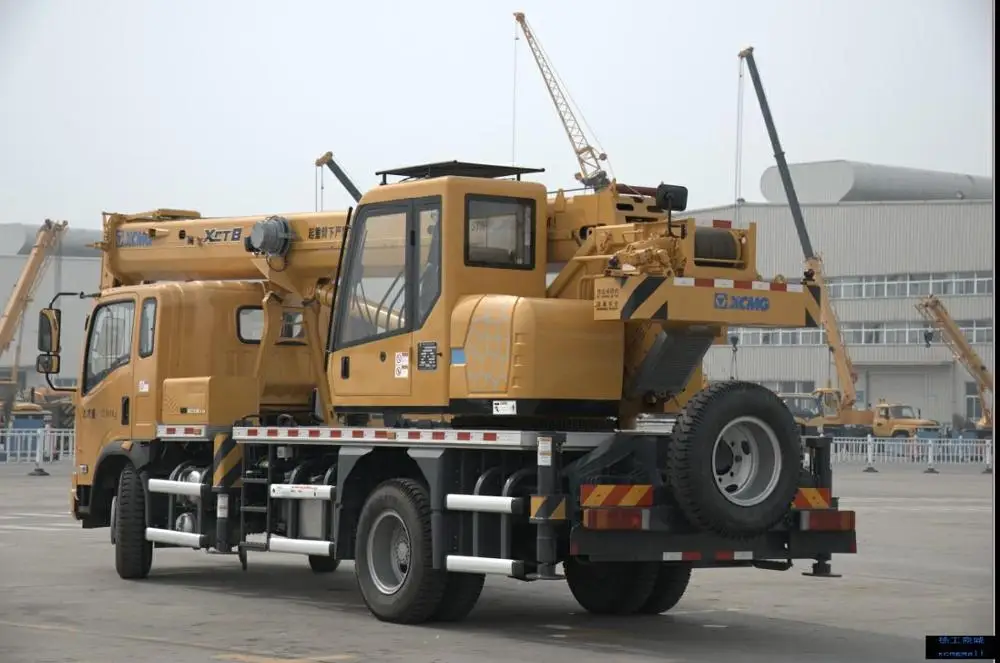

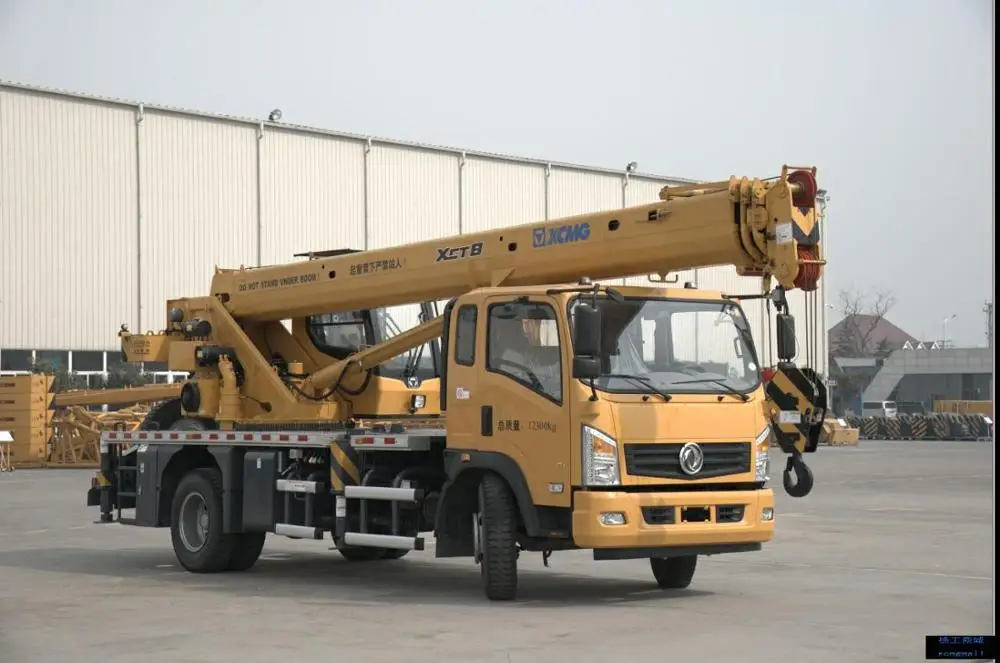

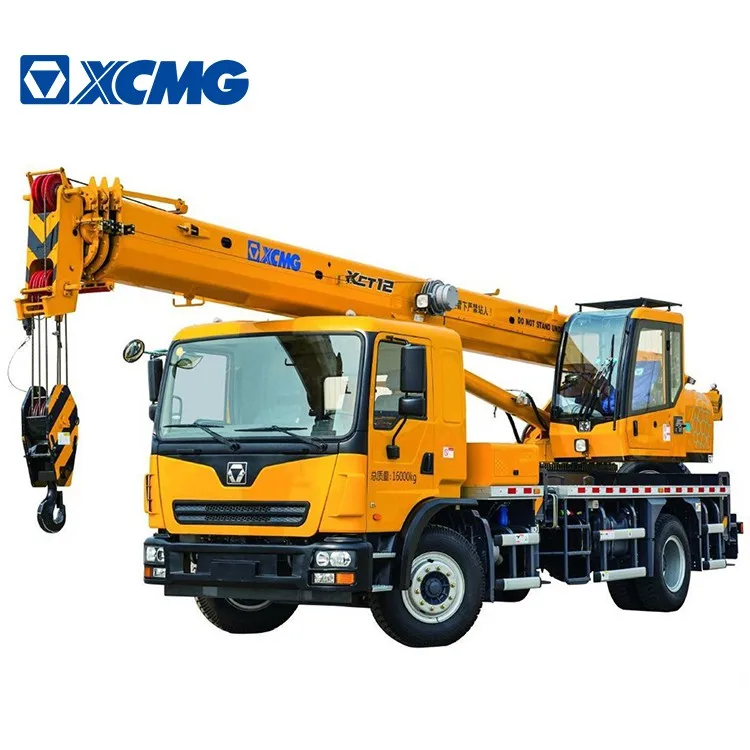

XCMG XCT12L4 New 4-Section Boom 12 ton Lifting Truck Crane
XCT12L4 Truck crane is designed to mainly aim at domestic market, and to take international market requirements into
consideration. It is mounted on a self-made special chassis, which is suitable for driving on a wide range of roads.
It has high lifting height, powerful lifting capacity and high working efficiency. It is widely new for the lifting operations in
general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
It is mounted on a two-axle truck crane chassis. Four-section boom with octagonal profile, a lattice jib, built-in double
independent winches, new energy-saving power system, fixed counterweight and new energy-saving hydraulic system are available. The crane has newly designed XCMG G1 appearance of Truck Crane,luxurious full-dimension driver'scab and XCMG -machine interactive system with the level of a car. Its performance takes the lead in the industry. It is more intelligent, energy-saving and user friendly to operate.
XCT12L4 Truck crane is designed to mainly aim at domestic market, and to take international market requirements into
consideration. It is mounted on a self-made special chassis, which is suitable for driving on a wide range of roads.
It has high lifting height, powerful lifting capacity and high working efficiency. It is widely new for the lifting operations in
general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
It is mounted on a two-axle truck crane chassis. Four-section boom with octagonal profile, a lattice jib, built-in double
independent winches, new energy-saving power system, fixed counterweight and new energy-saving hydraulic system are available. The crane has newly designed XCMG G1 appearance of Truck Crane,luxurious full-dimension driver'scab and XCMG -machine interactive system with the level of a car. Its performance takes the lead in the industry. It is more intelligent, energy-saving and user friendly to operate.
Specification
Dimension | Unit | XCT12L4 | ||
Overall length | mm | 10900 | ||
Overall width | mm | 2500 | ||
Overall height | mm | 3550 | ||
Weight | ||||
Total weight in travel | kg | 16000 | ||
Power | ||||
Engine model | SC7H230Q4/WP6.220E40 | |||
Engine rated power | kW/(r/min) | 170/2300 162/2300 | ||
Engine rated torque | N.m/(r/min) | 900/1400 850/1400-1600 | ||
Travel | ||||
Max. travel speed | km/h | 90 | ||
Min. turning diameter | m | 18 | ||
Min. ground clearance | mm | 250 | ||
Approach angle | ° | 21 | ||
Departure angle | ° | 13 | ||
Max. grade ability | % | 41 | ||
Fuel consumption for 100km | L | 25 | ||
Main performance | ||||
Max. rated total lifting capacity | t | 12 | ||
Min. rated working radius | m | 3 | ||
Turning radius at turntable tail | m | 2.57 | ||
Max. lifting torque | kN.m | 482.5 | ||
Base boom | m | 9.5 | ||
Max.main boom | m | 30.9 | ||
Max.main boom+jib | m | 38.1 | ||
