SICAR brand solid hard wood machinery thicknesser planer thickness woodworking machine
- Category: >>>
- Supplier: Qingdao Hysen Import And Export Co. Ltd.
Share on (62175720533):
Product Overview
Description
Product Description
Detailed Images

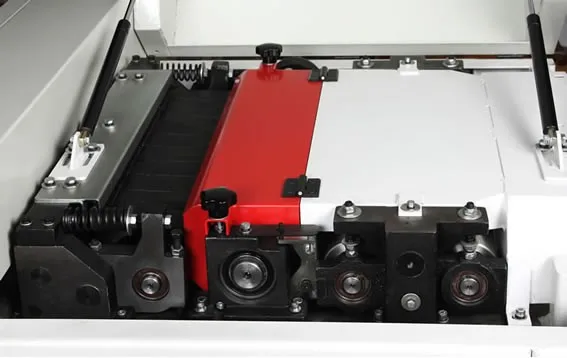

Spiral infeedroller
Spiral infeedroller guarantees an efficient feed motion of the wood and a good quality.
4 sturdy columns
4 sturdy columns support the thicknesser.
Stepless feeding
Stepless feeding of the wood: speeds of 5 to 22m/min.

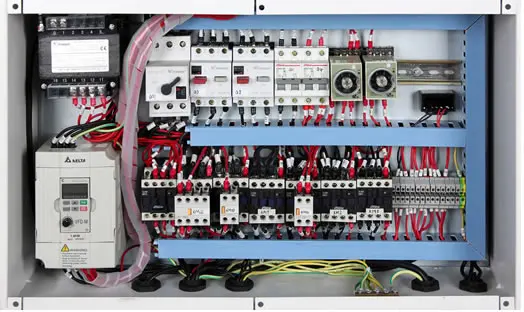

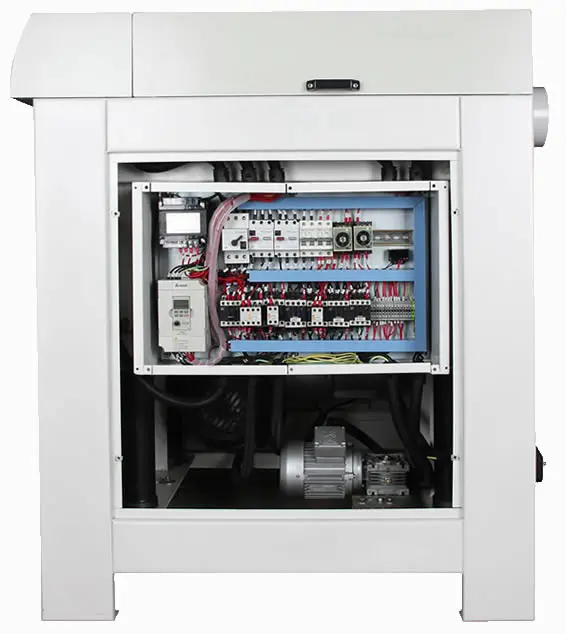

Professional electrical box
Frequency conversion control feeding speed.

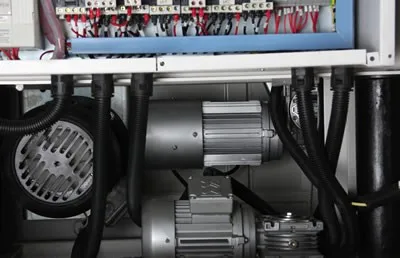

Strong drive
Every system (up and down\feeding and output\main shaft) all have independent motor.
2 mode control system
Both PLC automatic control and Manual control.
Specification
| Thicknessing Machine | MOTO 630 |
| Max. working width | 630 mm |
| Max. cutting depth | 8 mm |
| Feed speed | 5-20 MT/1' |
| Max. working height | 300 mm |
| Number of knives | 4-30*530*3 |
| Cutterblock rotation speed | 4800 g/1' |
| 3-phase motor power | 4 kw |
| Work table dimensions | 1050 x 632 mm |
| Min. working lenght | 280 mm |
| Power of the motorgear for rise/fall | 0.5 kw |
| Net weight | 875kgs |
| Sound power level at operator's site | 82,2 db |
| Sound pressure level at operator's site | 105,8 db |
Packing & Delivery
Customers
Buyer Feedback
FAQ
Q1: What is the warranty for the machine?
For our woodworking machine, we have 2 years warranty.
Q2:Can I choose the voltage?
Yes,we have 380V or 220V for choice for your country
Q3.What is your lead time after i pay?
Normally,We need about 7days for our production.
Q4:How long will i get the machine after i pay?
It depends on your destination port, we will ship you immediately when you finished production.
Q5:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly for the mass production.
Q6:It is my first time to purchase goods from china,how do i do?
Do not worry,We have 10 years export experience to all over the world,also has professional sales team,
we also have agent in Russia,Algeria,Pakistan,Peru,Vietnam,etc.
Q7:How to pick the machine?
we use wooden box to packge the machine to protect them to be safe
Q8.I do not know chinese,will the operation panel in english or spanish or other?
Yes,all our machine are with Chinese and English,If you want only English or Spanish or other,
we also can customize to you,but lead time will be a little longer.
