Factory supply Solar energy Wireless 2 Beams infrared detector 20/30/60/80/100 Meters Outdoor Alarm System

Share on (62175737337):


Price:

Quantity:


Product Overview

Description


Factory supply Solar energy Wireless 2 Beams infrared detector 20/30/60/80/100 Meters Outdoor Alarm System





Features:

1. Alarm indicator: built-in buzzer, alarm with "beep" sound;

2. Non-spherical secondary aggregation precision optical lens;

3. Fine-tuning of sophisticated electronic stepper, LCD display easy to focus;

4. The interdiction of the adjacent two beams at the same time;

5. AGC loop automatically adjusts the sensitivity, anti-false alarm;

6. Automatic adjustment of glare filtration system, anti-glare interference;

7. Using ultrasonic Structure to effectively prevent condensation or frost;

8. The unique design of the ring, waterproof, dust-proof.





Technical Specification





Model

WL-TG-W Series

Beams

Two beams

Outdoor detect distance

5m/10m/20m/30m/60m/100m

Working voltage

3.7V Lithium Battery, with solar panel

Working current

≤0.4mA

Solar panel output current

under light of 1600Lux≥1mA

Alarm output

Wireless RF alarm signal

Power supply

Solar power charged lithium battery

Power consumption

0.4mA

Transmitting distance

300m (in open area)

Transmitting frequency

315MHz/433MHz

Programmer Code

1527/2264

Anti-glare interference

50000LUX

Trigger time

50s

Detect speed

50-700m/s

Operating Temperature

-25~ +55

Relative Humidity

5%~95%RH

Optical axis adjustment angle

Horizontal: 180°(±90°), vertical: 20°(±10°)

Material

PC Resin





Package

1* Transmiter
1* Receiver
1* Screws
1* user manual

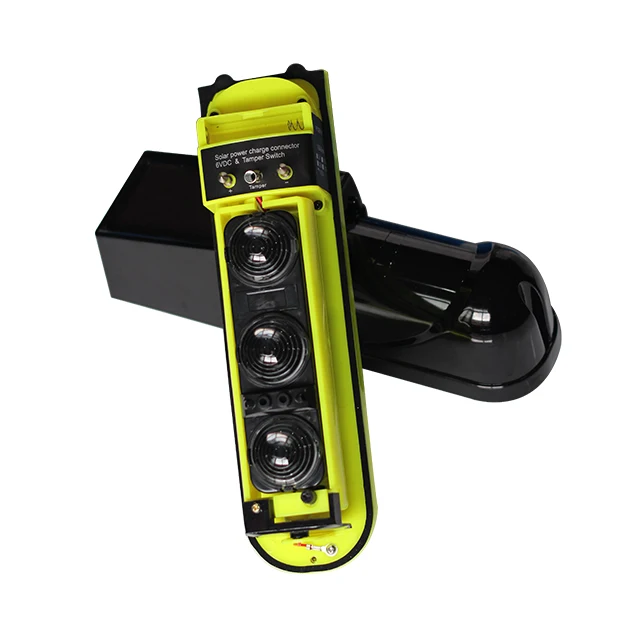

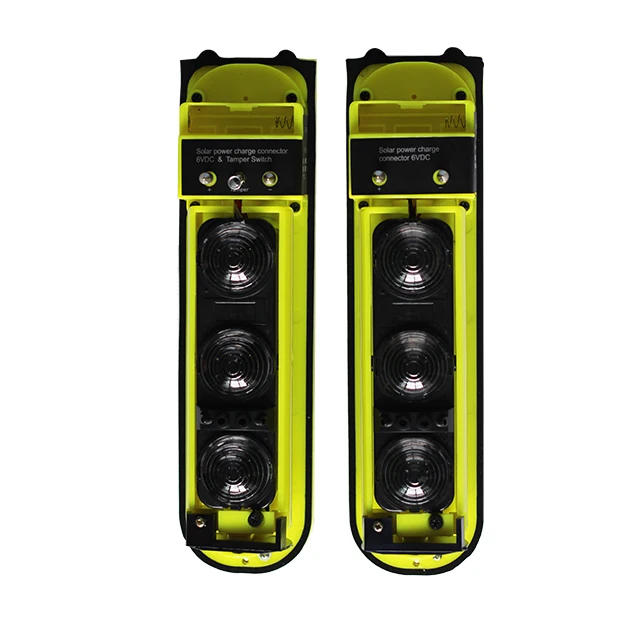

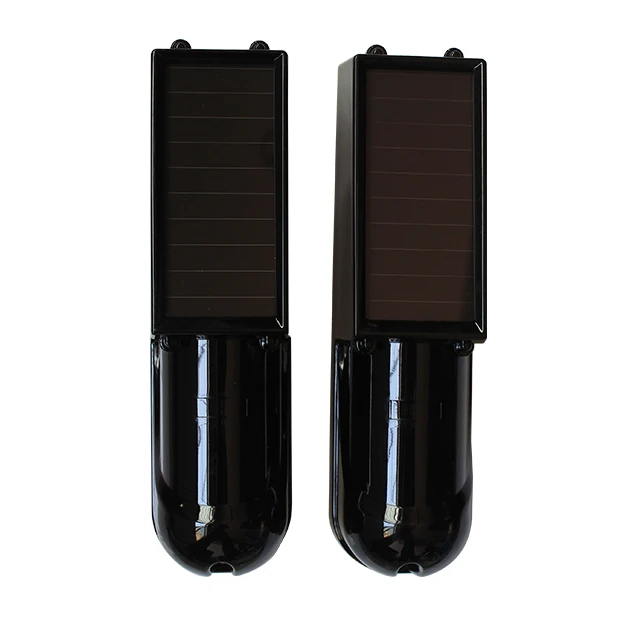

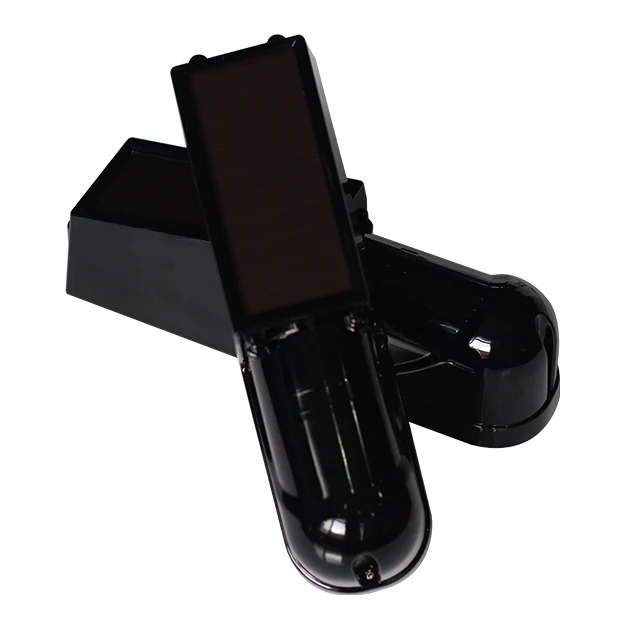

Product image



1.jpg3 - .jpg4.jpg7 - .jpg





Packaging & Shipping:

alarm system5.jpgCertificate.JPG

 package1.jpgalarm system8.jpg3.jpgalarm system7.jpg



FQA

Q1: Where is your Factory? How can I visit your company?



A1: Our factory is located in Shenzhen, Guangdong, China. We could pick you up from the hotel you live when you come to Shenzhen.



Q2:  Warranty?
A2:  Normally it’s one year, but it will be 2 years if you can be our agent



Q3: Can I get some Samples? Are your samples free or need cost?

A3: It can be free, but anyway we have to charge for the samples first, the sample charge can be returned after official order placed.



Q4: Could you please make OEM for us?
A4: Surely yes.OEM&ODM, any your customized alarm system we can help you to design and put into product



Q5: How long can I get your samples?

A5: For samples, it will be ready for delivery in 3-7 days after payment. The samples will be sent to you by express.



Q6: When can I get the price?

A6: Your inquiry related to our products or prices will be replied in 24 hours. If you are very urgent to get the price, please call us by 86-13189738025



Q7: What's your Payment method supported?

A7: We accept T/T, Western Union, L/C etc.



Q8: Shipping & Express
A8: 1). If you have specified shipping agent, we will contact them and to deliver your goods.

      2) If you do not have specified shipping agent, we will delegate a credible one for you to deliver your goods. Goods could be delivered by air, by sea, by express (DHL, UPS, TNT or FEDEX).



Please kindly contact us if you are interested in our products, we will offer you the best service and most competitive price .
