Фрезерный станок с ЧПУ 3 оси VMC650 фрезерный Вертикальный Станок с ЧПУ цена центра для Китая
- Category: Machine Centre & Parts >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (62175922181):
Product Overview
Description

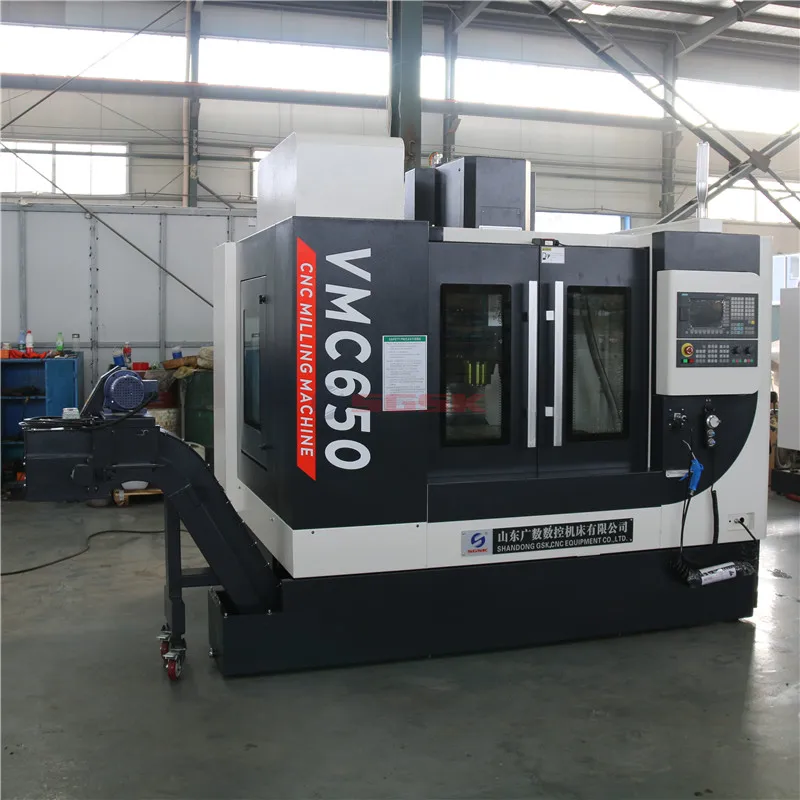

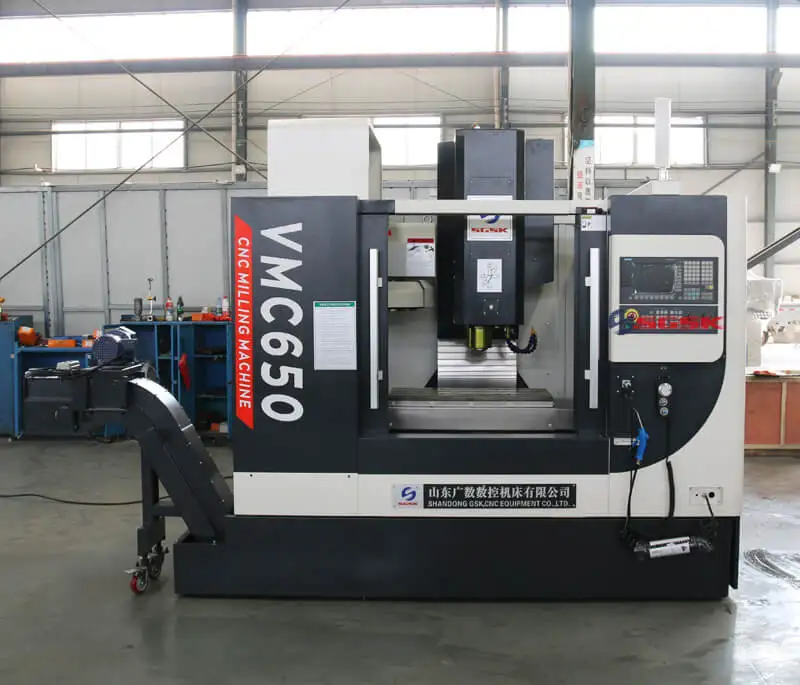

CNC milling machine 3 axis VMC650 cnc milling vertical machine center price for China
Details Display
Features:
High quality resin sand

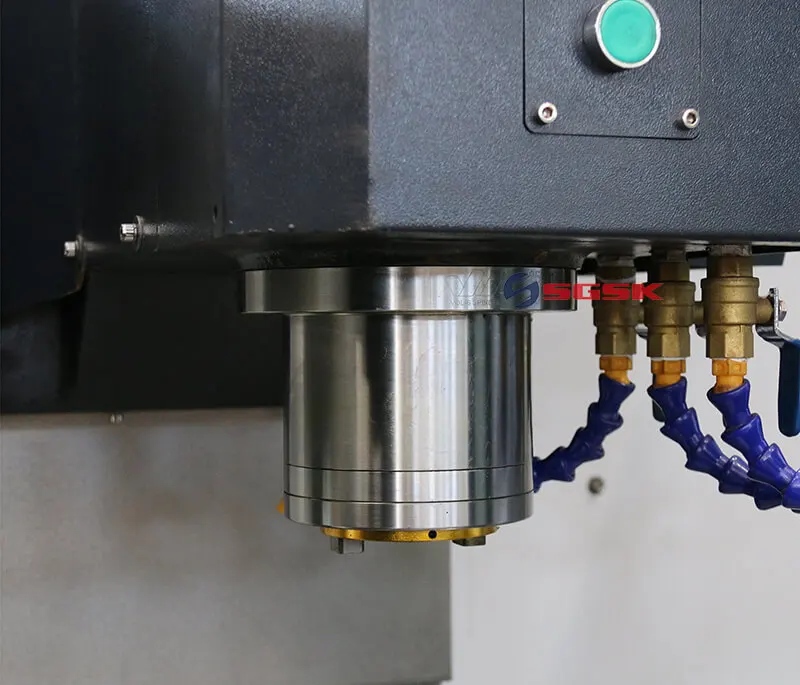

Taiwan spindle

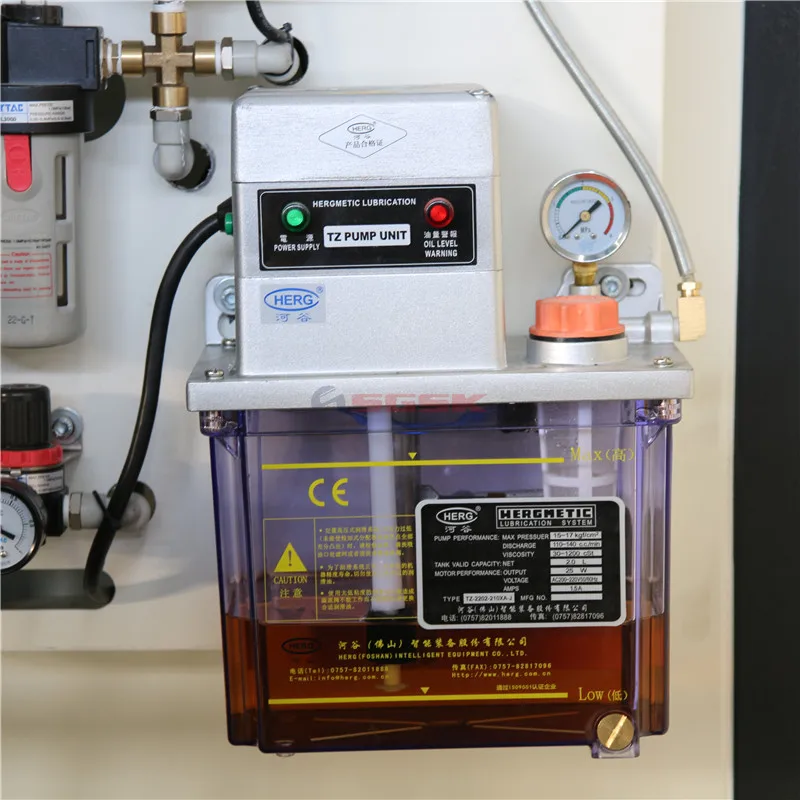

Automatic lubrication system
Chip conveyor at optional
High quality resin sand
Taiwan spindle
Automatic lubrication system
Chip conveyor at optional
Standard configuration | Optional configuration |

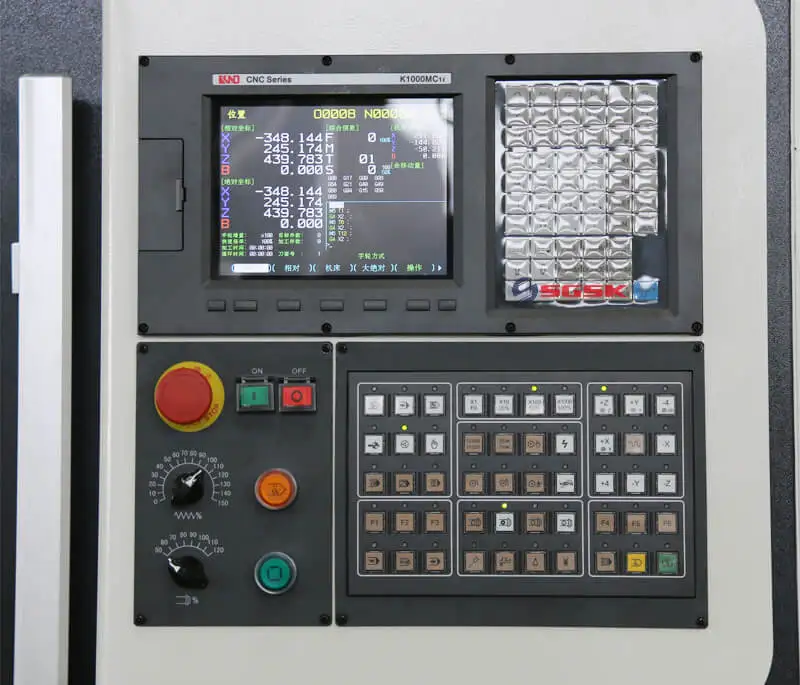

System:KND-1000M 16 Armless Tool Magazine 3 axis linear rail | System: SYNTEC,SIEMENS,FANUC 24 Arm Tool Magazine The 4th axis Spindle oil cooling Chip conveyor Oil-water separator 12000rpm spindle unit |
Product main technical specifications: | ||||
Specifications | Units | VMC650 | ||
Table size | mm | 800x400 | ||
X axis travel | mm | 650 | ||
Y axis travel | mm | 400 | ||
Z axis travel | mm | 500 | ||
Max. worktable load | kg | 400 | ||
T slot(number-width-pitch) | 3-18x125 | |||
Max. spindle speed | rpm | 8000(Optional:10000 ) | ||
Spindle taper | mm | BT40 | ||
Main motor power | kw | 5.5 | ||
X/Y/Z rapid traverse speed | m/min | 24/24/20 (Optional:48/48/36 ) | ||
Cutting feed speed | mm/min | 1-10000 | ||
Guide rail type | Linear rail | |||
Distance from spindle axis to column surface | mm | 469 | ||
Distance between spindle nose and worktable surface | mm | 100-600 | ||
Positioning accuracy | mm | ±0.0075 | ||
Repeat positioning accuracy | mm | ±0.005 | ||

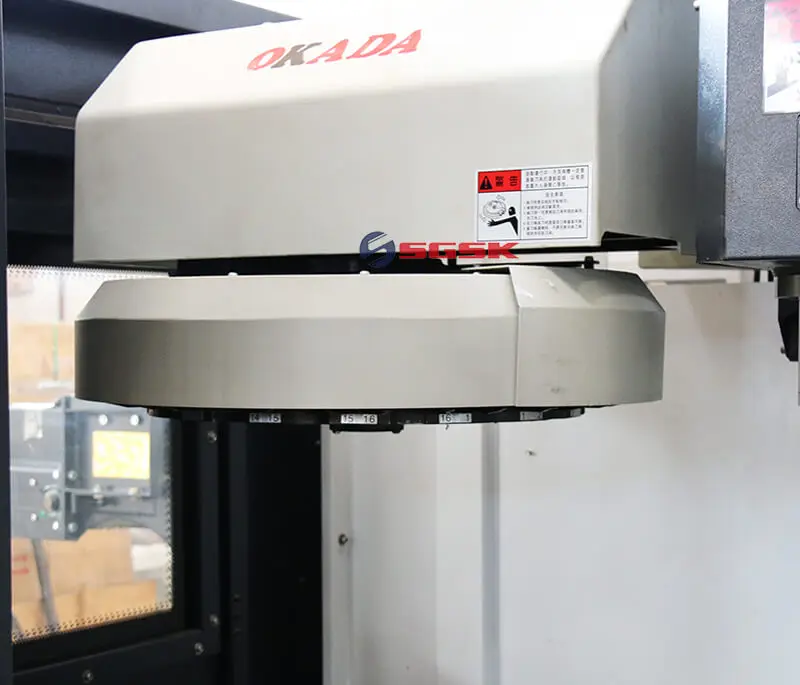

Tool magazine | 16 Armless/(Optional: Arm 24 ) | |||
Max. tool diameter | mm | φ90 | ||
Max.tool weight | kg | 8 | ||
Machine weight | kg | 4000 | ||

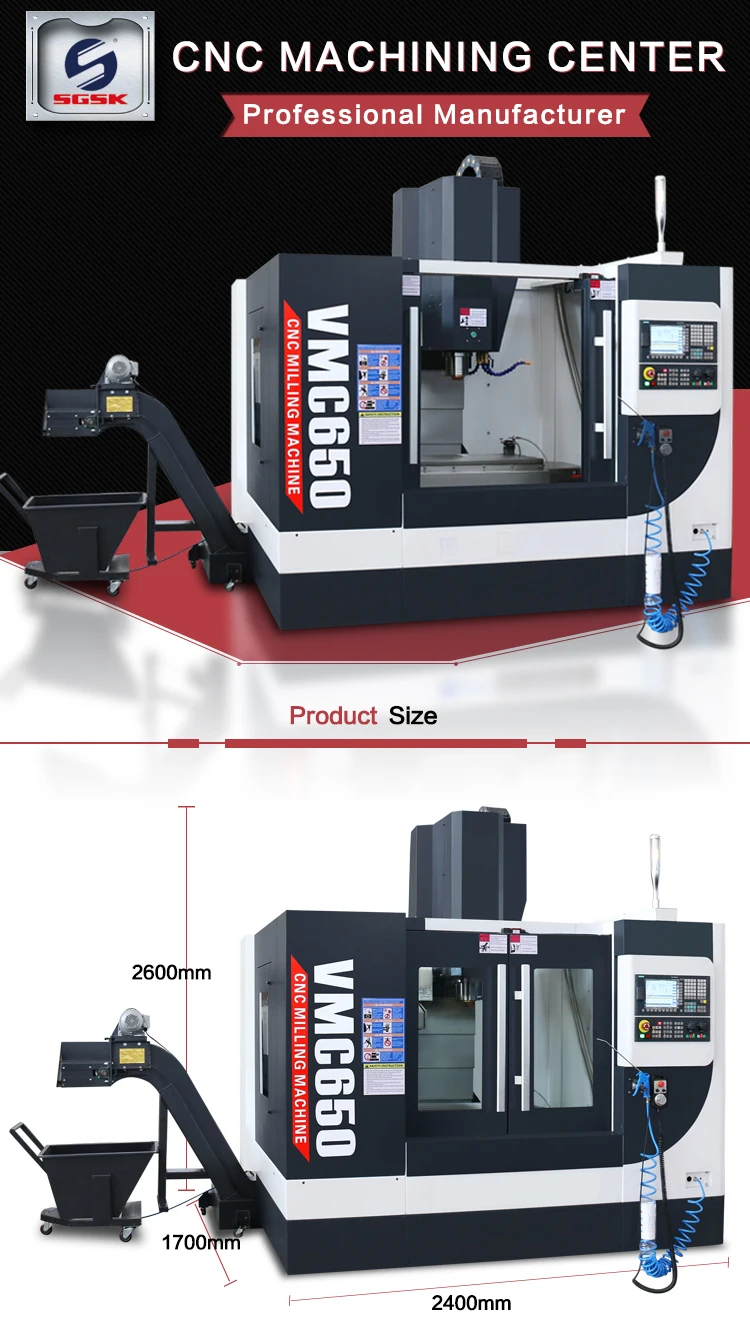

Overall dimension | mm | 2400x2000x2550 | ||
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself.
You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
