2mp 1080P 30fps CMOS USB IR Camera Module with IR Light 850nm 90 degree FOV 32x32mm PCB Board USB2.0
2mp 1080P 30fps CMOS USB IR Camera Module with IR Light 850nm 90 degree FOV 32x32mm PCB Board USB2.0
2mp 1080P 30fps CMOS USB IR Camera Module with IR Light 850nm 90 degree FOV 32x32mm PCB Board USB2.0
2mp 1080P 30fps CMOS USB IR Camera Module with IR Light 850nm 90 degree FOV 32x32mm PCB Board USB2.0
2mp 1080P 30fps CMOS USB IR Camera Module with IR Light 850nm 90 degree FOV 32x32mm PCB Board USB2.0
2mp 1080P 30fps CMOS USB IR Camera Module with IR Light 850nm 90 degree FOV 32x32mm PCB Board USB2.0
2mp 1080P 30fps CMOS USB IR Camera Module with IR Light 850nm 90 degree FOV 32x32mm PCB Board USB2.0

2mp 1080P 30fps CMOS USB IR Camera Module with IR Light 850nm 90 degree FOV 32x32mm PCB Board USB2.0

Share on (62175926430):


Price:$35.00 - $36.00

Quantity:


Product Overview

Description

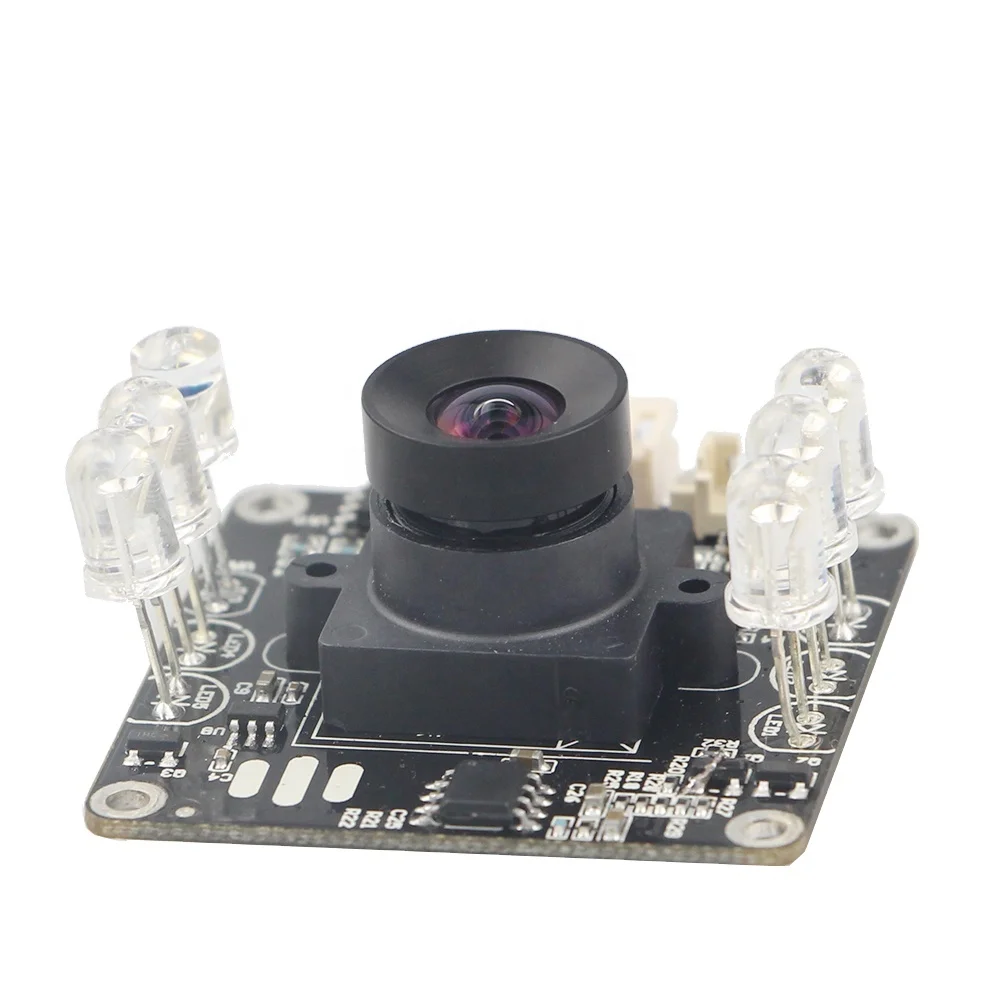

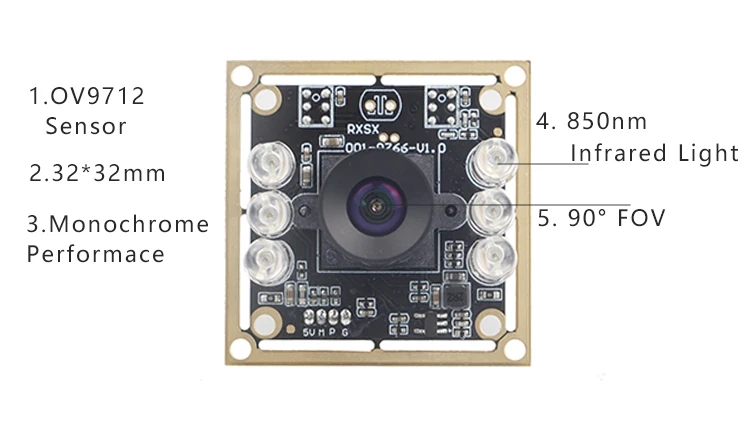

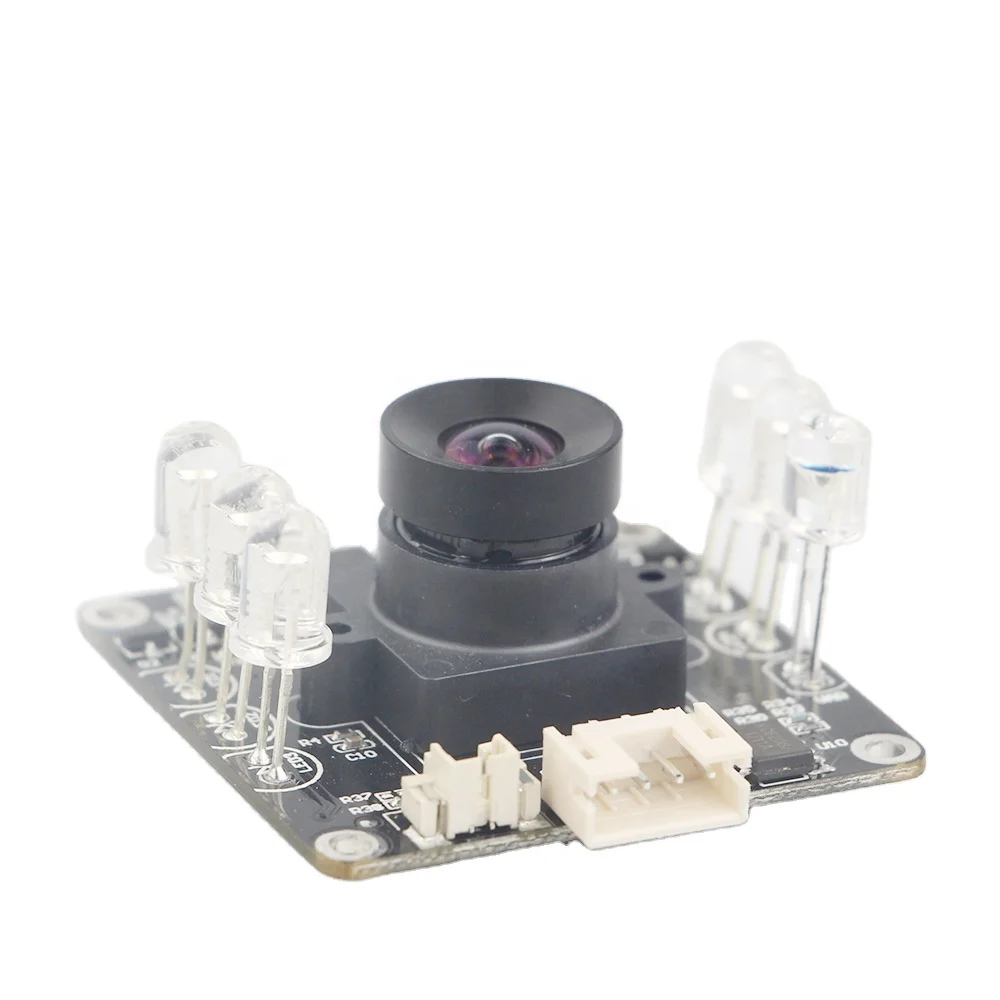

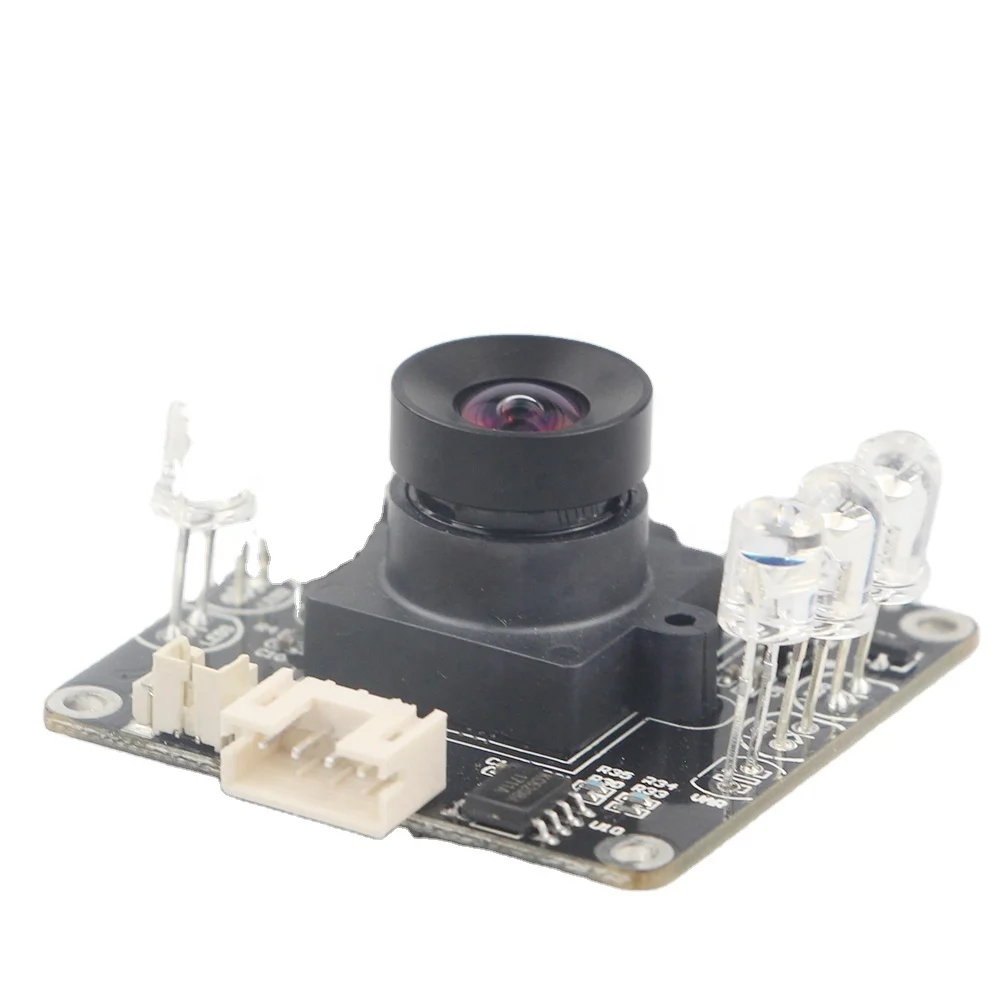

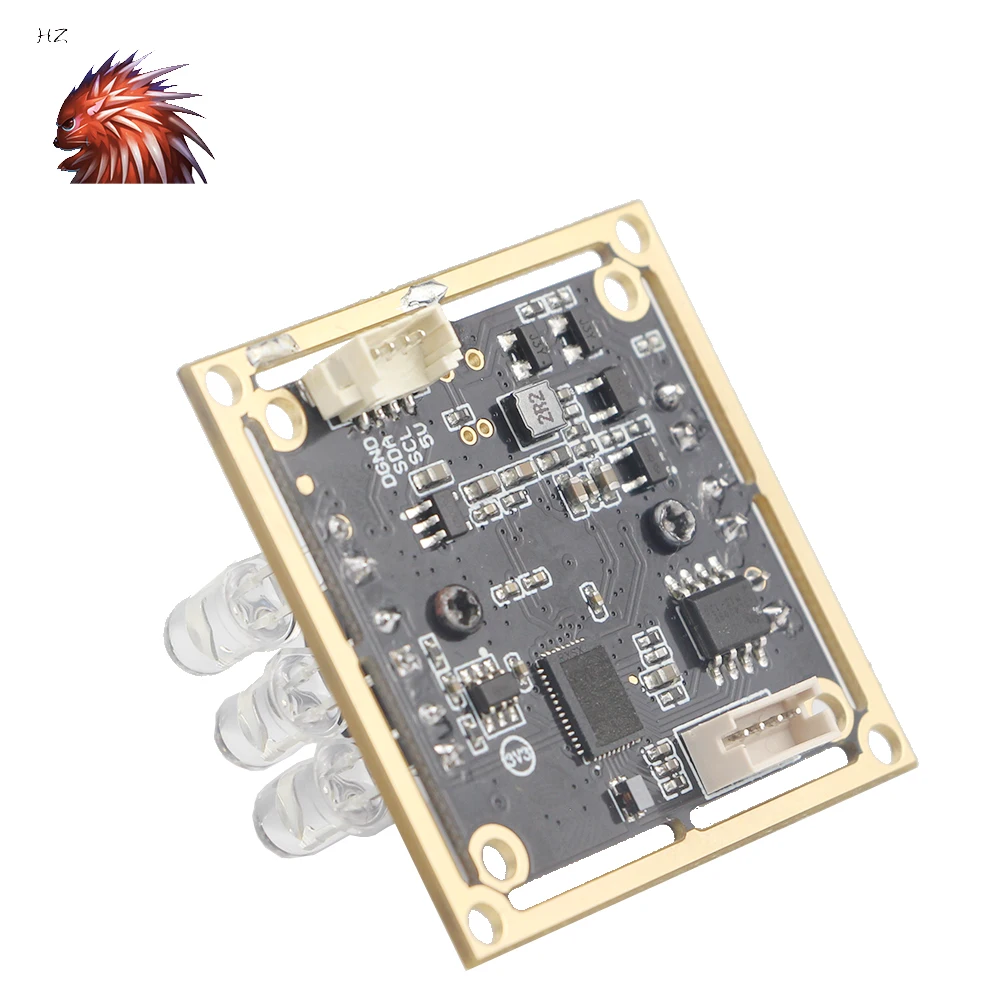

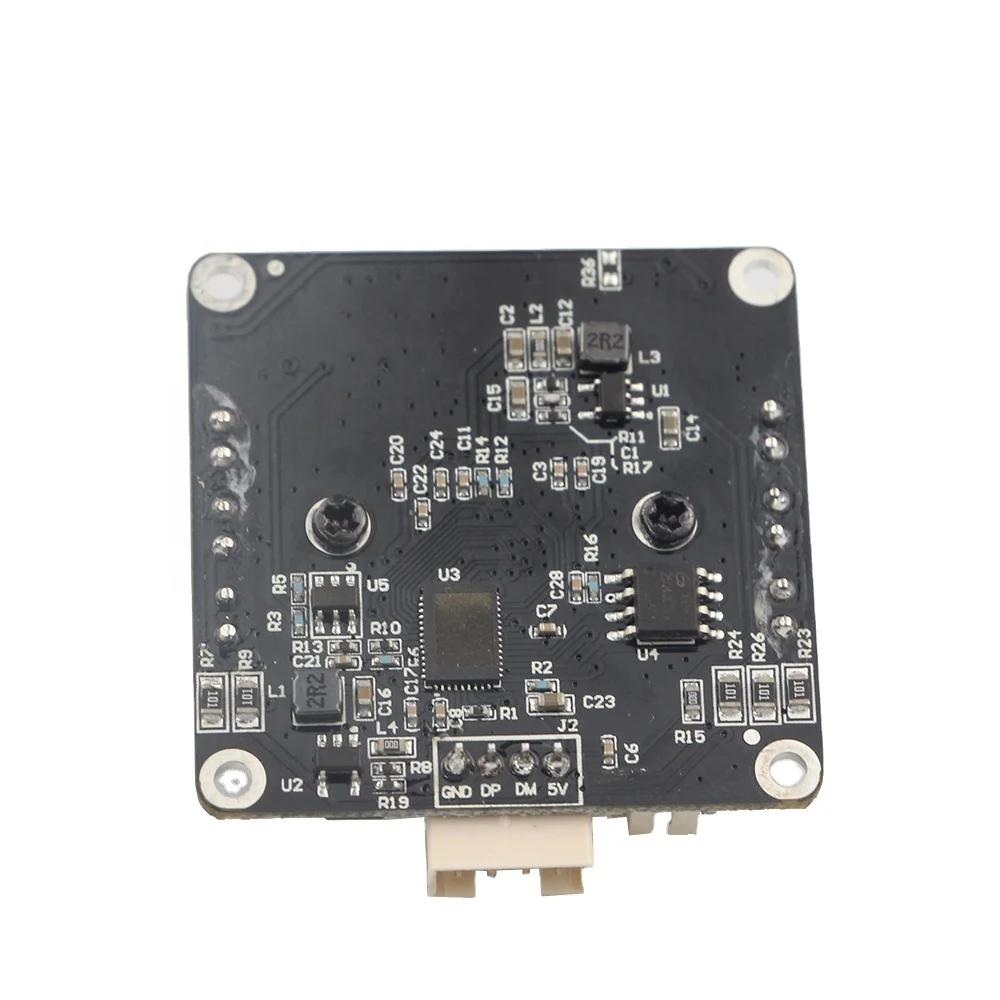

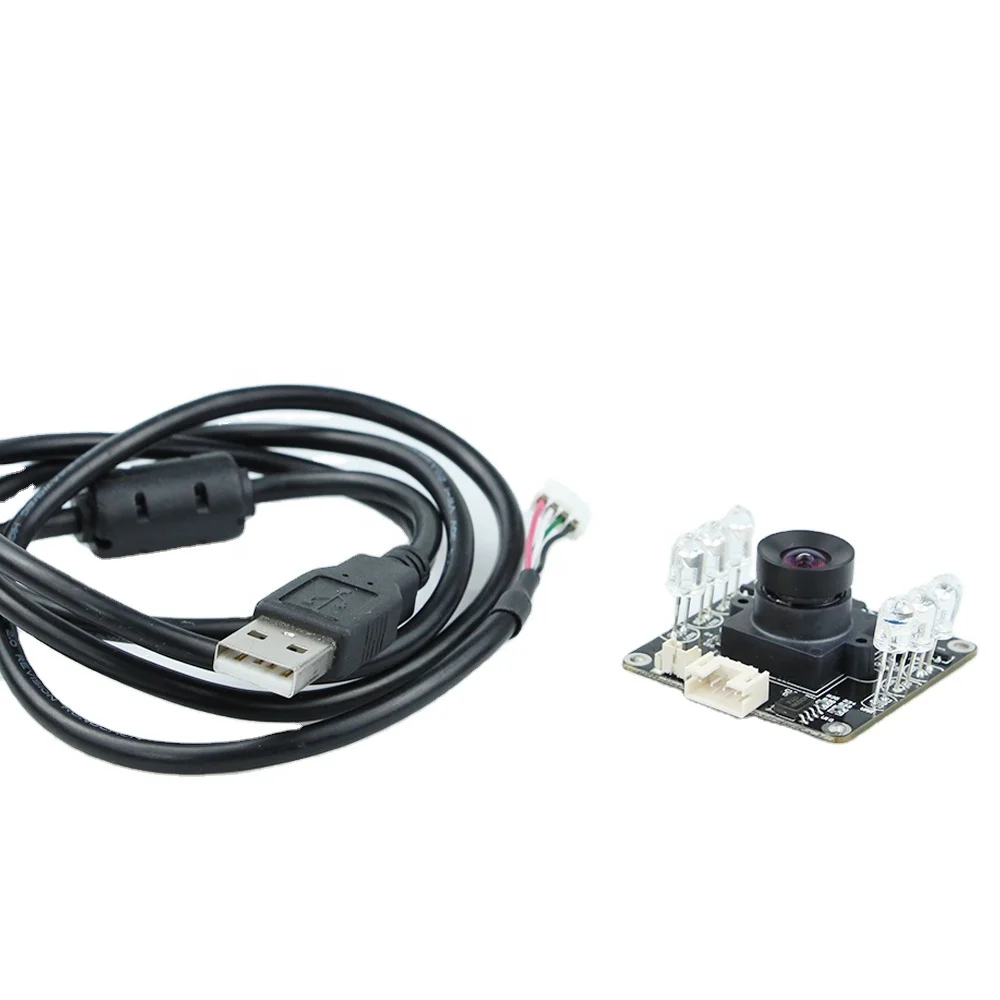

2mp 1080P 30fps CMOS USB IR Camera Module with IR Light 850nm 90 degree FOV 32x32mm PCB Board USB2.0


Module No.
0230-IR
Module Size
32mm *32mm
Object distance
20CM-∞
Resolution
800LW/PH (Center)
Focus
Fixed
Image color
Monochrome

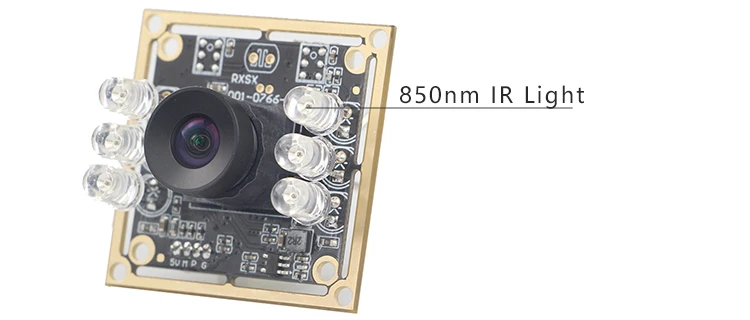

LED
850nm LIGHT
working Voltage
5V
working current
Max 500mA
Temperature (Operation)
-30°C to 70°C
Temperature (Stable Image)
0°C to 50°C
Operating system request
Windows 2000 ,Windows XP/ 7 / 8 /10 /Linux or OS with UVC Driver
Package
Anti-electrostatic tray
Sensor Type
Sensor No
AR0230
Sensor Type
1/2.7″
Active Array Size
1920x1080
Sensitivity
3700mV/(Lux·sec)
Pixel Size
3μm x 3μm
Maximum Image Transfer Rate
1080P@30fps
Dynamic Range
77DB
LENS
Lens Type
5G
FOV
D=90°~170°
IR-Cut
no
Mount
M12*p0.5mm
DSP Type
3μm x 3μm
GC/EC/Whiter balance
Auto
Interface
USB 2.0
Output Formats
YUY2/MJPG
Application
Face Recognition, Surveillance
