Product Overview

Description


Description

AS-AIS Addressable Loop Short Circuit Isolator


AS-AIS short circuit isolators are used for the short circuit fault protection of buses. When a bus circuit is operating normally, the AS-AIS short circuit isolator will not operate; when a short circuit fault occurs at a place at the output end of the short circuit isolator in the bus circuit (short-circuit current >200mA), the section suffering the short circuit fault will be cut off from the bus, thus ensuring the normal communication of the other sections of the bus.


Upon elimination of the short circuit fault, the short circuit isolator can automatically bring the isolated section into the system again. A short circuit isolator will make it convenient to confirm the location suffering a short circuit fault. The short circuit isolator does not need coding nor occupies the address in the bus circuit.

Pictures
Parameters
\t
Product Name
\t
AS-AIS Addressable Loop Short Circuit Isolator
\t
Model No.
\t
AS-AIS
\t
Power supply
\t
24VDC
\t
Standby Current
\t
<5mA
\t
Alarm Current
\t
<200mA
\t
Indicator
\t
Yes
\t
Wiring
\t
L1, L2 signal line
\t
Quantity of intelligent loads
\t
<30pc
\t
Operating Temperature
\t
-10℃~50℃
\t
Relative Humidity
\t
≤95%
\t
Matched Host
\t
AS-MN3010 and AS-9108E

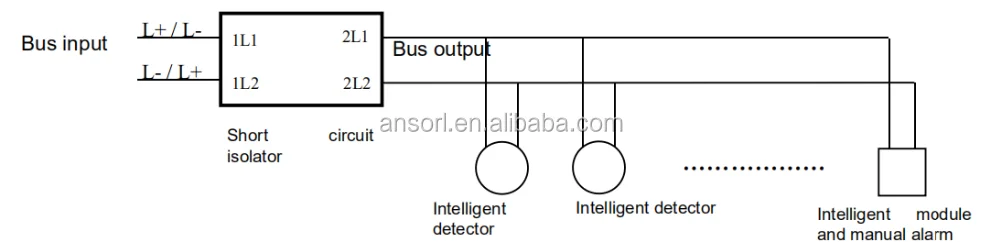

Wiring Method:

Related Products

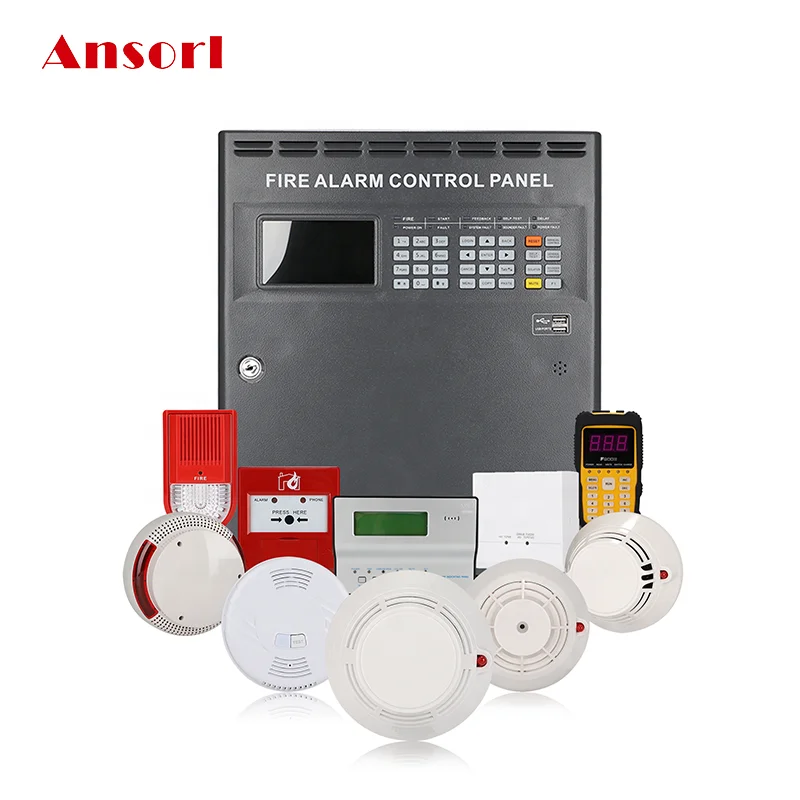

Click below picture to view the details of addressable fire alarm panel.
