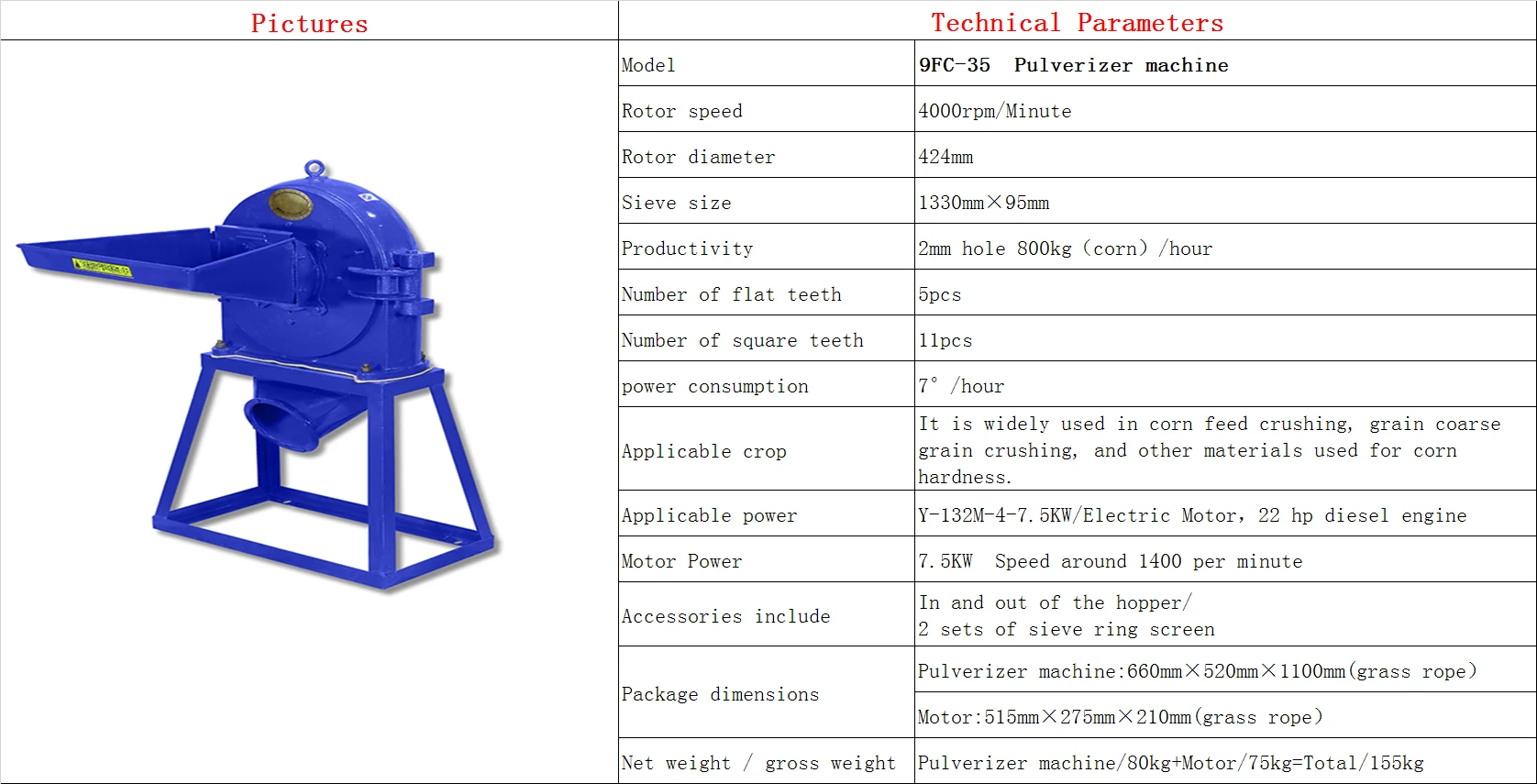

Technical Parameters | |
Model | 9FC-35 Vertical bucket Pulverizer machine |
Rotor speed | 4000rpm/Minute |
Rotor diameter | 350mm |
Sieve size | 1330mm×95mm |
Productivity | 2mm hole 800kg(corn)/hour |
Number of flat teeth | 5pcs |
Number of square teeth | 11pcs |
power consumption | 7°/hour |
Applicable crop | It is widely used in corn feed crushing, grain coarse grain crushing, and other materials used for corn hardness. |
Applicable power | Y-132M-4-7.5KW/Electric Motor,22 hp diesel engine |
Motor Power | 7.5KW Speed around 1400 per minute |

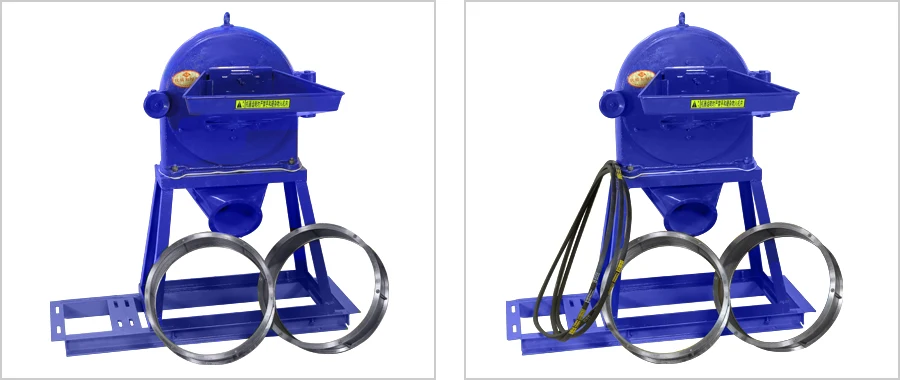

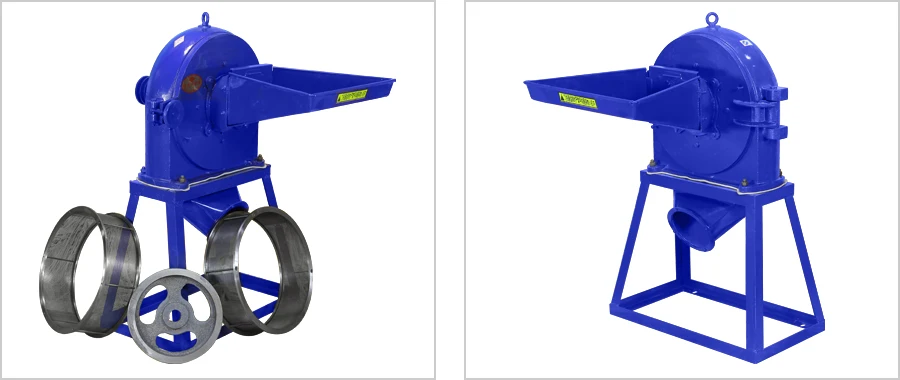

Accessories include | In and out of the hopper/2 sets of sieve ring screen |
Package dimensions | Pulverizer machine:660mm×520mm×1100mm |
Motor:515mm×275mm×210mm(Straw rope) | |
Net weight / gross weight | Pulverizer machine/80kg+Motor/75kg=Total/155kg |

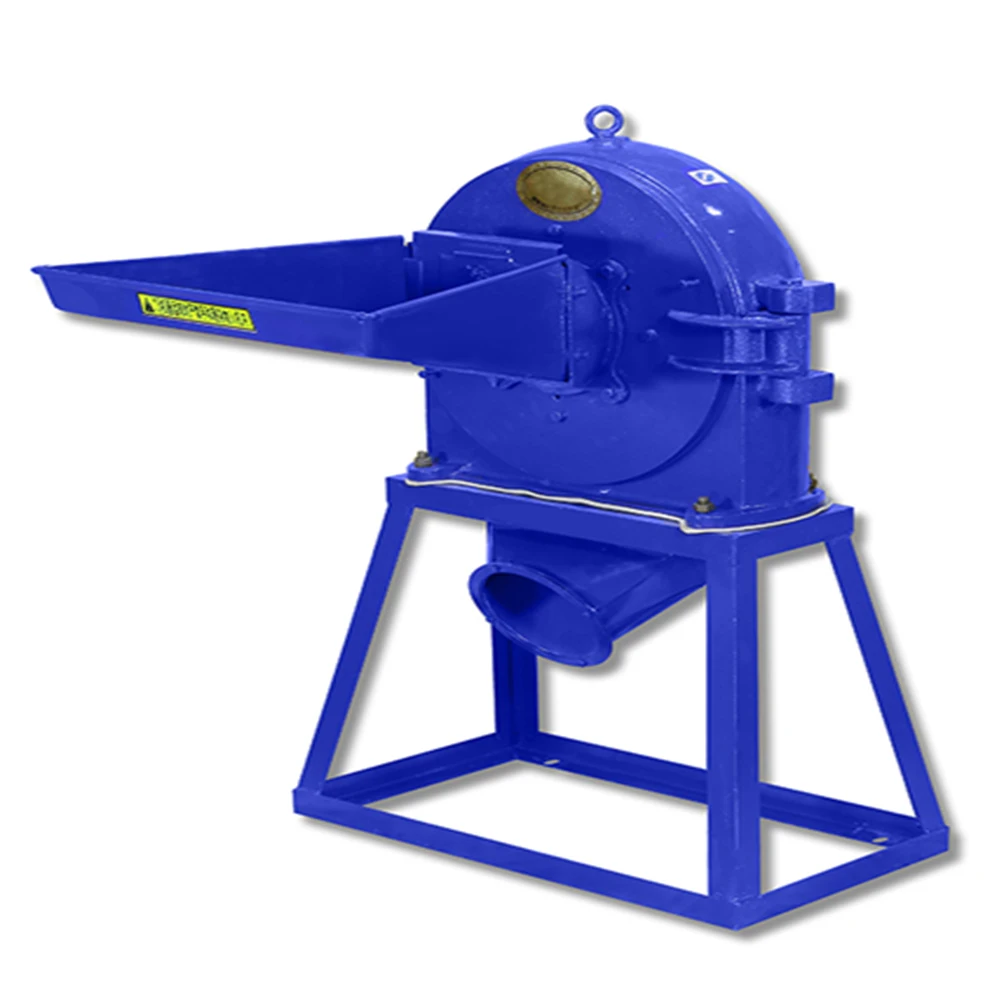

9FC-35 Pulverizer machine
9FC-35 Pulverizer effect
It is applied to the crushing of straw, corn, whole grains and the crushing of other corn hardness materials.
Advantages of the 9FC-35 Vertical bucket Pulverizer
The use of a special custom three-phase asynchronous motor, wide voltage use, can solve the problem of low voltage start-up, frequent start-up, especially suitable for areas with unstable power supply.
There is a sealing strip on the cover, the machine has a good sealing effect, and the dust is small during work, which is clean and hygienic.
The main components are thickened to ensure stable operation of the machine for a long time.
The surface of the machine is sprayed with a fully automatic electrostatic spray process, which is bright and corrosion resistant.










Q1:Are you a factory or trading company?
We are a factory with self-supported import and export right.
Q2:Why choose us?
We are specialized in rice mill machine for many years production experience.
Q3:What is your terms of payment?
We accept T/T,irrevocable L/C at sight.
Q4:What about lead oor shipping time?
The lead time depends on the quantity you ordered,generally witnin 8-12 days upon receipt of advance payment.
Q5:How about the warranty?
12 months warranty from the time of the goods arrive at destination.
