Factory Direct Supply Semi Automatic Laminated Glass Cutting Machine

Product Overview

Description

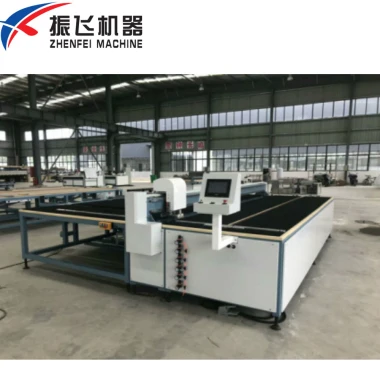

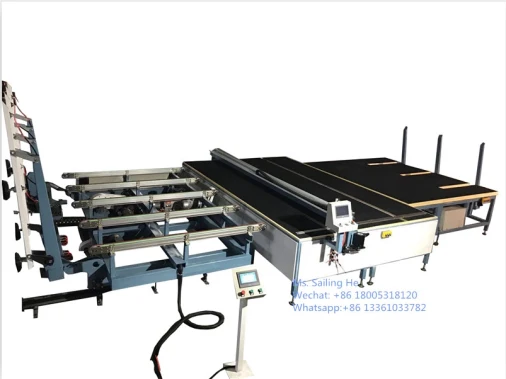

Factory Direct Supply Semi-Automatic Laminated Glass Cutting Machine



Performance:
National standard square tube welding machine frame. The synchronous belt transmission system.

Imported PLC and electrical parts, stepper motor, liquid crystal display, man-machine interface,

convenient operation and stable performance. The cutting speed can be set directly. Upper and

lower cutter head to cut, match degree is high, break easily.

Cutting accuracy:                  ≤0.50 mm
The diagonal accuracy:         ≤1 mm/m or less
Cutting maximum size:        2440 x 3660 mm (special specifications can be customized according to

                                               customer needs)
Cutting the minimum size:   100 mm
Cutting thickness:                  0.38 + 3 + 3 -- 10 + 3.04 + 10 mm
Cutting efficiency:                 1/3-4 minutes
Knife wheel life:                  3-50000 meters (linear conventional cutting)
Operator:                              1-2 people
Equipment size:                    4300 * 2700 * 1200 (dimensions) 20’FCL.





Contact Person: Ms. Sailing He

Whatsapp/Wechat: +86 13361033782

Skype: judy.he74





Guarantee & Aftersales service:

1)Guarantee the complete machine for 12 months, except the consumable parts.

2) 24-hours technical support by email or calling.

3) User-friendly English manual for machine using and maintaining.
