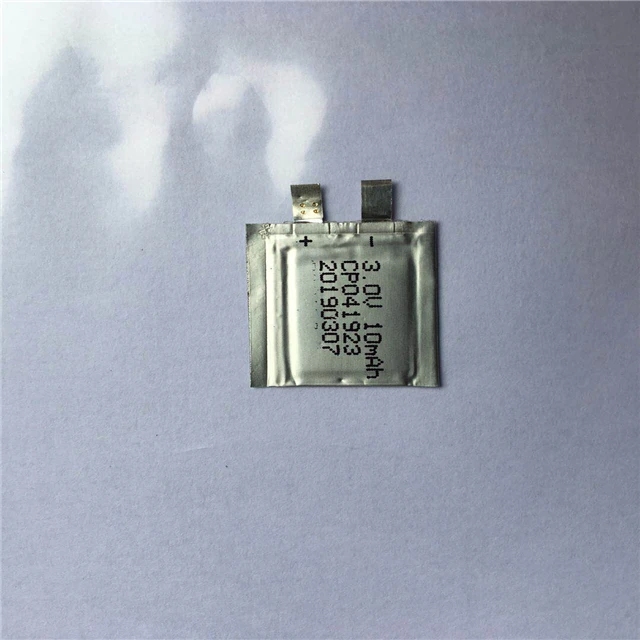

Primary Lithium Manganese Dioxide 3V LiMnO2 battery model 041923 thin 10mAh

Product Overview

Description

1. Non-rechargeable CP 041923-3.0V-10mAh ultra thin  and mini size battery Primary Technology Prameters:

Item			Content	Note
Capacity	Nominal		10mAh	Discharge:0.2CmA
	Minimum		8mAh
	Energy		0.0296Wh
Nominal Voltage			3.0V
Discharging Current (Std)			2.0mA	0.2CmA
Discharging Current (Max)			10mA	1CmA
Discharge Cut-off Voltage			2.00V
Storage Temperature		less than 1 month	-10~+45℃	Percentage of recoverable capacity 80%
		less than 6 months	-10~+35℃
Storage Voltage			3.00~3.30V



 2. Dimension of ultra thin battery cell CP041923 -3.0V-10mAh

Mark	Description	Dimension Specification
T	Thickness	Max 0.40mm
W	Width	Max 19.50mm
L	Length	Max 23.50mm
A	Outing length of lead	5±2mm
B	Center Distance between two leads	3.50±2mm
C	Width of lead	1.0±0.2mm
D	The distance length from main battery cell to top sealed location	2.0±0.5mm

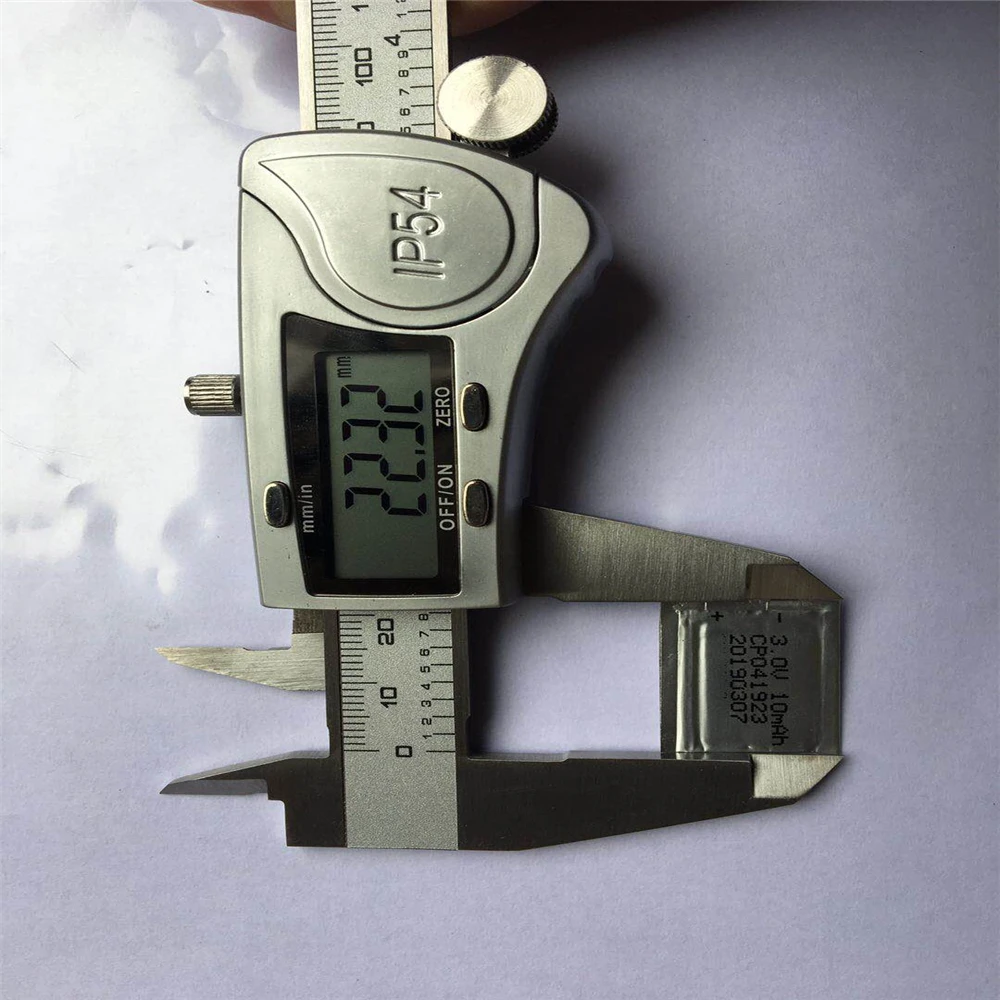

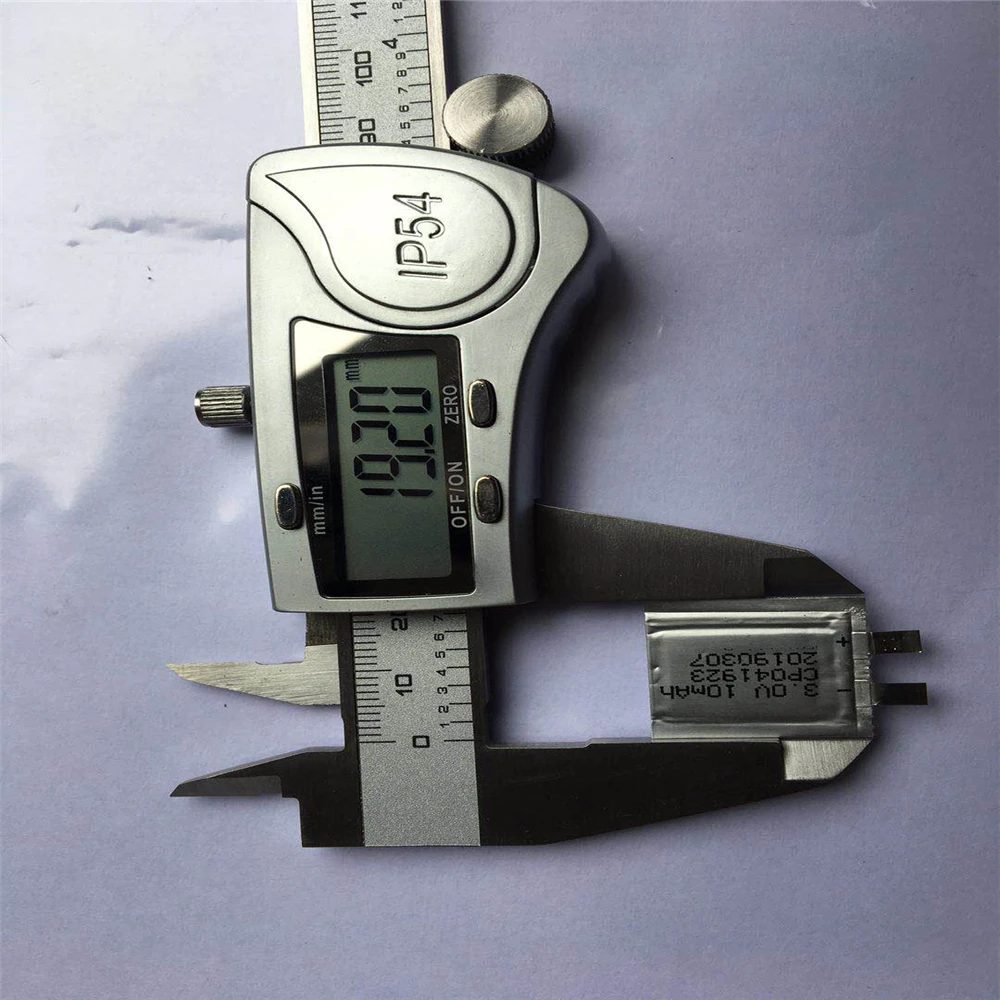

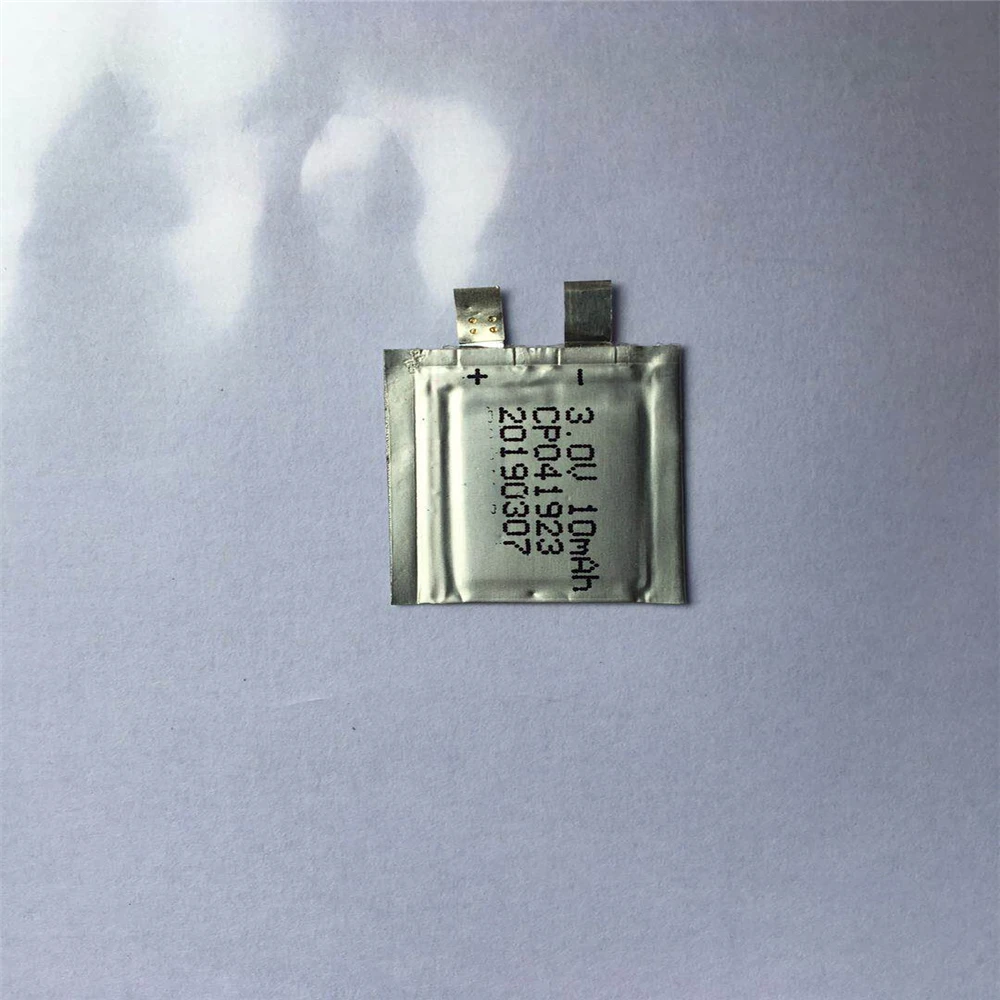

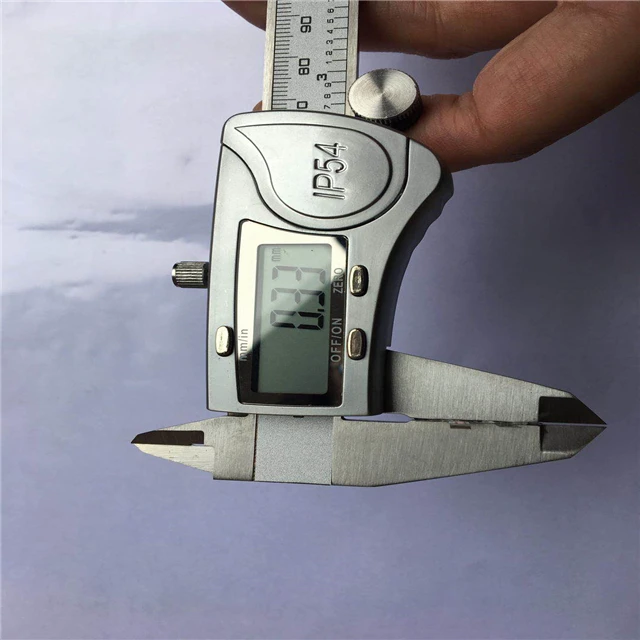

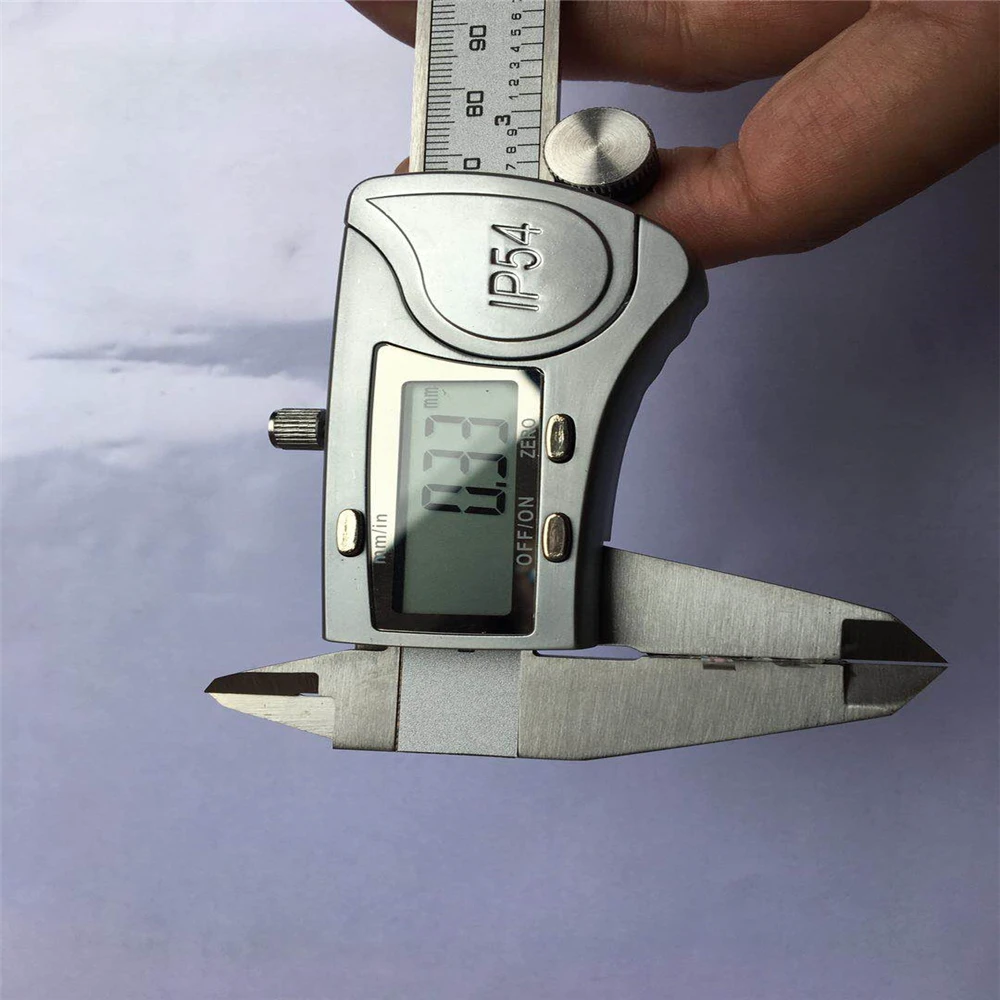

3. CP041923-3.0V-10mAh battery cell Picutures as blow:



4. Ultra thin battery model list and customized thin battery can be made according to your requirement:

Ultra-thin lipo rechargeable model list:





LiPo032525-3.7V-10mAh thickness 0.3mm,

LiPo032550-3.7V-20mAh thickness 0.40mm,

LiPo041322-3.7V-3mAh thickness 0.50mm,

LiPo042525-3.7V-10mAh thickness 0.50mm,

LiPo042330-3.7V-12mAh thickness 0.50mm,

LiPo042550-3.7V-25mAh thickness 0.50mm,

LiPo043838-3.7V-35mAh thickness 0.50mm,

LiPo052026-3.7V-10mAh  thickness 0.60mm,

LiPo052525-3.7V-12mAh thickness 0.60mm,

LiPo054560-3.7V-90mAh thickness 0.60mm,

LiPo084646-3.7V-85mAh Thickness 0.82mm,

LiPo044040-3.7V-65mAh Thickness 0.45mm,

LiPo101010-3.7V-3mAh Thickness 1.30mm,

LiPo201010-3.7V-8mAh Thickness 2.10mm,

LiPo04125130-3.7V-300mAh Thickness 0.45mm,

LiPo152060-3.7V-135mAh Thickness 1.50mm,

LiPo120736-3.7V-15mAh Thickness 1.30mm,

LiPo043040-3.7V-25mAh Thickness 0.45mm,

LiPo043030-3.7V-18mAh Thickness 0.45mm,

LiPo073525-3.7V-40mAh Thickness 0.72mm,

LiPo042232-3.7V-15mAh Thickness 0.45mm,

LiPo044040-3.7V-30mAh Thickness 0.45mm,

LiPo052346-3.7V-15mAh Thickness 0.45mm,

LiPo054050-3.7V-45mAh Thickness 0.50mm,

LiPo071923-3.7V-13mAh Thickness 0.70mm,

LiPo091224-3.7V-8mAh Thickness 0.90mm,

LiPo102323-3.7V-28mAh Thickness 1.00mm,

LiPo103333-3.7V-60mAh Thickness 1.00mm,

LiPo104038-3.7V-100mAh Thickness 1.00mm,

LiPo150630-3.7V-18mAh Thickness 1.50mm,

LiPo151020-3.7V-18mAh  Thickness 1.50mm,

LiPo183248-3.7V-220mAh Thickness 1.80mm,

LiPo152040-3.7V-100mAh Thickness 1.50mm,

LiPo180925-3.7V-25mAh Thickness 1.80mm,

LiPo103050-3.7V-100mAh Thickness 1.00mm,

LiPo182550-3.7V-175mAh Thickness 1.80mm,

LiPo042255-3.7V-25mAh Thickness 0.45mm,

LiPo054050-3.7V-45mAh Thickness 0.50mm,

LiPo064525-3.7V-45mAh Thickness 0.60mm,

LiPo043228-3.7V-15mAh Thickness 0.45mm,

LiPo072620-3.7V-14mAh thickness 0.75mm,

LiPo072822-3.7V-20mAh thickness 0.75mm,

LiPo074640-3.7V-60mAh thickness 0.8mm,

LiPo075055-3.7V-130mAh thickness 0.8mm,

LiPo082620-3.7V-16mAh thickness 0.85mm,

LiPo084545-3.7V-100mAh thickness 0.85mm,

LiPo085055-3.7V-165mAh thickness 0.9mm,

LiPo092630-3.7V-35mAh thickness 0.95mm,

LiPo093535-3.7V-50mAh thickness 0.95mm,

LiPo093838-3.7V-60mAh thickness 0.96mm,

LiPo094241-3.7V-52mAh thickness 0.9mm,

LiPo093945-3.7V-90mAh thickness 0.95mm,

LiPo094660-3.7V-100mAh thickness 0.95mm,

LiPo093030-3.7V-50mAh thickness 0.9mm,

LiPo155050-3.7V-100mAh thickness 1.5mm,

LiPo032060-3.7V-20mAh thickness 0.3mm,

LiPo032749-3.7V-24mAh thickness 0.3mm,

LiPo121515-3.7V-20mAh thickness 1.2mm,

LiPo223048-3.7V-220mAh thickness 2.2mm,

LiPo254150-3.7V-500mAh thickness 2.5mm and so on.



Ultra-thin CP Li-MnO2 Primary Lithium Battery Model List:

CP042722-3.0V-15mAh thickness 0.4mm,

CP042922-3.0V-17mAh thickness 0.4mm,

CP042039-3.0V-25mAh thickness 0.4mm,

CP042345-3.0V-36mAh thickness 0.4mm,

CP052727-3.0V-22mAh thickness 0.5mm,

CP052922-3.0V-24mAh thickness 0.5mm,

CP052039-3.0V-35mAh thickness 0.5mm,

CP052345-3.0V-52mAh thickness 0.5mm,

CP054248-3.0V-100mAh thickness 0.5mm,

CP082922-3.0V-100mAh thickness 0.8mm,

CP084248-3.0V-320mAh thickness 0.8mm,

CP092030-3.0V-50mAh thickness 0.9mm,

CP124920-3.0V-160mAh thickness 1.2mm,

CP142828-3.0V-160mAh thickness 1.4mm, CP153030-3.0V-170mAh thickness 1.5mm, CP162235-3.0V-170mAh thickness 1.6mm, CP164548-3.0V-700mAh thickness 1.6mm and so on.





 5.  Application Fields

Those ultra tiny and thin battery are applied in sensors, labels, medical devices, power cards, smart cards, active RFID, wearable devices, message device, e-ink displays, RFID, Credit cards, key tag, cards and so on.



Currently, those thin batteries are already exported to America, France, Germany, Australia and 50 other countries and regions.



6. How to have a order?

(1)Online talk or inquire by email to confirm order(quantities, color, payment terms, delivey time etc.)

(2)Sales will make the Proforma Invoice(PI) and send it to your email address.

(3)Customer or client will make the payment against the Proforma Invoice(PI).

(4)We will start the order when we have received the payment.

(5)We will inform our customer or client purchase order situation timely.

(6)We will arrange shipment after 100% payment confirmed.



7. FAQ

Question: Do you have current sample in stock usually?

Answer: Usually, we don't have samples in stock because different customers have different requirement, even the voltage and capacity are the same, other parameters maybe different. Well, we could finish your sample once our customer or client order confirmed.
