Низкая цена волоконно оптический адаптер SC волоконно оптический адаптер одиночный режим многорежимный трансивер фланец волоконно оптический адаптер, низкие потери
- Category: Fiber Optic Connectors >>>
- Supplier: Nanjing Coecom Optoelectronic Equipment Co. Ltd.
Share on (62176217346):
Product Overview
Description
Product details
Cheap Price Fiber Adapter SC Fiber Adapter Single Mode Multimode Flange Fiber Adapter, Low Loss
Function & application

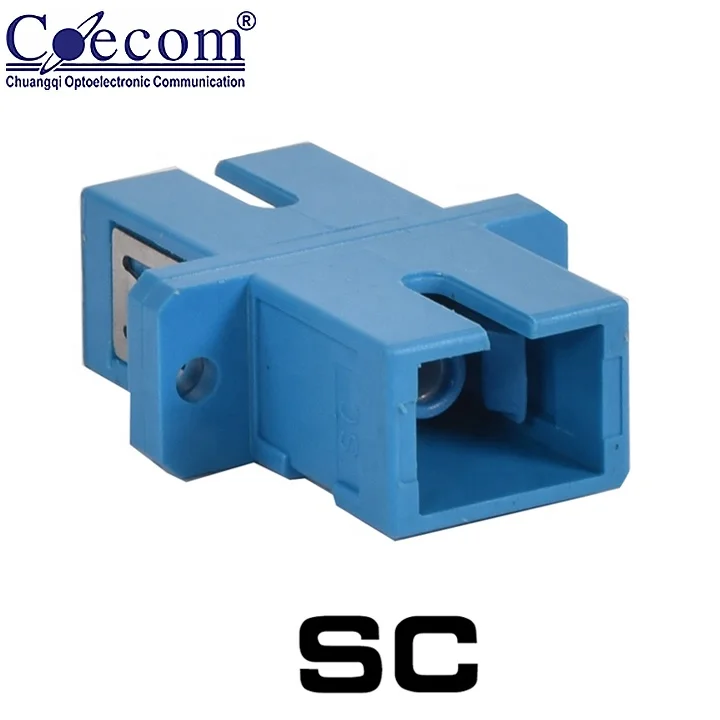

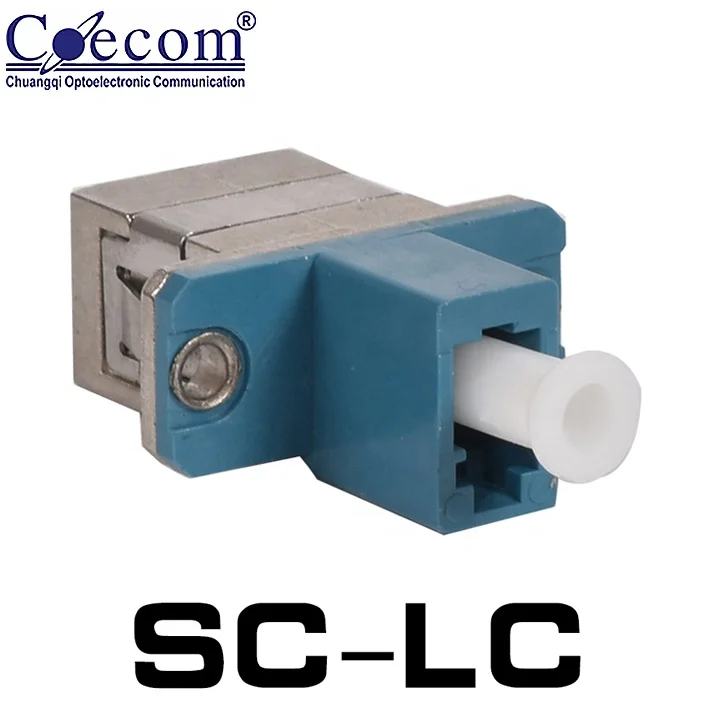

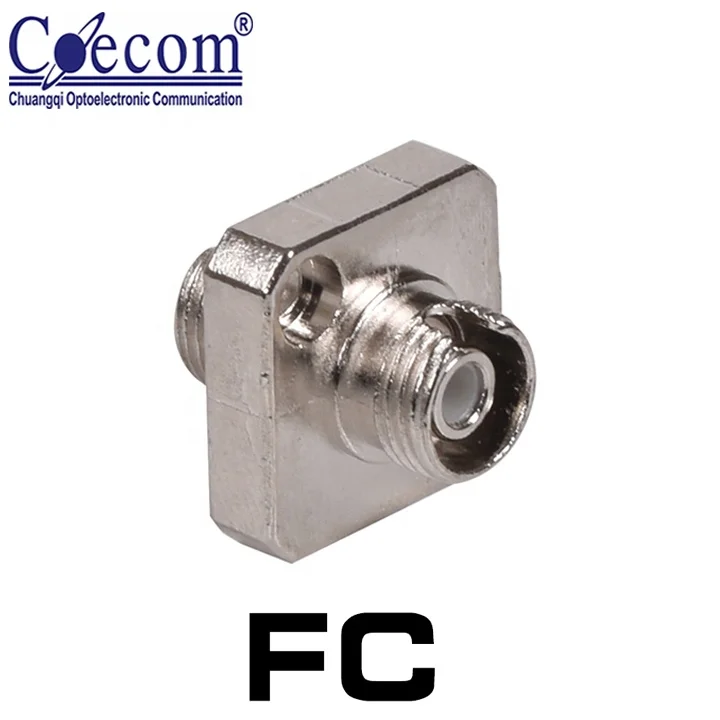

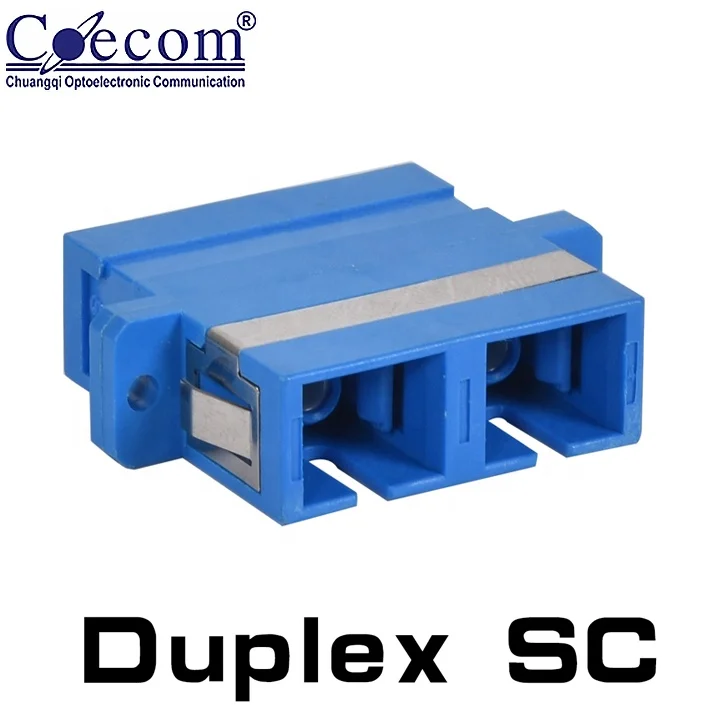

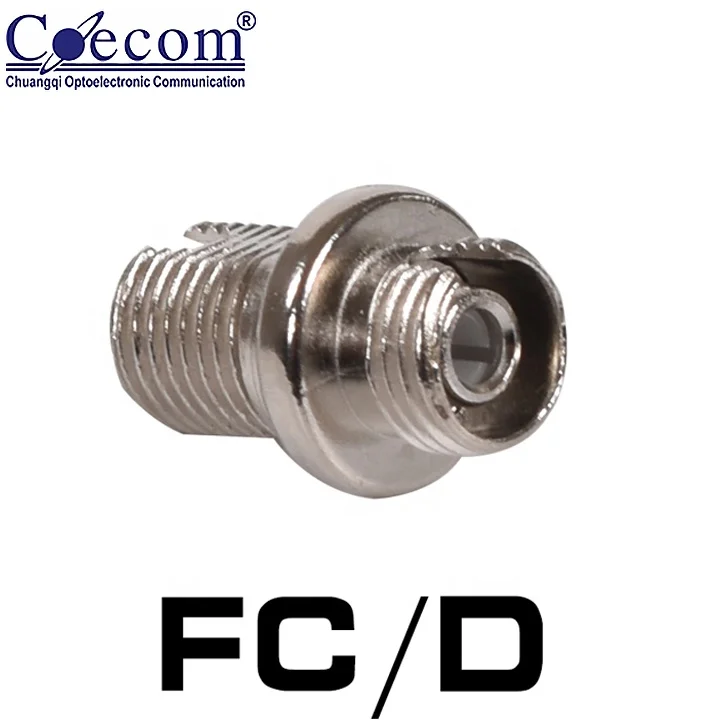

Used for active connection between two optical fiber connectors, including ST, SC, FC, LC, SMA, ST-SC, ST-FC, ST-LC, etc.Among them, ST, SC, FC, LC, SMA and so on are the same kind of type connection (Mating sleeves) , ST-SC, ST-FC, ST-LC and so on are the different kinds of type connection(Hybrid adapter).ST, FC have D shape, rectangle, square, SC, LC have a single, double, four, can meet the needs of different applications.
- Fiber optic transmission system
- Fiber optic sensing
- Fiber optic distribution frame
Testing/Measurement Instruments
LAN
CATV
Telecommunication networks
Main features
Low insertion loss
- High return loss
Easy to be installed
Various specifications
Good environmental stability
Product parameters
Cheap Price Fiber Adapter SC Fiber Adapter Single Mode Multimode Flange Fiber Adapter, Low Loss
| Product name | Cheap Price Fiber Adapter SC Fiber Adapter Single Mode Multimode Flange Fiber Adapter, Low Loss | |||||||||
| Product type | FC or FC/D | ST | SC | LC | SMA | ST/SC | FC/SC | FC/ST | Utralow insertion loss (FC SC ST) | |
| Insertion loss | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.1 | ≤0.5 | ≤0.4 | ≤0.5 | ≤0.1 | MM≤0.05 | SM≤0.1 |
| Repeated mating | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.05 | |
| Sleeve material | Mainly zirconia ceramic, phosphor bronze can be optional | |||||||||
| Plug and unplug | ≥500times | |||||||||
| Insertion force | 300-600g | |||||||||
| Operating temperature | -40~+70°C | |||||||||
| Storage temperature | -55~+85°C | |||||||||
| According standard | BelicoreTA-NWT-001209 | |||||||||
| Note | 1. Optical jumper connectors are similar to wire plugs,adpters are similar to outlets. 2. The key indicators of adapter are insert loss and tensile strength,the smaller interpolation loss & the range of interpolation force, the better. 3.The performance of ceramic sleeve is better than phosphorus bronze sleeve. | |||||||||
