LVcheng restaurant kitchen bbq commercial rangehood for kitchen fume exhaust system
- Category: Range Hoods >>>
- Supplier: Nanning Lvcheng Environmental Protection Equipment Co. Ltd.
Share on (62176293952):
Product Overview
Description
Product Description

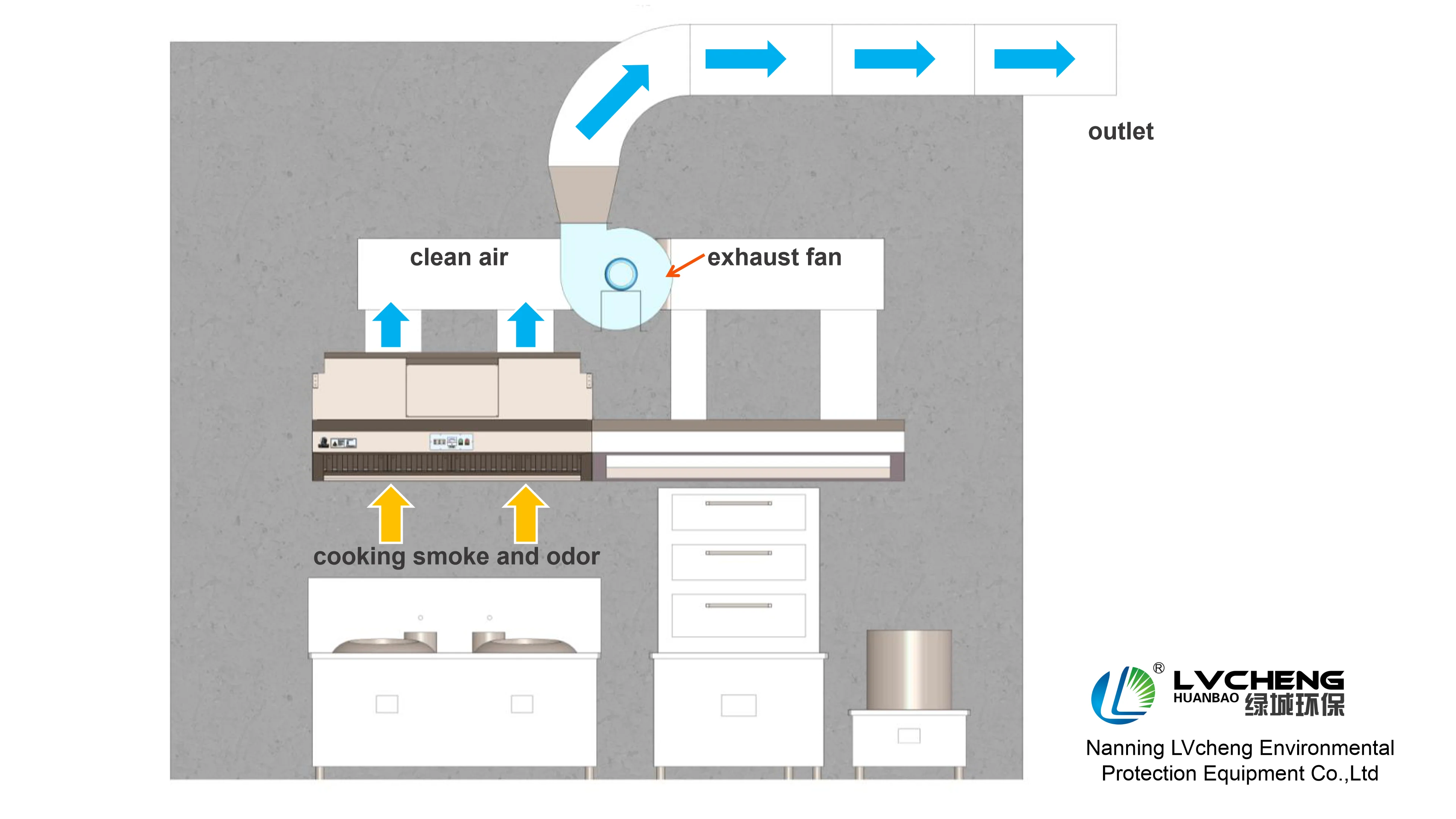

What is ESP?
· An electrostatic precipitator is a type of filter (dry scrubber) that uses static electricity to remove grease and smoke from
exhaust fumes before it exit from the ventilation system.
· Engineers build up a honeycomb structure electric filed which is charged with a high voltage. Smoke particles pick up a charge
when they pass the charged electrodes.
· Then the charged smoke particles are attracted to oppositely charged collecting cylinders.
As a result, at least 90%-98% of smoke will be removed！
No smoke will be seen from outlet.
exhaust fumes before it exit from the ventilation system.
· Engineers build up a honeycomb structure electric filed which is charged with a high voltage. Smoke particles pick up a charge
when they pass the charged electrodes.
· Then the charged smoke particles are attracted to oppositely charged collecting cylinders.
As a result, at least 90%-98% of smoke will be removed！
No smoke will be seen from outlet.
Advantage I
Our advantages
Unique patented technology: Intelligent power control system
automatically adapt to the working conditions
overload protection
short-circuit protection
no-load protection
safe and reliable
3D structure transformer
low temperature rise
long service life

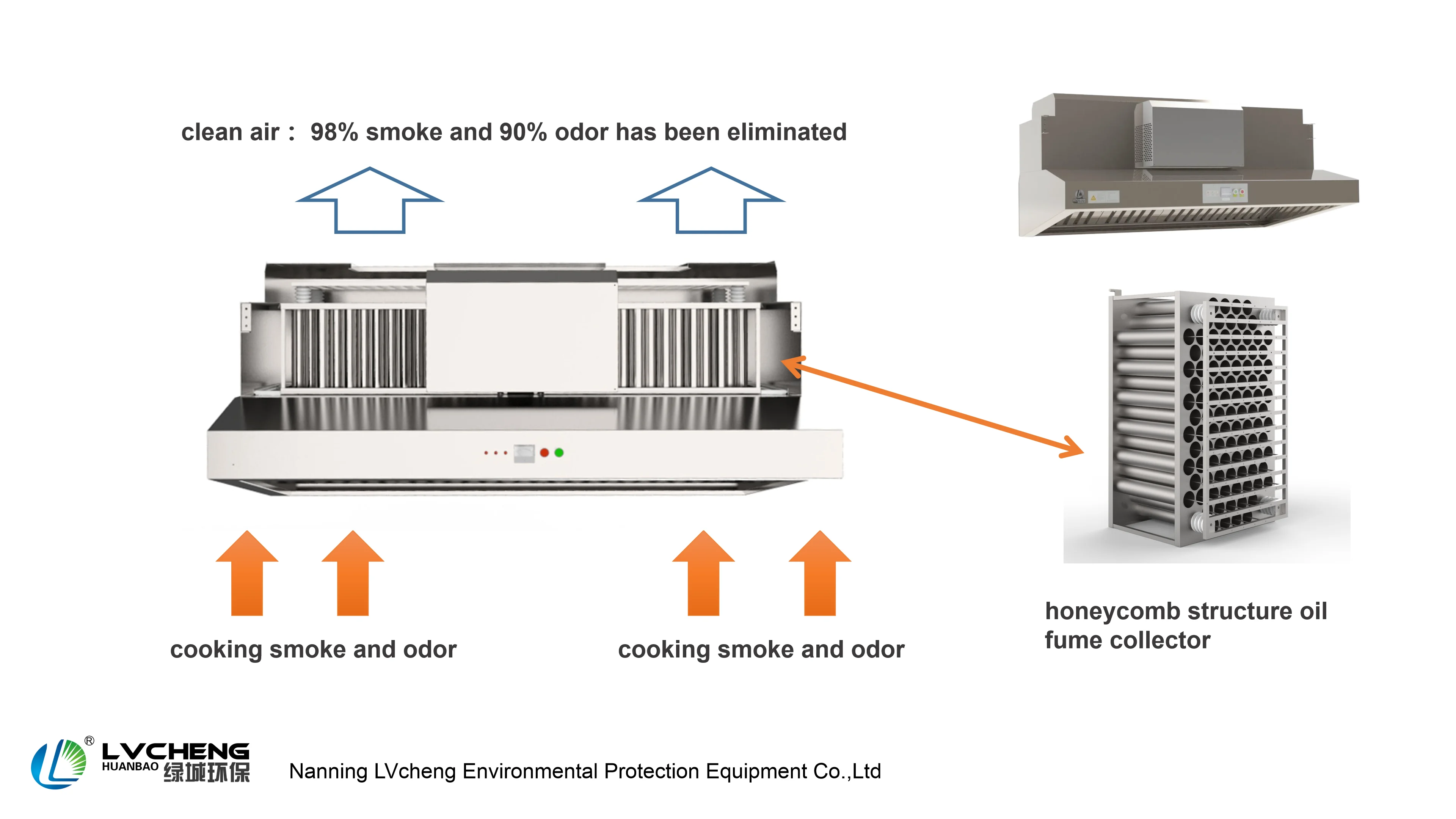

Honeycomb structure smoke collector
excellent rigidity
not easily deformed
powerful blue tip discharge makes high efficiency
ionize and decompose most of odor
Unique patented technology: Cathode needle fixed at both ends
Stabilize the equipment
prolong the life cycle of the smoke collector,
reduce cleaning and maintenance work.
Modular design
Most parts can be quickly disassembled on site for easy installation and maintenance.
Specification
98% purification rate of SMOKE
90% purification rate of ODOR
Material of Housing: stainless steel 201 in 1.0mm thickness.
Material of Fume Collectors: stainless steel 201
* Stainless steel 304 is available too, please kindly tell us if you need it.
No. | Model | Air flow (M3/Hr) | flange (inner) A1*B1 | Volume Length * Width * Height (mm) | Power (w) | Windage (Pa) | Net Weight (kg) |
1 | LCA-2H | 2000 | 230 *300 | 1170 *1150 *905 | 430 | 150 | 120 |
2 | LCA-4H | 4000 | 305 *255 | 1970 *1150 *905 | 580 | 150 | 175 |
Note: This hood do NOT contain exhaust fan inside!
How to choose suitable HOOD for my commercial kitchen?
It's very easy, just make sure that the hoods can cover all the cooking ranges or other cooking devices.
For example, the full length of cooking ranges in Mary's kitchen is 4 meters. Then Mary should choose 2 sets of LCA-4H to cover all ranges.
Related Products
Company Profile
Certifications
FAQ
1. Q: What is the material of your equipment?
A: In order to guarantee quality,We use A3 steel sheet to make machine cover. The electrostatic honeycomb is made from all stainless steel. This honeycomb technology is owned by only a few companies in China.
2.Q: How does your factory do regarding quality control?
A:We value quality as highly as you do. We have CE certification and ISO9001 certification which is the most authoritative certificate of quality inspection in China.
3. Q:Are you a factory or trading company?
A: We are the professional manufacturer,our team has committed to the electrostatic precipitator business for more than 10 years. We sincerely welcome you visit our factory at any time.
We located in Nanning City, Guangxi Province, China.
4.Q:Can you offer the OEM for us?
A:We welcome you to be our OEM client and we are willing to discuss all the details and requirements with you before we issue a formal plan.
5. Q:What is your minimum order quantity?
A:We welcome one-unit trial.
We believe that trying a small order then making a big decision is a necessary step before we build up a long term cooperation.
6.Q:Why choose you?
A: Our technical team will be a great backbone in every project, from the very beginning to after-sale service.
Our self-developed intelligent power supply can make sure operation steady with high security.
It can help to save the maintenance cost and time with long service life, maximizing the expectant benefits.
