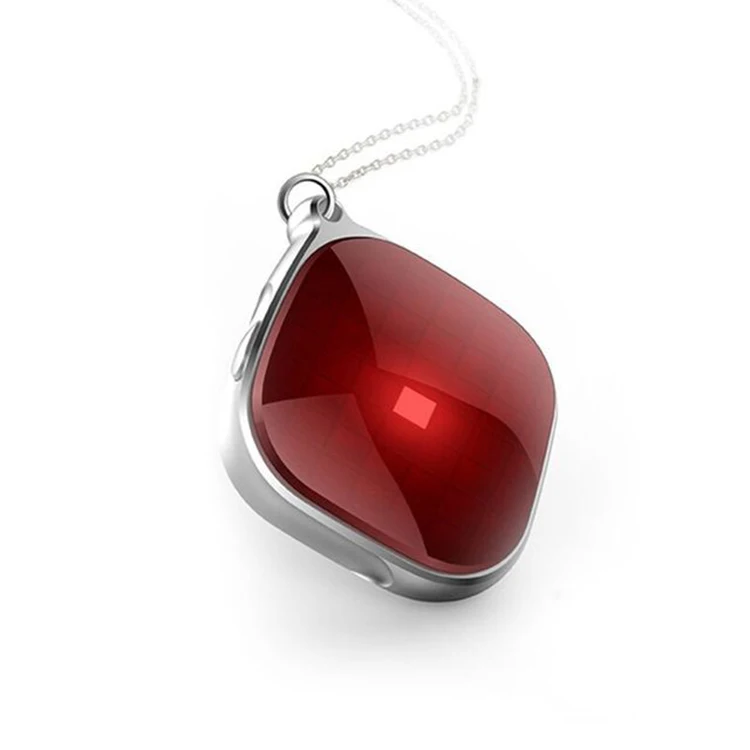

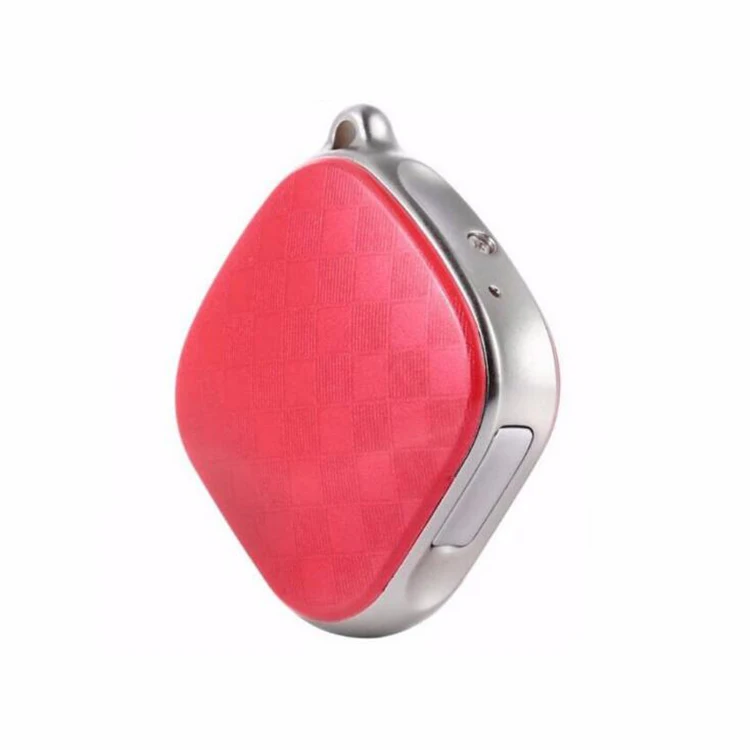

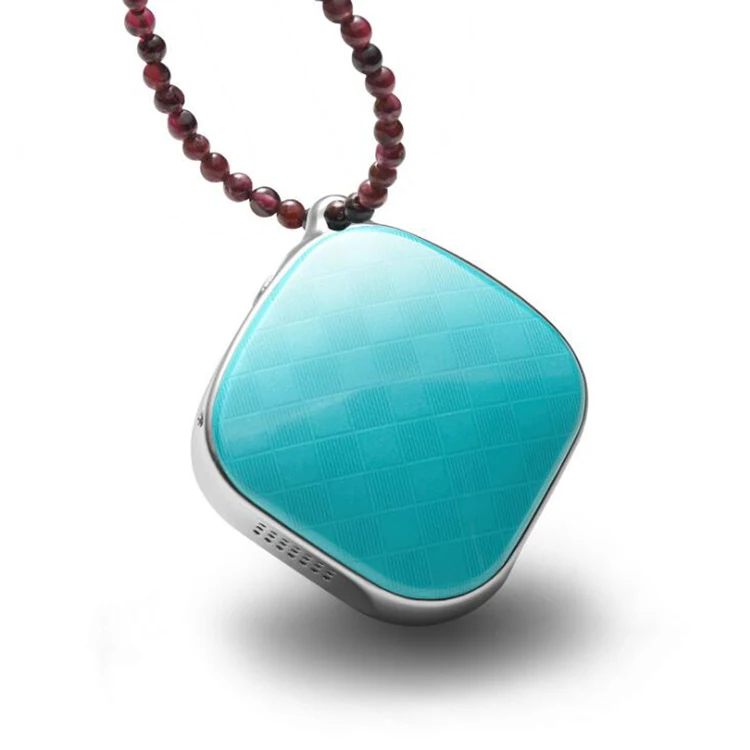

A9 chip gps child locator tracking children senior gps tracker keychain waterproof
- Category: >>>
- Supplier: Shenzhen Xinyueda Technology Co. Limited
Share on (62176394802):
Product Overview
Description
Product Description
china keychain gps tracker manufacturer gps child locator with free tracking

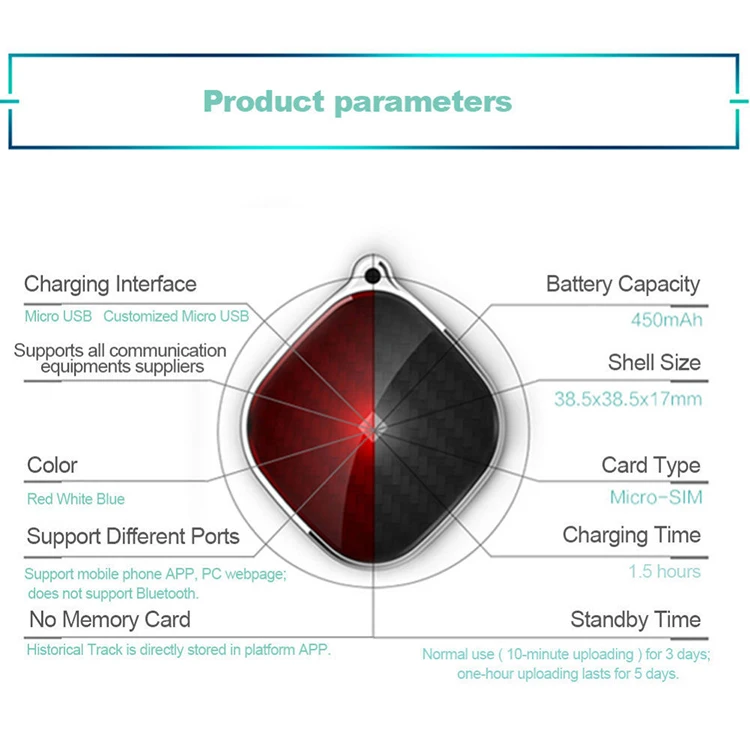

| 1. structure division | ||
| structure parts | category | specification |
| Product name | A9 mini gps tracker | |
| Product size | 38*38*12mm | |
| Weight | 27g without package, 140g with color box | |
| Color box size | 12*8.3*5.5cm | |
| Carton size | 40*26*36cm, 56pcs/Ctn, 8.3kg/Ctn | |
| Button | one button(power/SOS button) | |
| Screen | no | |
| GPS antenna | High sensitive ceramics active antenna | |
| GSM antenna | FPC antenna | |
| Battery | 450mAh | |
| SIM card type | Micro SIM | |
| G-sensor | support | |
| I/O port | USB charge | |
| 2. Hardware parts | ||
| Hardware parts | CPU | MTK MT2503 |
| GPRS | Class12 | |
| GPS signal | L1,1575.42MHz C/A | |
| GPS channel number | 22 channels | |
| GPS chip receive sensitivity | Tracking sensitivity:-165dBm,capture sensitivity:-148dBm | |
| GPS location accuracy | 5~15m | |
| LBS location accuracy | 100~1000m | |
| Minimum standby current | less than 0.5 mA | |
| Average stndby current | less than 2.5 mA | |
| Average working current | around 55mA | |
| Working temperature | -20~70℃ | |
| Working humidity | 5% to 95% non-congealable | |
| Test and certification | 3C,CE,FCC&ROSH | |
| GPS antenna | Built-in high sensitivity FPC antenna | |
| GSM antenna | Built-in four frequency method of antenna | |
| Bluetooth | bluetooth 3.0(Normal closed) | |
| G-sensor | Support | |
| MIC | Support | |
| 3. software parts | ||
| software parts | Supported operating systems | Support android 2.3 and above system, IOS5.0 and above |
| Call function | double talk/The remote monitoring | |
| Language support | Simplified Chinese and English | |
| GSM+GPRS+GPS+BD | GPS+BD+LBS+WIFI Multi-modal positioning | |
| Support AGPS | Cold start 26 seconds positioning | |
| Call function | SOS call, voice monitor, whitelist for don't disturb | |
| Power management | Ultra-low power consumption of power management,intelligent dormancy | |
| One key emergency | SOS one key emergency function ,autodialing | |
| Smart Geo-fence | Outside the range setting can be automatic alarm | |
| Historical route | Can check history of three months | |
| Wireless upgrading | Software upgrade, remote debugging maintenance, remote setting parameters | |

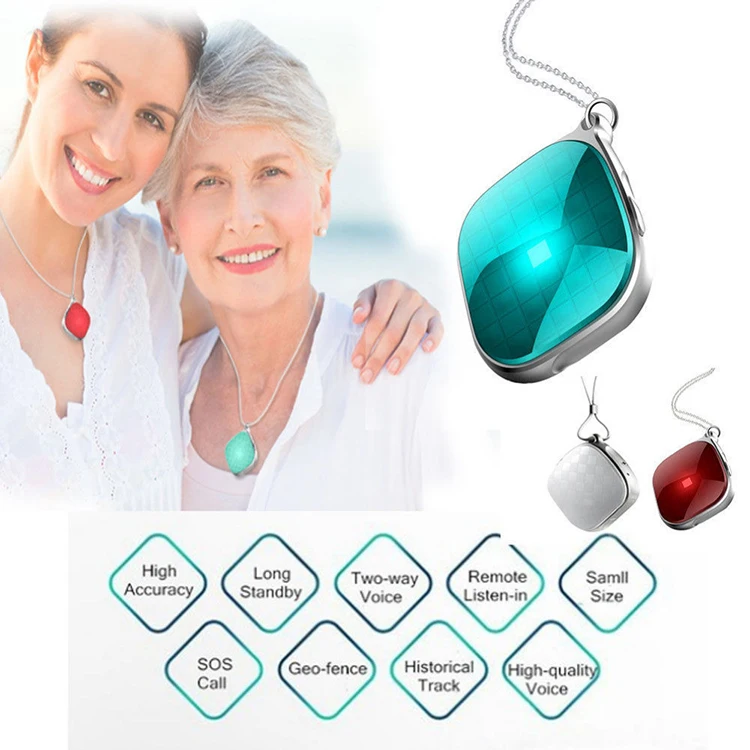

| Main features | Delicate appearance pendant, GPS +BD+ WIFI + LBS multimode precise positioning, static dormancy save electricity design, real-time positioning, intelligent monitoring | |

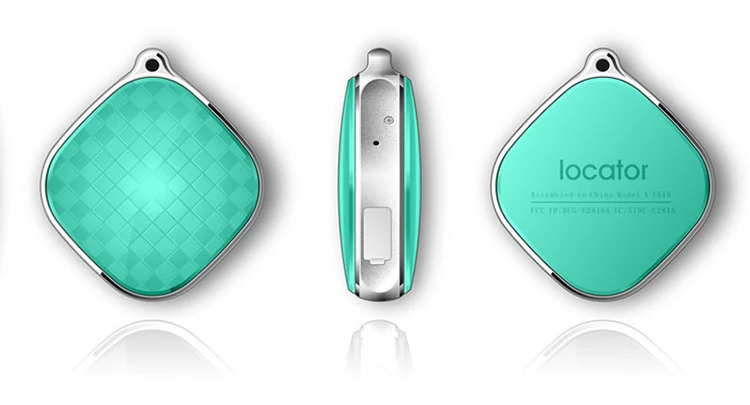

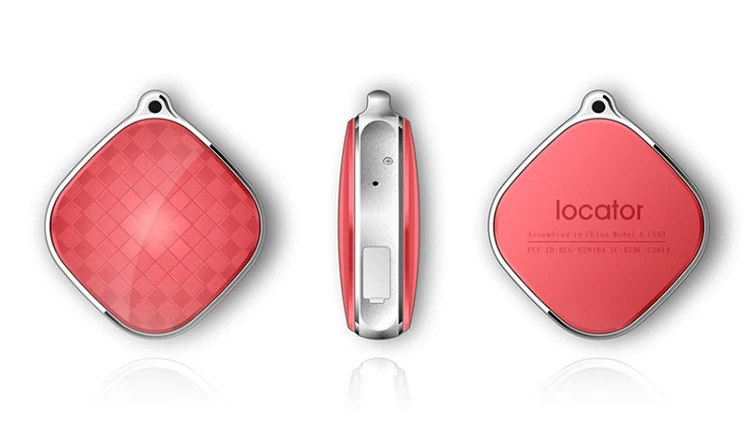

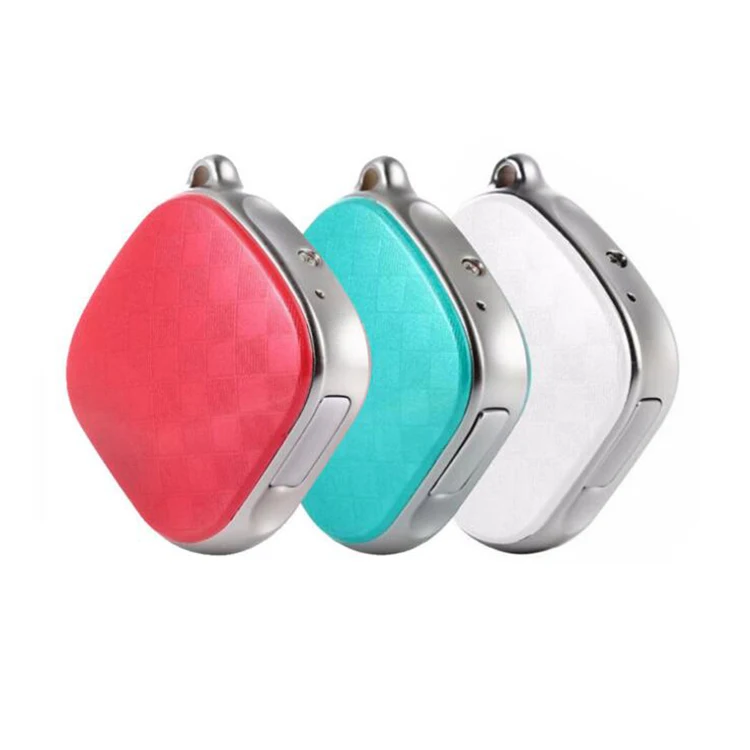

Photo Show
