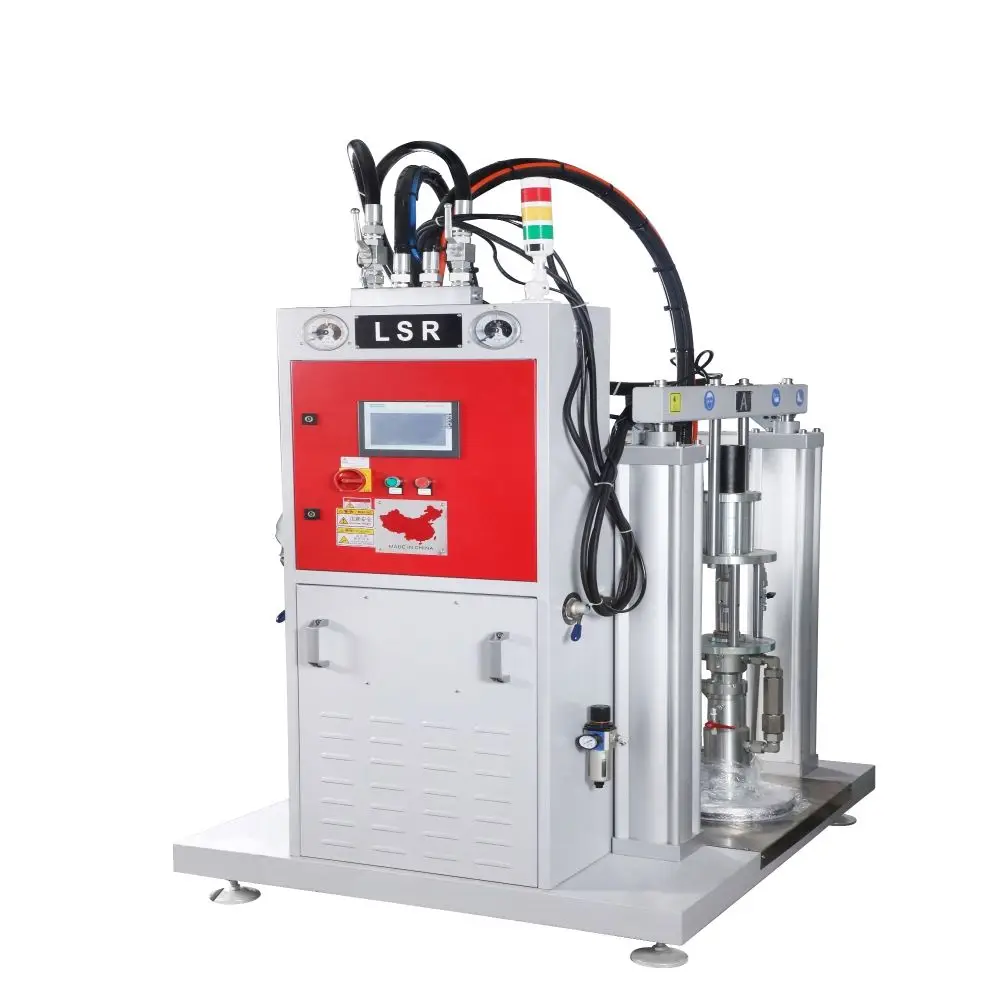

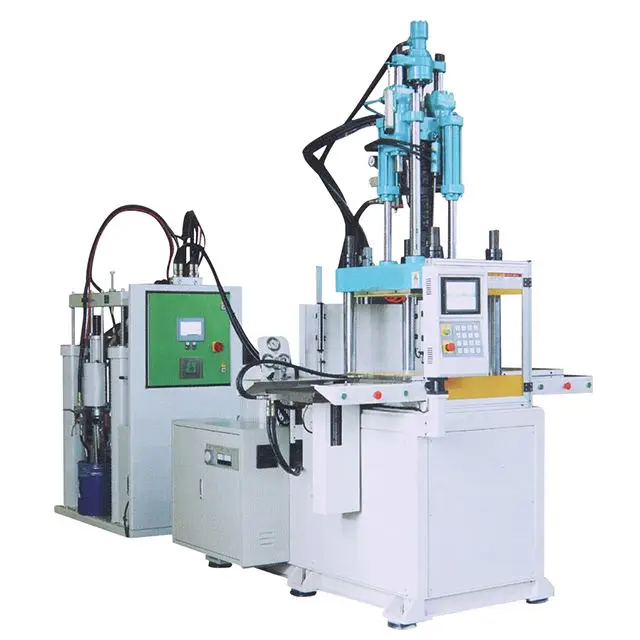

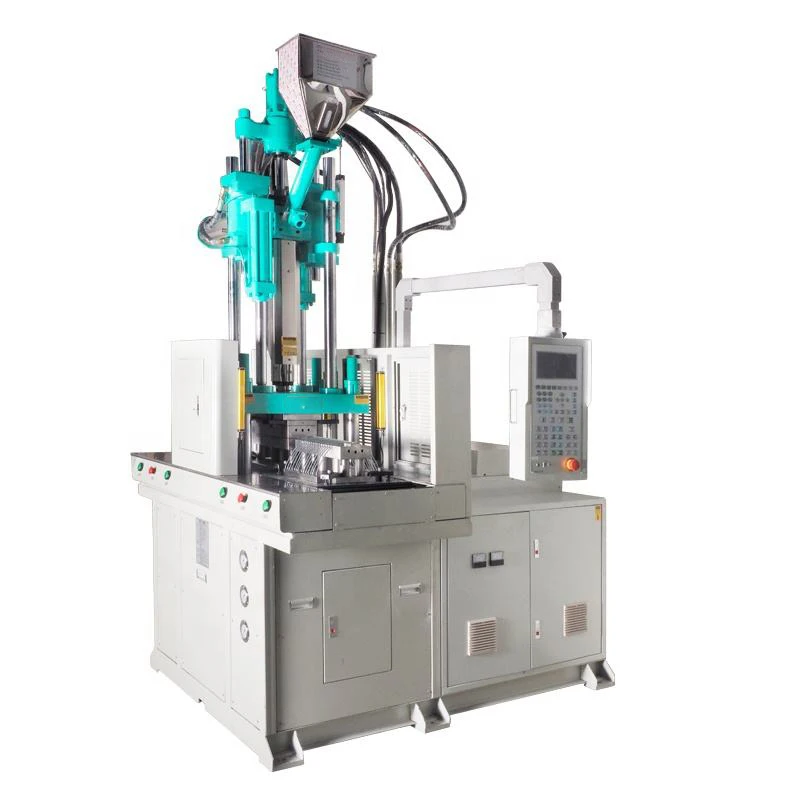

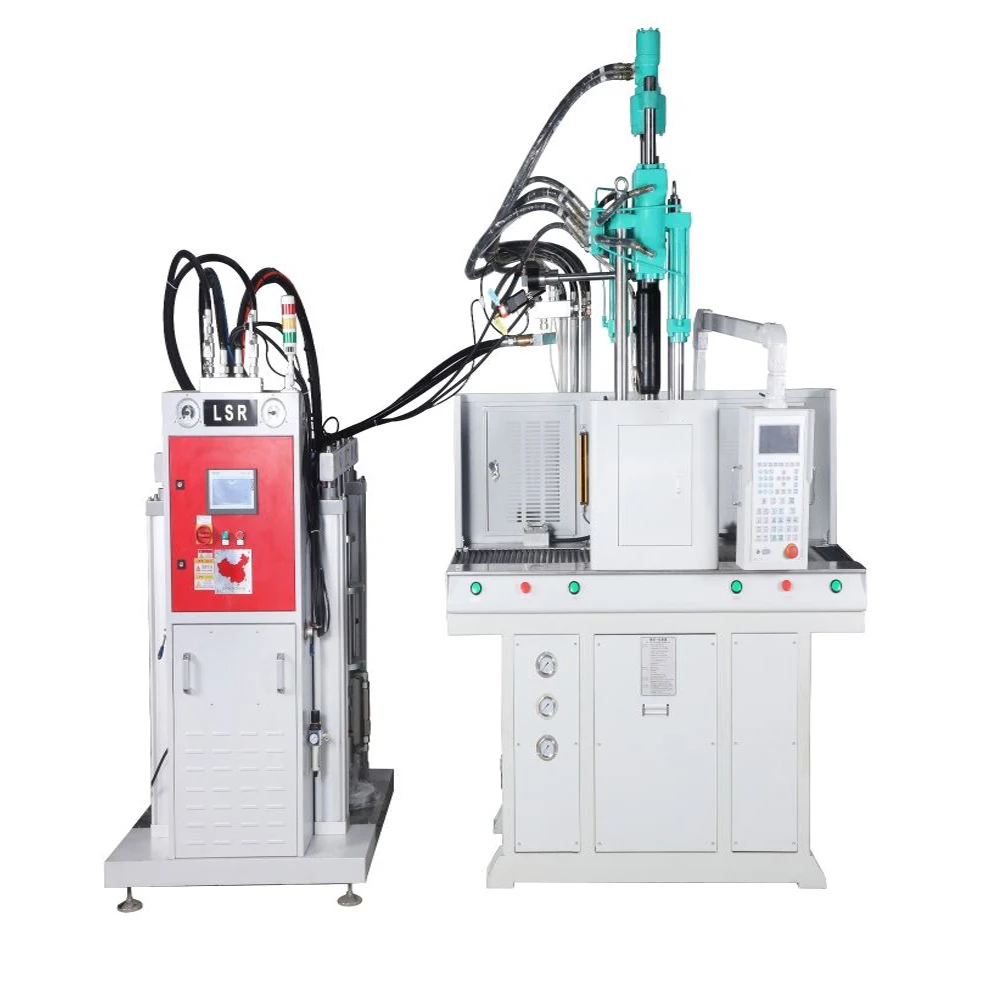

LSR Liquid Silicone Rubber Product Making Machine Vertical Injection Molding Machine
- Category: >>>
- Supplier: Changzhou Yuehai Zanyang Machinery Sales Co. Ltd.
Share on (62176570396):
Product Overview
Description
1) Simple structure in linear type ,easy in installation and maintation.

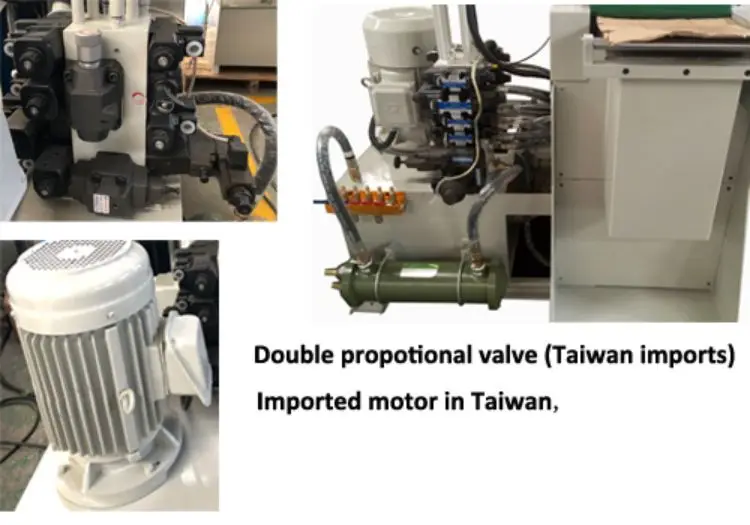

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
| MODEL | UNIT | CY-350STDM-PP | CY-450STDM-PP | CY-550STDM-PP | CY-850STDM-PP | CY-1000STDM-PP | |||||||||||
| INJECTION UNIT | Screw Diameter | mm | 26 | 28 | 30 | 30 | 32 | 35 | 32 | 35 | 42 | 35 | 42 | 45 | 42 | 45 | 48 |
| lnjection Pressure | kg/cm² | 1410 | 1220 | 1060 | 1245 | 1095 | 915 | 1907 | 1590 | 1110 | 1590 | 1110 | 965 | 1905 | 1660 | 1458 | |
| Theoretical Shot Volume | cm | 61 | 70.8 | 81 | 81 | 92 | 110 | 112 | 134 | 194 | 134 | 194 | 223 | 249 | 286 | 325 | |
| Max.Shot Weight(Ps) | g | 56 | 65 | 74 | 74 | 85 | 102 | 103 | 123 | 178 | 123 | 178 | 204 | 229 | 263 | 299 | |
| Safe Shot Weight(Ps) | oz | 2.0 | 2.3 | 2.6 | 2.6 | 3 | 3.6 | 3.6 | 4.3 | 6.2 | 3.4 | 6.2 | 7.2 | 8 | 9.2 | 10.5 | |
| Injection Rate | cm³/sec | 55 | 63 | 73 | 67 | 76 | 91 | 50 | 60 | 87 | 82 | 120 | 138 | 110 | 127 | 114 | |
| Screw Stroke | mm | 115 | 115 | 140 | 140 | 180 | |||||||||||
| Screw Speed Max. | rpm | 0-205 | 0-190 | 0-175 | 0-170 | 0-180 | |||||||||||
| Nozzle Comtact Force | tons | 4.45 | 4.45 | 5.5 | 6.5 | 7.5 | |||||||||||
| Nozzle Retraction Stroke | mm | 170 | 190 | 210 | 210 | 210 | |||||||||||
| Number of Temperature Control | 3 | 3 | 3 | 4 | 5 | ||||||||||||
| CLAMPING UNIT | Clamping Force | tons KN | 35 | 45 | 55 | 85 | 120 | ||||||||||

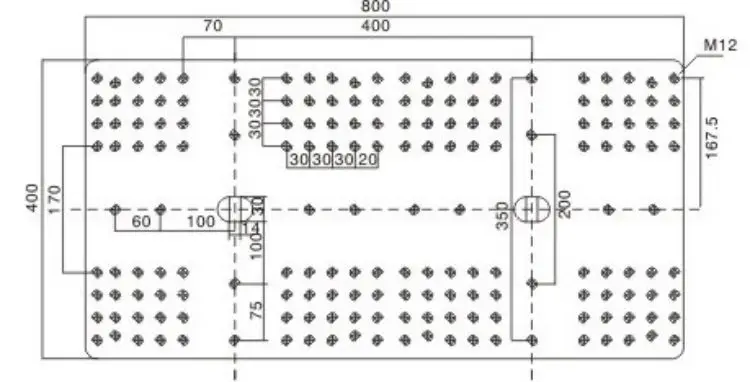

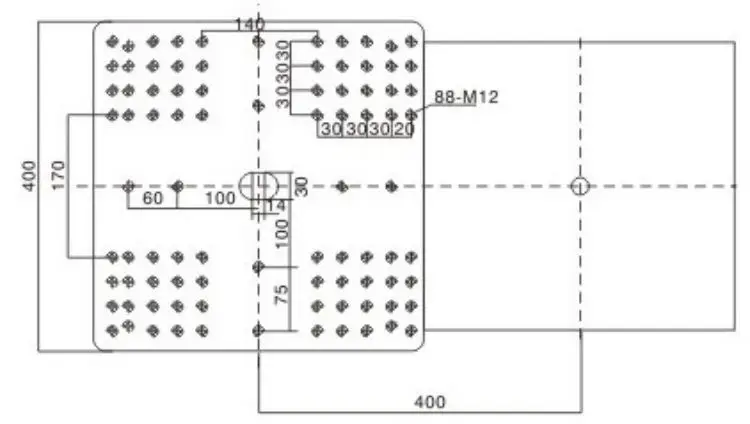

| Sliding block size | mm | 700*350 | 800*400 | 900*450 | 1000*500 | 1100*550 | |||||||||||
| Tiebar distance | mm | 375*205 | 410*250 | 470*280 | 530*330 | 620*386 | |||||||||||
| Min.Mold Height | mm | 150/100 | 220/70 | 270/200 | 430/230 | 480/280 | |||||||||||
| Opening Stroke | mm | 180 | 200 | 200 | 255 | 300 | |||||||||||
| Max.Open daylight | mm | 330/280 | 420/350 | 450/400 | 685/485 | 780/580 | |||||||||||
| Ejetor Force | tons | 1.5 | 1.5 | 1.5 | 2.2 | 4.8 | |||||||||||
| Ejetor Stoke | mm | 55 | 55 | 55 | 55 | 55 | |||||||||||
| POWER/ HEADING UNIT | Max.Hydaulic Pressure | kg/cm² | 140 | 140 | 140 | 140 | 140 | ||||||||||
| Pump Output | l/min | 34.5 | 37.2 | 43.2 | 59.8 | 65.7 | |||||||||||
| Oil Resservoir Capacity | l | 100 | 130 | 150 | 180 | 200 | |||||||||||
| Cooling Waer Consumption | l/hr | 400-600 | 600-800 | 800-1000 | 800-1000 | 1000-1200 | |||||||||||
| Pump Motor Power | kW/HP | 3.7/5HP | 5.5/7.5HP | 7.5/10HP | 11/15HP | 15/22HP | |||||||||||
| Berrel Heating Power | kW | 2.4 | 2.8 | 4.5 | 5 | 6 | |||||||||||
| Total Electricity Usage | kW | 6.3 | 9 | 12 | 16 | 20 | |||||||||||
| OTHER | Machine Weight | tons | 1.7 | 1.9 | 2.35 | 3.6 | 5.3 | ||||||||||
| Machine Dimensions(LxWxH) | m | 1.8*1.5*2.38 | 1.9*1.6*2.5 | 2.0*1.7*2.65 | 2.2*1.9*2.68 | 2.35*2.15*3.3 | |||||||||||
| Shipping weight | tons | 1.9 | 2.1 | 2.6 | 3.8 | 5.5 | |||||||||||
| Shipping Measurements(LxWxH) | m | 1.9*1.6*2.45 | 2.0*1.7*2.45 | 2.15*1.8*2.5 | 2.35*2.0*2.5 | 2.6*2.25*2.45 | |||||||||||
Structural Analysis
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service and low price.
Q2:What's your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 1 year warranty .
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
