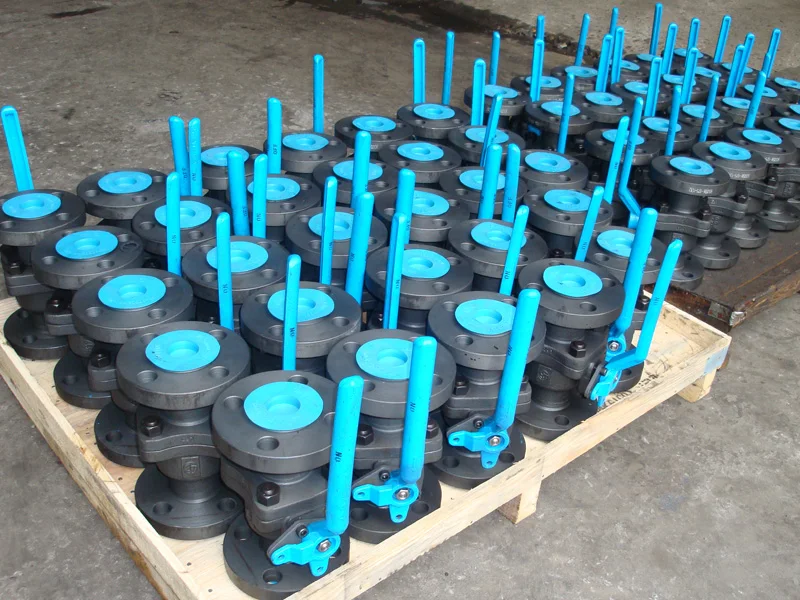

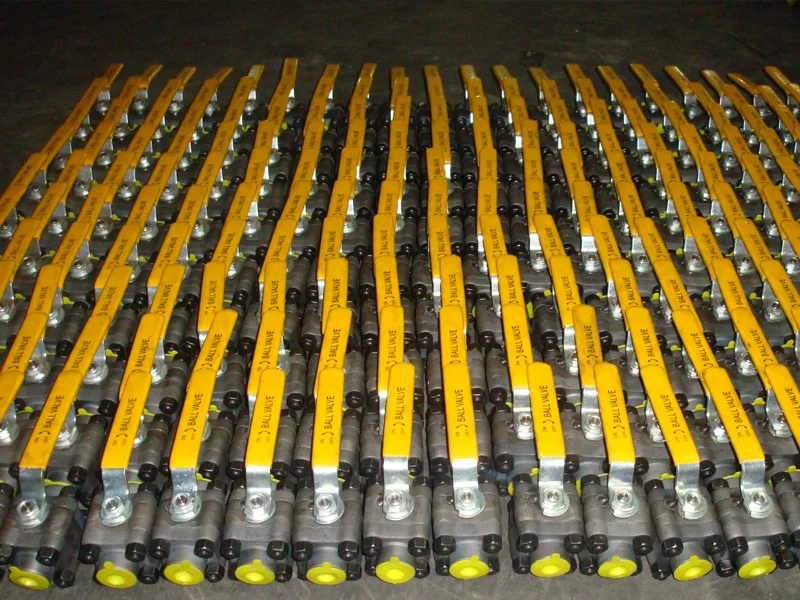

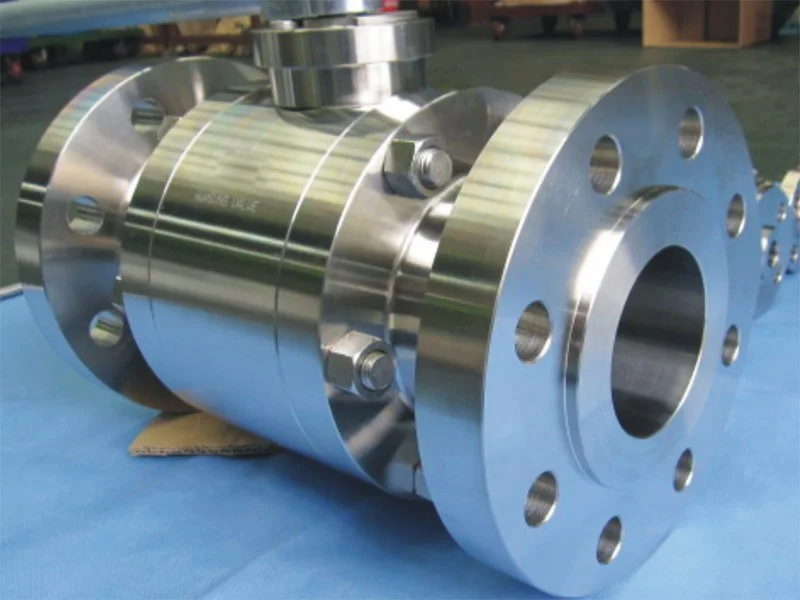

Forged metal seated floating type ball valve

Product Overview

Description

Feature:
1.Applied in oil,gas,water,etc.industry
2.High quality &price competitive,meet API, BS, DIN etc.standard
3.Accept customize ,ODM&OEM

4.Forged Metal seated floating ball valve is suitable for severe service condition containing solid granules, coal power etc.

5.Full/Reduce port, Metal seated, Fire safe design, Blowout-proof stem,  Anti-static, Optional locking device,Optional ISO 5211 top flange etc.

6.Splited body / uni-body design / full welded design



Design standard

Basic standard:	API 6D, ASME B16.34, BS5351, API 608, DIN3357-1,EN12156-1
Flange connection dimesion:	ASME B16.5, EN1092-1
Butt welding connection dimension:	ASME B16.25
Face-to-face dimension:	ASME B16.10, API 6D, EN558
Pressure-Temperature rating:	ASME B16.34
Test:	API 6D, API 598, BS6364(according to customer’s requirements)



Product range:

Size:	1/2" ~ 12",DIN15-DIN300
Rating:	ANSI 150lb-2500lbs,PN16-PN420Body Materials:
	A105(N), A350 LF2 / LF3, A182 F304 / F316 / F304L / F316L / F51 / F53 / F904L, Alloy 20, Inconel 625 etc.
Trim:	A182 F304 / F316 / F51 / F53, Inconel 625+ coated with tungsten carbide or customized per client’s requirements
Seat Material:	Stainless steel + coated with tungsten carbide or overlaid with STL

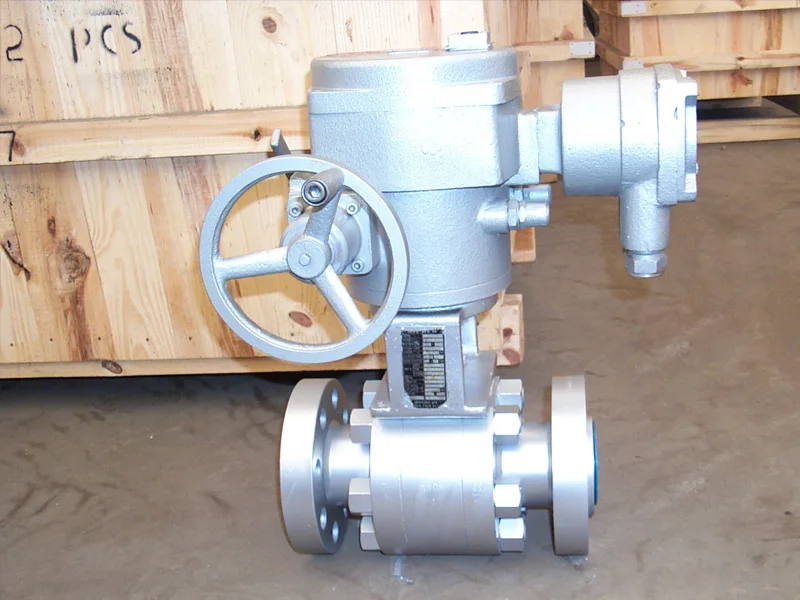

Operation:	Wrench/Lever, Gear, Pneumatic operator



Application:

Oil & Gas processing, Refinery, Chemical, Petrochemical, Power plant, etc.









To make a fast&successful offer to you(valued customers) , we need follow information.
Design standard.
Connection standard .
Size.
QTY
Body material .
Trim (Material for inside parts).
Connection type.
Medium.
Temperature.
Ambient temperature range . Corrosion considerations.
Application Descripetion.
Painting color. etc
