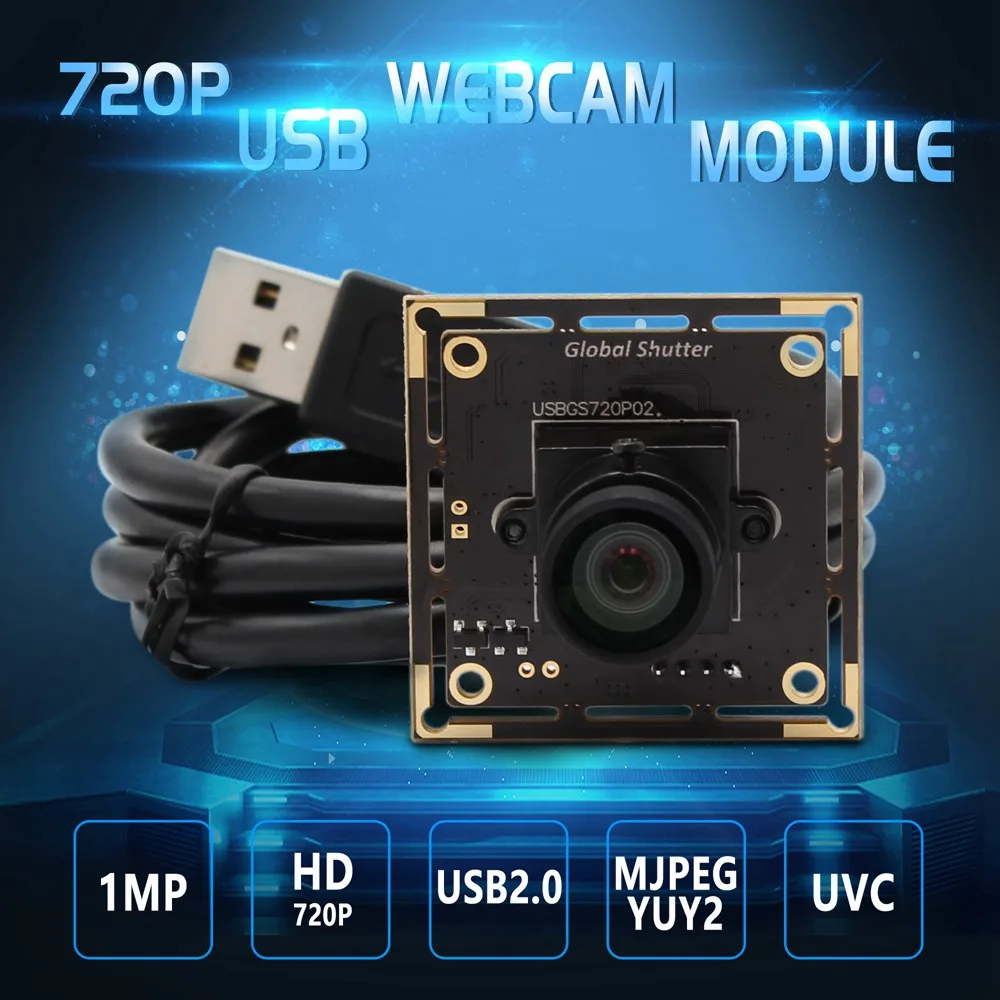

ELP Global Shutter USB Camera High Frame Rate 720P 60fps Webcam Snap without shadow Camera Module used for barcode scanner
Product Description
Main Features
*1Megapixels USB Camera, max resolution 1280x720
*Equiped with no distortion lens, other M12 lens optional to change
*Aptina AR0140 sensor for high quality image and low power consumption.
*High frame rate 7250P @ 60fps USB 2.0 interface for high resolution PC camera interface.
*Super small outline and thin profile for embedded applications.(32*32/38*38mm)
*HD Snap webcam without shadow,. widely used for barcode scanner, drone
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
*Camera with UVC.
Specification
Model | ELP-USBGS720P02-V100 |
Sensor | Aptina AR0144 |
Lens Size | 1/4 inch |
Pixel Size | 3.0µm |
image area | 3888µm x 2430 µm |
Effective Pixels | 1280(H)X720(V) 1MP |
Compression format | MJPEG / YUV2 (YUYV) |
Resolution & frame | 1280X720MJPEG@ 60fps YUY2@5fps |
S/N Ratio | 38dB |
Dynamic Range | 63.9dB |
Sensitivity | 3.1V/lux-sec@550nm |
Mini illumination | 0.2 Lux |

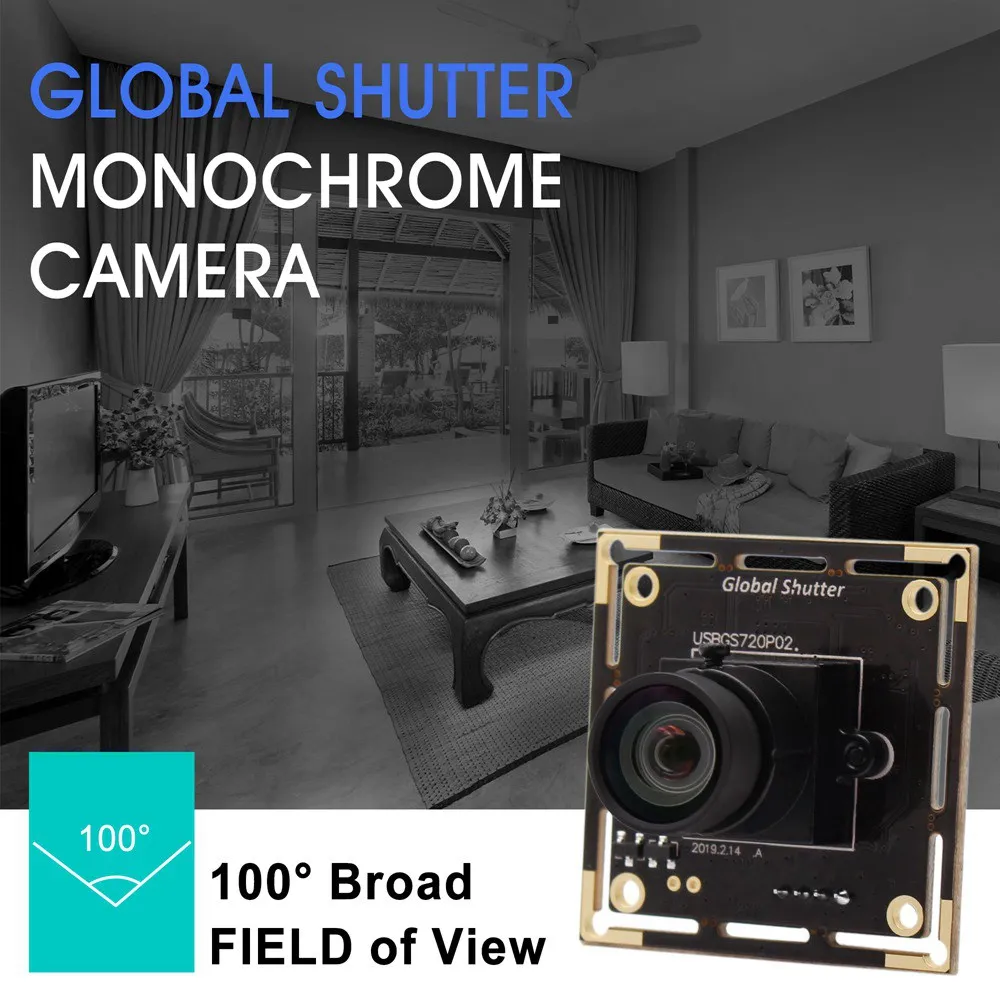

Shutter Type | Global Shutter |

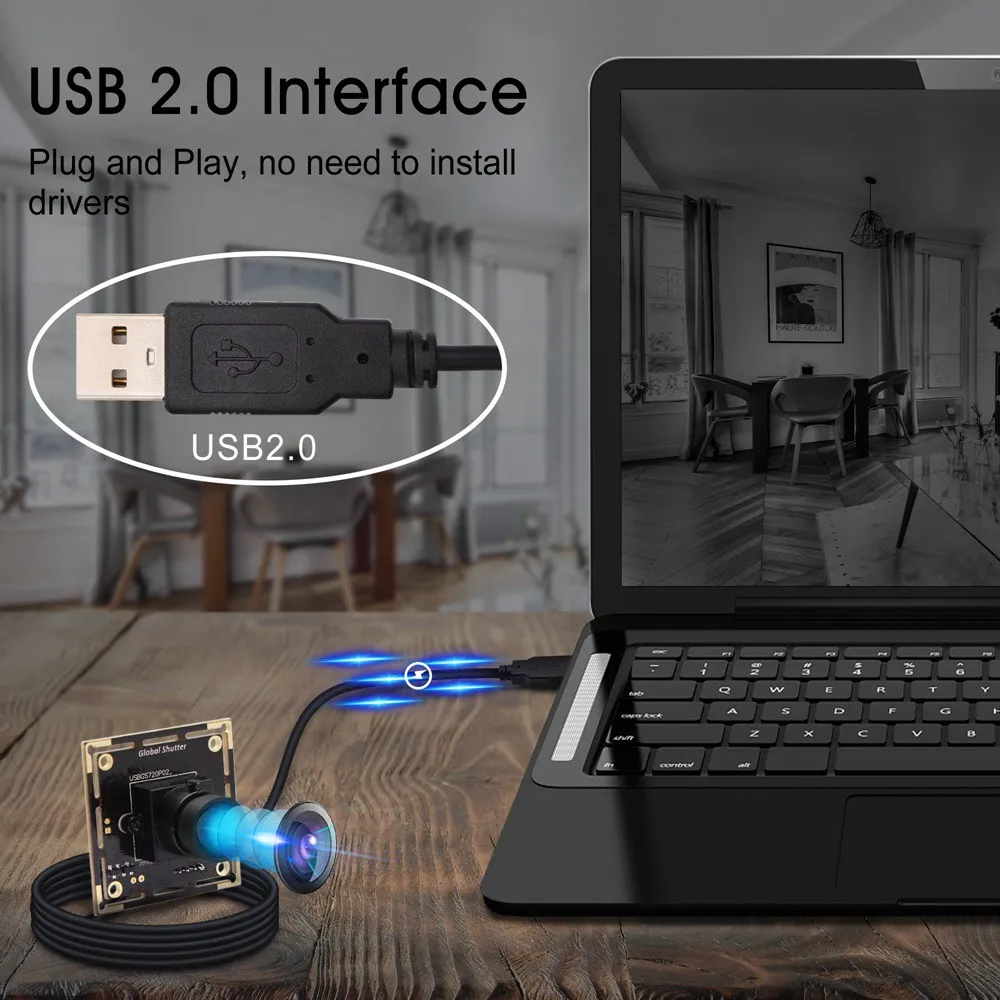

Connecting Port type | USB2.0 High Speed |
OTG protocol | USB2.0 OTG |
Free Drive Protocol | USB Video Class(UVC) |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, |
Lens Parameter | Standard no distortion lens (2.1 /2.8/6/ 8/12mm/170 degree fisheye lens optional) |
Power supply connector | USB BUS POWER 4P-2.0mm socket |
Work Power Voltage | DC5V |
Work Power Current | 110mA~160mA |
Working temperature | -10~70℃ |
Storage temperature | -20~75℃ |

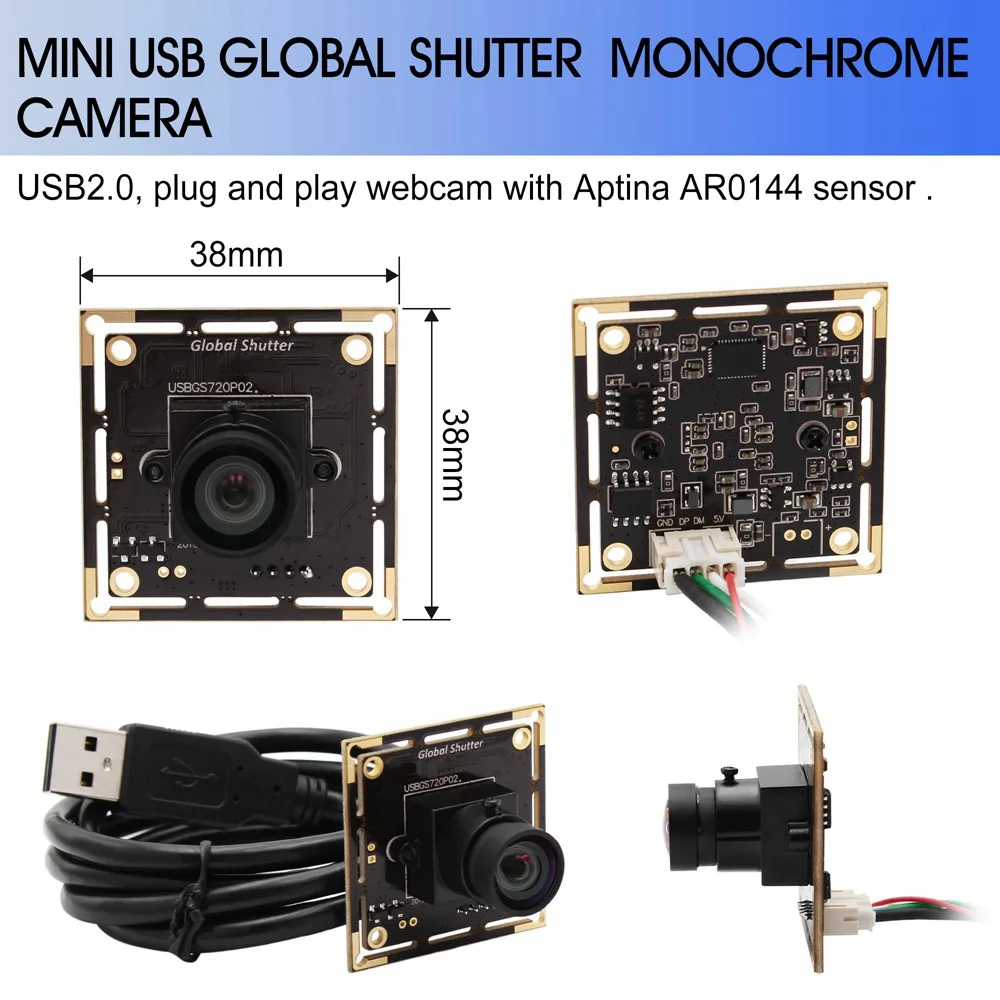

Board size /Weight | 38*38mm / About 30g |
Cable | Standard 1m cables (2M,3M,5M optional ) |

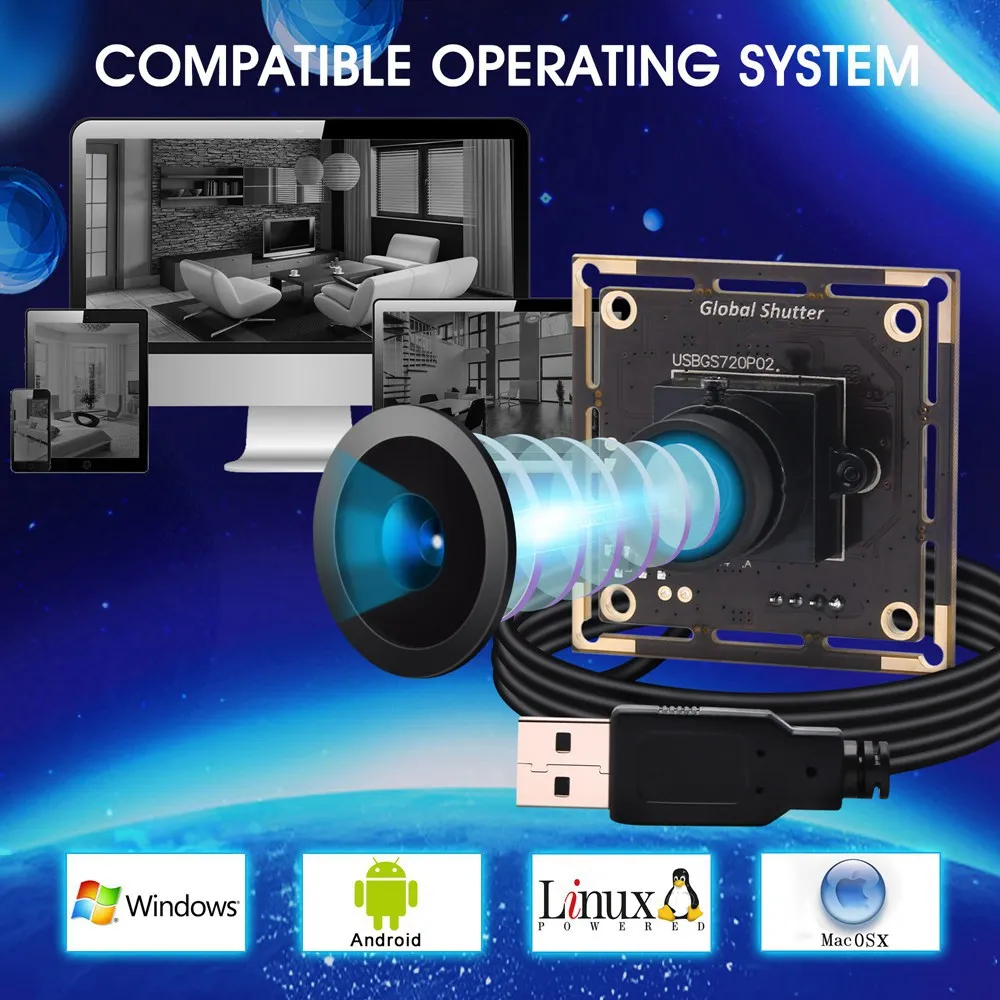

Support OS | Win7 Win8 Linux 2.6 or above Android 4.0 or above |
Camera Display
Applications
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.

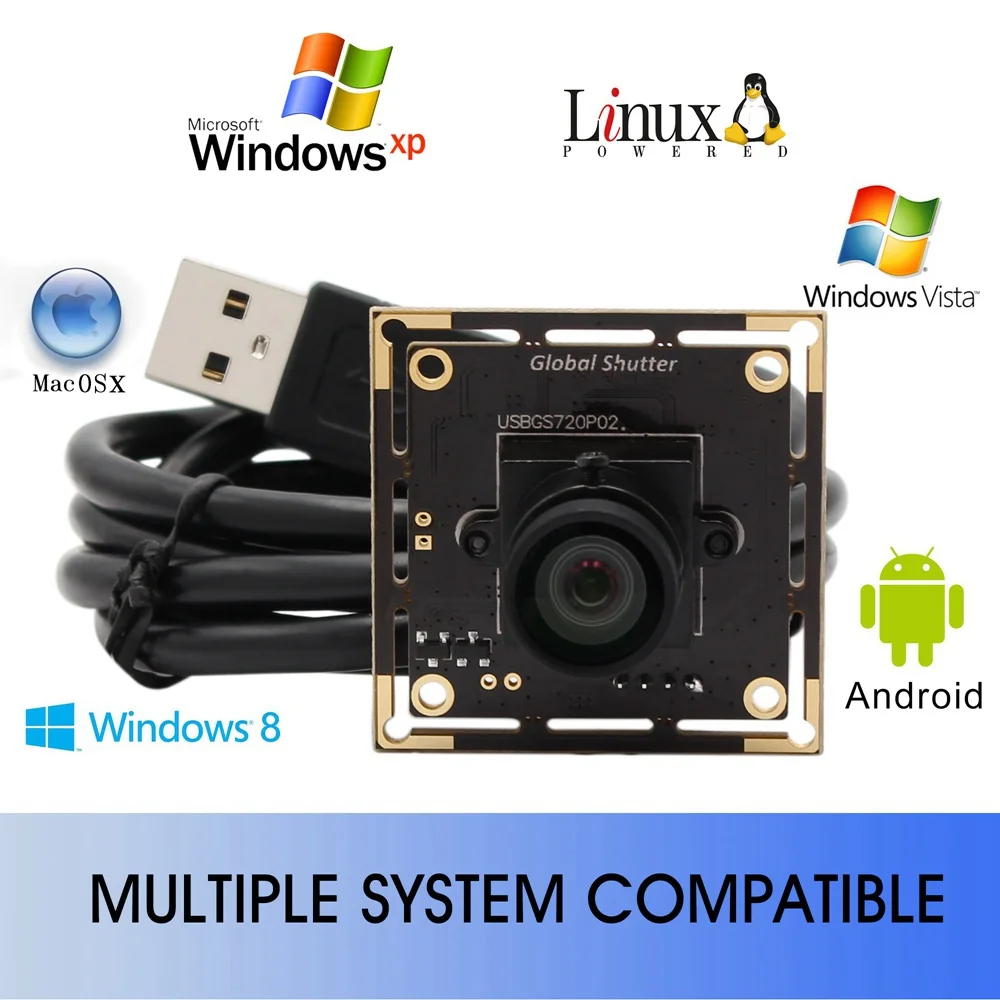

*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
