Manual operated flanged jis 10k lever type ball valve
- Category: >>>
- Supplier: Guangzhou Fols Valve Technology Co. Ltd.
Share on (62176749762):
Product Overview
Description
| · About FOLS Valve · |
Guangzhou Fols Valve Technology Co., ltd is a manufacturer which has been specializing in electric, pneumatic valve actuator, full range of valves and in the research, development, production, sale and service of automatic control systemOur main products the FOLS series of electric actuator are elaborately designed and manufactured by the most advanced technology according to the practical situation. The FOLS series of electric actuator are characterized by driving device and transmission gear in one, small volume, light weight, good-looking appearance, and remarkable performance. They have been widely used in various fields, such as paper making, pharmaceuticals, food, chemical, petroleum, electricity, fire protection, air-condition, water supply and industrial automation and so on.
| · Features · |
*FULL PORT,1/2"-12"(DN15-DN300)
*Working Pressure:PN16/PN40
*Working Temperature:-20℃-180℃
*Investment Casting
*Blow-out proof stem
*Anti-static device(option)
*Locking device handle
*ISO 5211 Direct mounting pad
*API 607 fire safe(option)

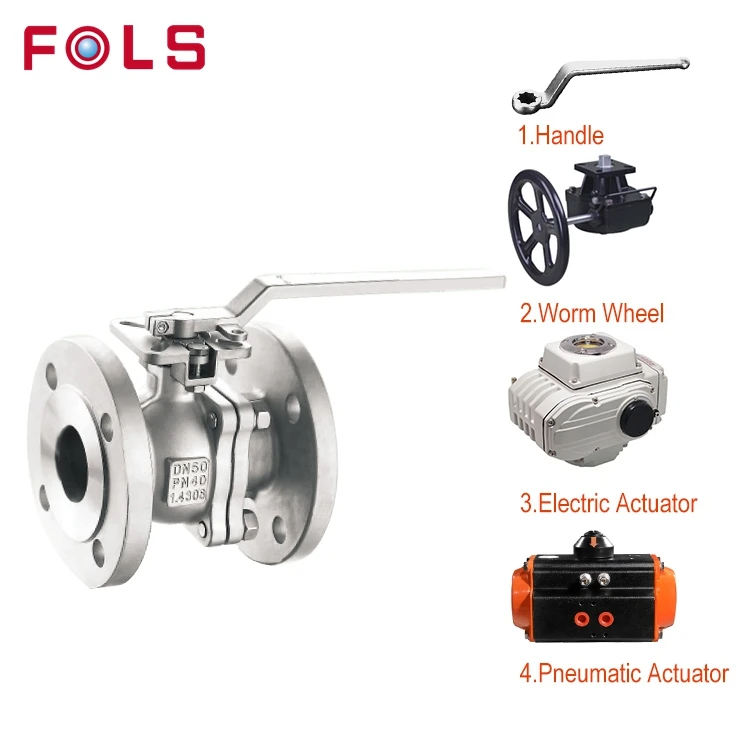

*Automation accessories(option)
*Design:DIN3357,EN12516-1
Flange dimension:DIN2543-2545,EN1092-1 PN16/40
*Face to Face:DIN3202 Part1-F4(DIN12-DN100);DIN3202 Part1-F5(DN125-300)
Inspection&testing:DIN3230,EN1266-1

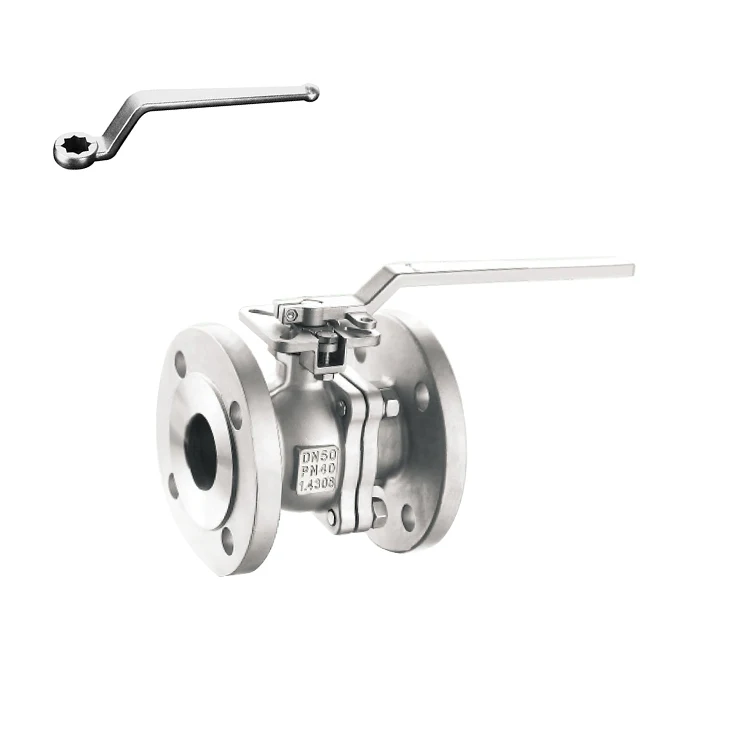

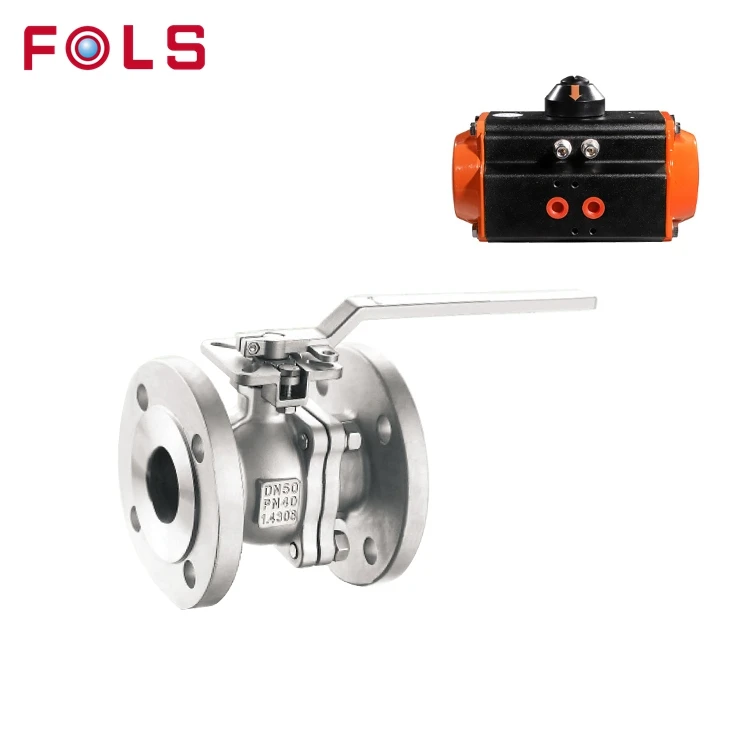

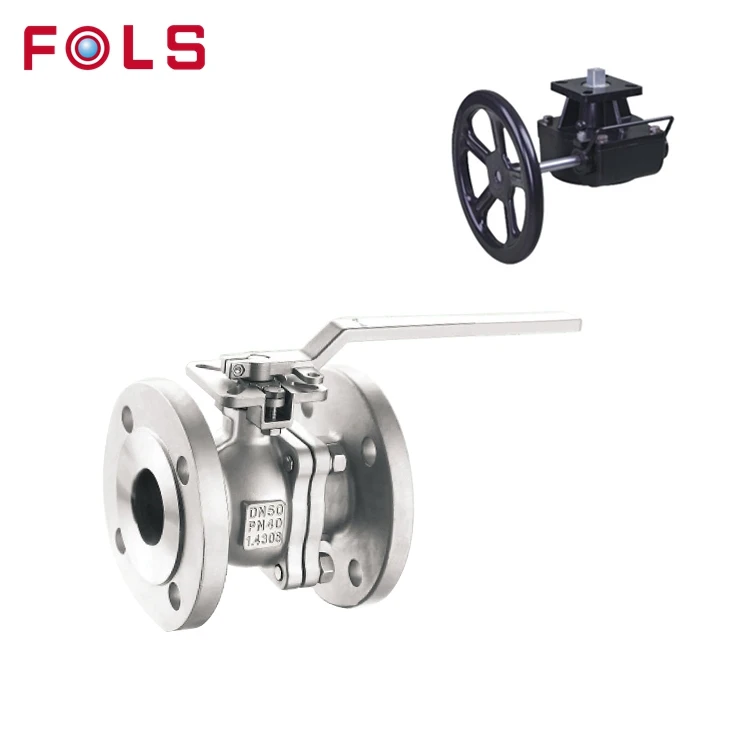

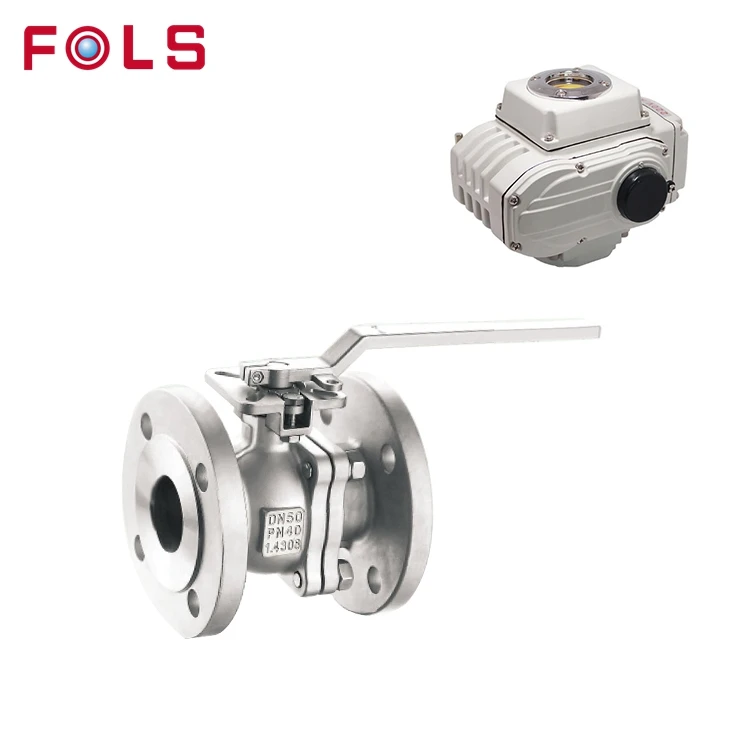

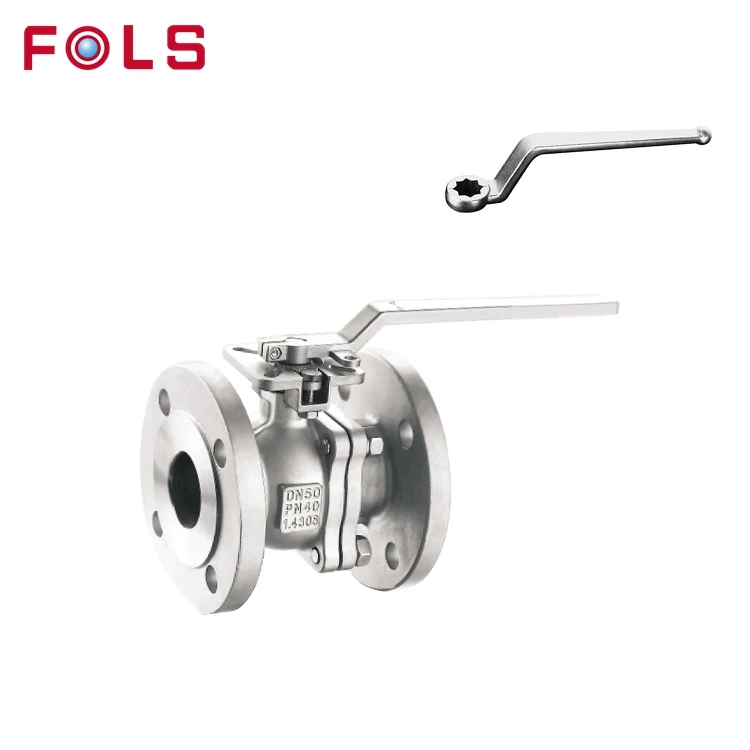

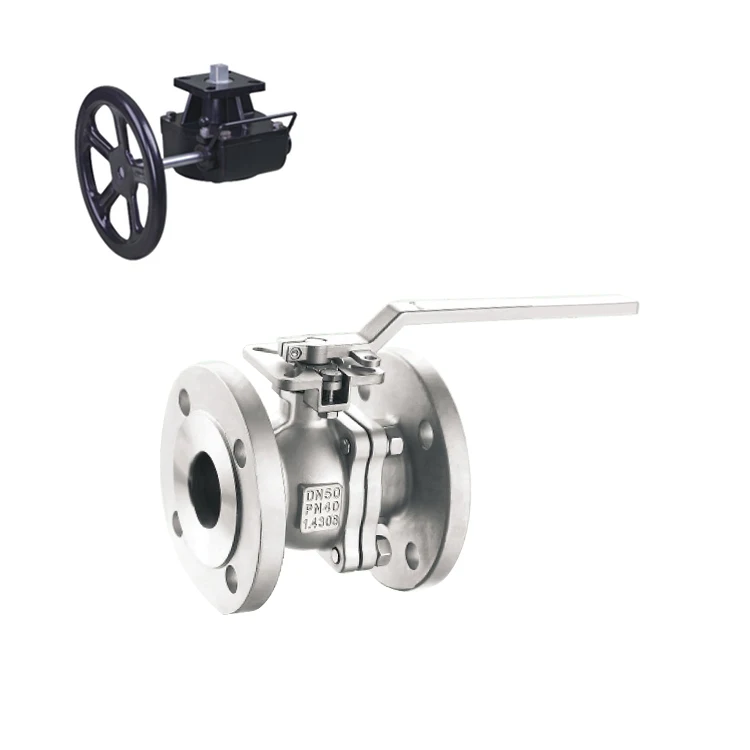

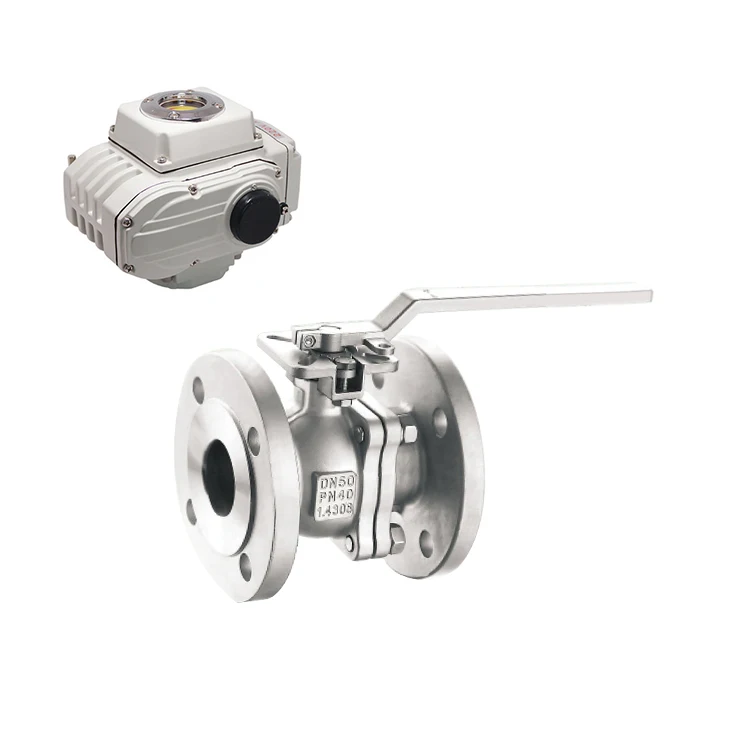

| · Product Show · |

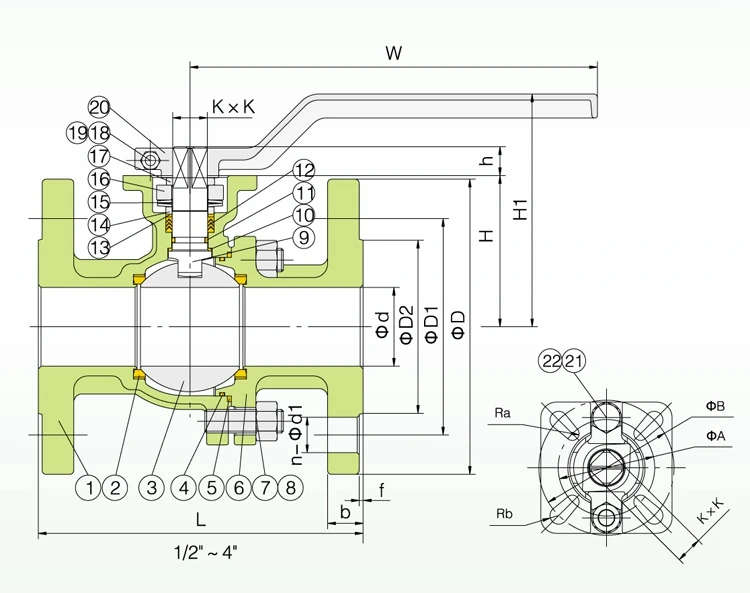

| · Material List · |
| NO. | PARTS | MATERIALS | ||
| 1 | BODY | 1.0619 | 1.4308 | 1.4408 |
| 2 | SEAT | PTFE | ||
| 3 | BALL | 1.4308 | 1.4308 | 1.4408 |
| 4 | O-RING | FPM | ||
| 5 | GASKET | PTFE | ||
| 6 | BONNET | 1.0619 | 1.4308 | 1.4408 |
| 7 | BOLT | 304 | ||
| 8 | NUT | 304 | ||
| 9 | STEM | 304 | 304 | 316 |
| 10 | STEM WASHER | PTFE+25%GF | ||
| 11 | O-RING | FPM | ||
| 12 | PACKING | PTFE | ||
| 13 | WEAR WASHER | PTFE+25%GF | ||
| 14 | GLAND | 304 | ||
| 15 | DISC SPRING | 304 | ||
| 16 | GLAND FLANGE | 304 | ||
| 17 | STOPPER | 304 | ||
| 18 | HEX SOCKET BOLT | 304 | ||
| 19 | NUT | 304 | ||
| 20 | HANDLE | WCB/CF8 | ||
| 21 | BOLT | 304 | ||
| 22 | NUT | 304 | ||

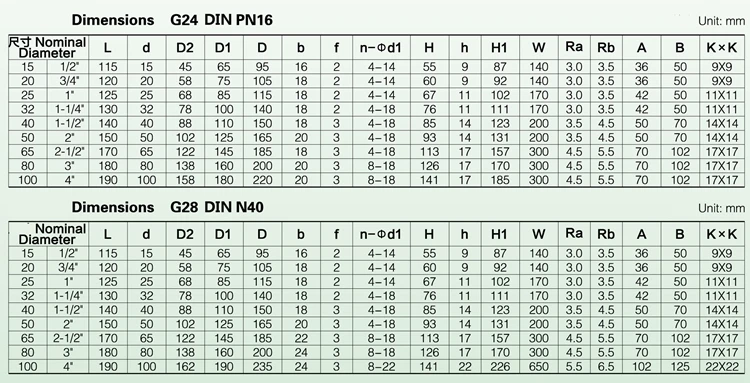

| · Dimensions · |
| · Company Profile · |
| · Our Certifications · |
| · FAQ · |
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Can I have a sample order?
A: Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
