Motor characteristic example:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | Rated | STARTING | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||
| V | r/min | A | r/min | A | mN.m | g.cm | W | mN.m | g.cm | A | |||
| N20VA-06350 | 1.5-4 | 3 | 1 | 11800 | 0.05 | 8378 | 0.082 | 1.052 | 2.0 | 0.09 | 0.03 | 3 | 0.23 |
Remarks:Other parameters: according to customer demand for design

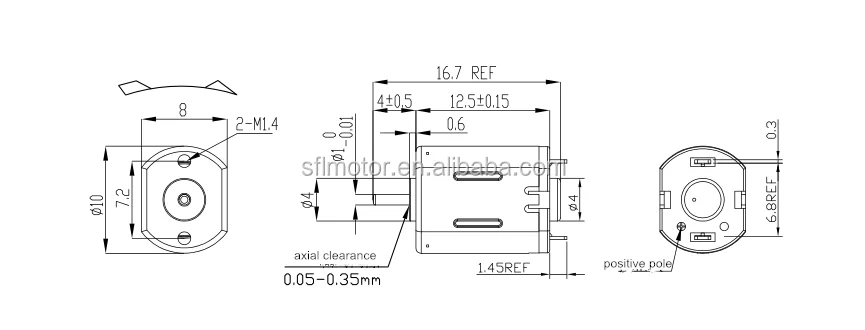

Appearance Size/ Unit: mm

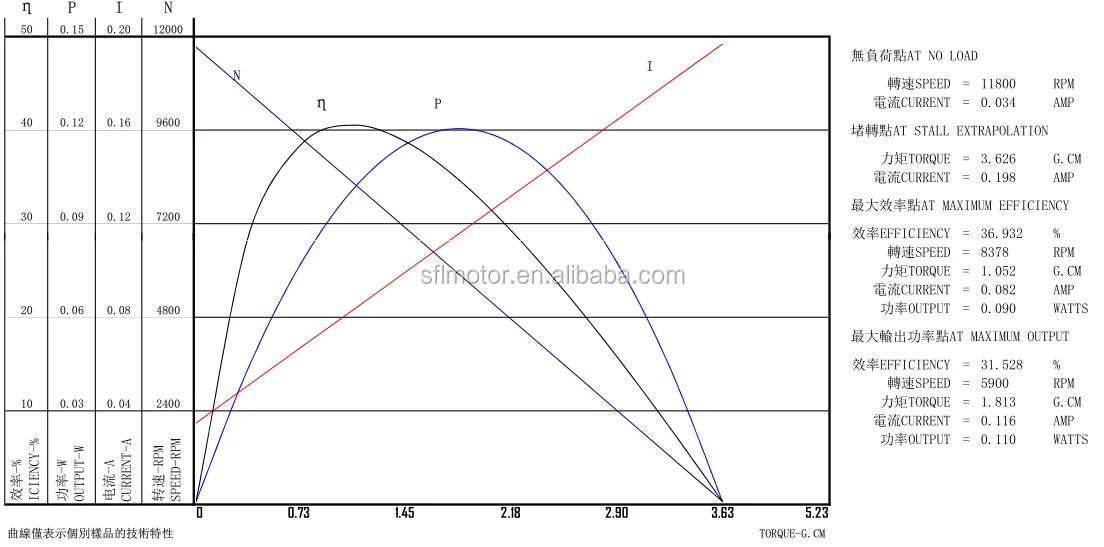

Motor Performance Curve and Characteristics:





A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
A: The sample fee is according to the stock and cost.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
