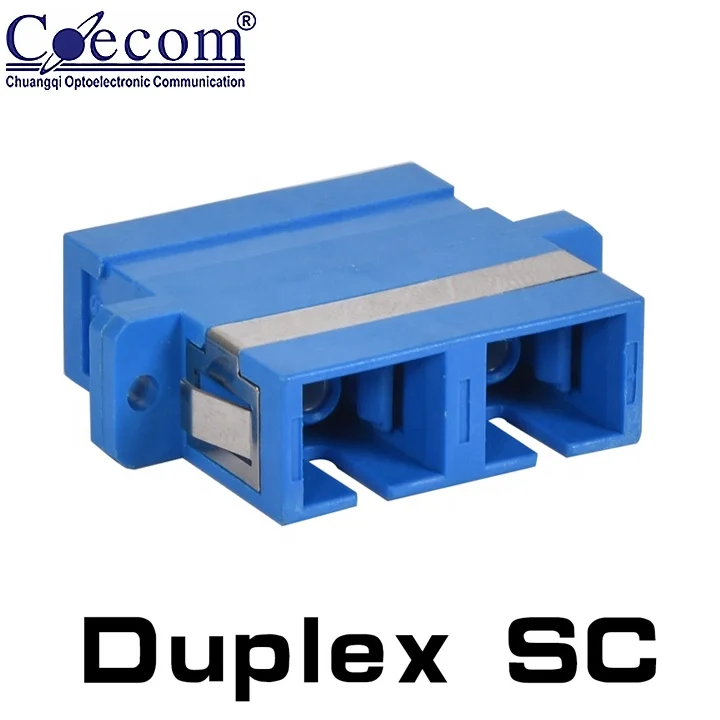

Cheap Price ST/LC/FC/SC Fiber Adapter SM MM Simplex Duplex Quad SC Optical Fiber Adapter for Fibre Connection
Function & application
Used for active connection between two optical fiber connectors, including ST, SC, FC, LC, SMA, ST-SC, ST-FC, ST-LC, etc.Among them, ST, SC, FC, LC, SMA and so on are the same kind of type connection (Mating sleeves) , ST-SC, ST-FC, ST-LC and so on are the different kinds of type connection(Hybrid adapter).ST, FC have D shape, rectangle, square, SC, LC have a single, double, four, can meet the needs of different applications.
Fiber optic transmission system
Fiber optic sensing
Fiber optic distribution frame
Testing/Measurement Instruments
LAN
CATV
Telecommunication networks
Main features
Low insertion loss
High return loss
Easy to be installed
Various specifications
Good environmental stability
Product parameters
Cheap Price ST/LC/FC/SC Fiber Adapter SM MM Simplex Duplex Quad SC Optical Fiber Adapter for Fibre Connection
Product name
Cheap Price ST/LC/FC/SC Fiber Adapter SM MM Simplex Duplex Quad SC Optical Fiber Adapter for Fibre Connection
Product type

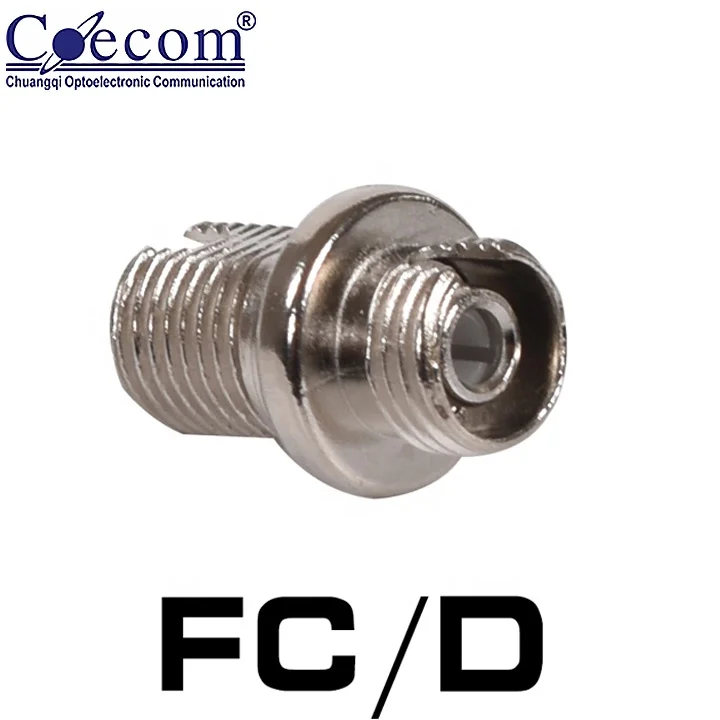

FC or FC/D

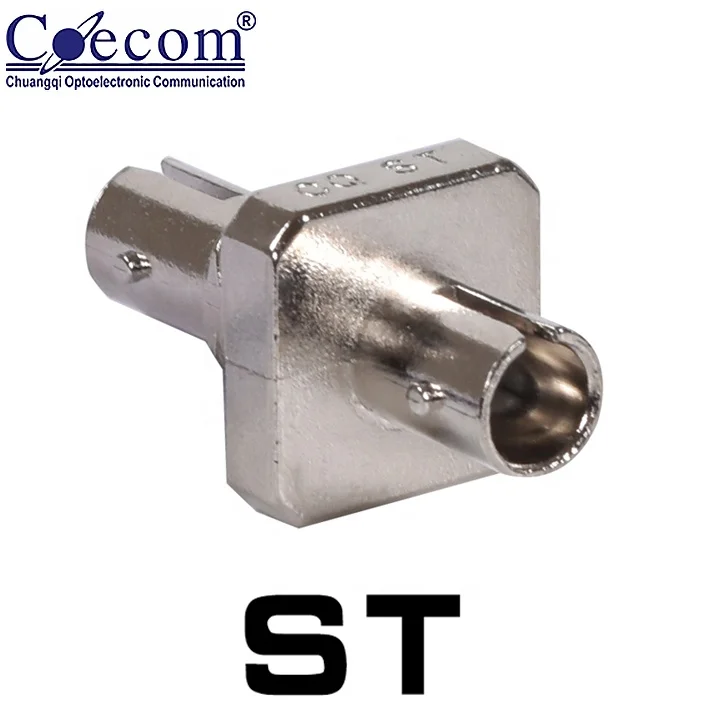

ST

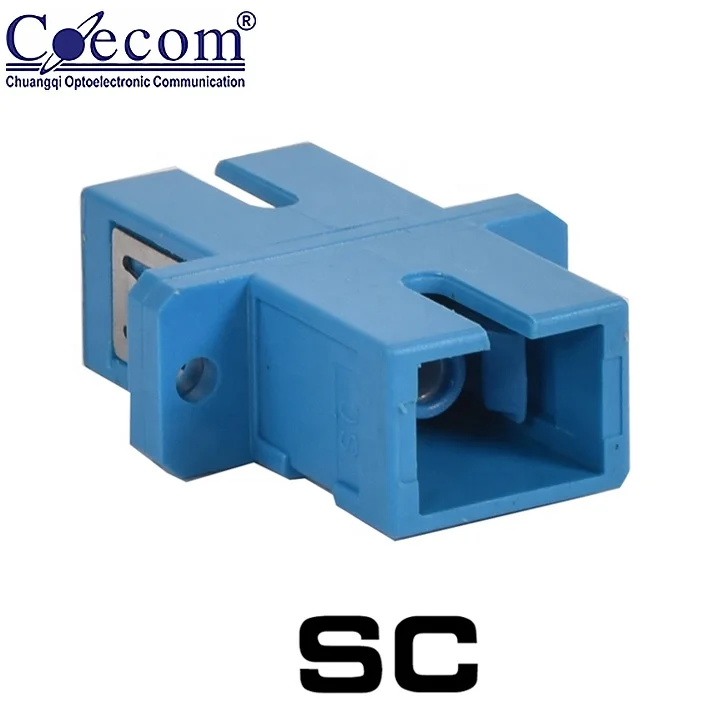

SC

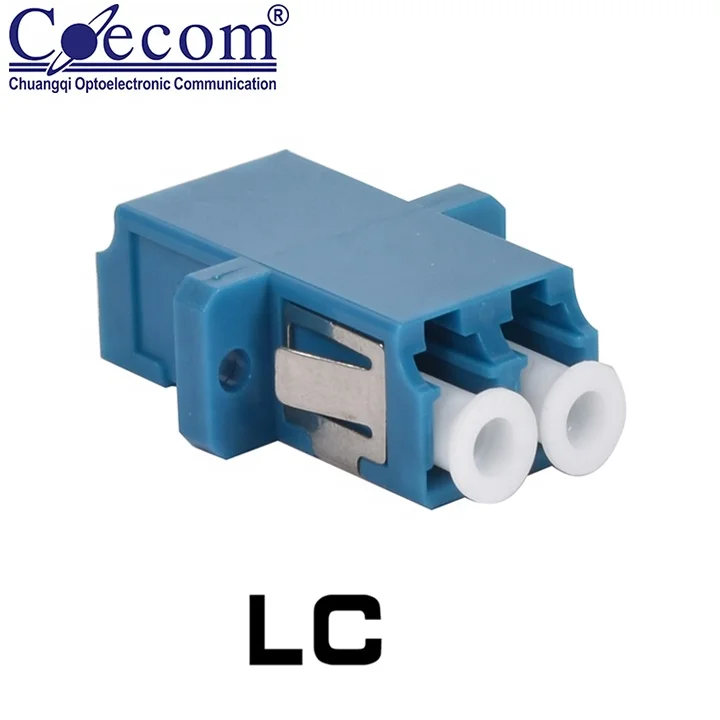

LC
SMA
ST/SC
FC/SC
FC/ST
Utralow insertion loss (FC SC ST)
Insertion loss
≤0.2
≤0.2
≤0.2
≤0.1
≤0.5
≤0.4
≤0.5
≤0.1
MM≤0.05
SM≤0.1
Repeated mating
≤0.1
≤0.1
≤0.1
≤0.1
≤0.3
≤0.2
≤0.3
≤0.2
≤0.05
Sleeve material
Mainly zirconia ceramic, phosphor bronze can be optional
Plug and unplug
≥500 times
Insertion force
300-600g
Operating temperature
-40~+70°C
Storage temperature
-55~+85°C
According standrand
BelicoreTA-NWT-001209
Note
1. Optical jumper connectors are similar to wire plugs,adpters are similar to outlets. 2. The key indicators of adapter are insert loss and tensile strength,the smaller interpolation loss & the range of interpolation force, the better. 3.The performance of ceramic sleeve is better than phosphorus bronze sleeve.
Product catalog
Hot sale
Company information
Certifications
Advantages
FAQ
1.Are you factory or trading company?
We are factory in Nanjing, China. We have 3500 square meters production area and more than 100 employees.
4. Do you accept the small order? Sure.We accept small order if your order quantity is less than MOQ,we do our best to help you by giving you the competitive price with best service.
5. Do you accept OEM?
Yes, OEM is acceptable. The research, design and production will proceed according to your requirement.
6.What kind of packing for this item? Export carton packing for each one piece.
7. What is your payment way? Alibaba Trade Assurance ,Western Union,T/T ,L/C, etc.
