DN80 Электрический привод бабочка для воды
- Category: >>>
- Supplier: Tuoerpu Technology Co. Ltd.
Share on (62177109769):
Product Overview
Description

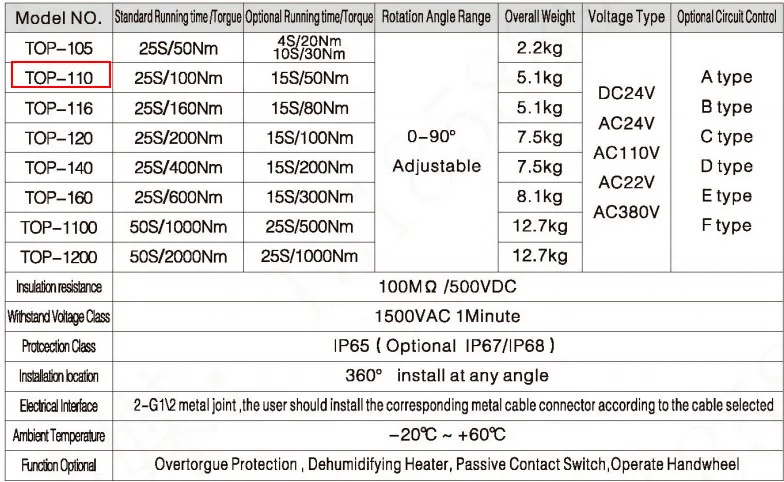

Electric actuator parameters
General type
Diving type
Explosion-proof type
Power failure reset type
Intelligent type
Intelligent explosion-proof type

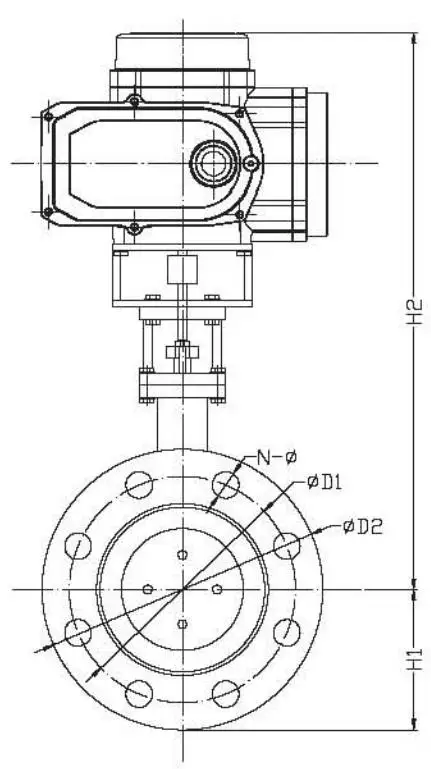

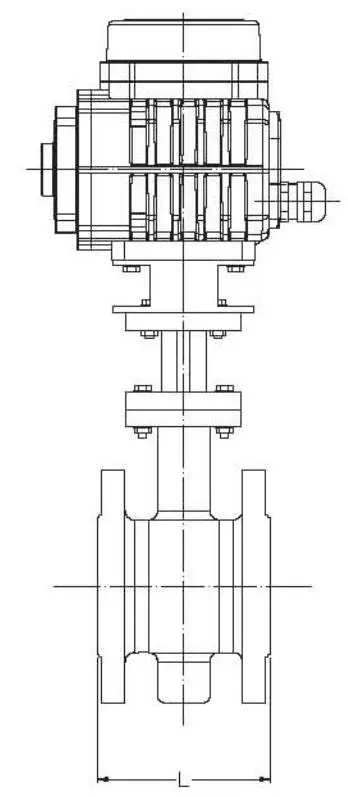

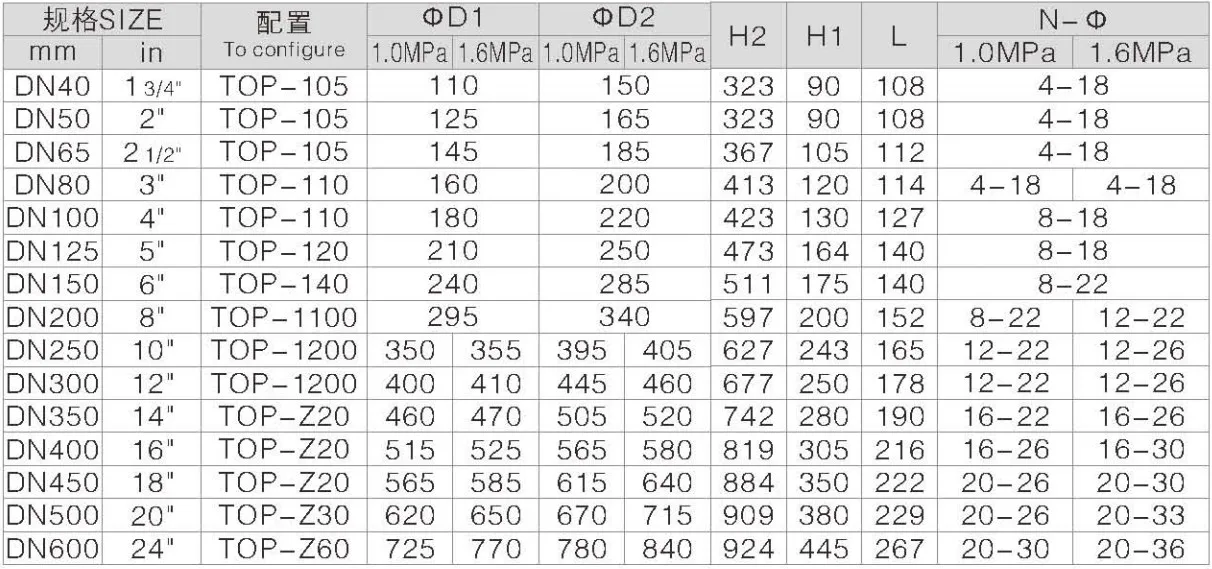

Valve technical parameters
Nominal Diameter DN( mm) | DN50~DN500 | ||||
Nominal Pressure | PN1.0MPa | ||||
Test Pressure | strength test | PN1. 5MPa | PN1.6MPa | ||
seal test | PN1.1MPa | PN1.76MPa | |||
Main Parts | Body | ductile iron ,WCB,SS | |||
ball vavle | gray iron ,ductile iron ,forged iron ,SS etc special material | ||||
stem | WCB,SS | ||||
seal | Rubber 、,PTFT、EPDN | ||||
filler | PTFT, Flexible graphite | ||||
Applicable Operating performance | Applicable Medium | water ,air ,oil etc | |||
Applicable Temperature | WCB :-29℃~425℃， SS：-40℃~650℃ | ||||
Packing & Delivery
Application
Electric actuators are widely used in the production process detection and control system of many departments, such as electric power, metallurgy, petroleum, chemical industry, etc. Due to different site conditions, the actuator should be carefully selected and configured.
Our Company
About us
Located in Oubei "China valve village", Tuoerpu Technology Co., Ltd. is a professional manufacturer engaged in the research, development, production sale and service of electric actuator, electric valve and automatic control automatic control system. With the aim of creating value for our customer, our company sincerely provides high-quality intelligent industrial solutions for domestic and foreign customers.
We have strict requirements on quality and are committed to giving customers the best service experience. We also offer an 18-month warranty, lifetime after-sales service and technical support.
Customer Photos
Certifications
FAQ:
1.Is sample order acceptable ?
Of course ,we accept .
2.How to place the order ?
You can send us email or inquiry on Alibaba directly .
3.How many days for delivery ?
For standrd products , we can send out 7 days after payment .
4 .How do make the payment ?
We accept Bank T/T ,L/C.
5.How will make the shippment ?
A.By Sea Shippment ,By Air ,Express Service
