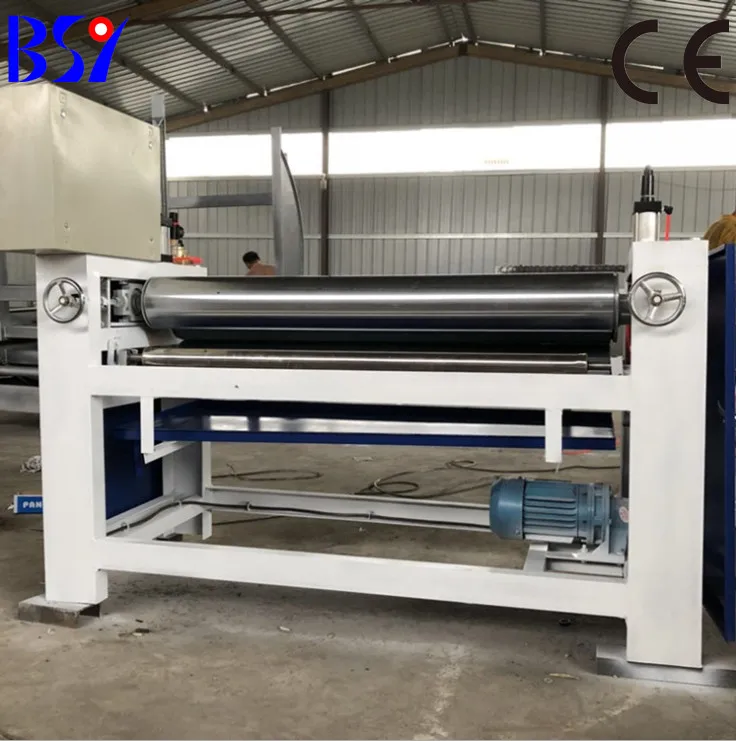

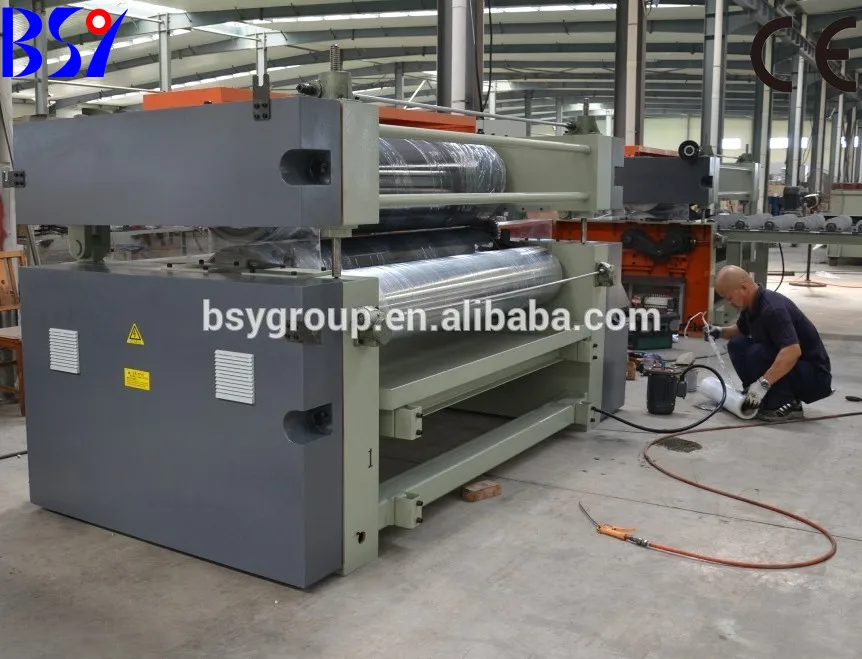

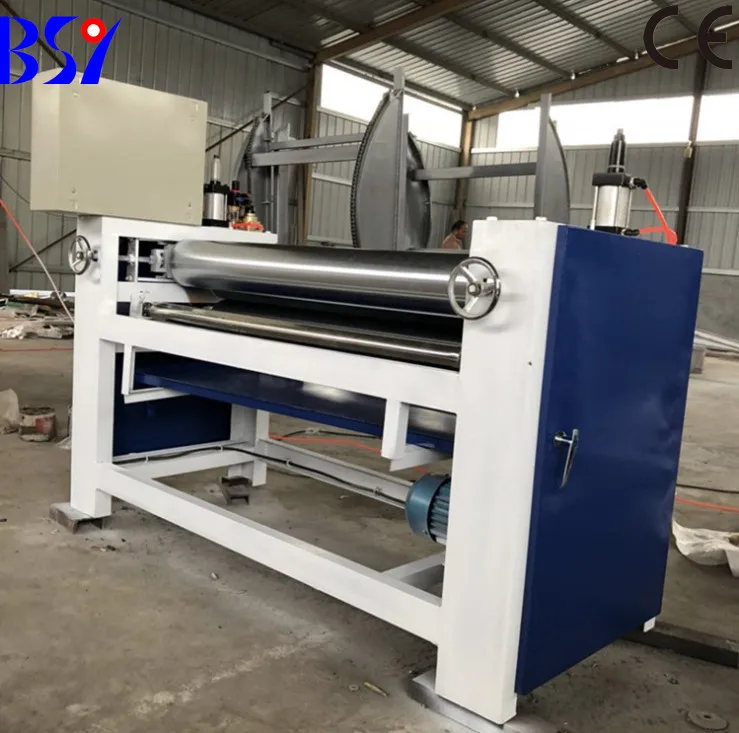

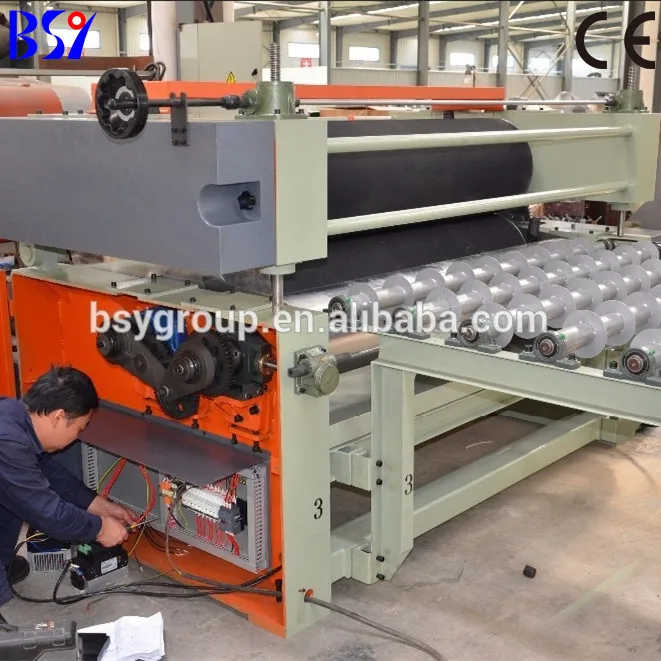

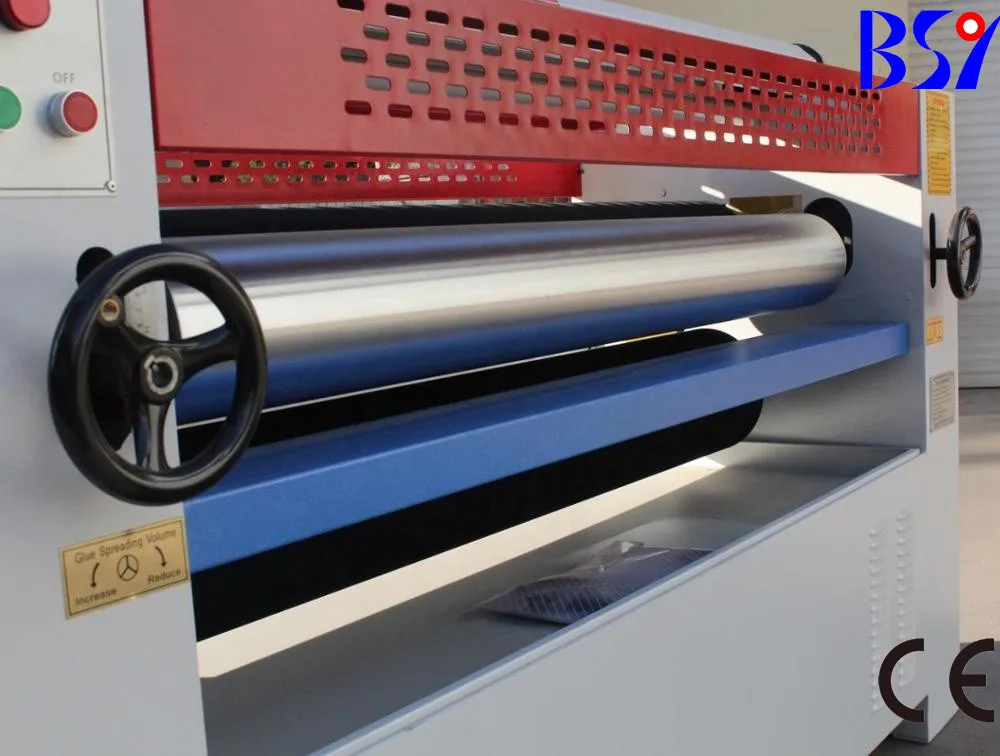

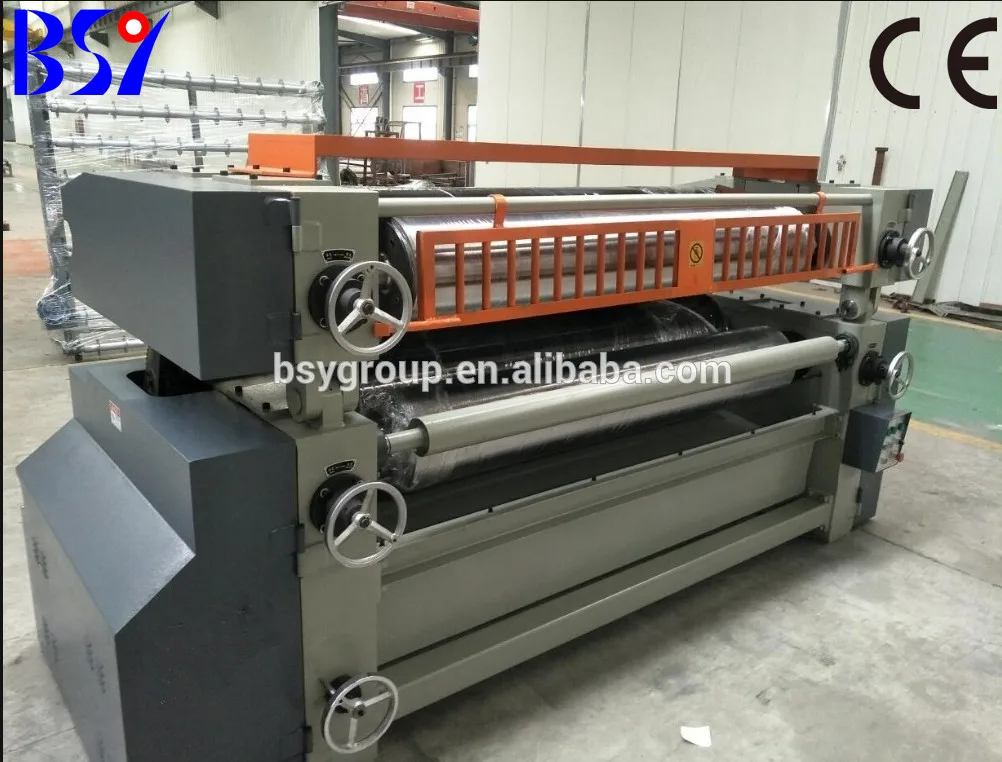

Low price double side plywood glue spreader machine/core veneer glue spreader machinery

Product Overview

Description

Low price double-side plywood glue spreader machine/core veneer glue spreader machinery



Use:



This machine is necessary equipment for wood based panel,used to averagely daub core veneer and small size with glue,improve production efficiency,save production cost.



Main technical parameters:

Model	BS3427
Coating roller diameter x length	∅415x2700mm
Squeeze roller diameter x length	∅290x2700mm
Coating roller speed	30-90m/min
Installed power	9kw
Main driven motor	7.5kw
Outlet conveyor motor	1.5kw
Overall size	4340x2800x2545mm
Weight	6100kg



Advantages:



1. Freely adjustment of the gap between spreading rolls and squeezing rolls,could be locked by hand-wheels. The squeezing intensity can be regulated by pneumatic in accordance with different viscosity of glue and amount of glue spreading

2. The drive device adopt frequency motor inverter in the spreader machine

3. The rolls are powered by universal shaft easy replacement and saving time.

4. With pneumatic system,when waste insert into the clearance between rolls,the space will bound automaticlly
