Coecom Factory Wholesale Fiber Adapter LC FC Fiber Adapter, Simplex Fiber Optic Angel Adapter
- Category: Fiber Optic Connectors >>>
- Supplier: Nanjing Coecom Optoelectronic Equipment Co. Ltd.
Share on (62177429042):
Product Overview
Description
Product details

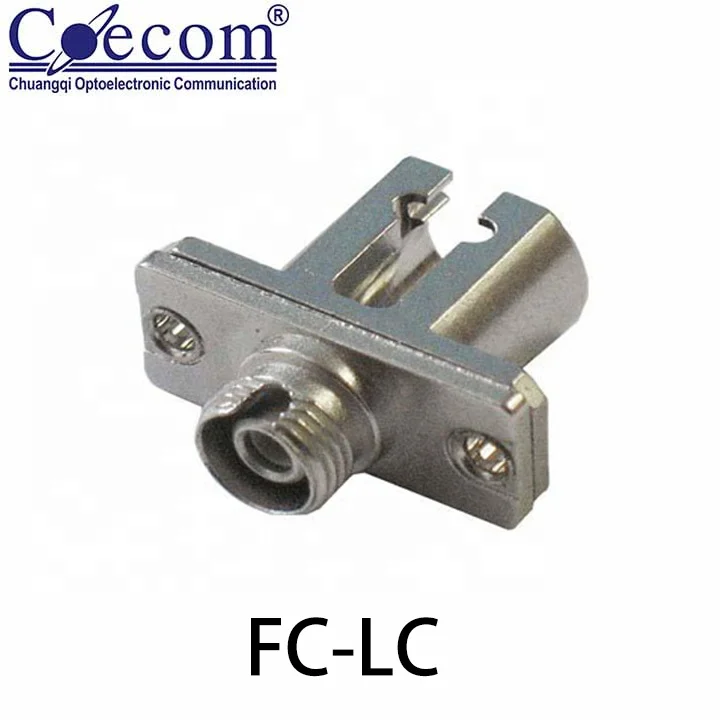

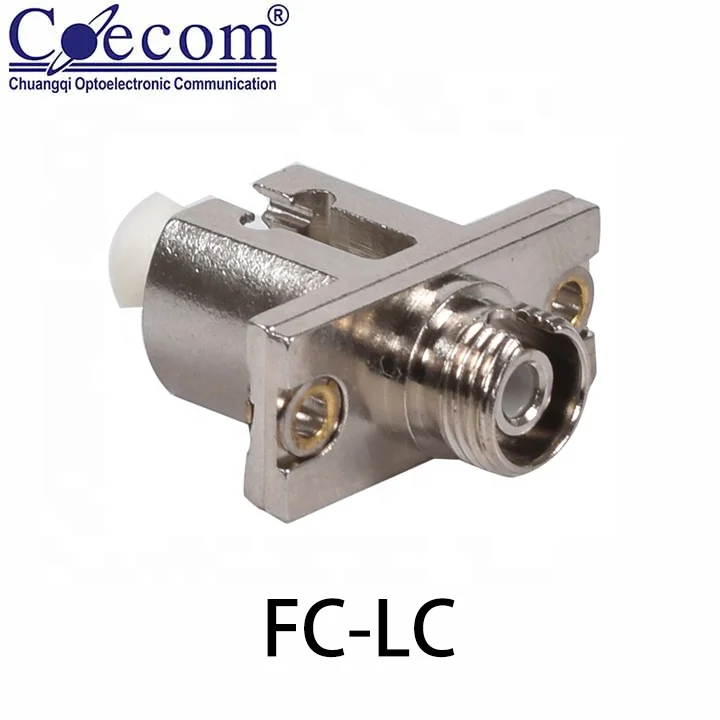

Coecom Factory Wholesale Fiber Adapter LC-FC Fiber Adapter, Simplex Fiber Optic Angel Adapter
Function & application

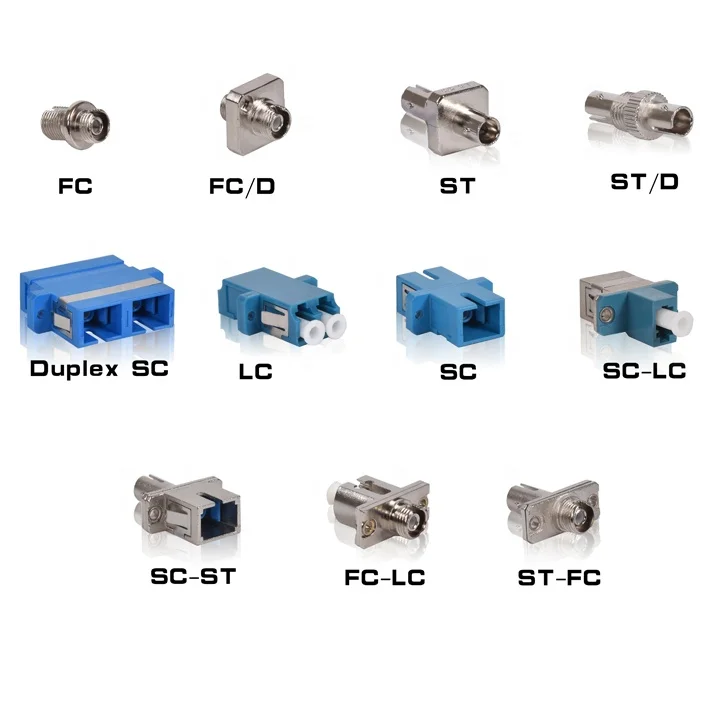

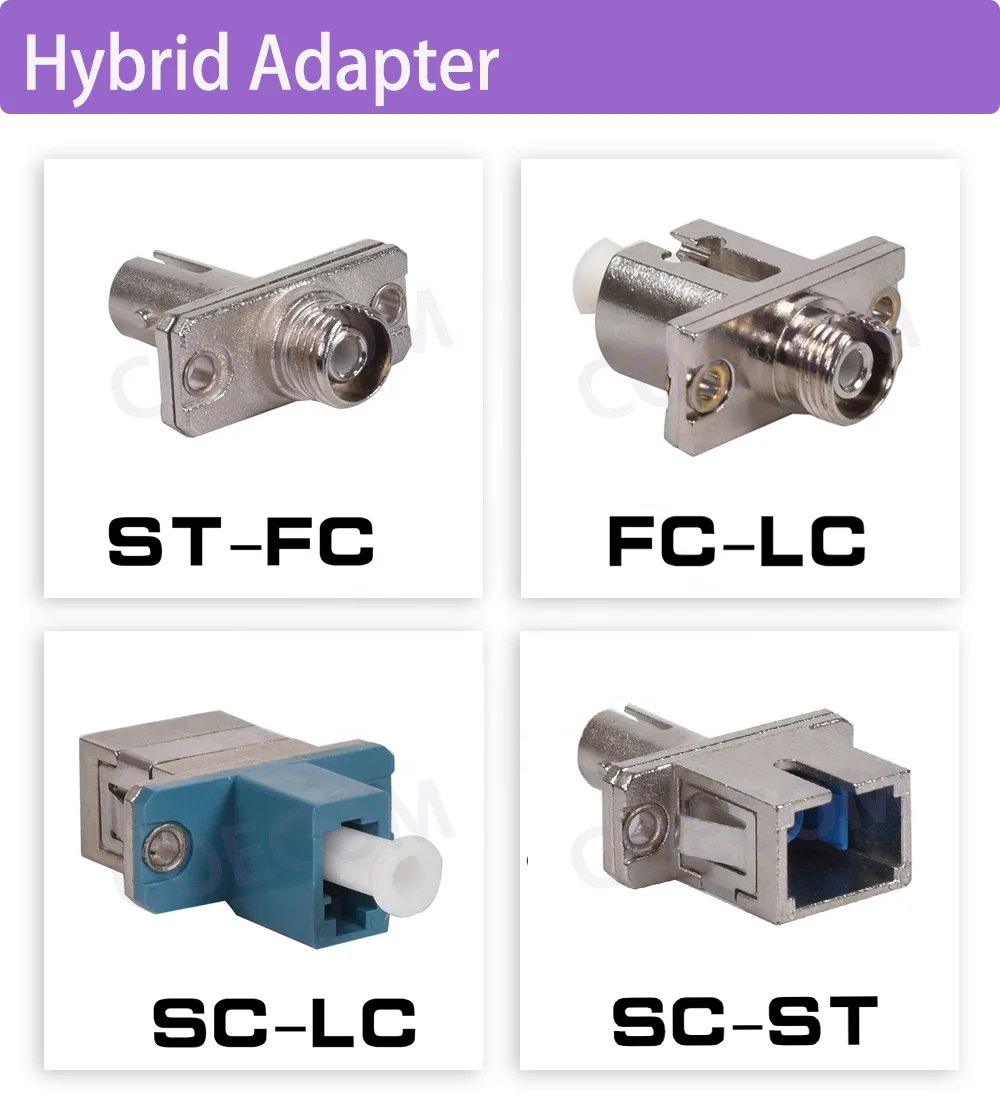

Used for active connection between two optical fiber connectors, including ST, SC, FC, LC, SMA, ST-SC, ST-FC, ST-LC, etc.Among them, ST, SC, FC, LC, SMA and so on are the same kind of type connection (Mating sleeves) , ST-SC, ST-FC, ST-LC and so on are the different kinds of type connection(Hybrid adapter).ST, FC have D shape, rectangle, square, SC, LC have a single, double, four, can meet the needs of different applications.
- Fiber optic transmission system
- Fiber optic sensing
- Fiber optic distribution frame
Testing/Measurement Instruments
LAN
CATV
Telecommunication networks
Main features
Low insertion loss
- High return loss
Easy installation
Various specifications
- Good environmental stability
Product parameters
Coecom Factory Wholesale Fiber Adapter LC-FC Fiber Adapter, Simplex Fiber Optic Angel Adapter
| Product name | Coecom Factory Wholesale Fiber Adapter LC-FC Fiber Adapter, Simplex Fiber Optic Angel Adapter | |||||||||
| Product type | FC or FC/D | ST | SC | LC | SMA | ST/SC | FC/SC | FC/ST | Utralow insertion loss (FC SC ST) | |
| Insertion loss | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.1 | ≤0.5 | ≤0.4 | ≤0.5 | ≤0.1 | MM≤0.05 | SM≤0.1 |
| Repeated mating | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.05 | |
| Sleeve material | Mainly zirconia ceramic, phosphor bronze can be optional | |||||||||
| Plug and unplug | ≥500 times | |||||||||
| Insertion force | 300-600g | |||||||||
| Operating temperature | -40~+70°C | |||||||||
| Storage temperature | -55~+85°C | |||||||||
| According standard | BelicoreTA-NWT-001209 | |||||||||
| Note | 1. Optical jumper connectors are similar to wire plugs,adpters are similar to outlets. 2. The key indicators of adapter are insert loss and tensile strength,the smaller interpolation loss & the range of interpolation force, the better. 3.The performance of ceramic sleeve is better than phosphorus bronze sleeve. | |||||||||
Product catalog
Hot sale
Company information
Certifications
Advantages
FAQ
1.Are you factory or trading company?
We are factory in Nanjing, China. We have 3500 square meters production area and more than 100 employees.
2. What's your main product?
Our main product includes, optical fiber jumper, optical fiber cable terminal case, ODF, industrial ethernet swtich, optical fiber transceiver and fiber optic modem.
3.How to get samples from your company?
Please contact our sales for samples.
4. Do you accept the small order?
Sure.We accept small order if your order quantity is less than MOQ,we do our best to help you by giving you the competitive price with best service.
5. Do you accept OEM?
Yes, OEM is acceptable. The research, design and production will proceed according to your requirement.
6.What kind of packing for this item?
Export standard packing.
7. What is your payment way?
Alibaba Trade Assurance ,Western Union,T/T ,L/C, etc.
