pulp paper test equip tester pulp testing instrument hydraulic pulp degree tester YT DJ 100
- Category: >>>
- Supplier: Hangzhou Yante Science And Technology Co. Ltd.
Share on (62177520290):
Product Overview
Description
Product Overview
Beating Freeness Tester is suitable for testing the water filtration rate capability of the diluted pulp suspension, that is, the determination of the beating degree.
Features At A Glance

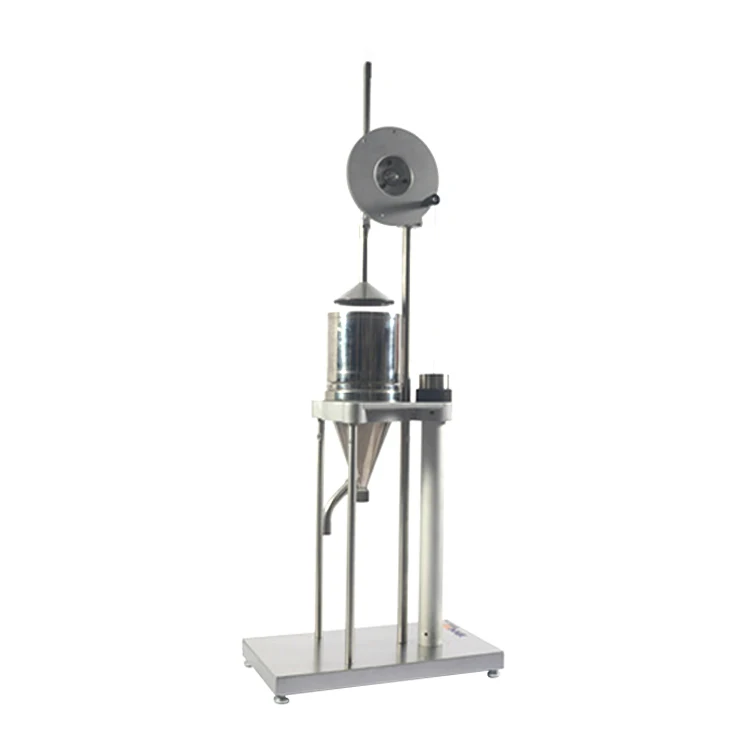

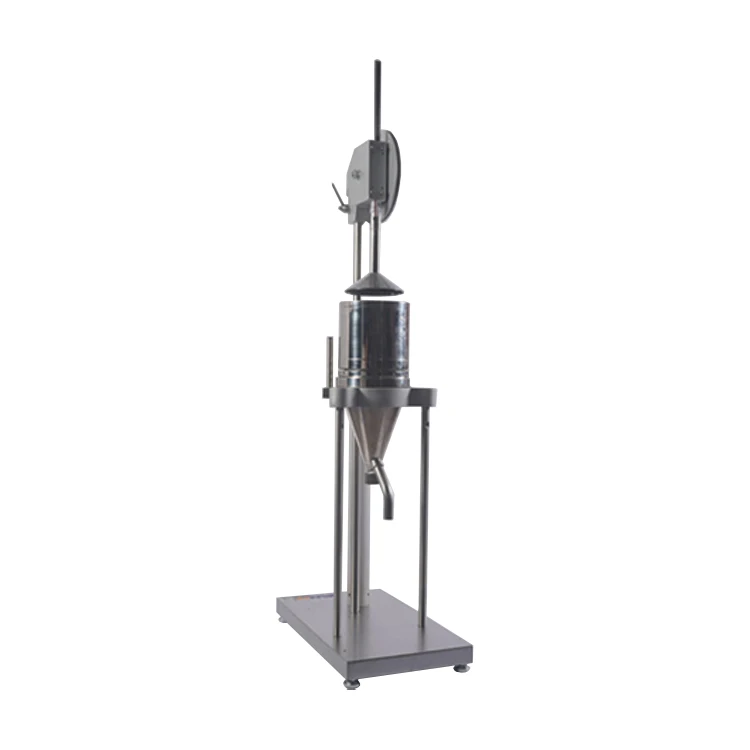

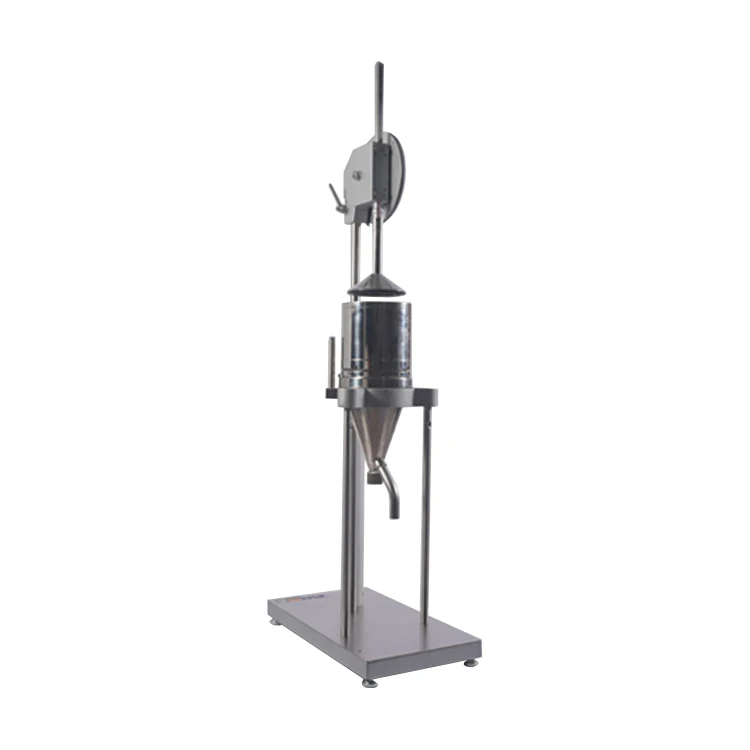

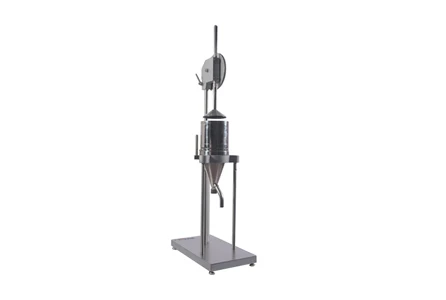

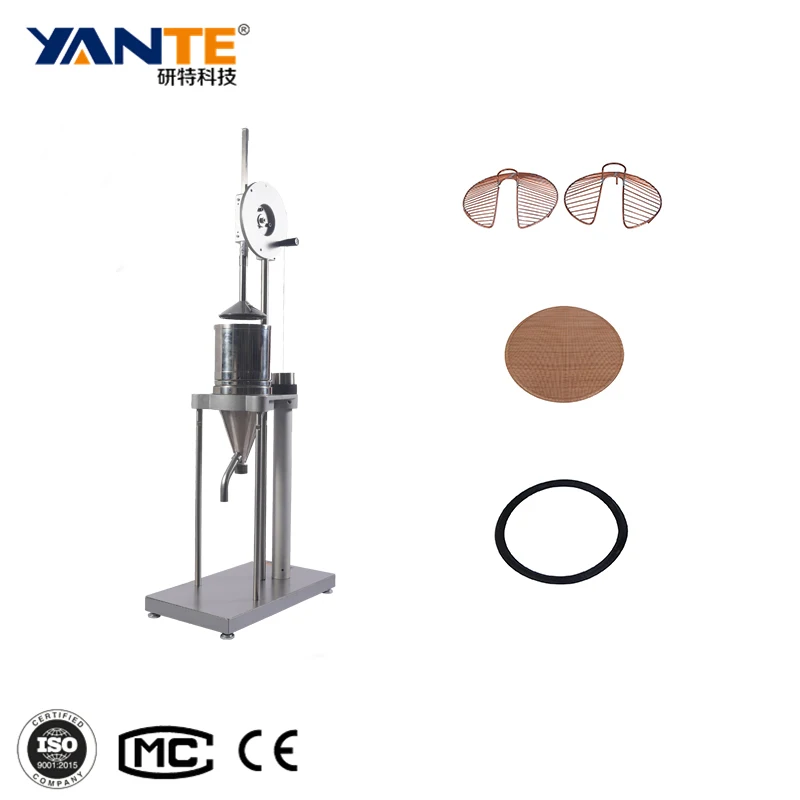

YT-DJ-100 Beating Freeness Tester
The instrument has an adjustment mechanism.
The instrument uses manual compression to seal the vertebral body.

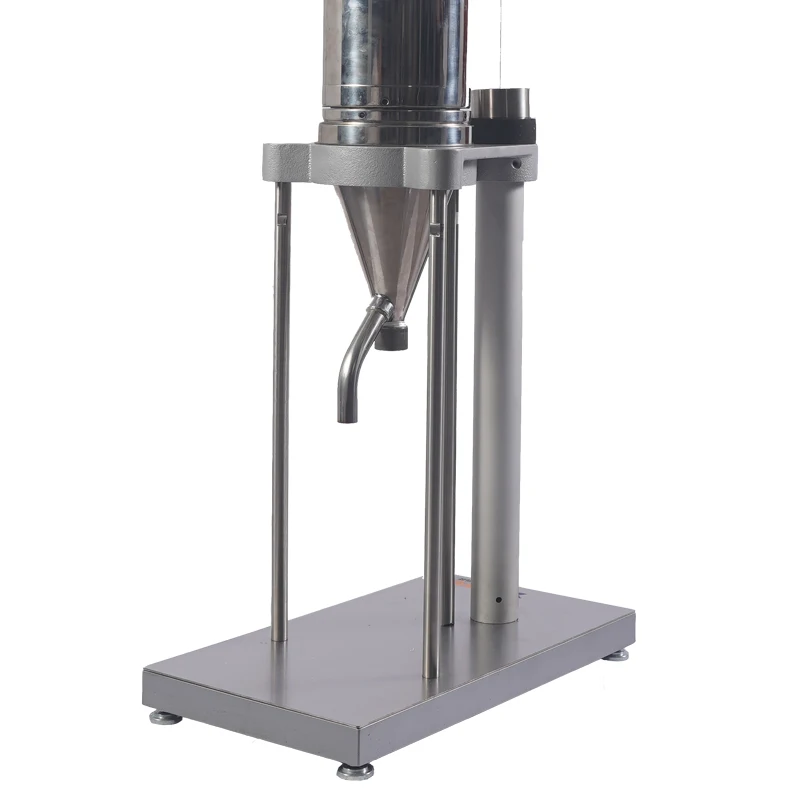

Use a three-legged leveling mechanism to adjust the centering of the sealed vertebral body to ensure the tightness of the sealed vertebral body and cylinder.
Details Images
Product Function
Test the beating degree or tapping degree of the slurry
Execute Standard
ISO 5267-1，GB/T 3332-1982，QB/T 1054
Sales And Service Network
Product Paramenters
No. | Parameter item | Technical index |
1 | Measuring range | 0～100 SR |
2 | Ascending speed of the sealing cone | （100 ±10）mm /s |
3 | Bottom hole flow rate | （149±1）s |
4 | Remaining volume | 7.5 ～8.0 mL |
5 | Dimension | 450×250×1100 mm |
6 | Net Weight | 30kg around |
