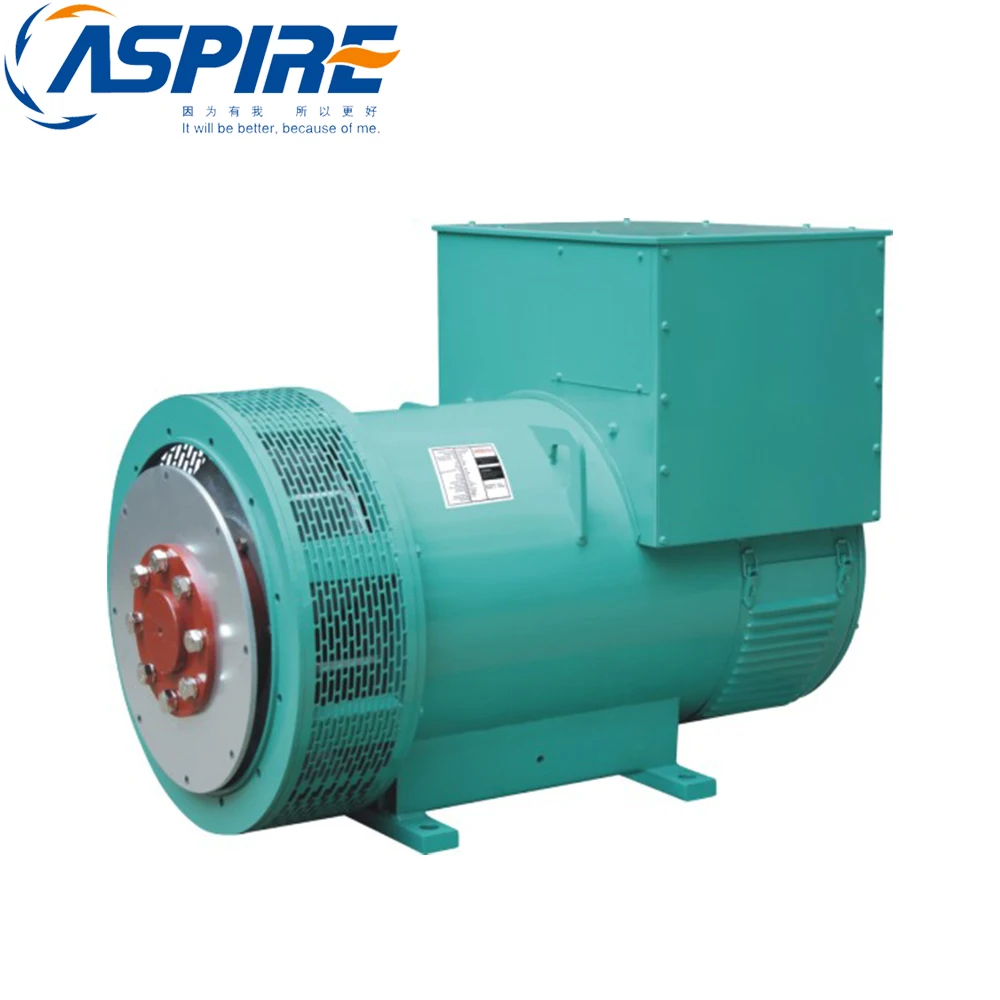

Generator 220V For Stamford 200kw/ 250kva AC Alternator with CE ISO
Product Description
1. Optional permanent magnecitc generators providing invariable excitation on all occasions.
2. Easy to be connected with power network or other generators. Standard 2/3 pitch windings check excessive midline current.
3. Balanced rotor. Single or two sealed ball bearings.
4. Convenient installation and maintenance with easy access to terminal, rotating diodes and coupling bolts.
5. Wide range of Flange adaptor and single bearing couping disc.
6. Meet leading industry and Marine standards. Special voltage generators can be manufactured accoring to end users' requirement.
Single-phase generators minimum voltage can be 110V. Three-phase generators maximum voltage can be 690V.
Technical Data
Model
Output (kW) 50Hz/4pole/400V
Output (kW) 60Hz/4pole/480V
KVA
KW
KVA
KW
SZN164A
8.1
6.5
8.9
7.2
SZN164B
11.0
8.8
12.1
9.7
SZN164C
13.5
10.8
14.9
11.9
SZN164D
16.0
12.8
17.6
14.1
SZN184E
22.5
18
24.8
19.8
SZN184F
27.5
22
30.3
24.2
SZN184G
31.3
25
34.4
27.5
SZN184H
37.5
30
41.3
33.0
SZN184J
42.5
34
46.8
37.4
SZN224C
42.5
34
46.8
37.4
SZN224D
50.0
40
55.0
44.0
SZN224E
60.0
48
66.0
52.8
SZN224F
72.5
58
79.8
63.8
SZN224G
85.0
68
93.5
74.8
SZN274C
100.0
80
110.0
88.0
SZN274D
120.0
96
132.0
105.6
SZN274E
140.0
112
154.0
123.2
SZN274F
160.0
128
176.0
140.8
SZN274G
180.0
144
198.0
158.4
SZN274H
200.0
160
220.0
176.0
SZN274J
230.0
184
253.0
202.4
SZN274K
250.0
200
275.0
220.0
SZN314C
250.0
200
275.0
220.0
SZN314D
295.0
236
324.5
259.6
SZN314E
325.0
260
357.5
286.0
SZN314F
380.0
304
418.0
334.4
SZN354C
450.0
360
495.0
396.0
SZN354D
500.0
400
550.0
440.0
SZN354E
600.0
480
660.0
528.0
SZN354F
670.0
536
737.0
589.6
Detailed Images

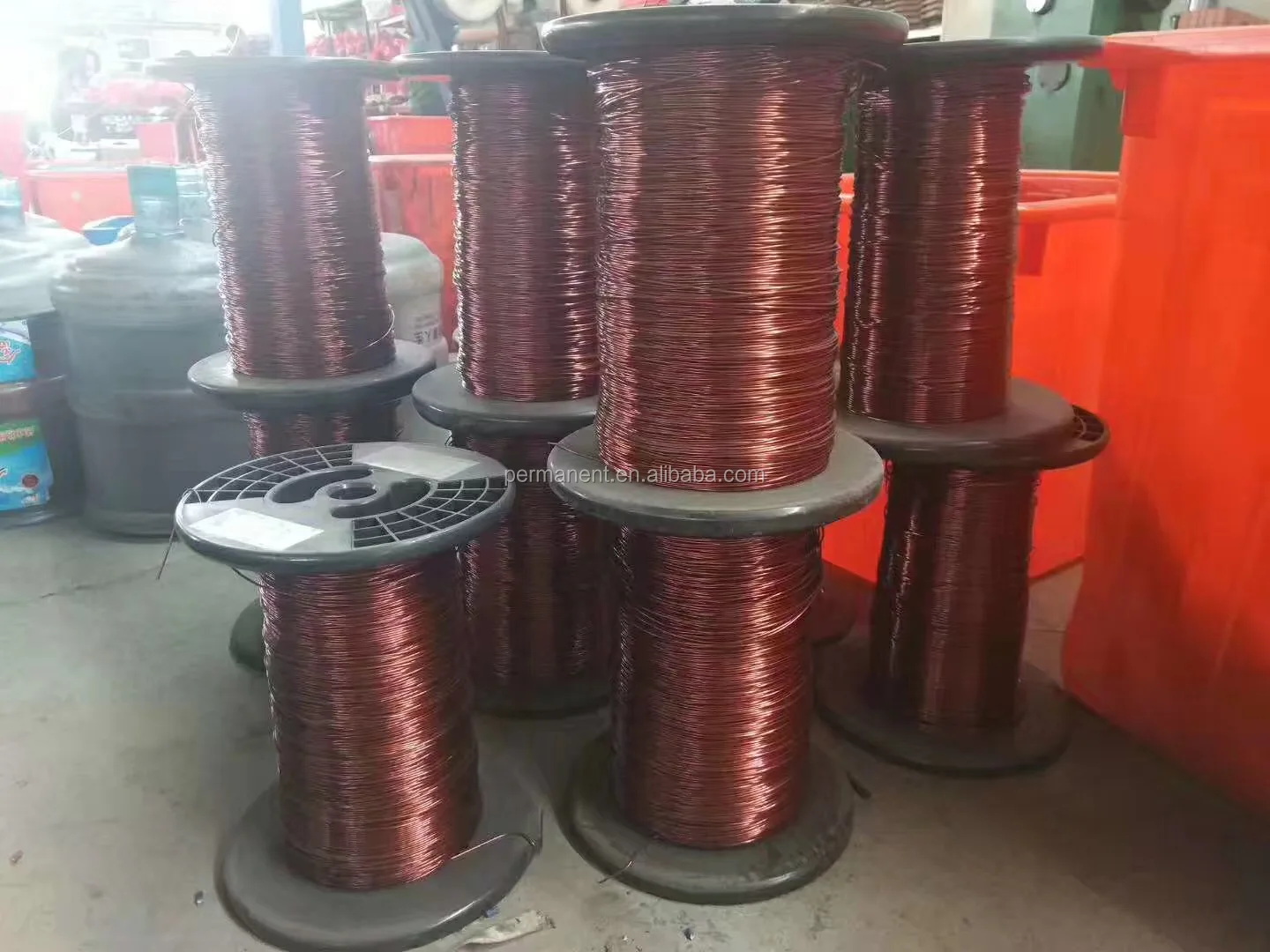

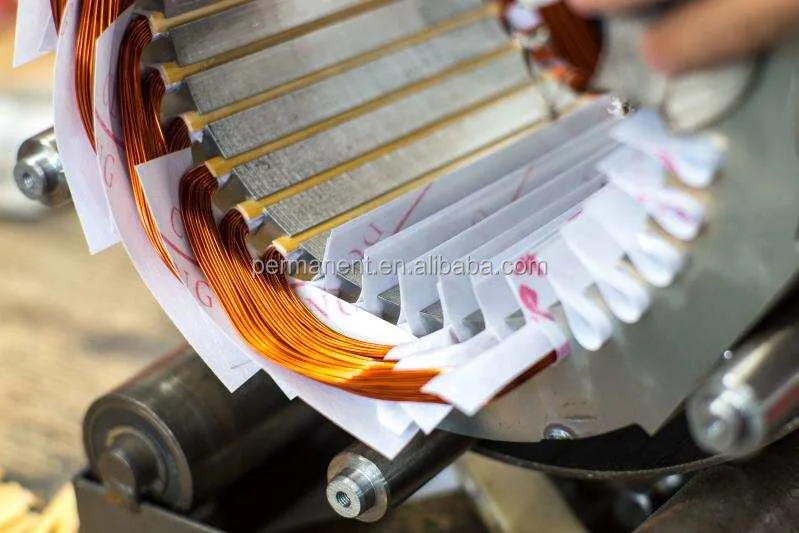

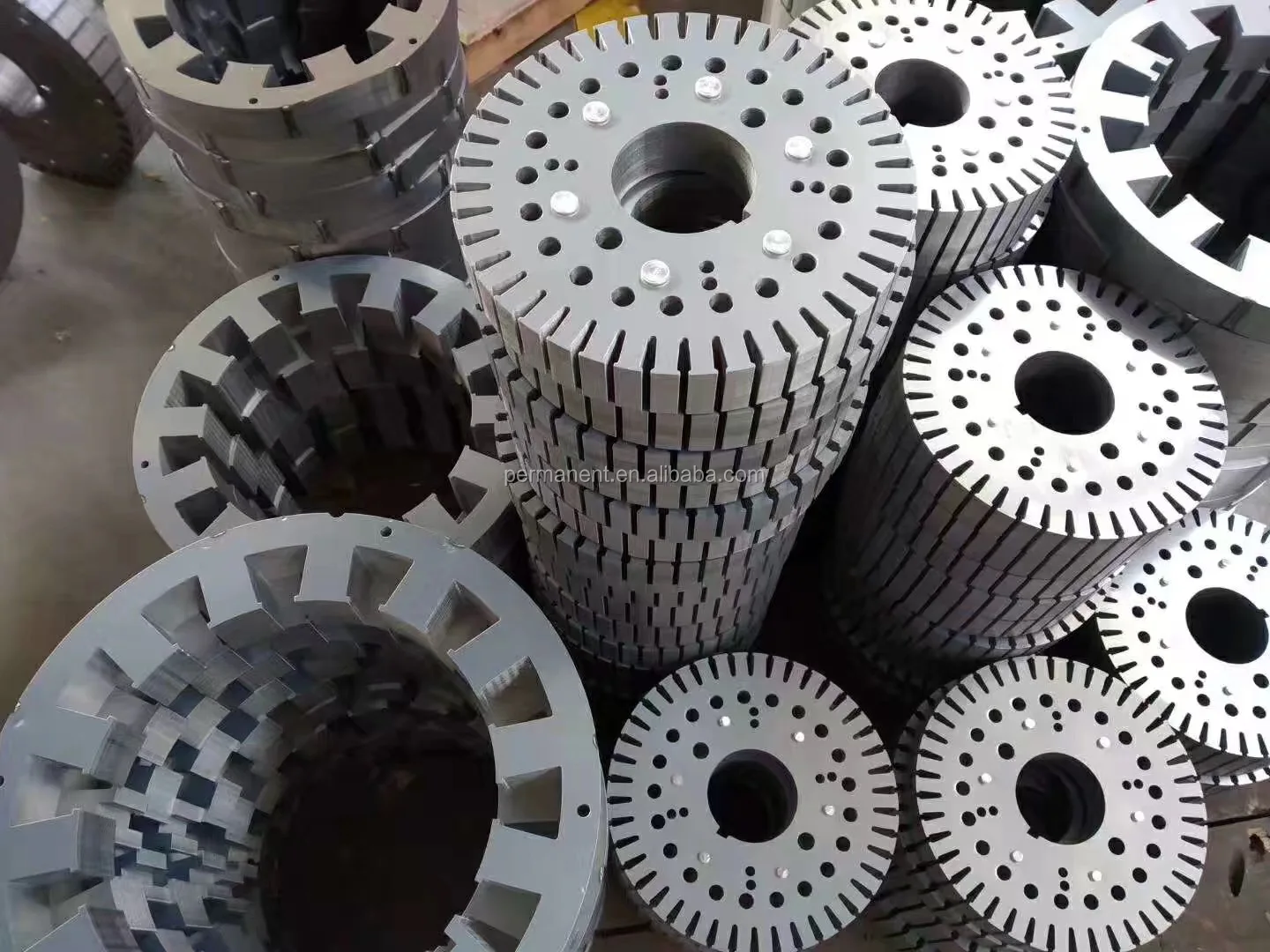

Alternator Pictures
Related Products

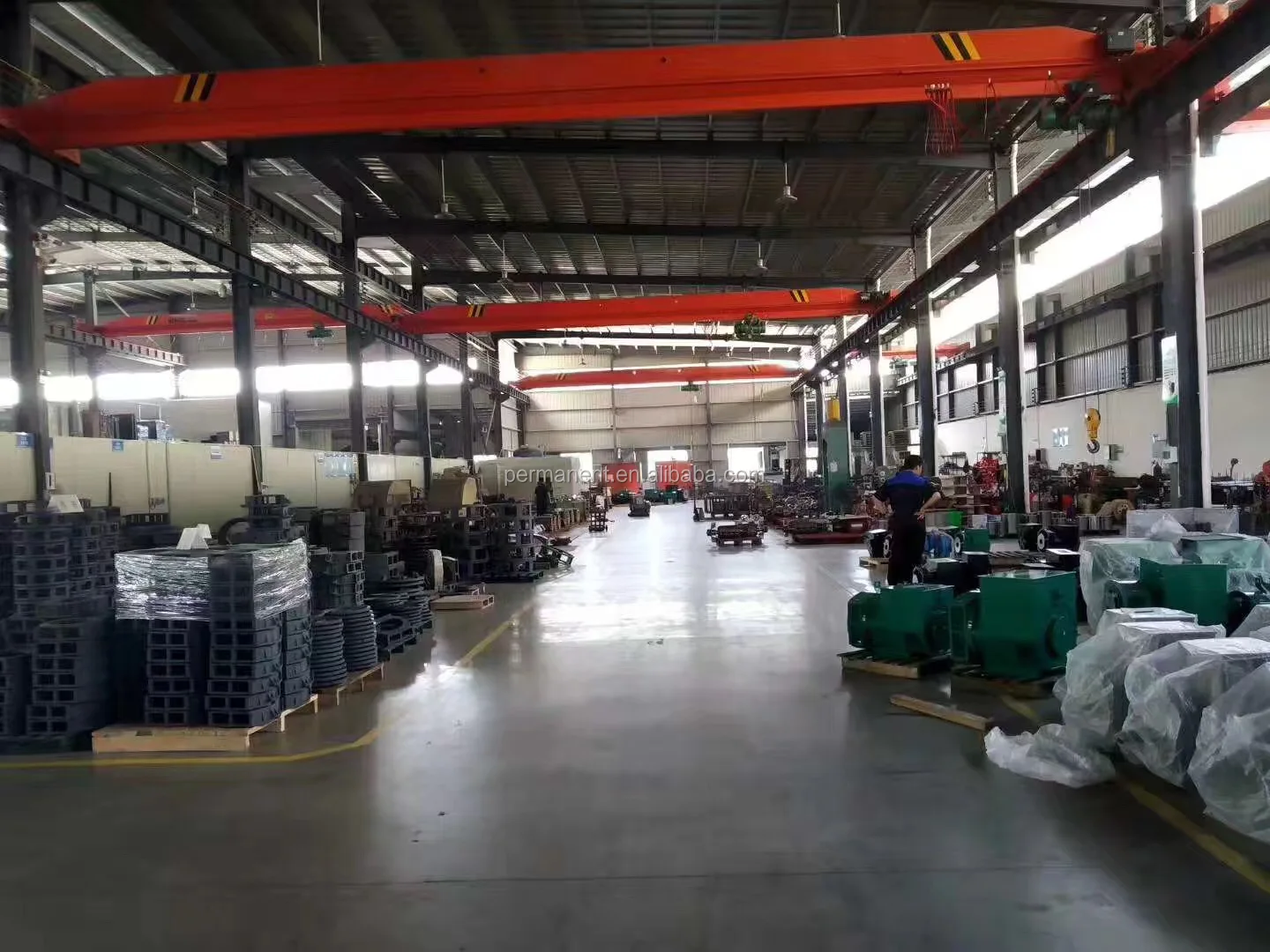

Company Information
Certificate
Contact Us
FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory more than 12 years since 2006.We have a professional team to develop and manufacture the generator spare parts and supply technical support, with factory price and timely delivery.
Q2: How long is your delivery time?
A: Most parts are in stock.Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it based on the quantity.
Q3: What is your guarantee ?
A: Our warranty is one year for neutral products and two years for Aspire logo products .We can replace a new one in your next order if the product is broken during this period.However, even your products are beyond the warranty,we are still glad to supply technical support for you.
Q4:Can your products be used in severe condition place?
A: Don't worry. We test our products both in high temperatuer and low temperature testing equipment, from -40°C to 80°C.
