die cutting machine for sticker labels/creasing/Flatbed cutter/cutter plotter

The ViCut MFC Series flatbed cutter including DragonCut Pro software .
Using advanced digital contour cutting technology, no cutting dies required, the sheets are produced to any shape, instantly and directly from the desktop. It can handle full cutting, half cutting, creasing and even drawing.
Two models are available, the desktop MFC4560 model , while free-standing MFC6090 model offers a larger cutting area 600x900mm, enabling users to cut either larger sheets or to batch more sheets next to each other for increased productivity.

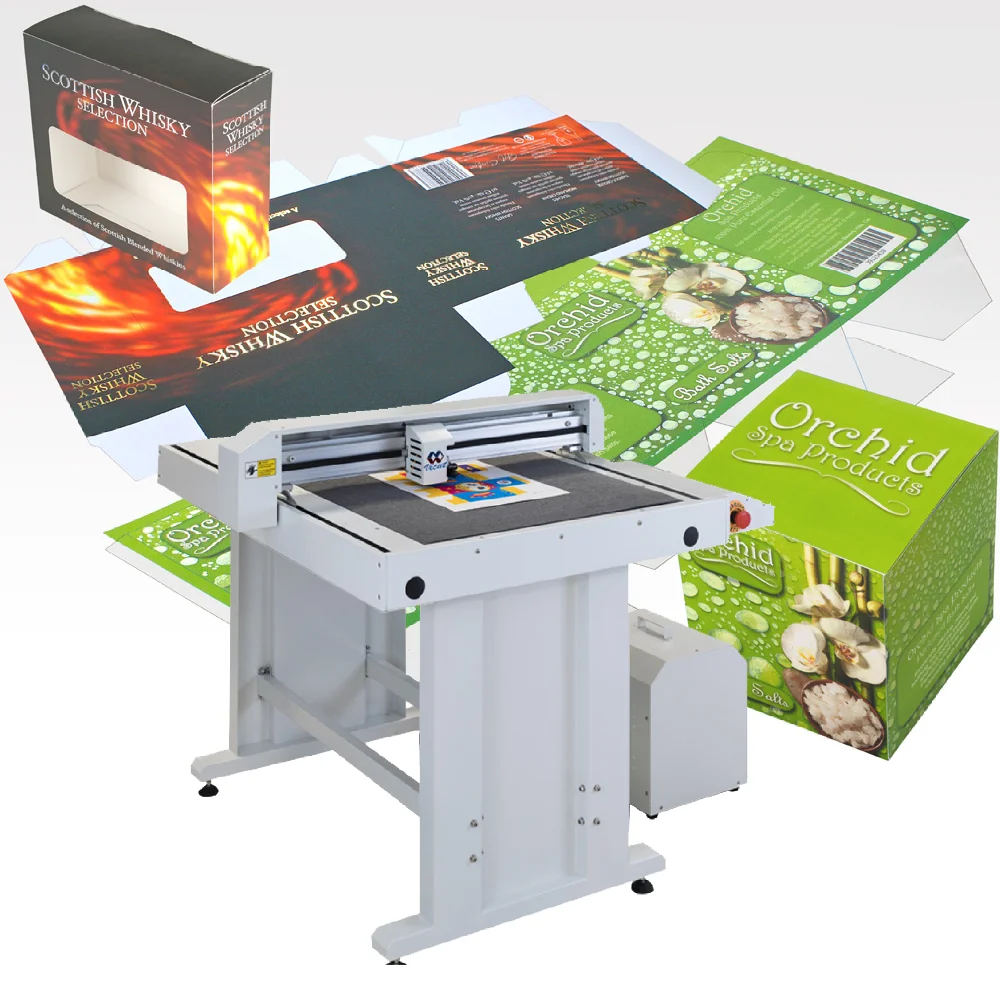

Application Field: Prototype and light production, on-demand packaging and sheet card cutting system – also suitable for sheet labels.

Thchinical Parameters
Flatbed Cutter		VCT-MFC6090
Max.Cutting Speed		600mm/s
Max.Down Force		510g
Interface		Direct USB
Control System		Servo
Cutting Software		Dragoncut Pro
Mchine Power		220V/110V
Mechanical Resolution		0.01254
Programmable Resolution		HPGL0.025mm
Max.Cutting Thickness		1.2mm
Repeat Precision		≤0.05
Media Fixture Method		Vacuum Suction With Vacuum Pump
Working Mode		PC Control ,Windows64bit Supported
Working Environment		5-35 DeGREESe,No Dust ,Flat Working Platform
Dual Cutting Plotter		Blade & Ball-bearing Creasing Tool(a pen tool included)
Working Method		Contour Full Cutting & Kiss Cutting, Creasing ,Drawing
Registration System		Advanced Registration Mark Sensing System (ARMS)
N.W/G.W		70Kg/100Kg

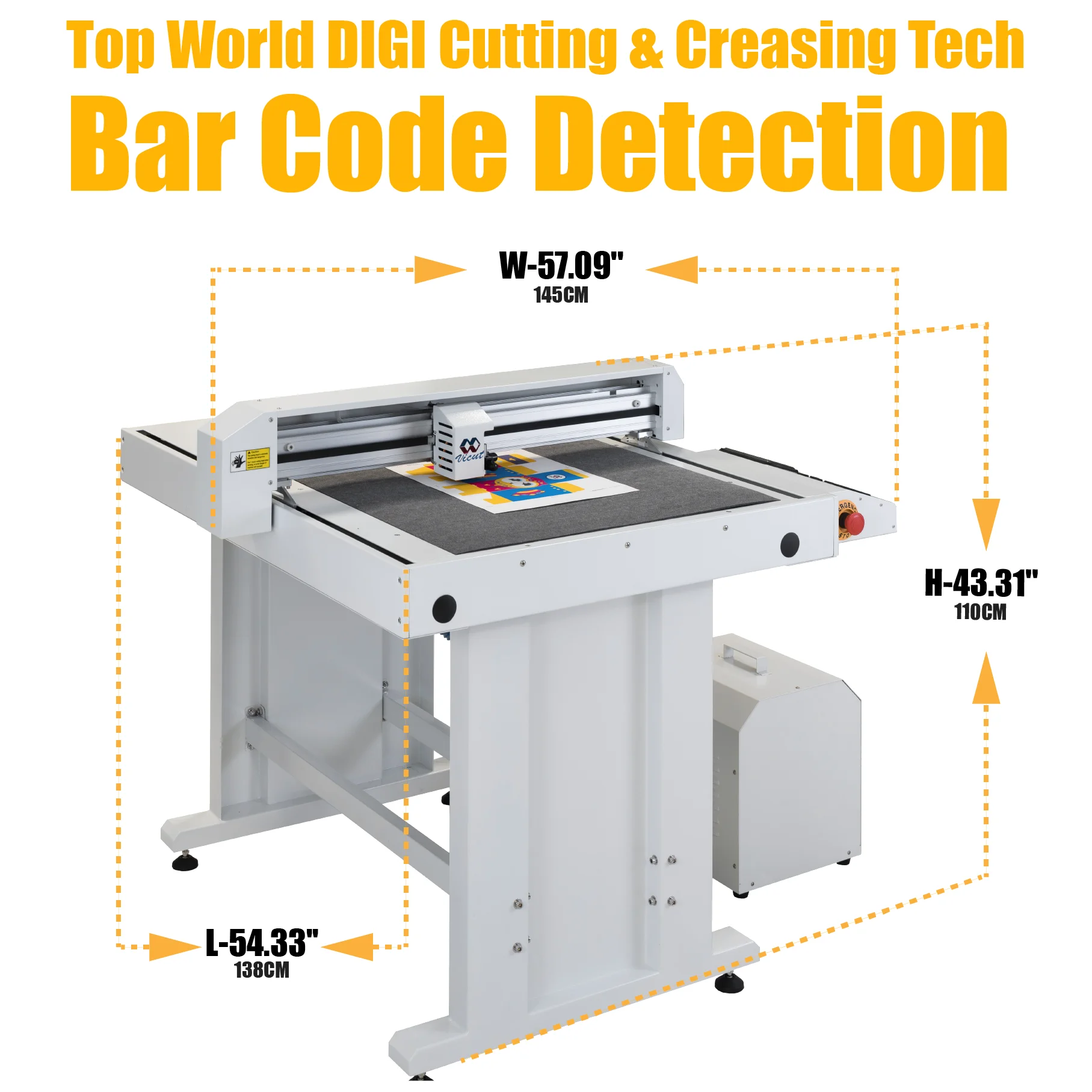

Dimensions		145×138×110M (WXLXH)
Packing Size		142×131×50CM

Main Feature.

1.Direct USB makes the flatbed cutter reliable and convenient.
2.Advanced digital contour cutting technology- high resolution optical sensor read barcode on the printing files automatically.
3.Plug and play, simple installation, no additional drivers needed.
4.No cutting dies required.
5.Contour cutter cuts thin films and card up to 500gsm / 600micron.
6.Pneumatic vacuum suction of media.
7.Dual cutting head, cutting and creasing in one compact unit.
8.Cuts typical SRA3 sheet in 30-60 seconds.
9.Servo drivers control. Silent, precise and powerful servo drives for best cutting results

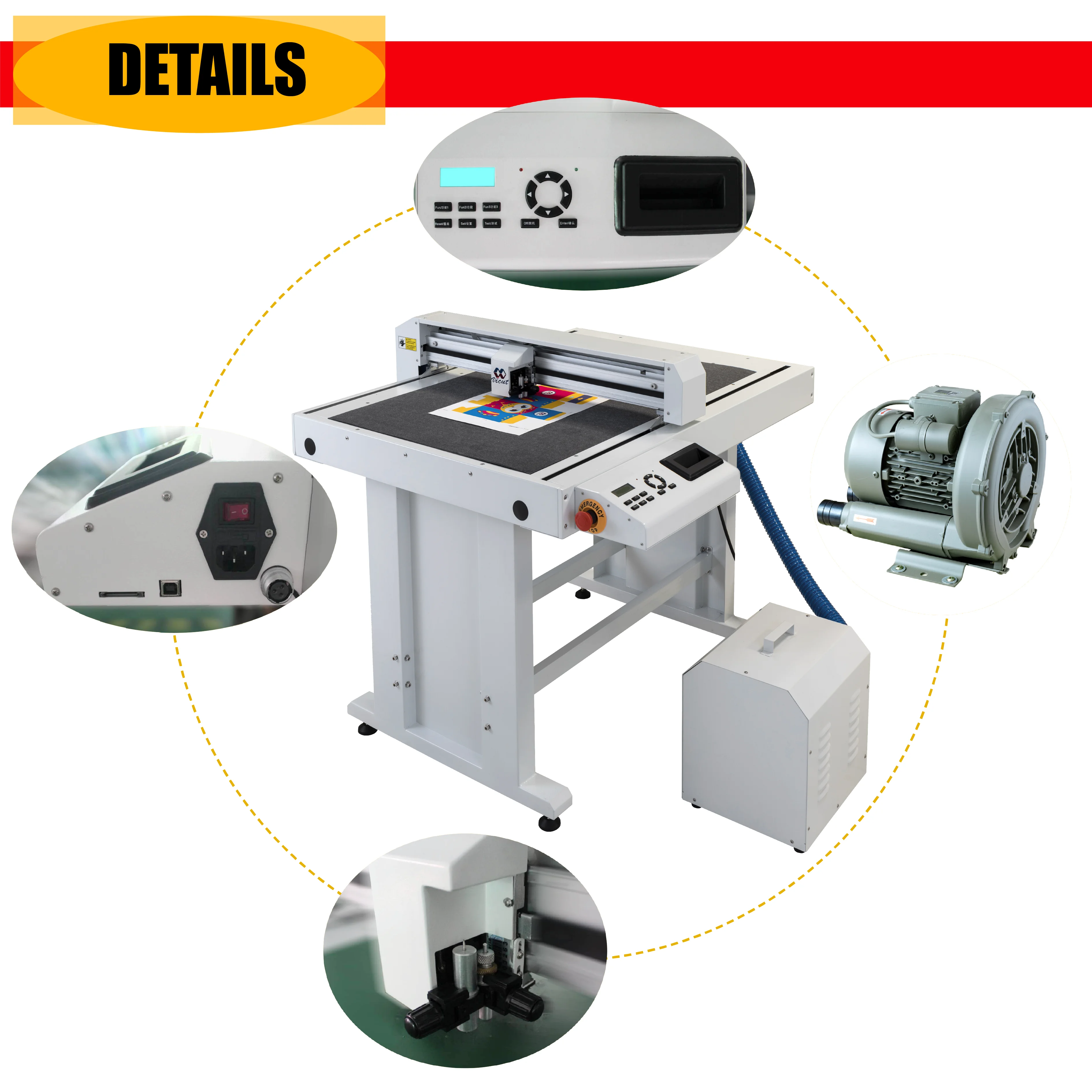

Detailed Images

Sample

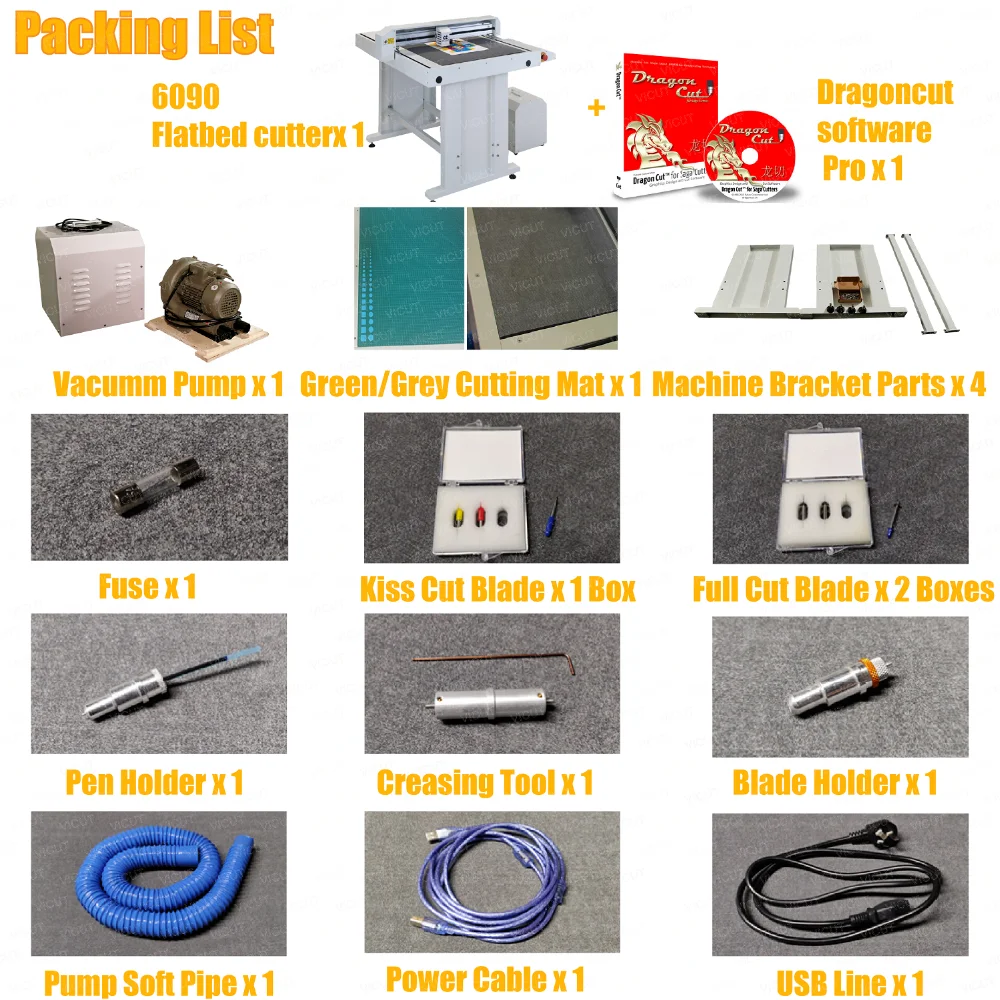

Packing & Delivery

About Us

FAQ

Certifications

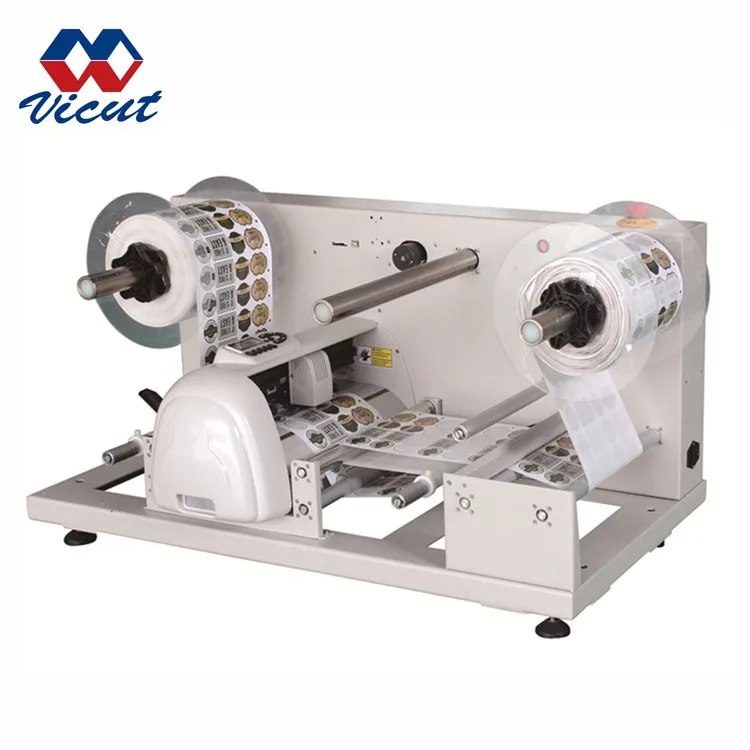

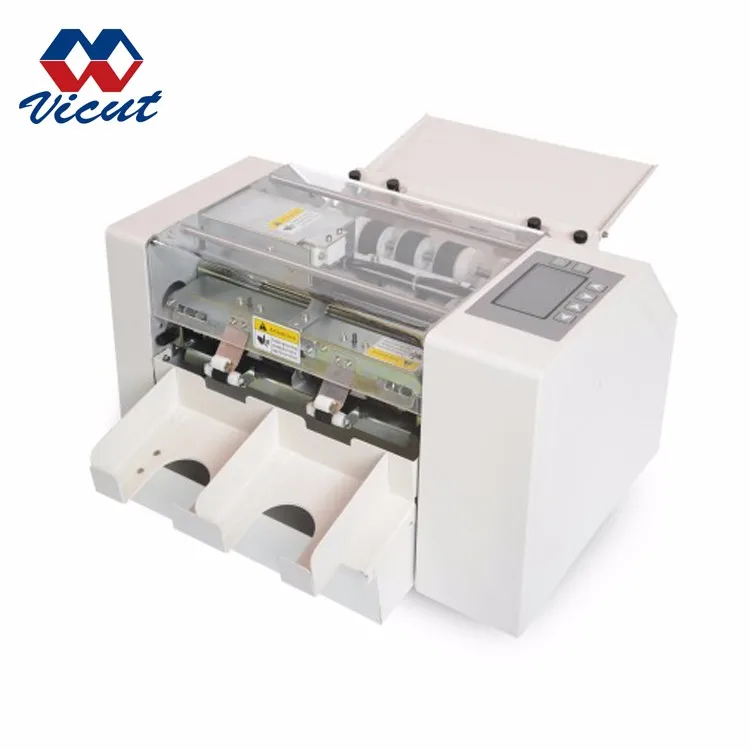

Related Products
