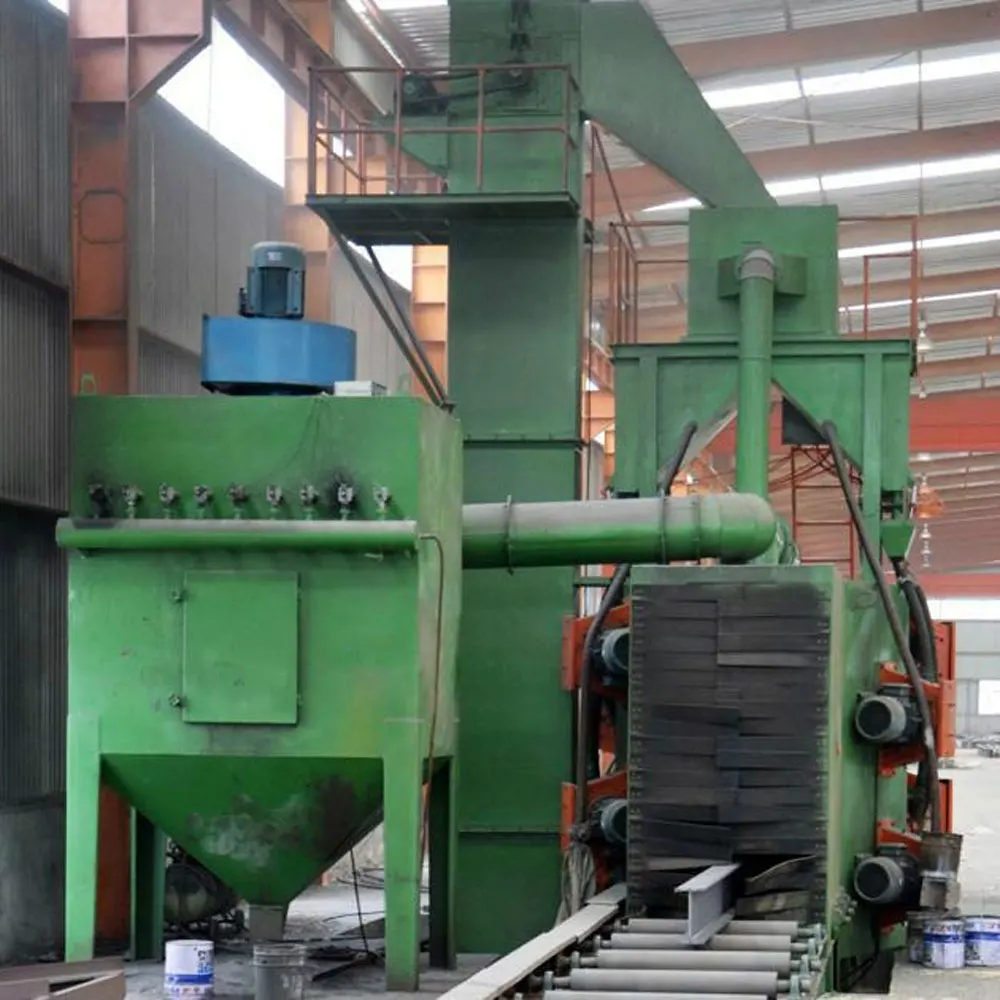

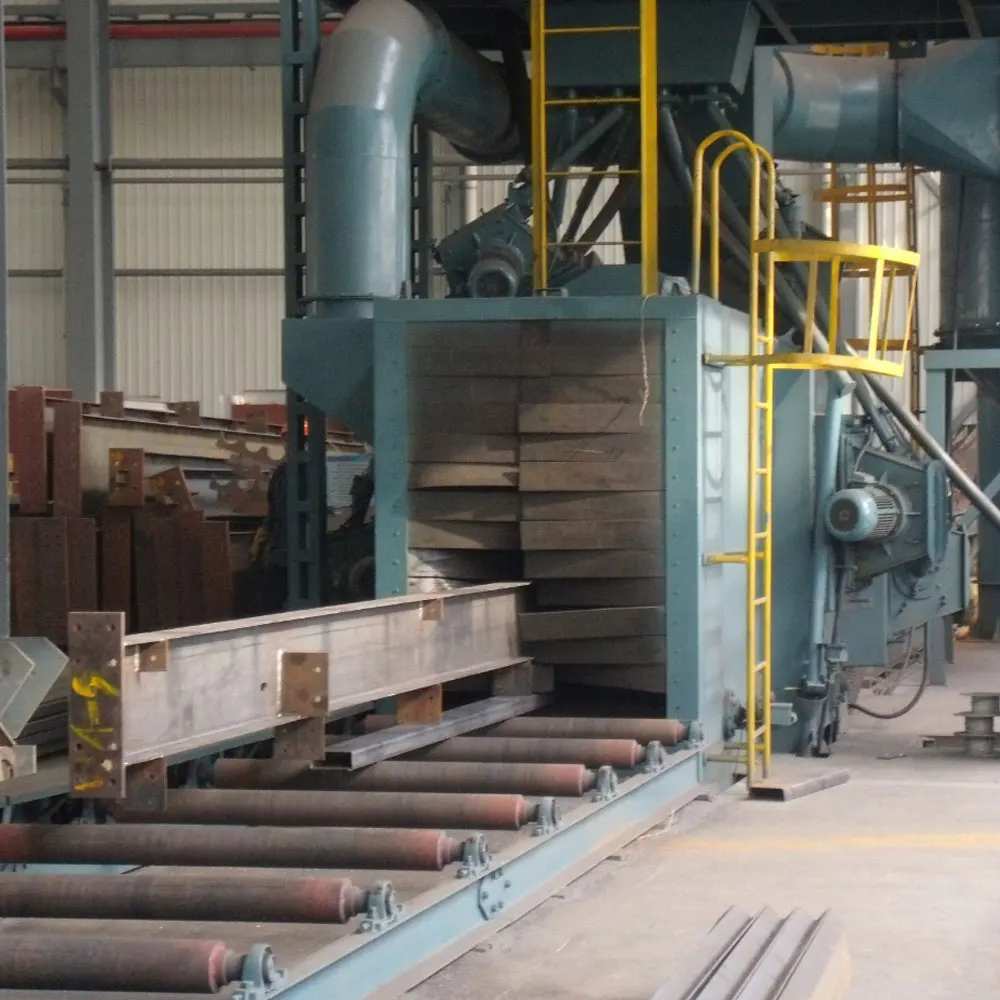

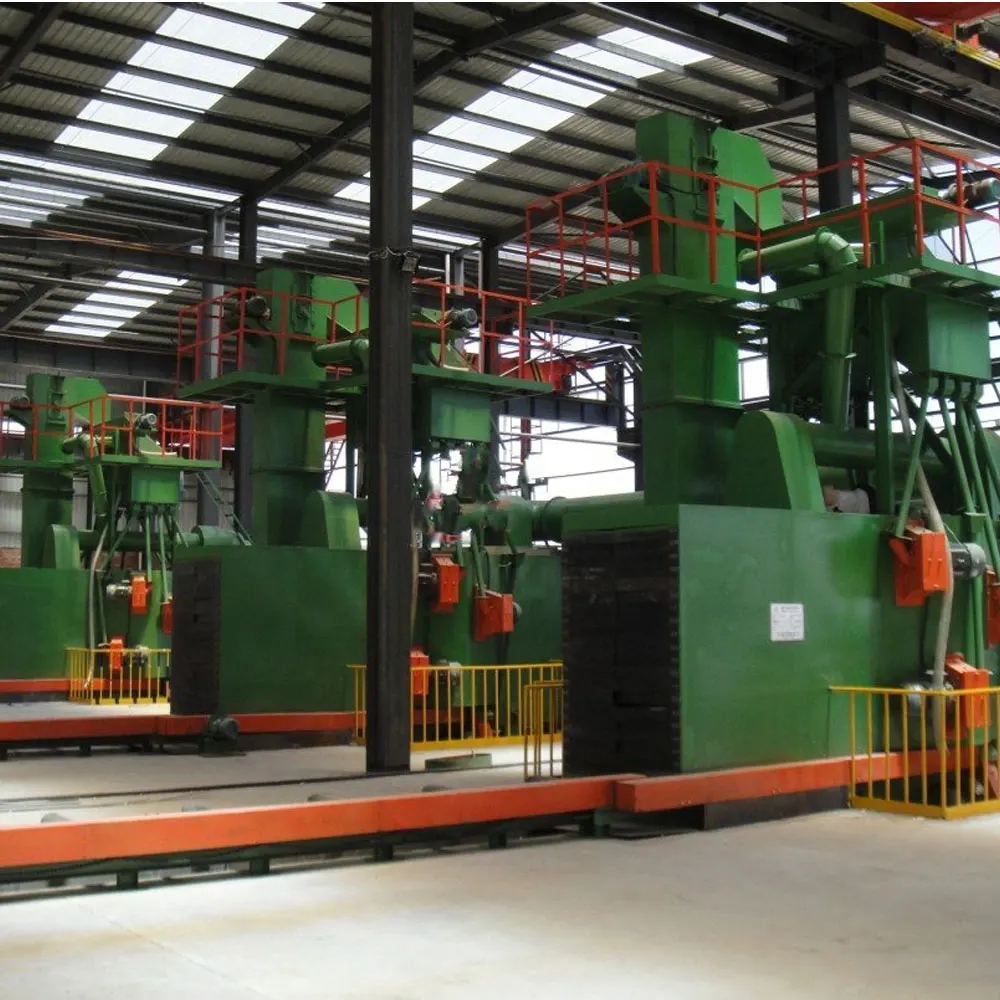

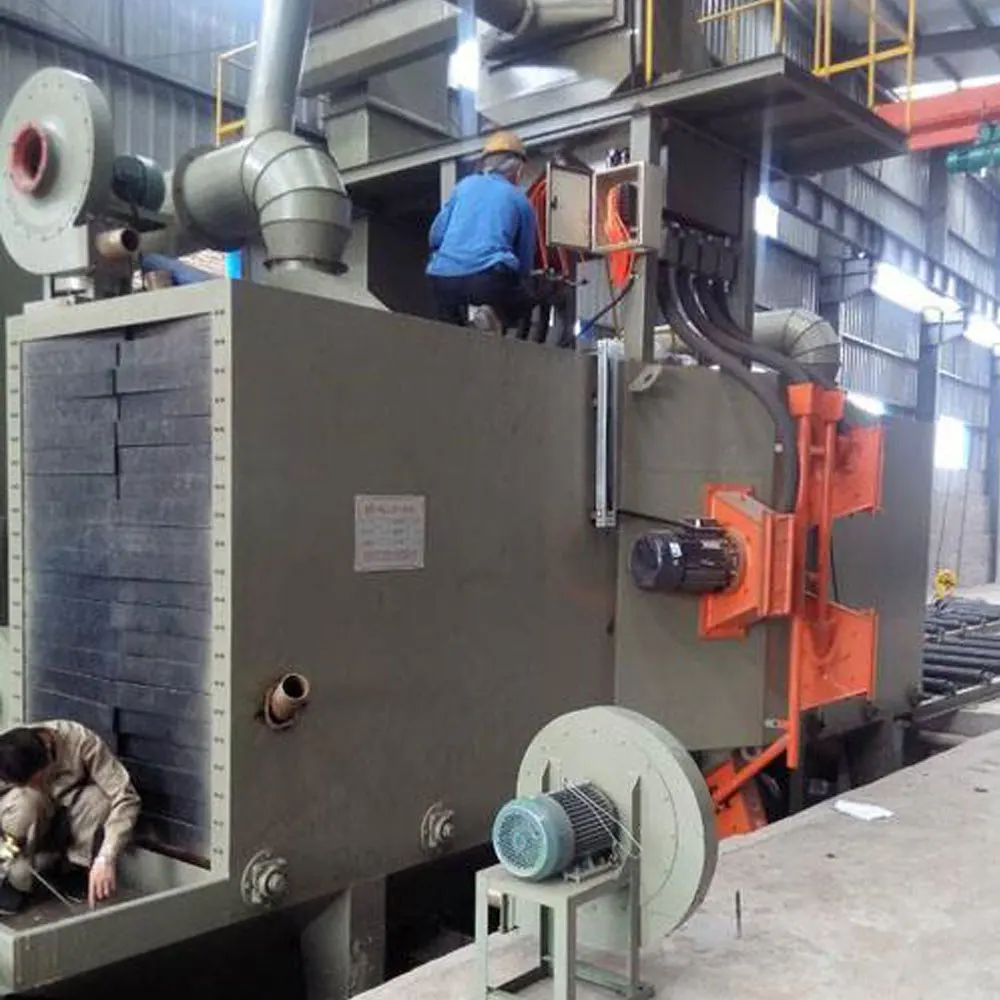

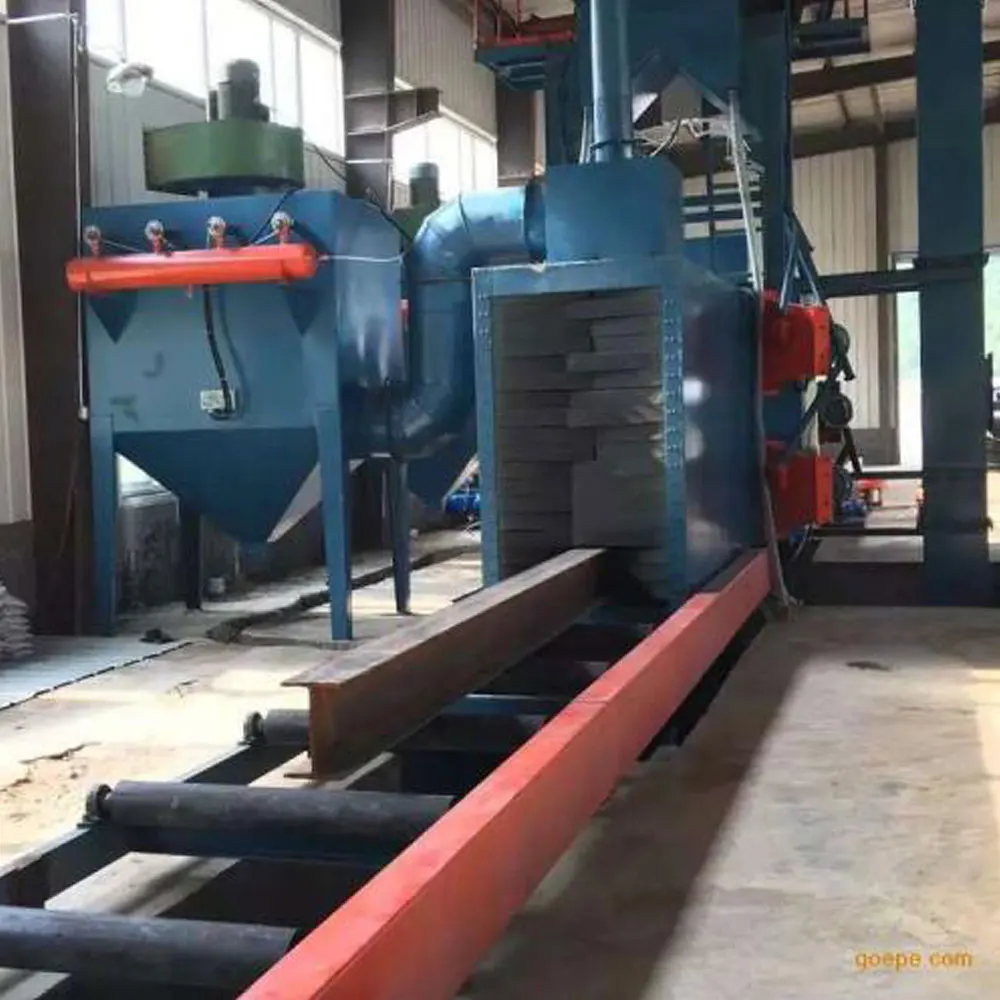

roller conveyor H beams, section and steel profile derust shot blaster

Product Overview

Description

Roller conveyor machine is mainly used for processing long and (or) flat shape of the workpiece. These workpieces are continuously passed through the entering chamber, the shot blasting chamber and the cleaning chamber on a special conveyor roller table.

Q69 shot blasting machine consists of automatic load and unloading system (Optional), roller conveyor system (Input roller, output roller and inside roller), blasting chamber (chamber frame, protection linear, shot blasting turbines, abrasive supply device), abrasive circulation system (Separator, bucket elevator, screw conveyor), abrasive collection unit (Customized), dust collection system and electric control system.
Roller shot blasting machine can clean steel plate, can customize reasonable equipment size according to customer's demand.



Features:

1.The whole roller conveyor system speed is adjusted by frequency converter. The whole system not only can be operated synchronously, but also every part can move separately. It can rotate forward and backward.
2. Rollers in blasting chamber are protected by special material jacket to prevent abrasive blasting.

3. Abrasive cleaning(patent)
First step cleaning:plough shape scraper,polyurethane material ,three layers ladder-like distribution,high efficiency.
Second step blow:high pressure blower will blow off abrasive and dust,Reserved compressed air additional blow pipeline is reserved.
4. We adopt the most advanced adjustable full curtain & multistage winnowing separator. Special Polyester wire core is used for elevator driving belt, Elevator driving wheel use mouse cage structure, preventing driving belt skidding. There are abrasive control device and replenish abrasive device. Every driving point has one alarm device.

5. This machine use inertia settlement chamber plus pulse reverse blow bag type dust collector. Dust concentration of exhausted air is less than 80mg/m3.
6. PLC control system.This machine has a visualized dynamic simulation monitoring system, which can automatically find the failure position and timing wear resistable parts operation time, which will give important information to calculate spare part service time and maintenance time.





Parameter:



Model	Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
Cleaning Width (mm)	800	1200	1500	2000	2500	3000	4000
Inlet Opening (mm)	800*1600	1200*400	1500*400	2000*400	2500*800	3000*800	4000*400
Workpiece Length (mm)	1200*12000	1200-6000	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
Cleaning Speed (Stepless Speed Regulation) (m/min)	0.5-4	0.5-4	0.5-5	0.5-4	0.5-4.5	0.5-4	2-8
Steel Plates Thickness (mm)	3-60	3-60	1.5-60	3-60	3-60	3-110	4.5-100
Abrasive Flow Rate (kg/min)	8*120	4*250	4*250	6*250	6*250	6*360	8*360
Abrasive Initial Filling (kg)	4000	4000	4000	4500	4500	8000	11000
Rolling Brush Height (mm)	200	200	350	450	600	850	900
Ventilation Capacity (m³/h)	22000	17560	19000	19550	22758	28050	38000
Total Power (Excluding Dedusting) (kw)	90	78.3	113.5	156.6	224.58	204.8	293.6
