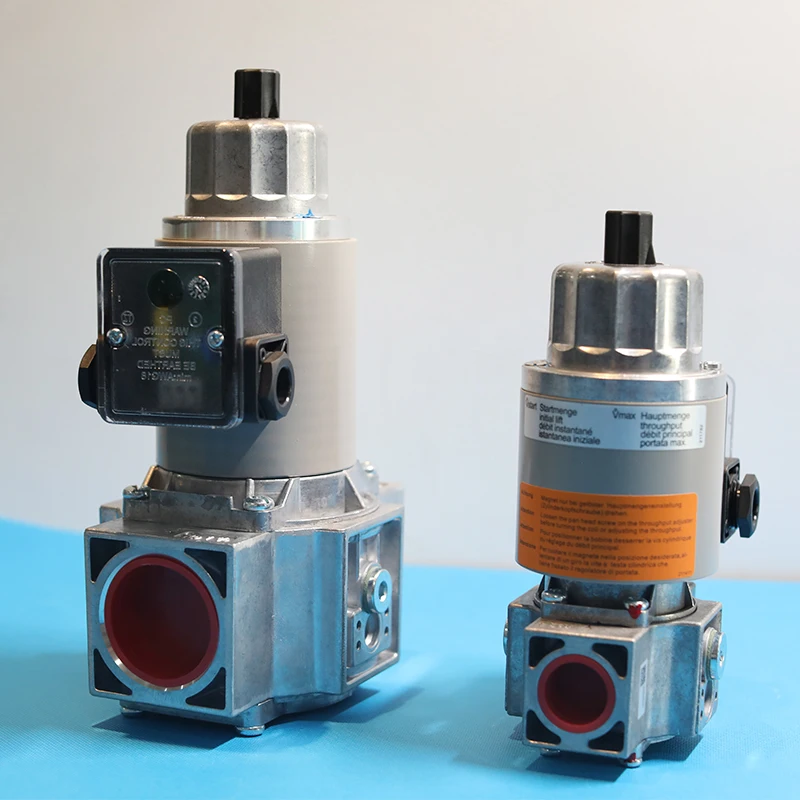

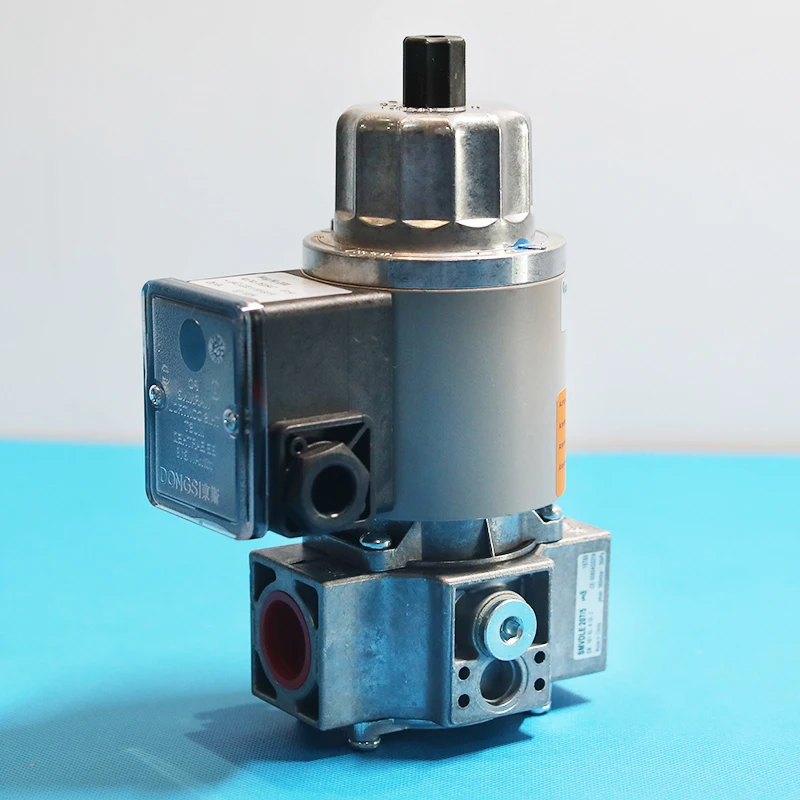

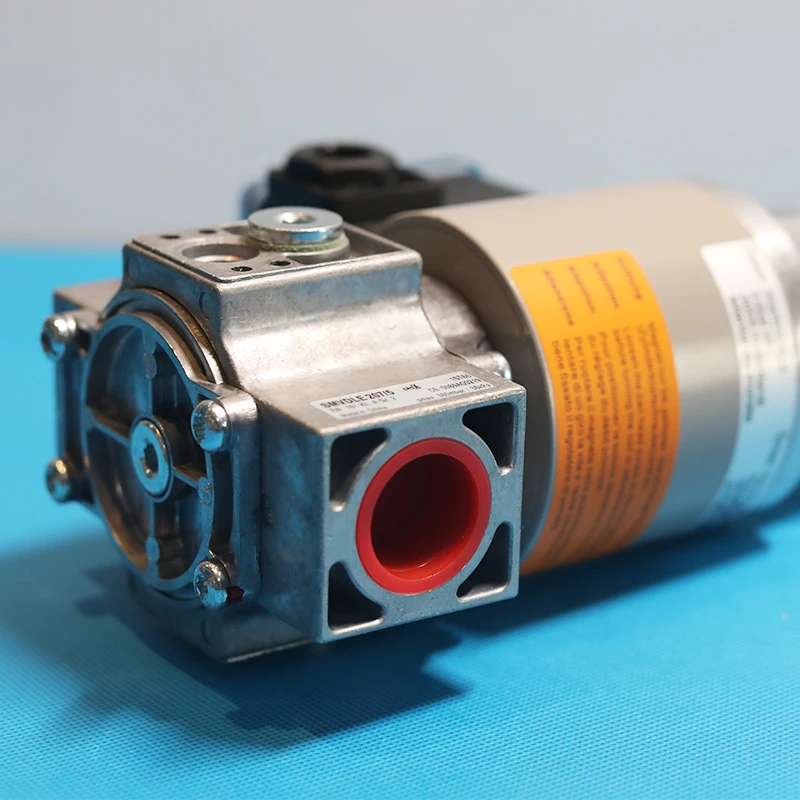

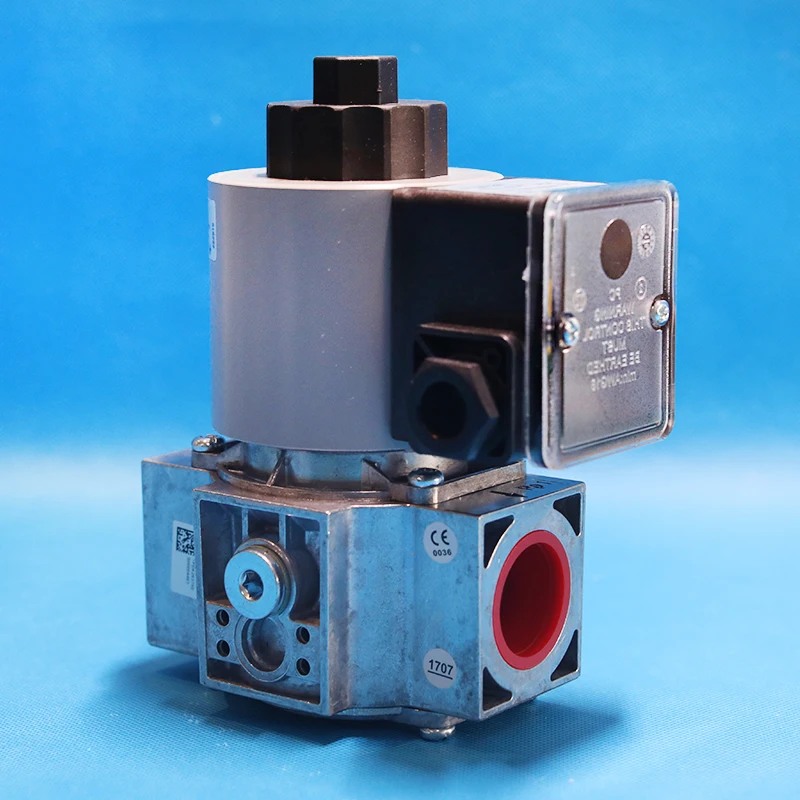

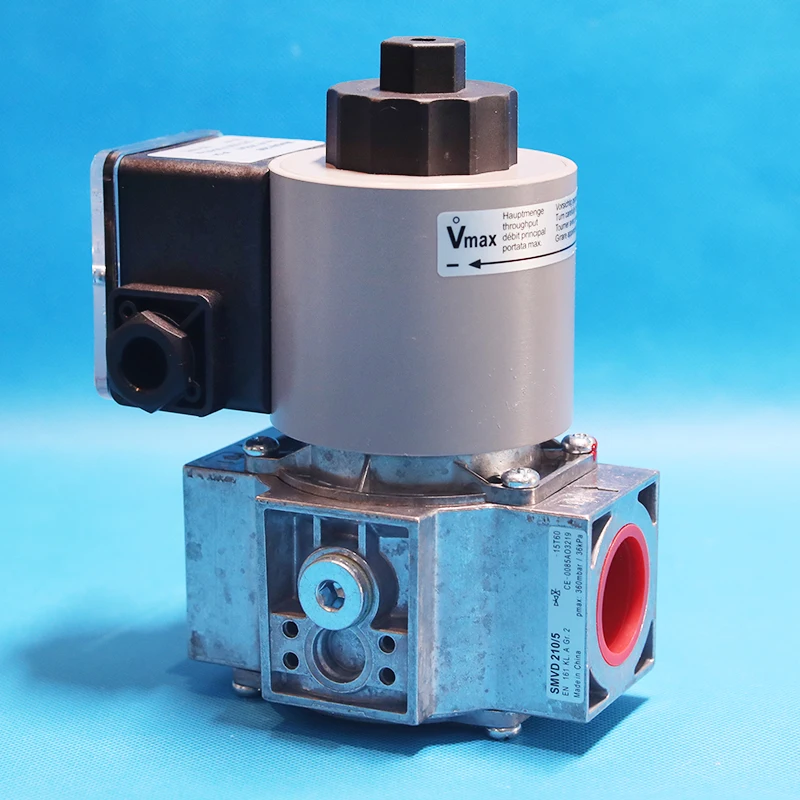

Factory direct Atmospheric pressure gas solenoid valve
- Category: >>>
- Supplier: Shanghai Yan Controlled Electronic Technology Co. Ltd.
Share on (62177722097):
Product Overview
Description
Product Description
High pressure gas solenoid valve can be widely used in gas safety transmission to provide gas supply for opening and closing or emergency cut-off.
Can be applied to gas, such as natural gas, methane, and liquefied petroleum gas.
Under Pressure between 4-6Kg and below that, it can be automatically opened and closed,
direct-acting fast-opening and fast-closing, and energy-saving design, the power consume while
working is half of when it stars up, and the blue light is displayed after start up to achieve the working
mode visualization.
Adopting a company’s patent, with several appearance and practical patents.
Operation and Installation
Normally closed, fast open when the power is on; close immediately when the power is off.
There are bypass holes on both sides of the valve body, and its diameter is G1/4"
Technical Parameters
Opening time <1 seconds
Closing time <1 seconds
Maximum operating frequency: 20 times per minute
Maximum working pressure: 5000 mbar
Equipped with G1/4 aperture bypass hole
Built-in filter
Protection level :IP54
Sealing material: Nitrile Rubber
Body material: Aluminum alloy for valve;
AISI 302 steel spring
Ambient temperature: -15 ° C - 60 ° C
Coil temperature: 65 ° C
Standards and certification
Achieving "A" standard
Meet EN161:2002 standard
Meet UK and European gas standards
CE certification
Electrical specification
Rated voltage: 50/60Hz, 230Vac (and other specific)
Coil grade F, can be 360°rotation, can work 100% continuously for a long time.
FAQ
Q: Are you trading company or manufacture?
A: Both.
Q: What's your product range?
A: We specialize in product solenoid valves,butterfly valves,pressure push-button valves, ignition transformer,burner controller,electric actuator, and other combustion accessories.
Q: What's your strong product?
A: Solenoid valves,butterfly valves,pressure push-button valves.
Q: Do you provide sample? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock, or it is 30 days if the goods are not in stock, it is according to the quantity.
Q: What is your terms of payments?
A: * Payment ≤ 10000 USD,100% T/T advance .
* Payment ≥ 10000 USD,30% T/T advance and settle the 70% balance before delivery.
