Product Overview

Description

Product Description

 Flexible wedge or Solid wedge, rising stem & yoke, bolted bonnet or pressure sealed bonnet, threaded or welded seat or integral seat etc.

Design standard:

Basic standard:

API 600, API6D,BS1414, ASME B16.34

Flange connection dimesion:

ASME B16.5, ASME B16.47,MSS SP-44

Butt welding connection dimension:

ASME B16.25

Face-to-face dimension:

ASME B16.10

Pressure-Temperature rating:

ASME B16.34

Test:

API 598, ASME B16.34

Product range:

Size:

2"-48"

Rating:

ANSI 150lb ~ 2500lb

Body Materials:

Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel,Bronze,Ni -Cu Alloy etc.

Trim:

Per API 600 or customized per client’s requirements

Operation:

Handwheel, Gear, Motor, Pneumatic etc.

Applocation:

Refinery, Petrochemical, Power plant, General Industry etc.

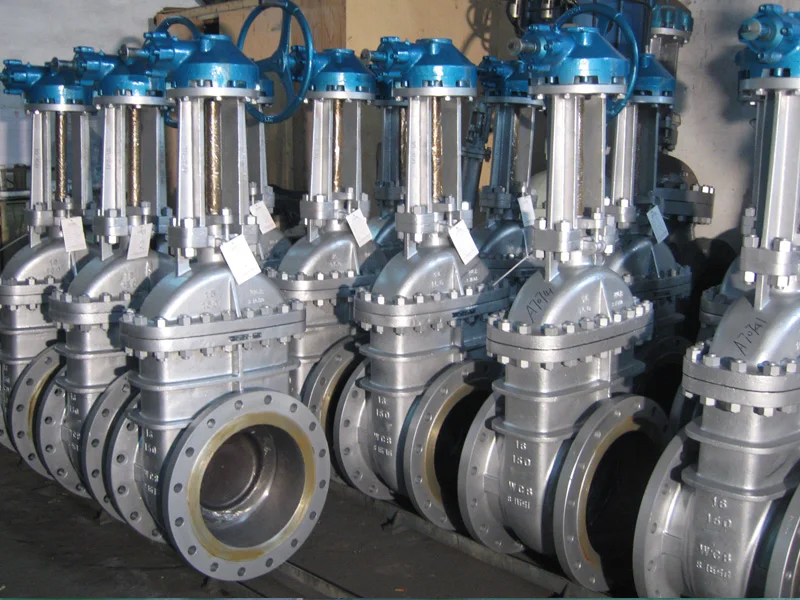

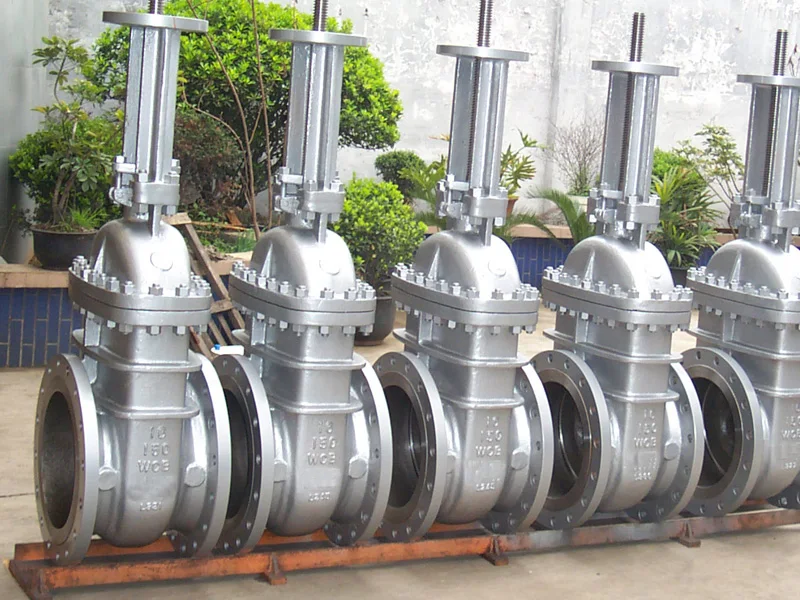

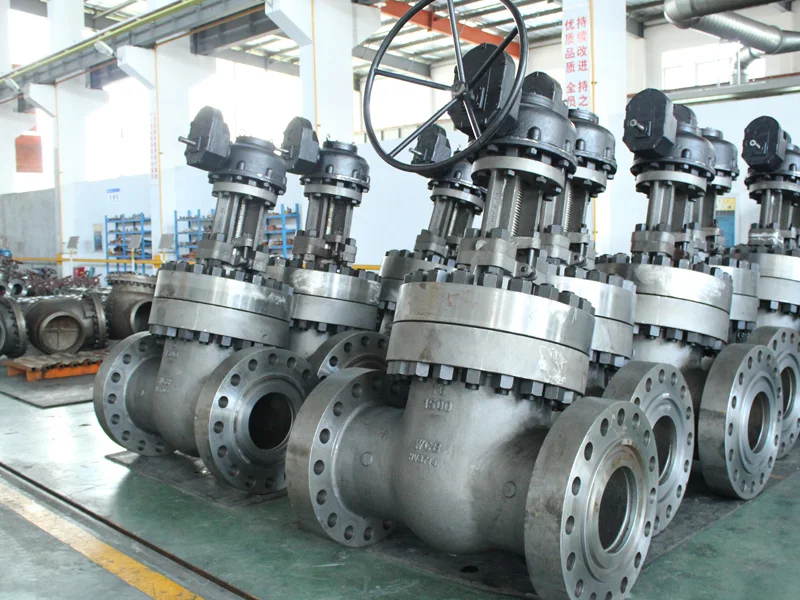

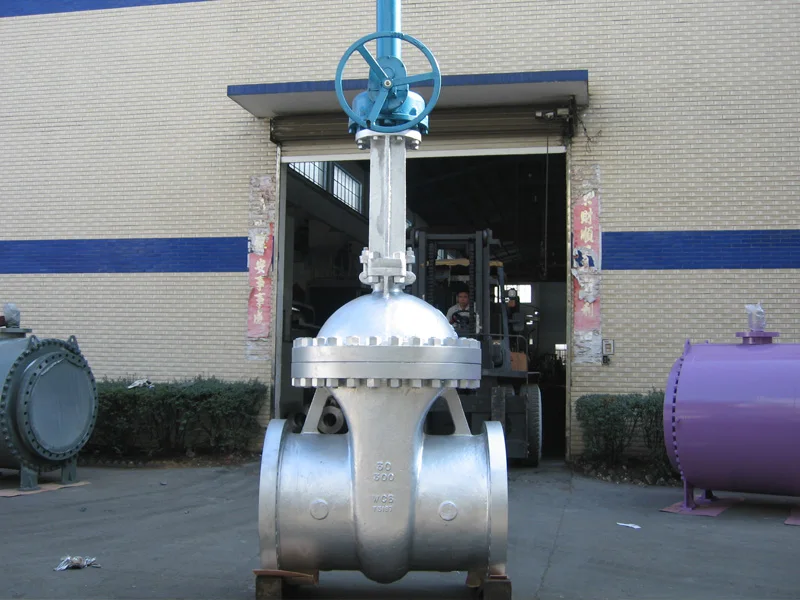

Product picture

 2018081423370549549.jpg20180814233716021602.jpg20180814233746604660.jpg20180814233794569456.jpg



_03_04_05})60%19VJL8N$LEM2KHSI%O

NZBHIRJEEA31EZVM9[P[K9_07_08



To make a suit solution for the project , we need follow information.



  • Design standard.
  • Connection standard .
  • Size.
  • Body material .
  • Trim (Material for inside parts).
  • Connection type.
  • Medium.
  • Temperature.
  • Ambient temperature range . Corrosion considerations.
  • Application Descripetion.
  • Painting color. etc
