Product Overview

Description


Product Description

mini motorized ball valve motorized leak detection valve leak proof valve water leak detection system water leak shut off valve water leak detection smart water valve leak sensor



4



1.Product Description

Product Name: CWX-15N Leakage Detection Valve

Product Category: CWX-15N Series water leak sensor

 water leakage protection

2.Product Features

This product is a compact leak detection valve that can be used in logistics warehouses, factories, hospitals, schools or homes, etc. It is mainly used to detect water leakage in tap water pipes, heating pipes, central air conditioning pipes, etc.

The sensor can be placed directly in a position where water leakage may occur. Once the sensor detects a water leak, an alarm is triggered and the buzzer continuously sounds an alarm and the valve closes quickly. water leak stop valve  water leakage protection



5

   water leak shut off valve  water leak alarm system water leak detection

This product is a compact leak detection valve that can be used in logistics warehouses, factories, hospitals, schools or homes, etc. It is mainly used to detect water leakage in tap water pipes, heating pipes, central air conditioning pipes, etc.

The sensor can be placed directly in a position where water leakage may occur. Once the sensor detects a water leak, an alarm is triggered and the buzzer continuously sounds an alarm and the valve closes quickly. water leak sensor  smart water valve leak sensor



3

   water leak shut off valve water leak stop valve leak proof valve  water leak sensor  water leak detection



working voltage

DC5V(match with the AC220V power adapter)

Working current

<100mA

Standby current

<20mA

Medium temperature

0-90

Dielectric pressure

1MPa

Alarm startup time

1 sec

Valve close startup time

1 sec

Close time

<5 sec

Valve size

DN8-DN25

 Sensor

Sensor quantity :1 sensor to 8 sensors




 water leak stop valve  leak proof valve  water leak alarm system   water leakage protection smart water valve leak sensor

water leak sensor  water leak detection

Water Leakage Alarm

This is a ingenious leakage detection alarm embedded with imported chip. It is characterized by stable performance, high precision and long service life. It has sound-light alarm, 2 LED lamps to indicate the on/off status of the valve, 8 LED alarm indicator lamps to indicate the status of sensors, 8 sensor interfaces, and electric ball valve as standard configuration. The sensor can be directly placed in the position where water may leak. Once the sensor detects water leakage, it will trigger the buzzer to raise a sound-light alarm and the valve will close quickly. water leak sensor  water leak detection

 leak proof valve

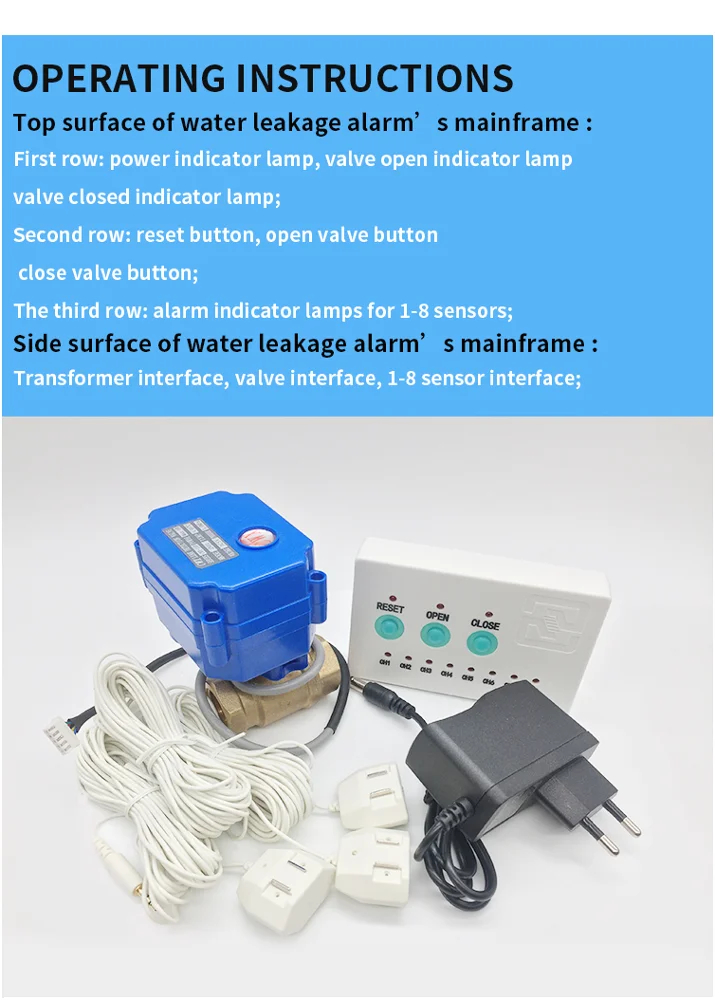

Instructions for the mainframe of water leakage alarm:

1.Install the valve on the pipe; water leak detection  smart water valve leak sensor

2.Hang the mainframe of water leakage alarm in an appropriate position to avoid damp environment and direct contact with water;

3.Place the sensor in a place where there might be a leak ( the contact of sensor can not touch metal objects);

4.Plug the transformer, valve and sensor into the corresponding positions of the mainframe;  water leakage protection  smart water valve leak sensor

5.Plug the transformer into the power socket to energize the mainframe, the water leakage detection alarm starts to self-inspect, the valve is in the default closed state. Press the OPEN button, the valve will open automatically, and the water leakage detection valve starts to work;  water leakage protection  water leak sensor

6.When the water leakage alarm detects water leakage, it will immediately raise a sound-light alarm and quickly close the valve, the alarm continues. After manually removing the leakage point and cleaning up the water, press the RESET button to release the alarm. Then press the OPEN button, the valve opens, and the alarm returns to the normal working state.water leak sensor

After-sales Service

I.The warranty period of this product is 12 months in normal use environment, and the maintenance and service costs incurred beyond the warranty period shall be borne by the customer.

II.The following situations during the warranty period are not applicable to the warranty scope:  water leakage protection smart water valve leak sensor

1.Product failure or damage caused by not operating in accordance with the product operation manual;

2.The product shell, valve body has obvious man-made damage during the process of installation and usage.

3.Disassembly and modification of products without permission. Failure or damage caused by replacing and installing other manufacturers’ parts or accessories. smart water valve leak sensor
