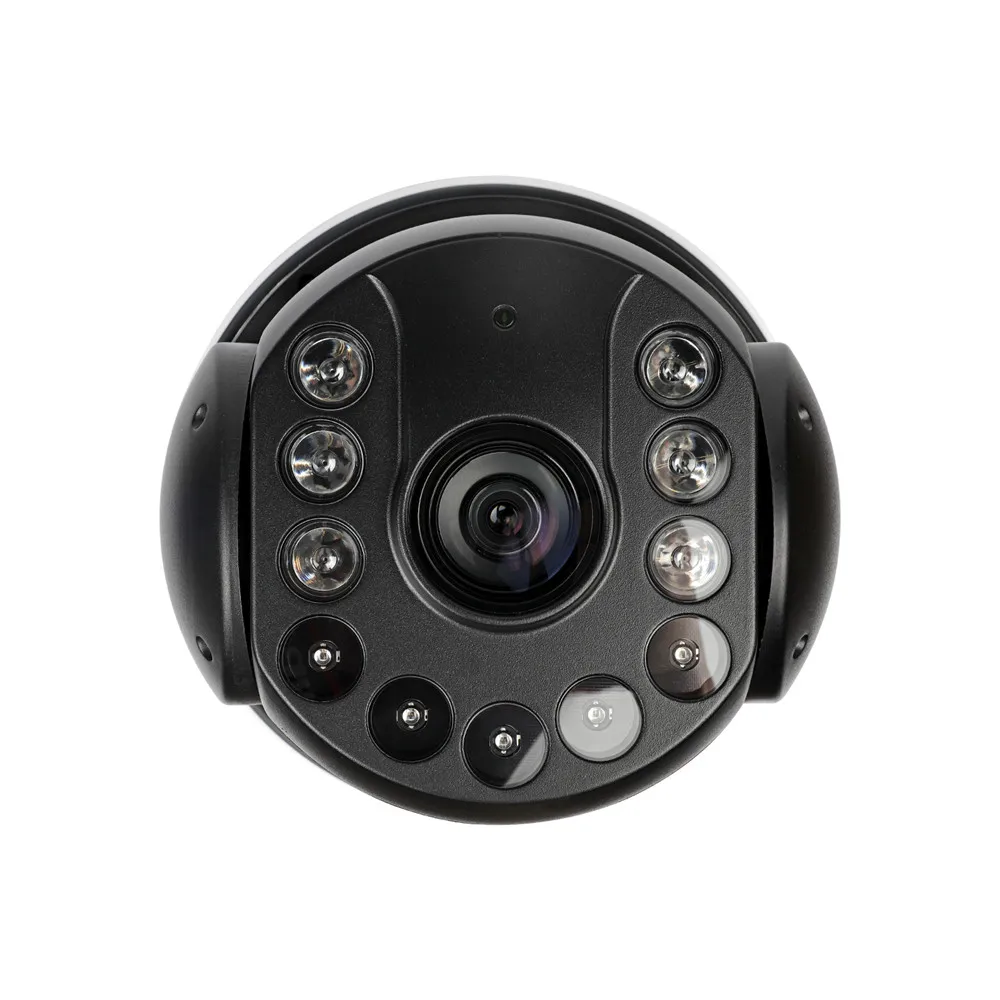

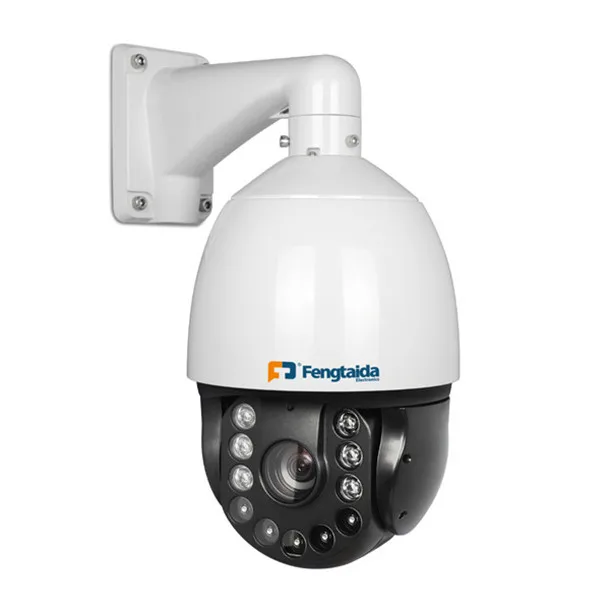

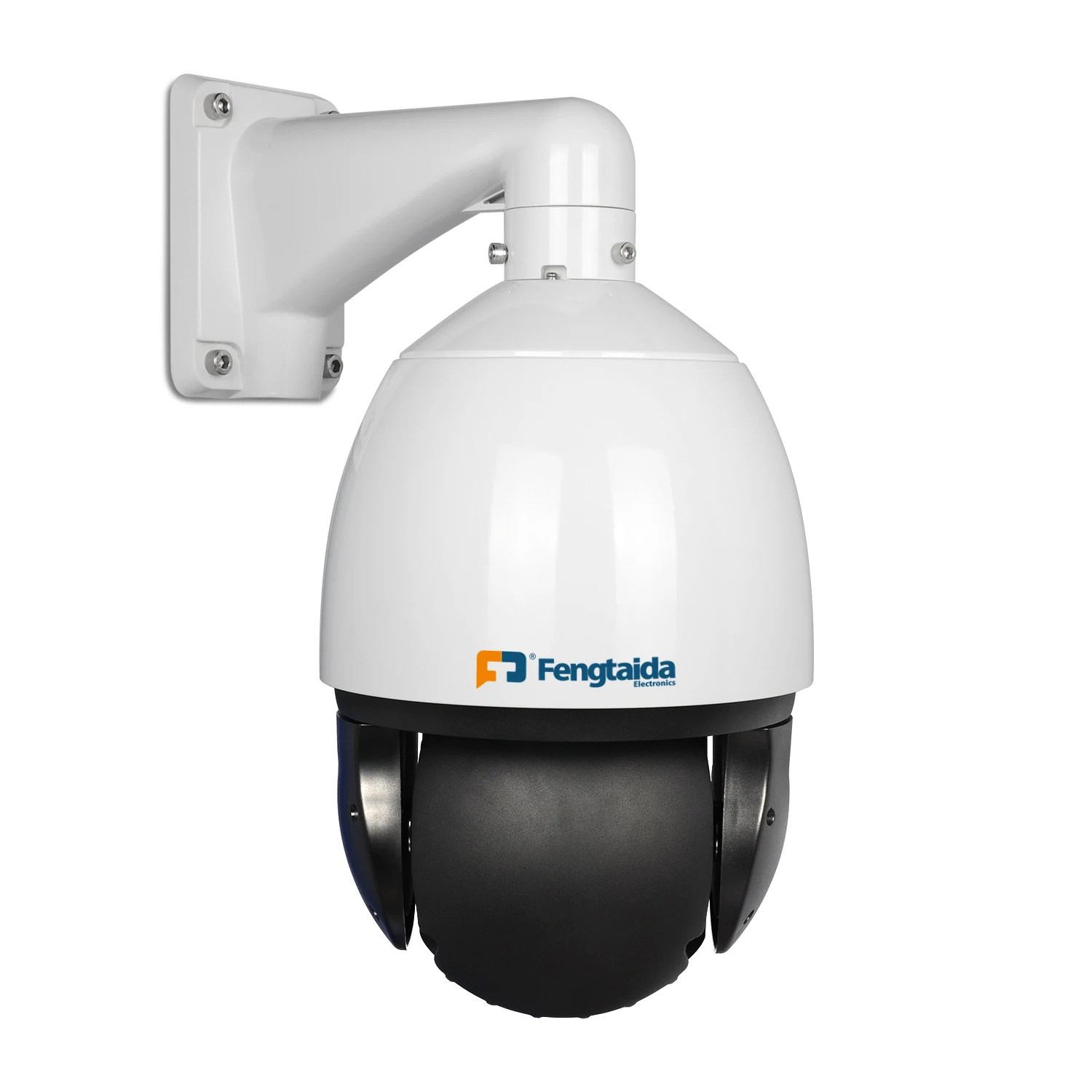

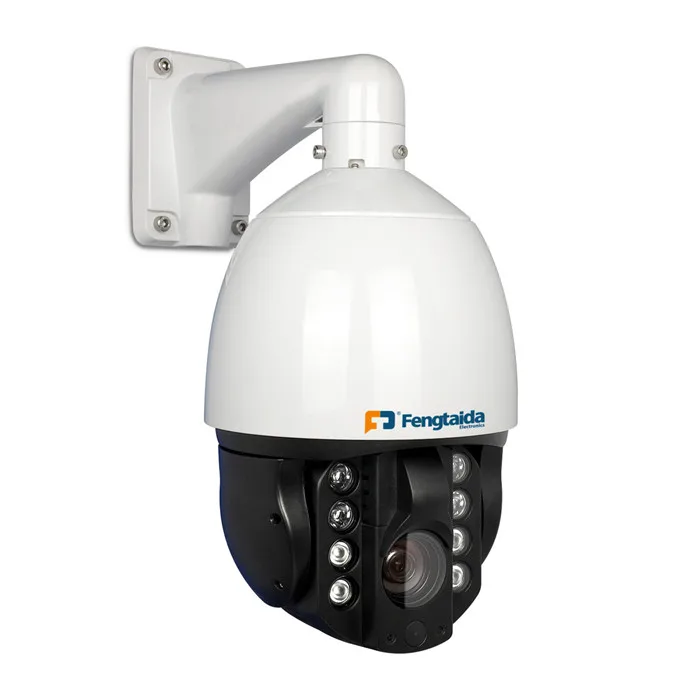

Outdoor H.264/H.265 30X Zoom Explos Proof 1080p IP Doom Camera PTZ Outdoor Dome IP Camera Housing
- Category: >>>
- Supplier: Fengtaida Co. Ltd.
Share on (62178106162):
Product Overview
Description
Product Description
- Stability of operation, Low running noise, Ease to install, and long products life
- Invention patent CTC Technology, it allows work at -45°C~70°C
- Gore-Tex technology, no humidity around internal dome
- High precision motor, preset point precision ≤ 0.1 degree
- Unique heat treatment device to prevent the fog
- PT position automatic correction function
- Support P2P access of Android and IOS
- Support mainstream NVR ONVIF protocol access;
- Durable housing, no corrosion and flaking after 300hr spray test
- The IRx transmittance of lens glass can reach 98% after special optical treatment
| Dome type | IRS-001 Series High Definition IP Speed Dome Specifications | ||||||
| FTD-IRS-1822P (38X) | |||||||
| Network | Network Interface | Ethernet 10/100Base-T (RJ-45) | |||||
| Network Protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P | ||||||
| Compatibility | Support most of the platforms on the market | ||||||
| Interface Protocol | ONVIF2.4/GB28181(Option- Customize) | ||||||
| Mobile monitoring | Operating System | Android/IOS | |||||
| Camera | Image Sensor | 1/1.8” 2.0M Pixel CMOS IMX385 | |||||
| Optical Zoom | 38X | ||||||
| Minimum Illumination | Color: 0.005Lux at F1.5; B/W: 0.001Lux at F1.5; 0Lux(IR on) | ||||||
| WDR | 80dB | ||||||
| S/N Ratio | More than 50dB(AGC off) | ||||||
| Day/Night | Auto(ICR) / Color / B/W | ||||||
| Angle of View | H: 60° ~ 2° | ||||||
| Electronic Shutter Speed | 1/2 - 1/20,000s | ||||||
| Noise Reduction | DNR,3DNR | ||||||
| Defog | Support | ||||||
| Max. Aperture | F1.5~F4.8 | ||||||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||||
| Gain Control | Auto / Manual | ||||||
| Video | Compression | H.265/H.264/MJPEG | |||||
| Video Interface | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB) | ||||||
| Resolution | Main stream:1920x1080,1280x960,1280×720,720×576,640×480 | ||||||
| Sub stream:640×480,352×288,320×240,176×144 | |||||||
| MJPEG:1920x1080,1280×720 | |||||||
| Max Frame Rate | H.265/H.264: 30fps at 1920x1080 | ||||||
| Bitrate | MainStream:10.0Mbp at VBR/Sub Stream:32Kbp at VBR | ||||||
| Audio | Algorithm | G711,G726,PCM,AAC | |||||
| Input | 1 x Line-In (Mini-stereo, Single Mono) | ||||||
| Output | 1 x Line-Out (Mini-stereo, Single Mono) | ||||||
| Pan/Tilt | Range | Pan : 360°(Endless)/ Tilt: -10~90° | |||||
| Pan/Tilt Speed | Preset Max.:131°/sec | ||||||
| Manual : 0.1° ~ 131°/sec (Zoom Proportional) | |||||||
| Patrol : 1.4°~131° /sec | |||||||
| Preset | 247Presets and 8 presets for special function | ||||||
| Patrol Scan | 3 Group Patrol | ||||||
| Other Functions | Auto Flip, Auto Parking, Power-up Action & etc | ||||||
| Alarm | Alarm Input | 1(ON/OFF signal) | |||||
| Alarm Output | 1(ON/OFF signal) | ||||||
| Infrared | IR distance | 200m-300m(Max.) | |||||
| Wave | 850nm | ||||||
| Physical | IP protection | With IP66 | |||||
| Operating Temperature | –35℃~60℃ | ||||||
| Humidity | 0%~98% (Non condensing) | ||||||
| POE | 2W-15W | ||||||
| Power Source | AC24V 3A 60Hz/50Hz | ||||||
| Power Consumption | AC24V:8W-45W | ||||||
