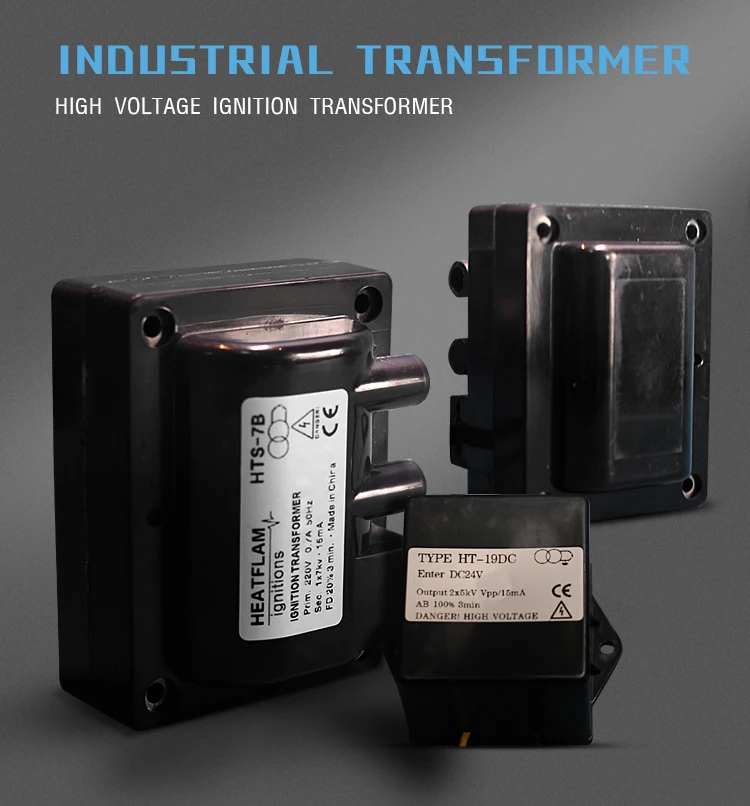

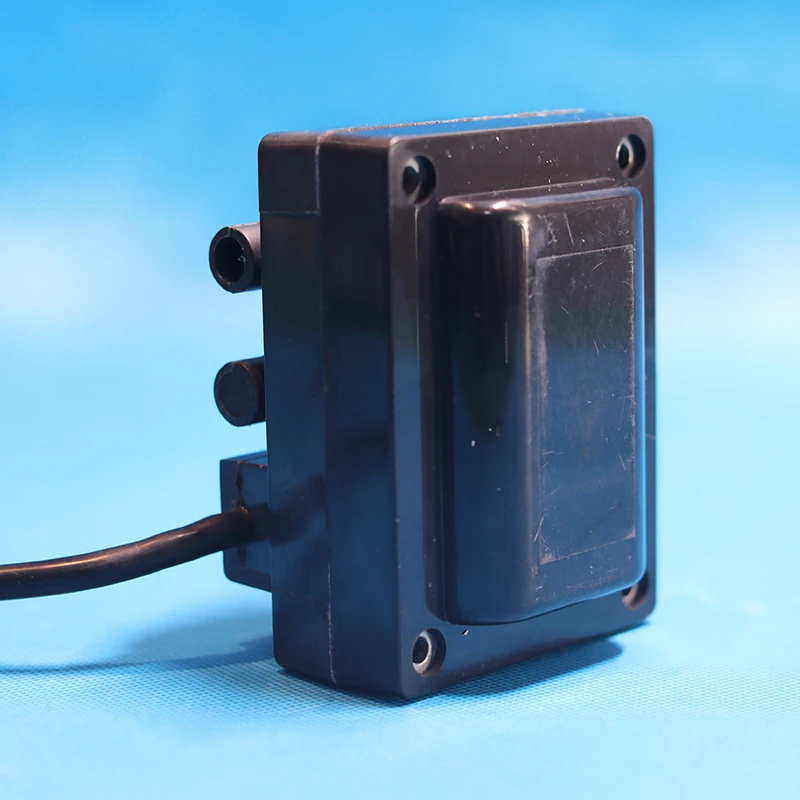

high voltage oil boiler ignition transformer for industry
- Category: Transformers >>>
- Supplier: Shanghai Yan Controlled Electronic Technology Co. Ltd.
Share on (62178166167):
Product Overview
Description
High-voltage ignition transformers are widely used for ignition of small burners, fuel gas burners, integrated burners, industrial combustion equipment, and etc.
Technical Parameters:

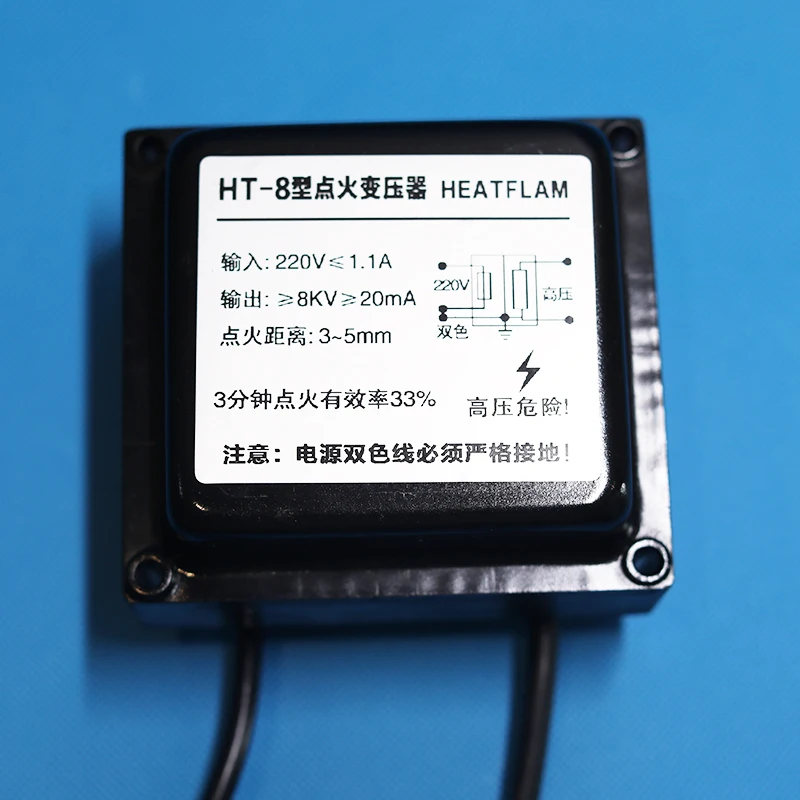

Input: 220V ≤1.1A 50Hz
Output: 1 ≥ 8kV 20mA
Dimensions: 110×86×68mm
Ignition distance: 3 ~ 5mm
3 minutes ignition efficiency: 33%
Output plugin: self-tapping, regular

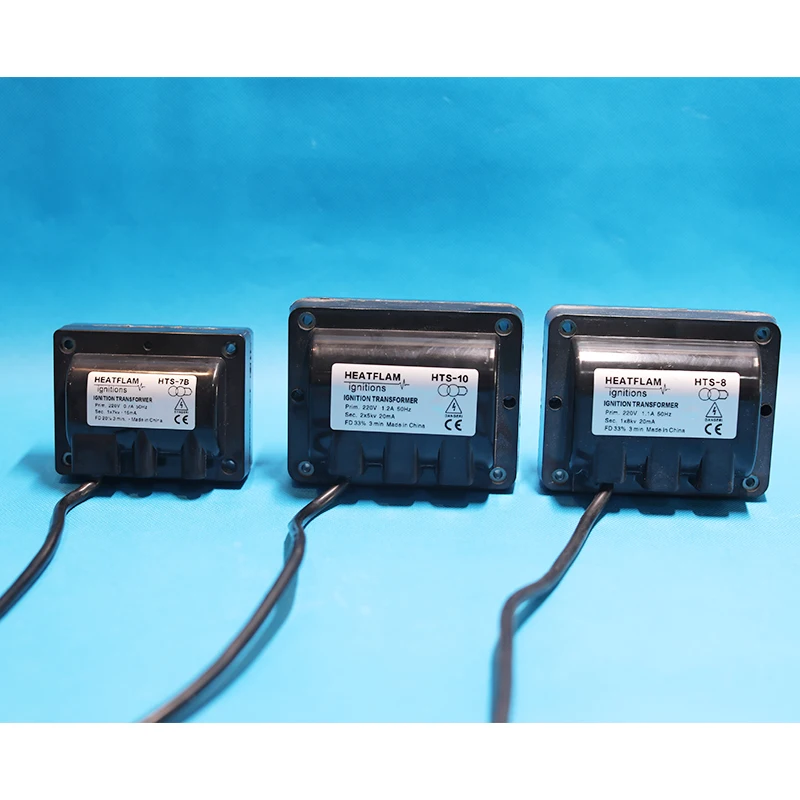

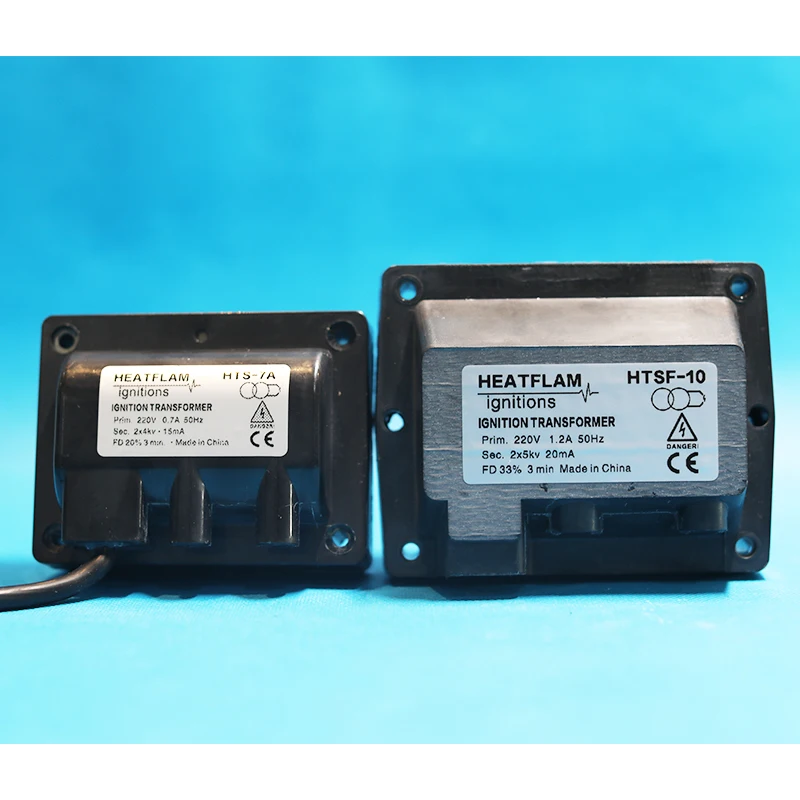

| HTSF-7B | HTSF-8 | HTSF-10 | HTSF-7A | |
| Input | voltage:220V/50Hz | voltage:220V/50Hz | voltage:220V/50Hz | voltage:220V/50Hz |
| current:≤0.7A | current:≤1.1A | current:≤1.2A | current:≤0.7A | |
| Output | current: ≥15mA | current: ≥20mA | current: ≥20mA | current: ≥15mA |
| voltage: 1≥7kV or 2≥4kV | voltage: 1≥8kV | voltage: 2≥5kV | voltage: 2≥5kV | |

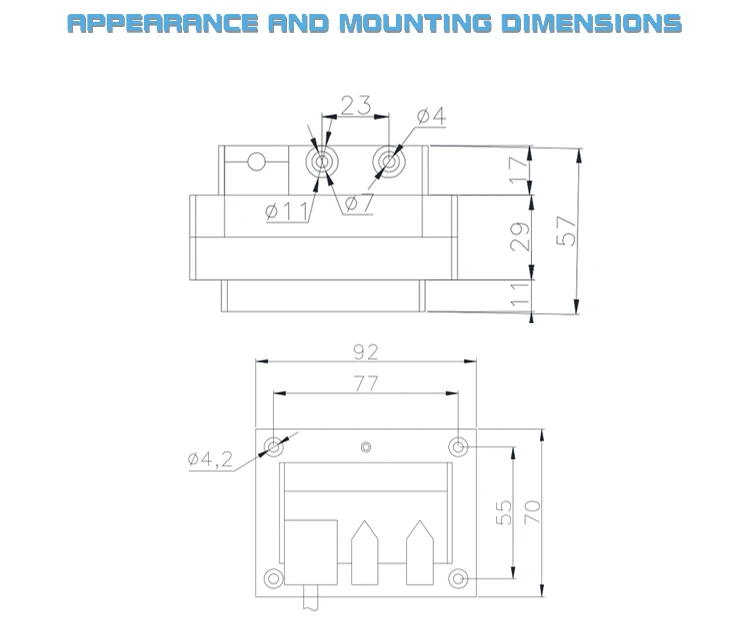

| Overall dimensions | 92×70×57mm | 110×86×68mm | 110×86×68mm | 92×70×57mm |
| Ignition distance | 3~4mm | 3~5mm | 3~6mm | 3~4mm |
| 3 minutes Ignition efficiency | clearance:20% | clearance:33% | clearance:33% | clearance:20% |
| continuous:--- | continuous:100% | continuous:100% | continuous:--- | |
| Output type | Unipolar, bipolar | Unipolar | bipolar | Unipolar, bipolar |
| Input form | Leads | Leads, plugins | Leads, plugins | Leads |
| Use | Use small burner, fuel and gas burner, integrated burner, industrial combustion equipment, etc The ignition of buy | |||
FAQ
Q: Are you trading company or manufacture?
A: Both.
Q: What's your product range?
A: We specialize in product solenoid valves,butterfly valves,pressure push-button valves, ignition transformer,burner controller,electric actuator, and other combustion accessories.
Q: What's your strong product?
A: Solenoid valves,butterfly valves,pressure push-button valves.
Q: Do you provide sample? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of the freight.
Q: How long is your delivery time?
A: Generally it is 7 days if the goods are in stock, or it is 30 days if the goods are not in stock, it is according to the quantity.
Q: What is your terms of payments?
A: * Payment ≤ 10000 USD,100% T/T advance .
* Payment ≥ 10000 USD,30% T/T advance and settle the 70% balance before delivery.
