P10 Easy installation LED screens commercial advertising bill boarding display

Share on (62178202379):


Price:RUB 24,861.51

Quantity:


Product Overview

Description


OF Series

Outdoor Commercial Advertising LED Display

Value
OF4
OF5
OF6
OF8
OF10S
OF16S
Pixel Pitch(mm)
4
5
6
8
10
16
Pixel Matrix Per Sq.m
62500
40000
27777
15625
10000
3906
Pixel Configuration
SMD1921
SMD2727
SMD2727
SMD3535
SMD3535
SMD3535
Brightness (nits)
6500
6500
6500
6800
7500
8000
Scan
1/8
1/8
1/4
1/3
1/2
1/1
Module Dimension
192x192mm / 0.63x0.63ft
160x160mm / 0.52x0.52ft
192x192mm / 0.63x0.63ft
320x160mm / 1.05x0.52ft
320x160mm / 1.05x0.52ft
256x256mm / 0.84x0.84ft
Cabinet Dimension
960x960mm / 3.15x3.15ft
960x960mm / 3.15x3.15ft
960x960mm / 3.15x3.15ft
960x960mm / 3.15x3.15ft
960x960mm / 3.15x3.15ft
1024x1024mm /3.36x3.36ft
Cabinet Resolution
192x192
192x192
160x160
120x120
96x96
64x64
Cabinet Weight
44kg / 97Ib ( Iron)
43kg / 95Ib (Iron)
42kg / 93Ib (Iron)
41kg / 90Ib (Iron)
40kg / 88Ib ( Iron)
46kg / 101Ib (Iron)
Power Con. (Max / Avg)
750 / 150 w/sq.m
730 / 130 w/sq.m
700 / 120 w/sq.m
680 / 120 w/sq.m
650 / 110 w/sq.m
750 / 150 w/sq.m
Service Access
Front / Rear
Refresh Rate (HZ)
≥1920
Grey Scale (bit)
16
Viewing Angle (H/V)
140 / 140
IP Rate
IP65
Input Voltage (AC)
110V / 240V


Where is LED display installed?

LEDFUL provide structure frame design drawing and installation suggestions.

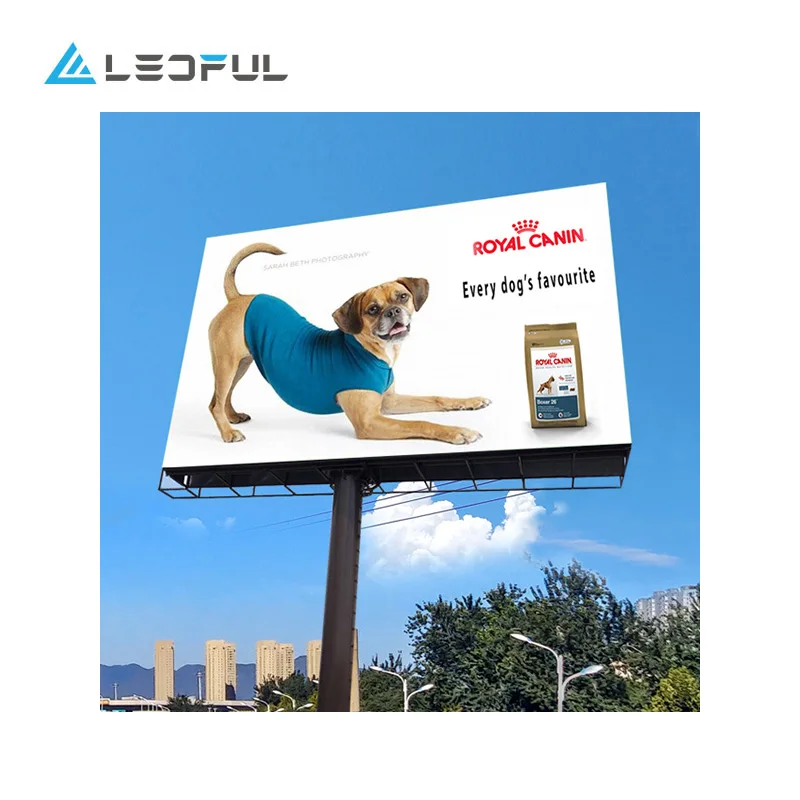

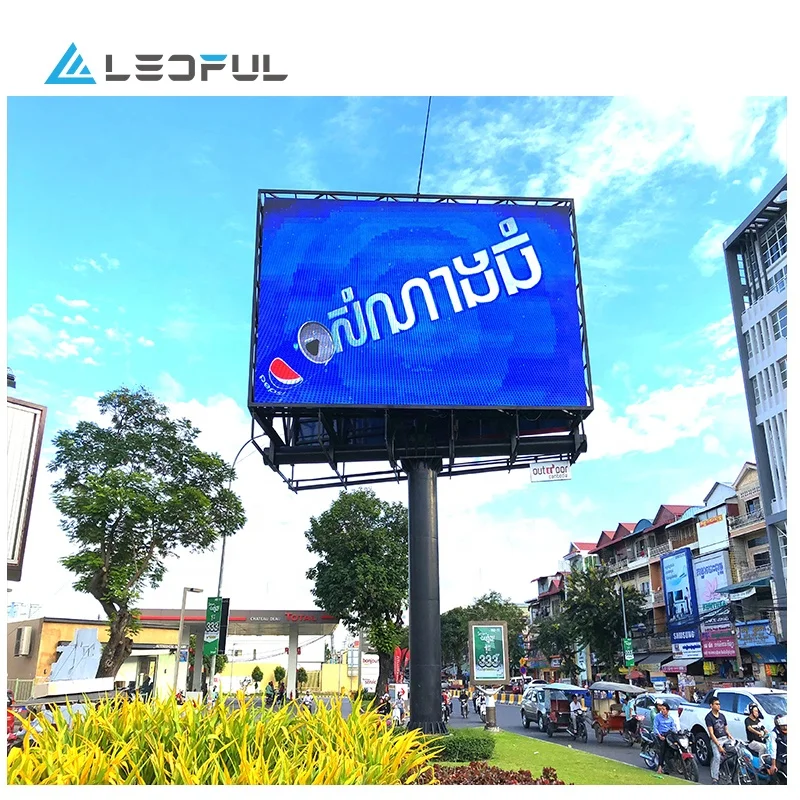

Pillar / Pole LED display

Wall mounted LED display


How to control LED display?

By computer, wifi, 4G, usb, remote, internet, mobile, pad, etc. Yes, you can control in your convenient management. Many screens together? No problem, your laptop can manage all of them whenever and wherever.


Ultra High / Low Temperature

OF series design for working in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.


SMD Performance and View Angle

Better contrast ratio and viewing performance Wide viewing angle increasing its value by covering more viewing


High Brightness & Auto Brightness

High bright and contrast ratio to make vivid color facing to the Sunlight.
Auto brightness saving energy besides protecting people eyes in night time.


Various Shaped LED Display

Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball, etc.
LEDFUL supply more design and more solutions.


Application

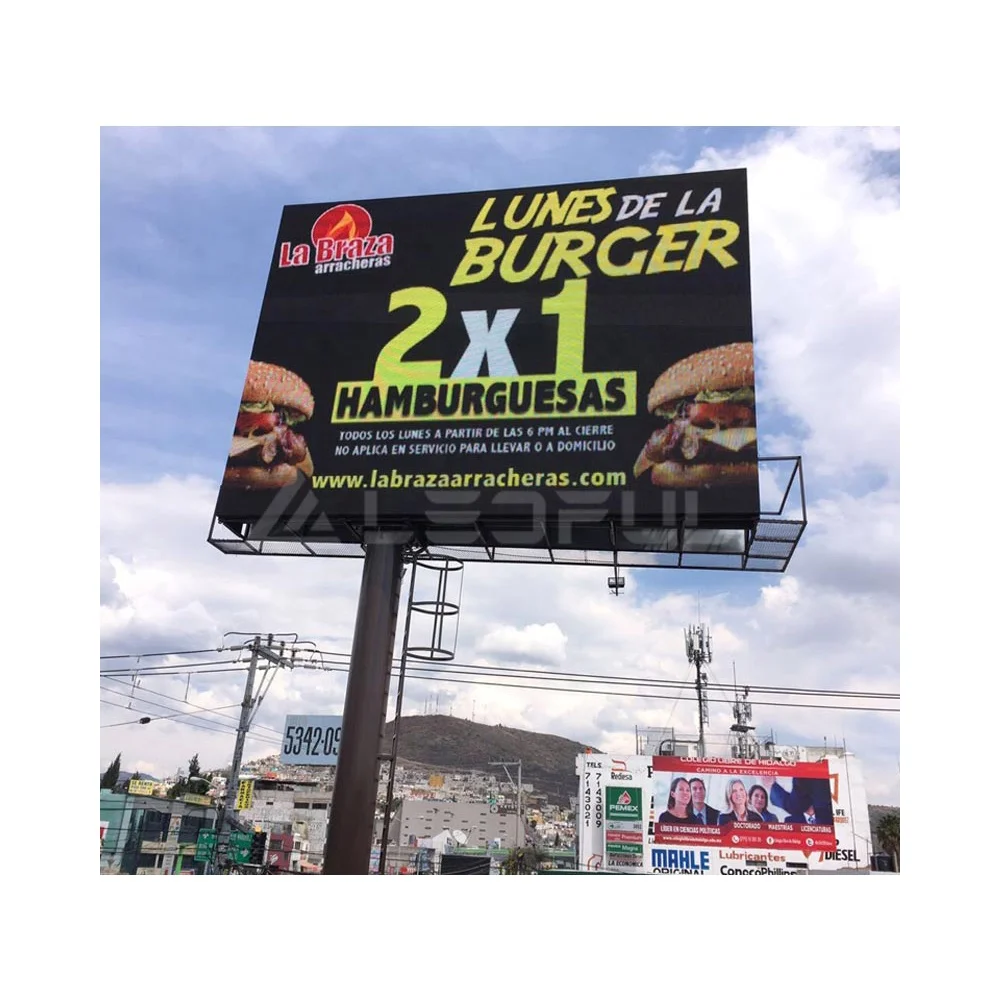

Outdoor Single Pole Advertising Display

Product Model: OF10S
Pitch: 10mm
Size: 44.24 sqm
Location: Mexico

Below are the customer reviews of our products, you can see their recognition of our product quality and service attitude
Our ultimate pursuit is to satisfy our customers. LEDFUL has been focusing on the export of LED display for 12 years, relying on the sincere service to customers, high requirements for products and high standards for details
Related Products
Our Company


Top LED Display Manufacturer

LEDFUL founded in 2008 Total 209 employees in LEDFUL
3~5 years warranty on LED screen Exported to 83 countries and regions
Over 5,600 successful projects in the world R&D staff occupied 10% of all the employees.

CE, RoHS, FCC, CCC, ISO9001:2008 standard


Professional, High Efficient and Caring

One-stop solution provider
More designs and more solutions Wireless control, 4G, Wifi, Cluster control

 High efficient and enthusiastic team to make reliable
Our Service
Packing & Delivery
FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,we can pack the
goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test for 72hrs before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come
