Conductive electric UPE Chemical Hose designed to handle 98% of all chemicals, solvents and corrosive liquids
- Category: >>>
- Supplier: Cjan Fluid Technology Co. Ltd.
Share on (62178216603):
Product Overview
Description
Product Description
Conductive UPE Chemical Hose
TYPE UCSD
Applications:
A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.

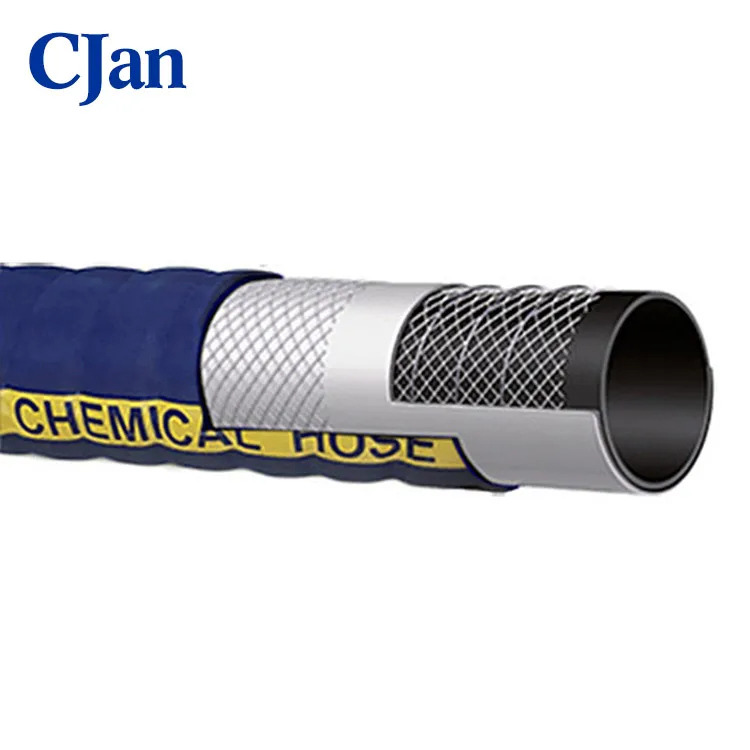

Construction:
Tube: Conductive black UHMWPE (Ultra High Molecular Weight Polyethylene)
Reinforcement: High tensile textile cords with embedded steel helix wire, antistatic wire.
Cover: Corrugated black or blue EPDM compound. - abrasion and ozone resistant
Temperature range: -40 °C~+100 °C
Standard/Approval:
F.D.A 21 CFR 177.2600.
A more flexible chemical hose designed to handle 98% of all chemicals, solvents and corrosive liquids in both pressure and suction service.
Construction:
Tube: Conductive black UHMWPE (Ultra High Molecular Weight Polyethylene)
Reinforcement: High tensile textile cords with embedded steel helix wire, antistatic wire.
Cover: Corrugated black or blue EPDM compound. - abrasion and ozone resistant
Temperature range: -40 °C~+100 °C
Standard/Approval:
F.D.A 21 CFR 177.2600.
| Part no. | ID | OD | Bending radius | Work pressure | Length | ||
| inch | mm | mm | mm | psi | bar | m | |
| UCSD019 | 3/4" | 19.05 | 32.0 | 89 | 200 | 13.8 | 61 |
| UCSD025 | 1" | 25.4 | 37.3 | 100 | 200 | 13.8 | 61 |
| UCSD032 | 1-1/4" | 31.8 | 45.0 | 130 | 200 | 13.8 | 61 |
| UCSD038 | 1-1/2" | 38.1 | 52.0 | 154 | 200 | 13.8 | 61 |
| UCSD051 | 2" | 50.8 | 66.3 | 208 | 200 | 13.8 | 61 |
| UCSD063 | 2-1/2" | 63.5 | 76.1 | 252 | 200 | 13.8 | 61 |
| UCSD076 | 3" | 76.2 | 96.2 | 305 | 200 | 13.8 | 61 |
| UCSD102 | 4" | 101.6 | 120.6 | 407 | 200 | 13.8 | 61 |
