RGeek Customize Made DC 12V 20pin 90W Pico PSU PC Mini ITX ATX PC Power Supplies for Desktop Computer
- Category: >>>
- Supplier: Shenzhen Kexi Technology Co. Ltd.
Share on (62178259850):
Product Overview
Description
Item specifics
Brand Name:RGeek
Model Number:RGEEK-90P
Output:+3.30V, +5.00VSB, +5.00V, +12.00V, -12.00V
Approvals:CE, ROHS
Application:Server,Desktop
Certification:Other Certification
CPU Power Connector:4 pin
Interface Type:24Pin
Package:Yes
PFC Type:Active
Input Voltage:12V DC
Modular:Full Modular
Rating Power:< 150W
D-type Bus Number:1
Number of SATA Ports:1
Rating Power:90W
High light:
90 Watt Output 12 Volt DC Input
Fanless design, 100% silent
20 pin ATX connector, Plugs directly into the ATX connector
Solid Polymer Caps on the PCBA, Long life.
Perfect DC PSU for mini ITX Motherboards
Description:
100% brand new and high quality

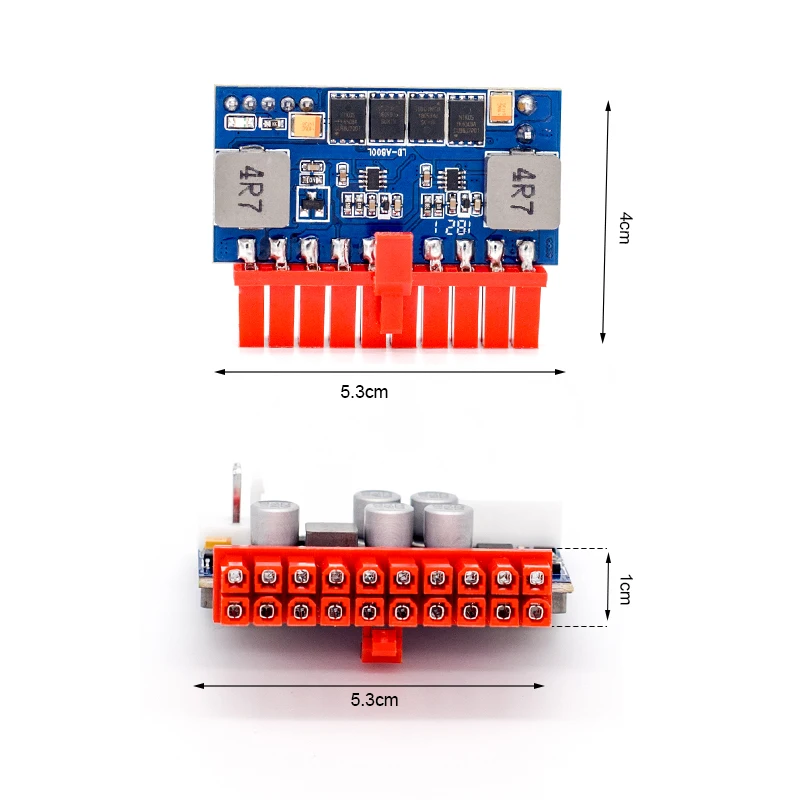

Size (L*W*H): 53mm*39mm*10mm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 90W, and it must be accompanied by the power adapter
Size (L*W*H): 53mm*39mm*10mm(approx)
Adopt industrial solid capacitor, ideal for being used in harsh evironment
High performance with high heat-stand feature, more reliable
Without fan for 100% mute working
Compact design, special for mini-itx and 1U case
Modules can reach 90W, and it must be accompanied by the power adapter
Specifications:
Input voltage: +12V/DC(11.4-12.6V)
DC input: 2.5mm inner diameters, 5.5mm outer diameter
Input Current: Max. 7.5A
Output Power: 90W
Power Efficiency: > = 90%
Working temperature/humidity: 15℃ to 35℃ / 45%-75%
Reposition temperature//humidity: -40℃ to +70℃/ 10%-90%
Atmospheric pressure: 86Kpa—106Kpa
Applications:
MINI computers, one computer, POS, digital set-top boxes, ITX chassis, network servers, advertising, banking terminals, etc.
