CNPOW M16 M40mm servo electric magnetic cold tapping machine for pipe
- Category: >>>
- Supplier: Jiangsu CNPOW Machinery Technology Co. Ltd.
Share on (62178317000):
Product Overview
Description

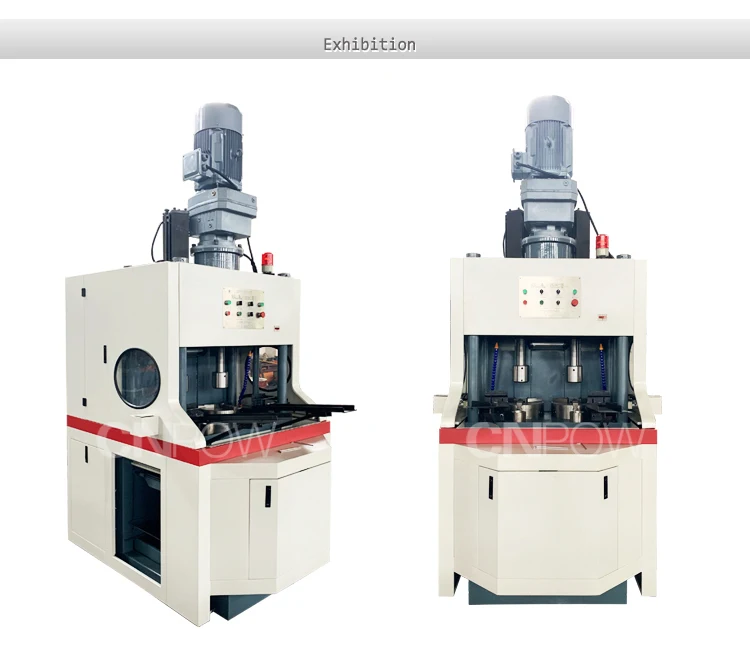

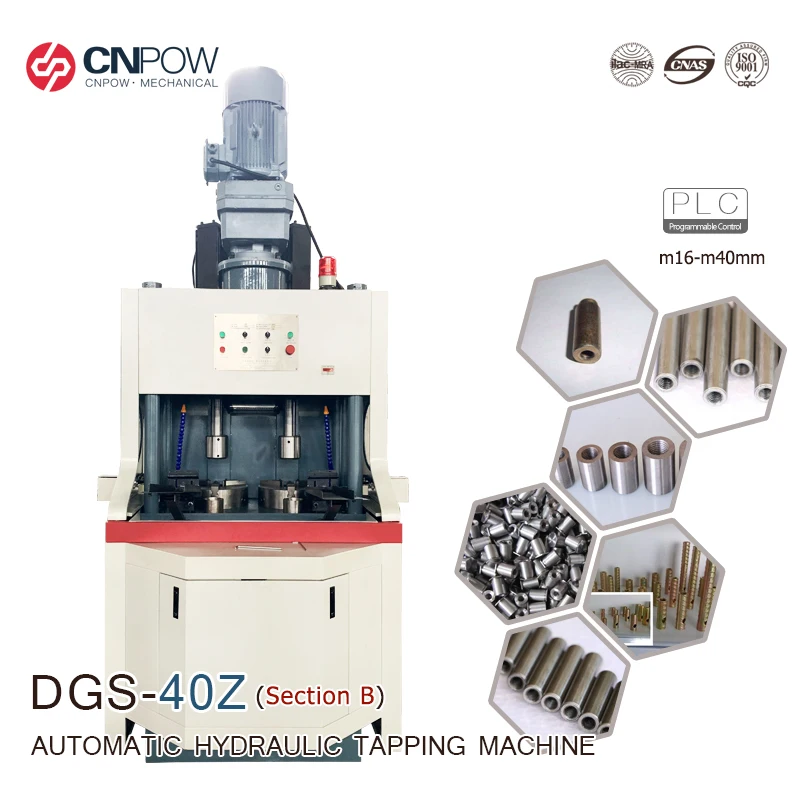

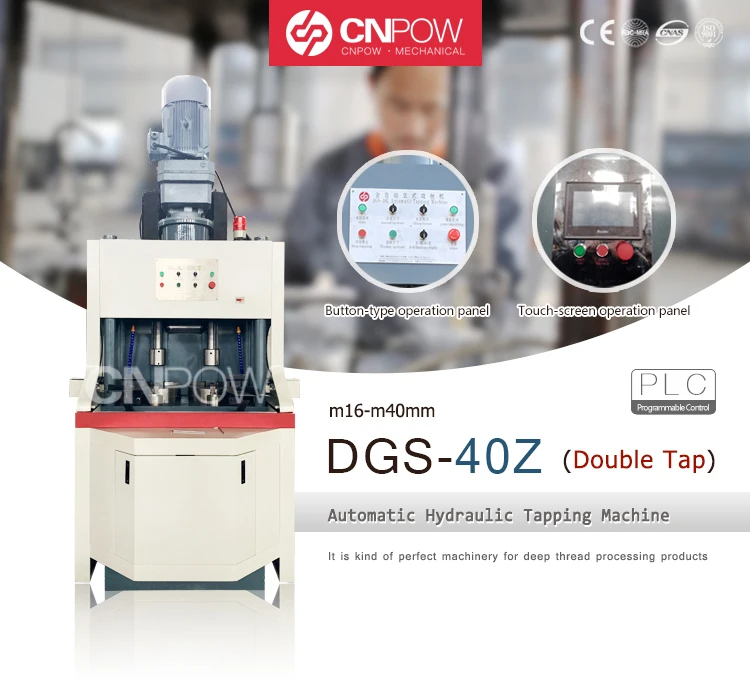

DGS-40Z automatic tapping machine is independently developed and manufactured by CNPOW itself.
It adopt lead screw spindle structure with built-in type drive shaft (patented technology in China),the processed workpieces can be M16-M40mm and 40-80mm length.
It has the characteristics of high working stability, high working efficiency, low technical requirements of operators, low cost and lower labor intensity.

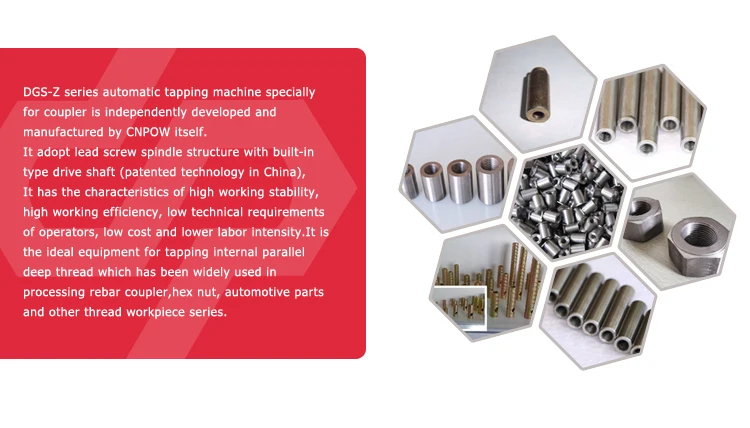

It is the ideal special equipment for tappping parallel deep thread of coupler,nut,automotive parts and so on.
According to the needs of users, our company can tailor-made the automatic couplers processing flow line including the matched peeling and chamfering machine, marking machine,cutting machine,drilling machine without manual operation.
Product Description
Product Features

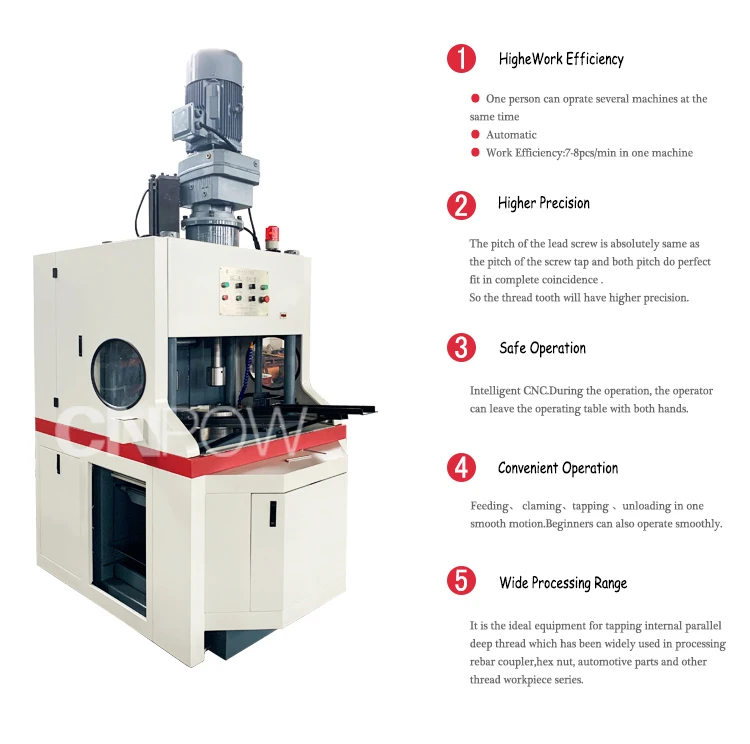

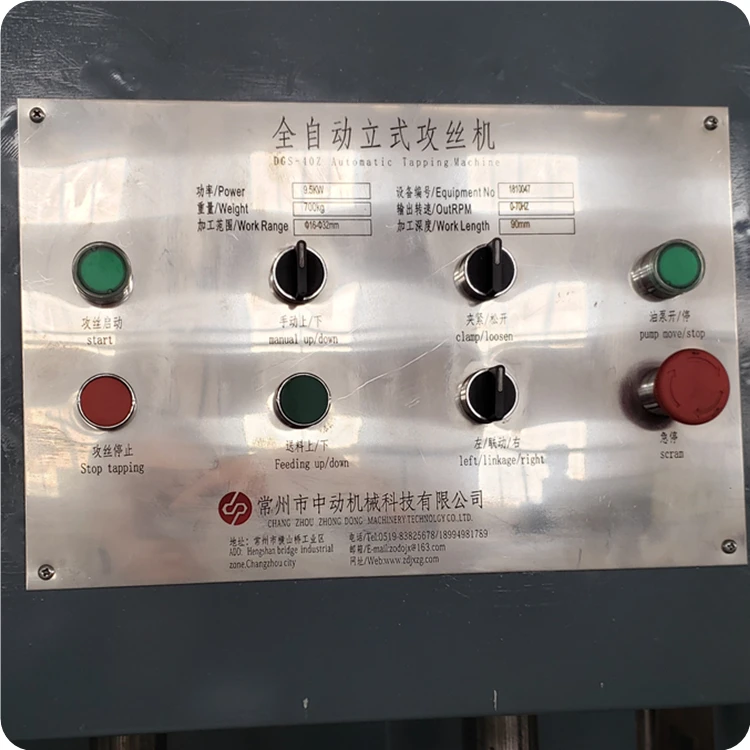

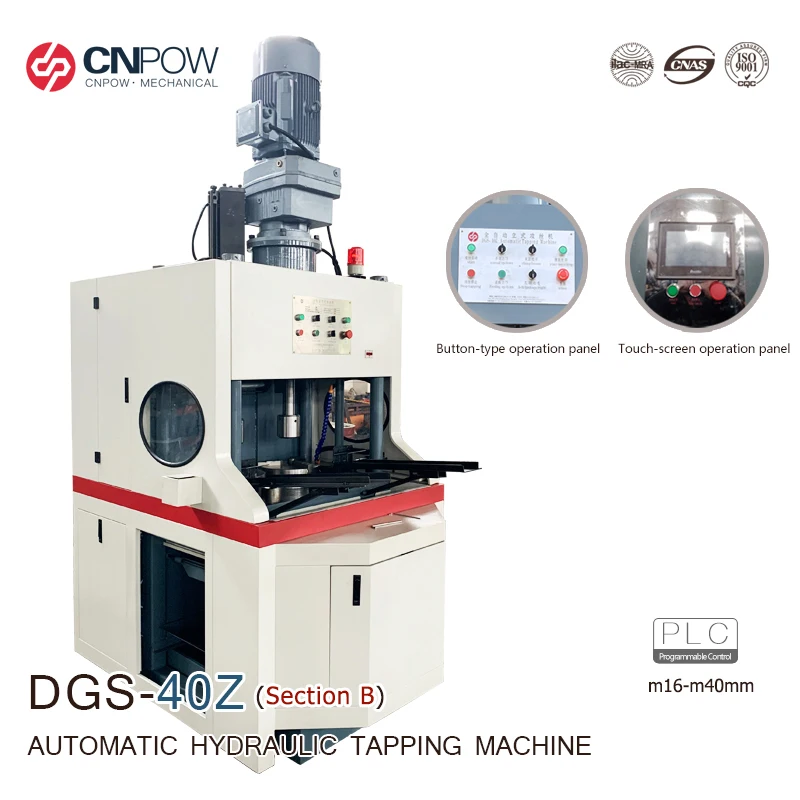

DGS-40Z automatic tapping machine is controlled by PLC and do gear drive, which finish at one stretch including feeding, clamping, tapping and unloading.
Besides, it can process workpieces with different screw pitches.The machine adopts vertical tapping, which is not easy to break the tap and runs more smoothly.
Workers only need to put the workpieces into the feed channel, so it has a lower technical requirement for workers.
Meanwhile, one worker can simultaneously operate several machines, greatly saving up the labor cost, reducing labor intensity and improving production safety.
