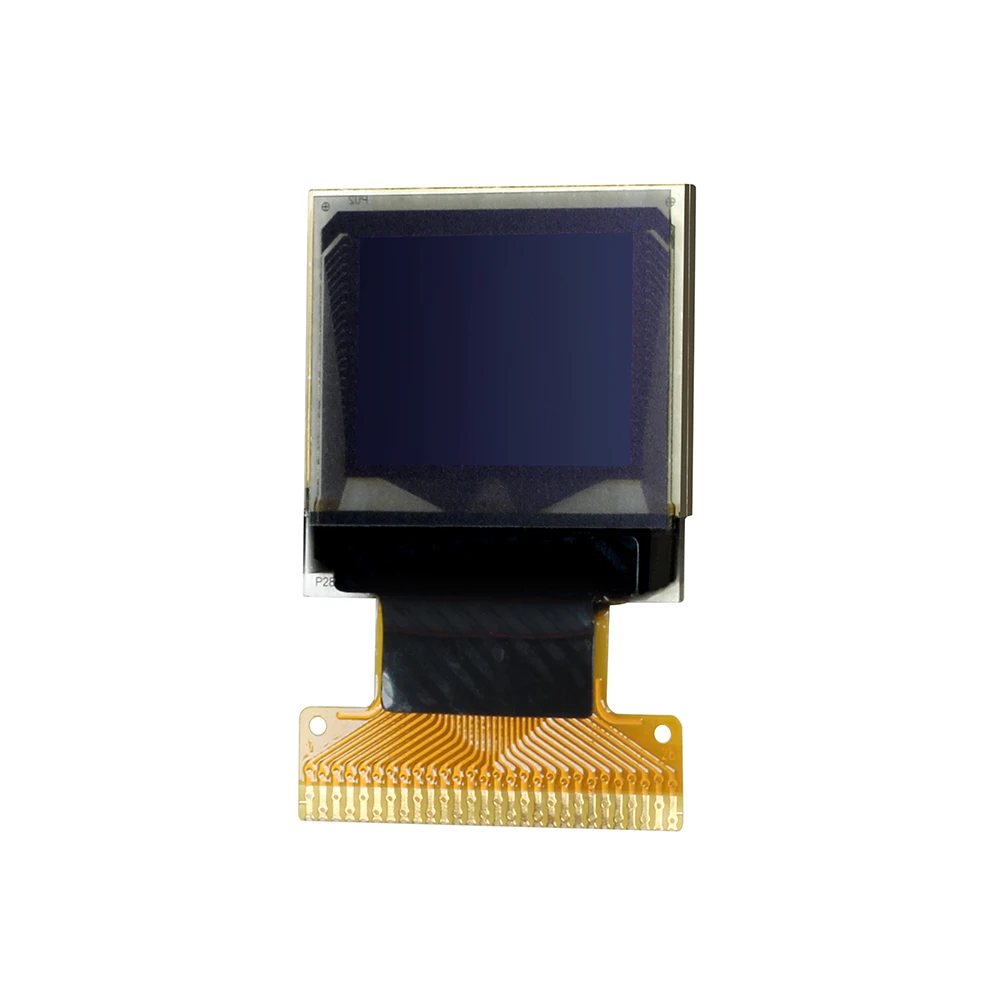

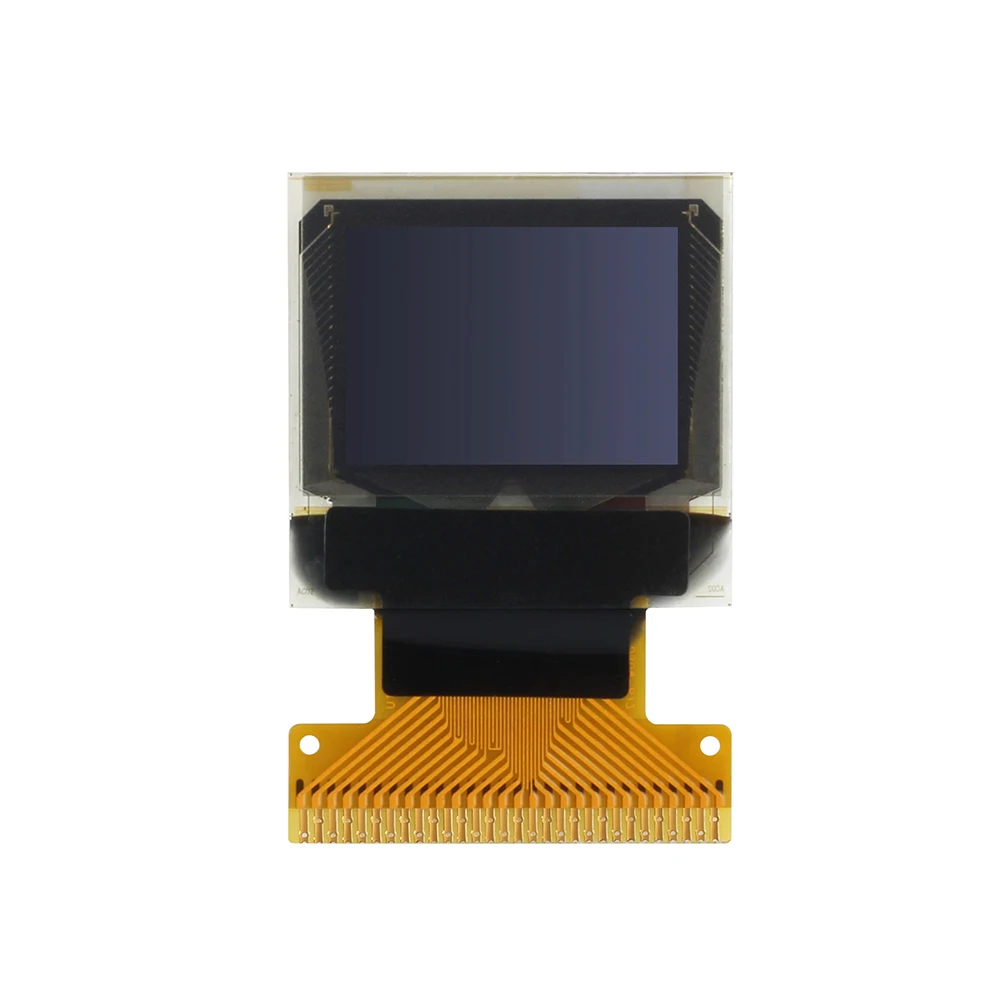

Соединитель дисплея OLED 0,66 дюйма, тип 20 контактов

Product Overview

Description



0.66 OLED Display Connector Type 20Pins  Fetures
Diagonal Screen Size	0.66inch
Color	Monochrome(white/Blue)
Module Construction	COG
Number of Pixels	64X48
Active Area	13.42X10.06mm
Pins	20
Drive IC	SSD1306
Interface	4-Wire Spi
Pixel pitch	0.21X0.21mm
Assembly	Connector



Temperature range
Item	Min.	Max.
Operating Temperature (°C)	-40	70
Storage Temperature (°C)	-40	85



OLED Displays





More Product List of Monochrome OLED Display
Screen Size	Item No.	Number of Pixels	Pins	Interface	Drive IC
0.42" OLED Display	GLO042-D-M2001	72x40	16-pin	SPI/I2C	SSD1306
0.48" OLED Display	GLO048-D-M2001	72x32	11-pin	4 wire SPI	SPD0301
0.49" OLED Display	JHO049-D20065	64x32	14-pin	4 wire SPI	CH1116
0.5" OLED Display	GLO050-D-M2001	48x88	14-pin	I2C	CH1115
0.66" OLED Display	GLO066-D-M2005	64X48	28-pin	Parallel/I2C/SPI	SSD1306
0.66" OLED Display	GLO066-D-M2006	64X48	20-pin	4 wire SPI	SSD1306
0.69" OLED Display	JHO069-D20088	96X16	14-pin	I2C	SSD1306
0.73" OLED Display	GLO073-D-M2002	128 x 88	10-pin	4 wire SPI	SH1107
0.75" OLED Display	GLO075-D-M2001	128x128	15-pin	I2C/4 wire SPI	SSD1327
0.78" OLED Display	GLO078-D-M2001	128X80	13-pin	4 wire SPI	SH1107
0.91" OLED Display	GLO091-D-M2019	128x32	14-pin	I2C	SSD1306
1.3” OLED Display	GLO13-D-M2001	128X64	30-pin	Parallel/I2C/SPI	SH1106
1.54" OLED Display	GLO154-D-M2003	128x64	24-pin	Parallel/I2C/SPI	SPD0301

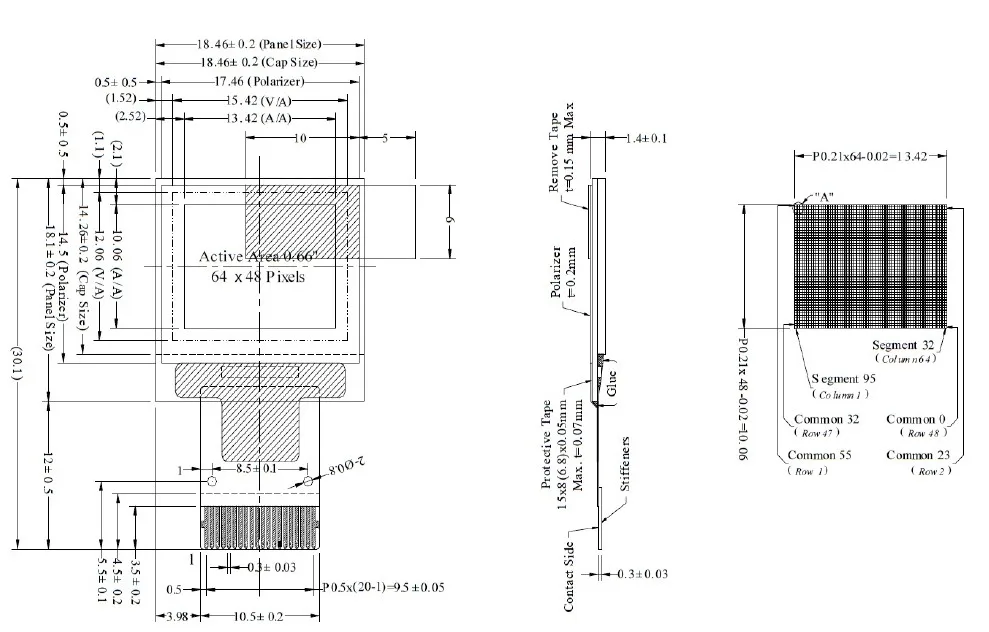

Outline Drawing
