Pneumatic Components RSL Flow Control RNSE Two Touch Fittings brass nickel plated Pneumatic rapid fittings quick connectors RSC

Product Overview

Description





This pneumatic two touch fitting is a kind of pneumatic rapid fittings, also called quick couplers, can be used with Nylon tube and PU tube to control the pipe line, have the several features as below :



1). The two touch rapid fittings can be used with rigid nylon tubes  .

2). A locking nut is provided and can be tightened both manually and with a spanner.

3). The special shape of the guiding cone ensures that the tube can not be accidentally cut .

4). All R and NPT threads are pre-coated sealant .

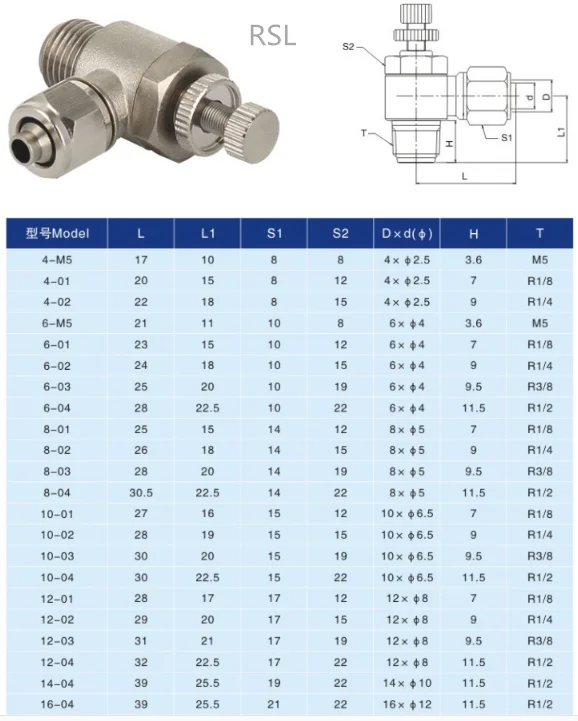

Pneumatic Components RSL/RSC /RNSE Flow Control Two Touch Fittings brass material nickel-plated Pneumatic rapid fittings quick connectors Specifications:



Medium	Compressed Air ( no other gas or liquid )
Working Pressure	0.8~16bar( see tube )
Body Material	Brass nickel plated
Operatiing Temp.	-10~80 ( see data of used tube )
Threads	BSPT, BSPP, NPT, Metric thread

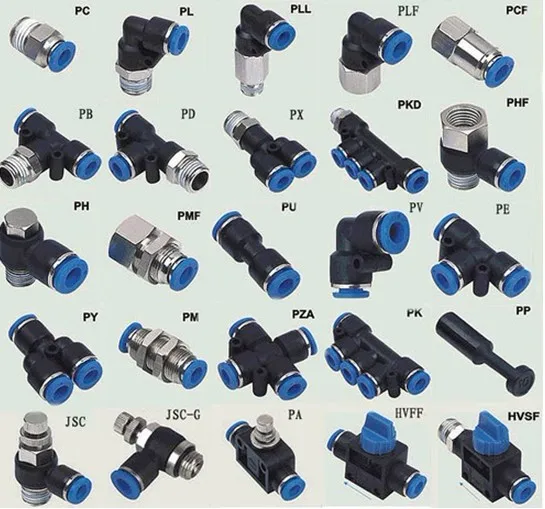

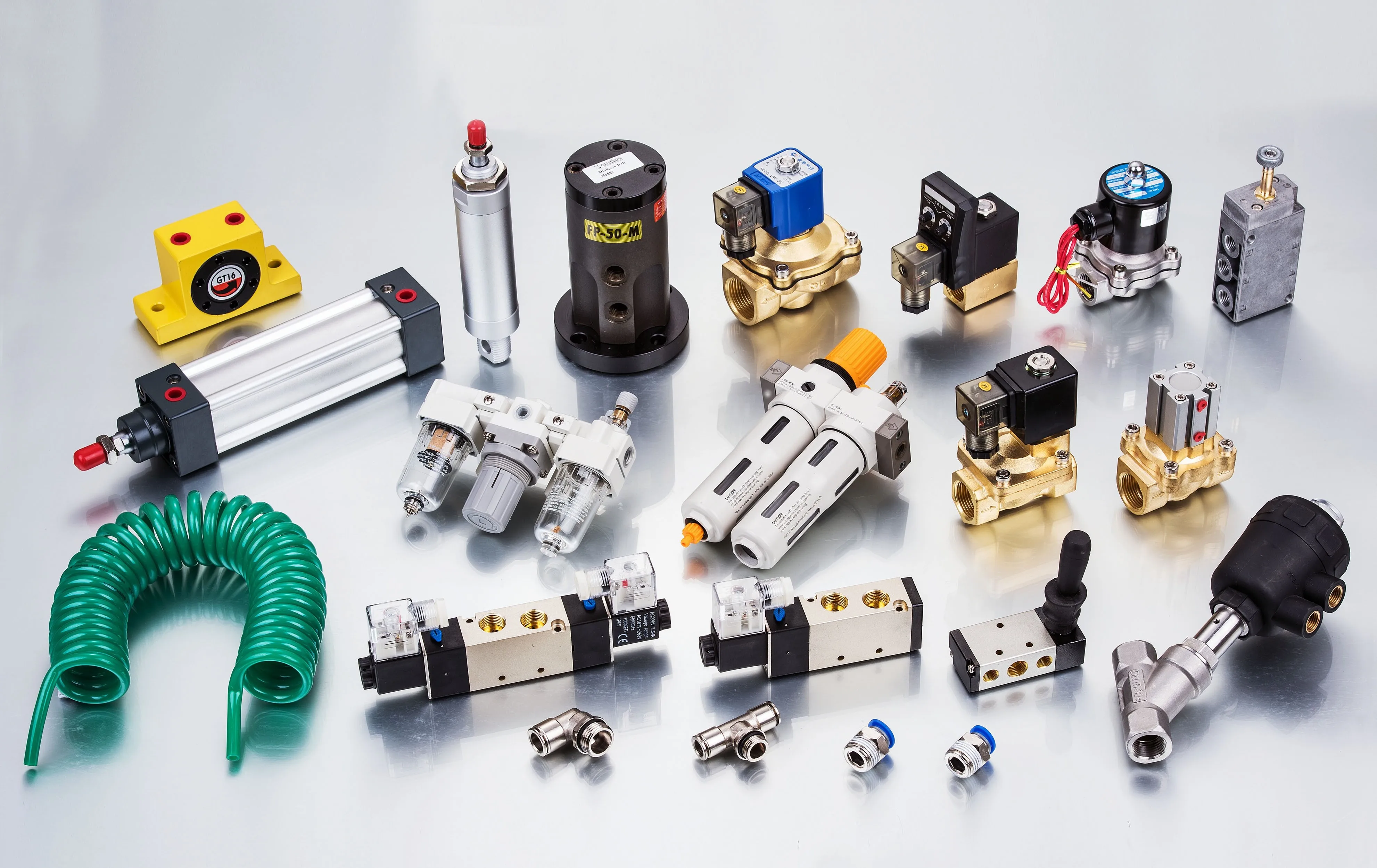

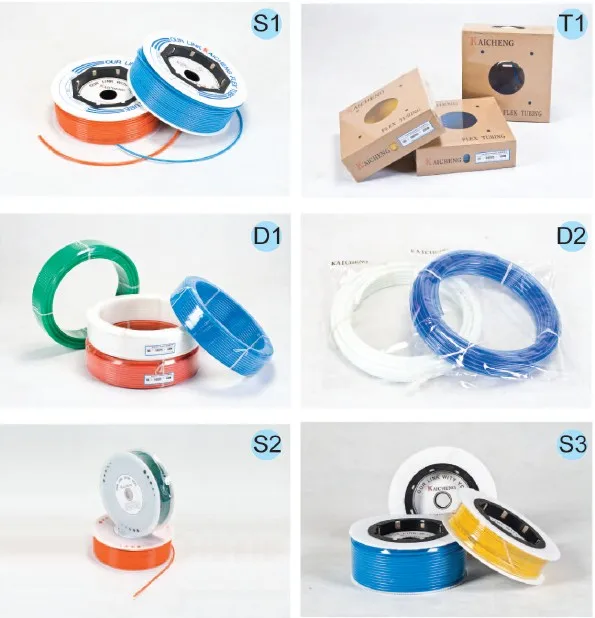

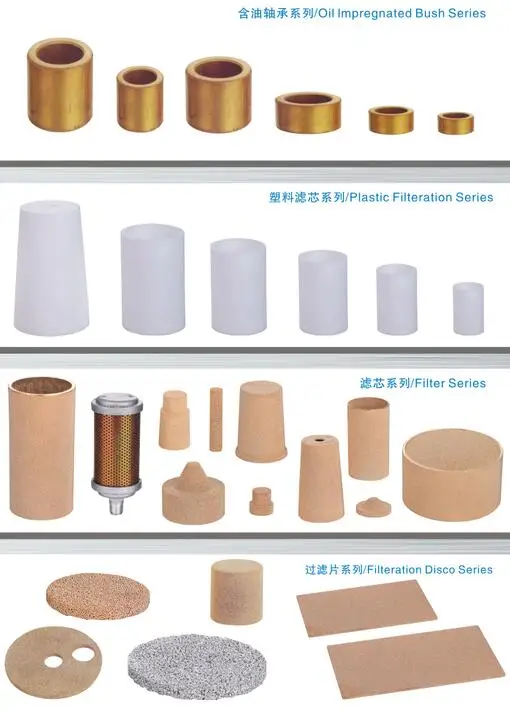

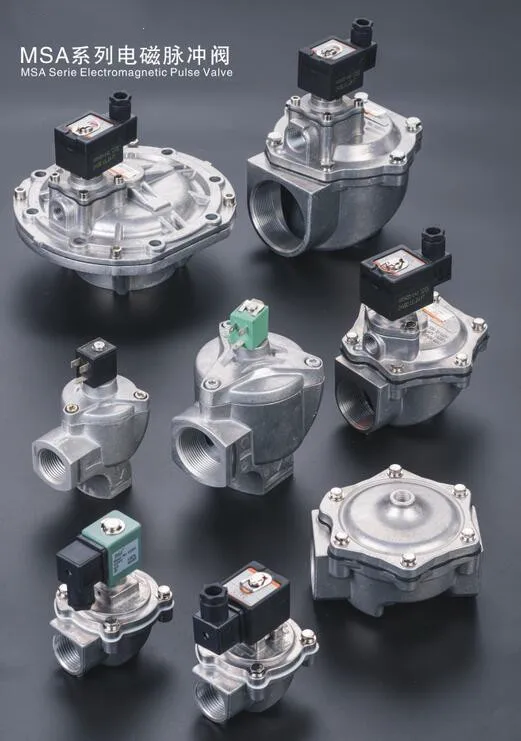

Some other pneumatic components:
