Hydraulic 4 Column Plane Fabric Die Cutting Press Shoe Making Machine
- Category: >>>
- Supplier: Yancheng Jeakar International Trade Co. Ltd.
Share on (62178569474):
Product Overview
Description

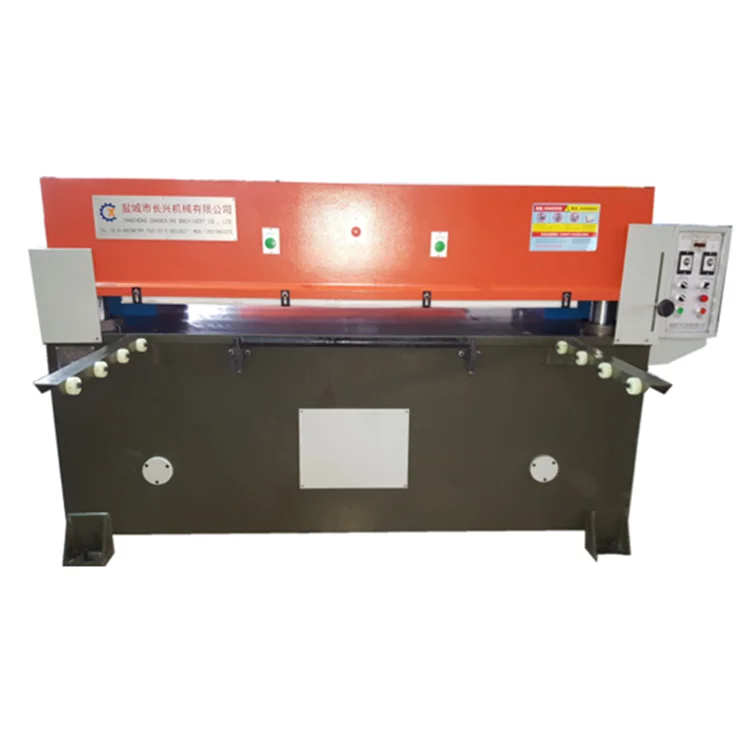

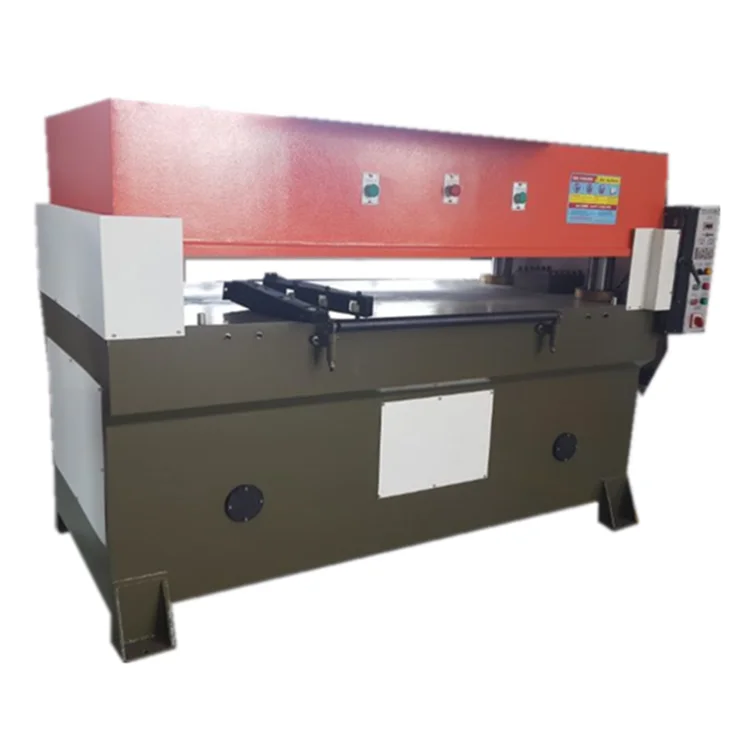

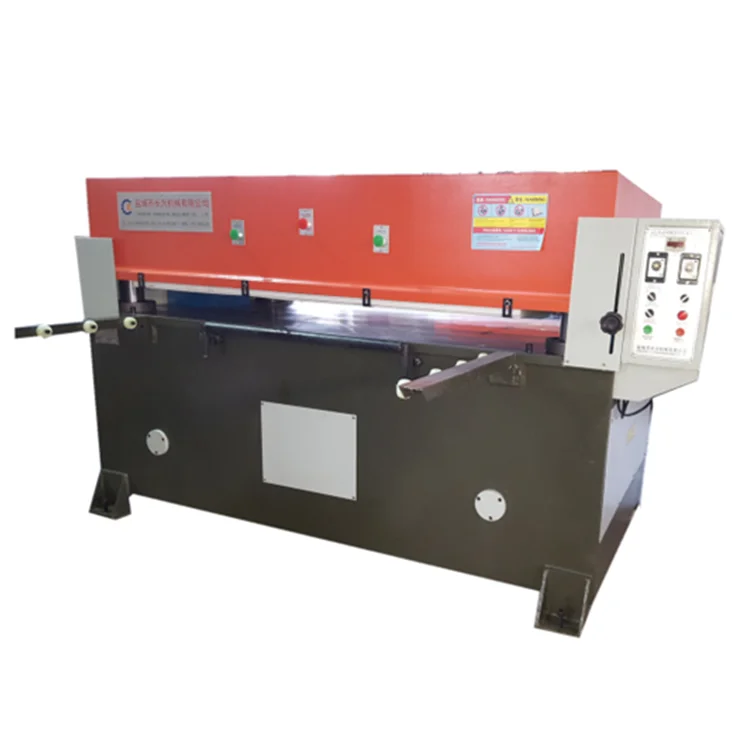

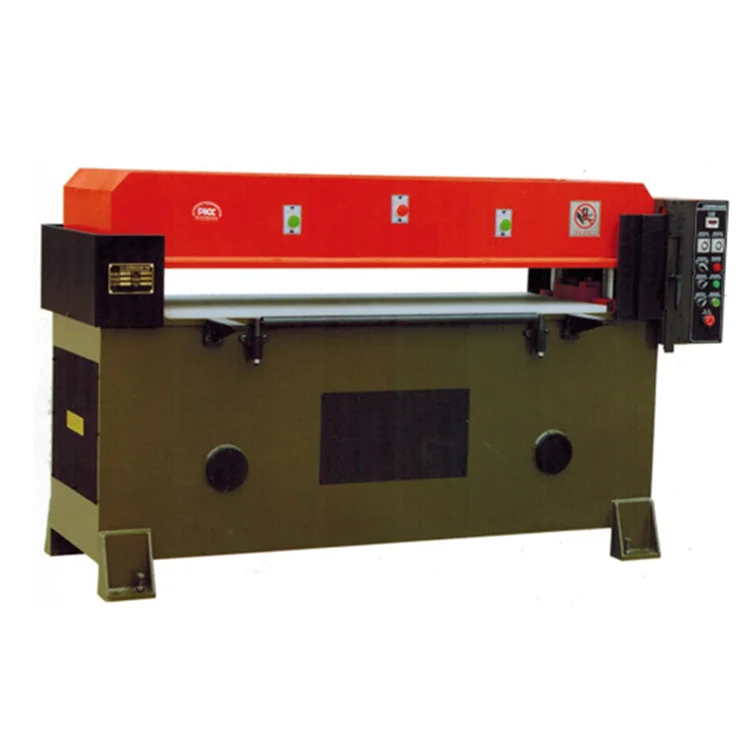

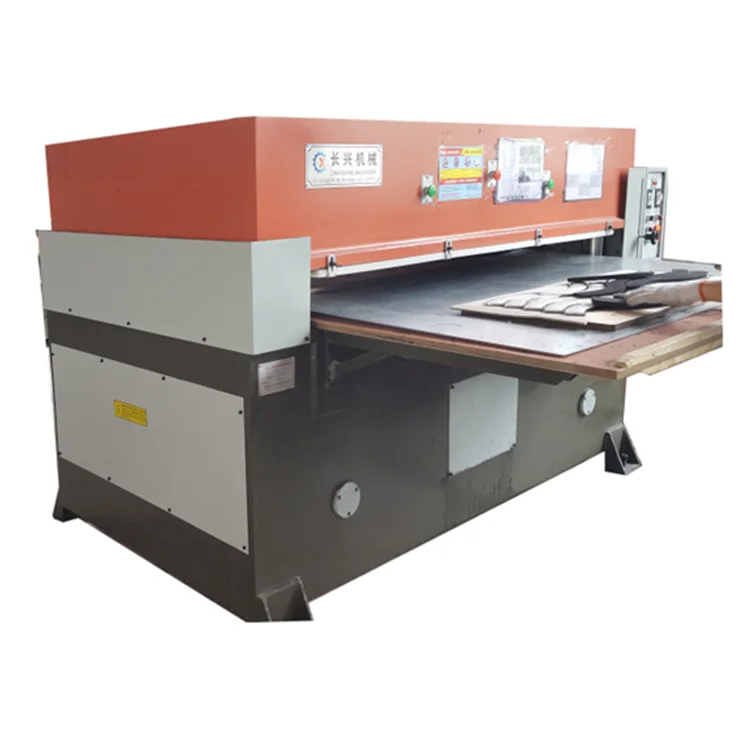

Hydraulic 4-Column Plane Fabric Die Cutting Press Shoe Making Machine
| Model No. | JK-CP-30 | JK-CP-40 | JK-CP-50 | JK-CP-60 |
| Cutting force | 30Ton | 40Ton | 50Ton | 60Ton |
| Range between work table | 50-180mm | 50-180mm | 50-180mm | 50-180mm |
| Stroke adjustment | 0-130mm | 0-130mm | 0-130mm | 0-130mm |
| Upper press board size | 1600×500mm | 1600×600mm | 1600×800mm | 1600×800mm |
| Lowe work table size | 1600x510mm | 1600x610mm | 1600x810mm | 1600x810mm |
| Motor power | 3kw | 3kw | 4kw | 5.5kw |
| Voltage | 380v 50hz | 380v 50hz | 380v 50hz | 380v 50hz |
| Hydraulic oil capacity | 110L | 170L | 200L | 270L |
| Dimension size | 2260x980x1450mm | 2260x1080x1450mm | 2260x1080x1450mm | 2260x1300x1450mm |
| Machine weight | 1550kgs | 1700kgs | 3900kgs | 6000kgs |
1, Precision four-column cutting machine is widely used in a variety of industry molding die for all kinds of non-metallic materials cutting work.
2, Double cylinder, precision four-column double crank connecting rod balance structure, to ensure that each cutting position of the same depth of the cut.
3, Unique set structure, with the cutting knife and cut the depth of the set, so that stroke adjustment is simple and accurate.
4, Cut the pressure plate to contact the cutter when the slow cut, so that the cutting of the material between the top and bottom there is no size error.
5, All the sliding parts of the central oil supply automatic lubrication system to ensure that the machine's life and accuracy.
2, Double cylinder, precision four-column double crank connecting rod balance structure, to ensure that each cutting position of the same depth of the cut.
3, Unique set structure, with the cutting knife and cut the depth of the set, so that stroke adjustment is simple and accurate.
4, Cut the pressure plate to contact the cutter when the slow cut, so that the cutting of the material between the top and bottom there is no size error.
5, All the sliding parts of the central oil supply automatic lubrication system to ensure that the machine's life and accuracy.
Techniques
1.Q:Are you a factory or trading company? A: Yes,we are a factory. you are most welcomed to visit us
2.Q:Where is your factory located? A: Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours from Shanghai.All clients, are warmly welcome to visit us!
3.Q:What is the material of your products? A: The material is mainly steel,Cast iron(Ductile cast iron) We can also choose material as customer`s requirements.
4.Q: What is your MOQ of this item? A: 1 set per style
5.Q: What is the lead time? A: It depends on your order quantity. Normal size laminating machine costs 20 days,and large sizes asks for 2 months.
6.Q: Is it all right to make customer's own brand name? A: That’s all right to make your own brand name.
