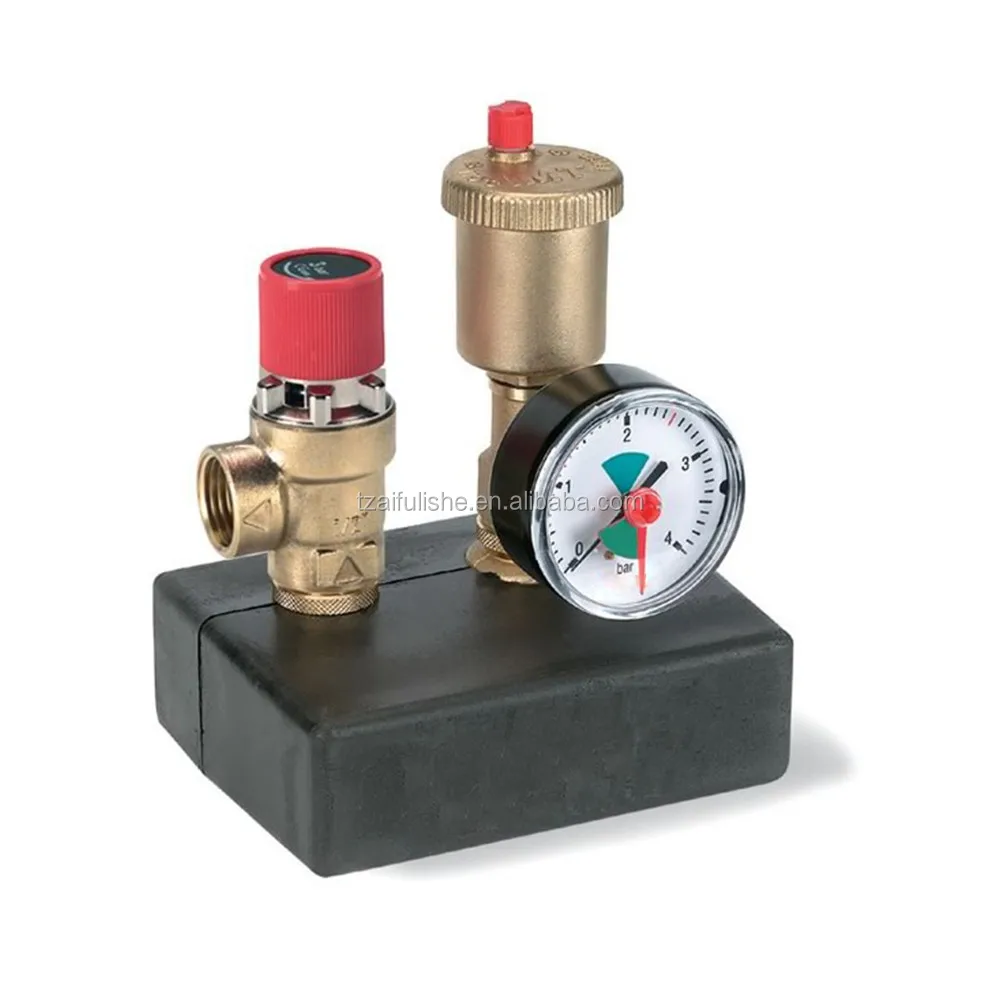

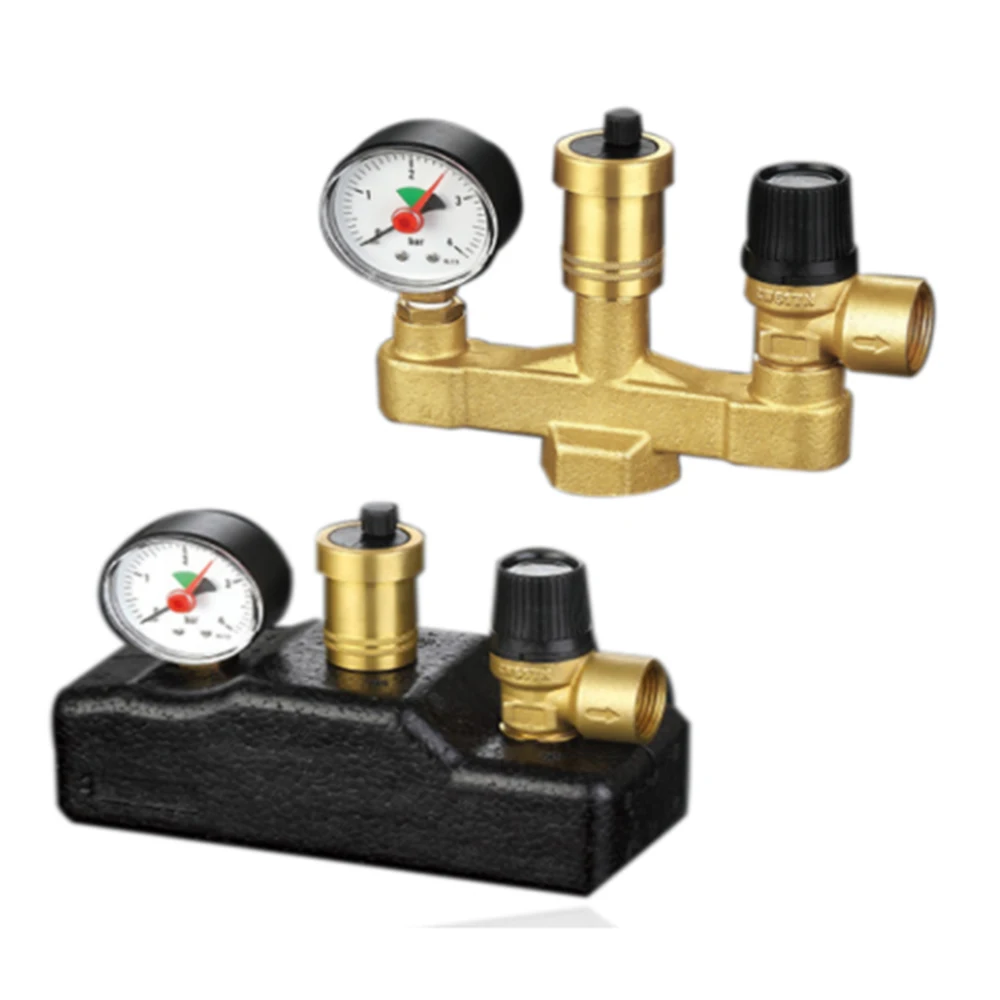

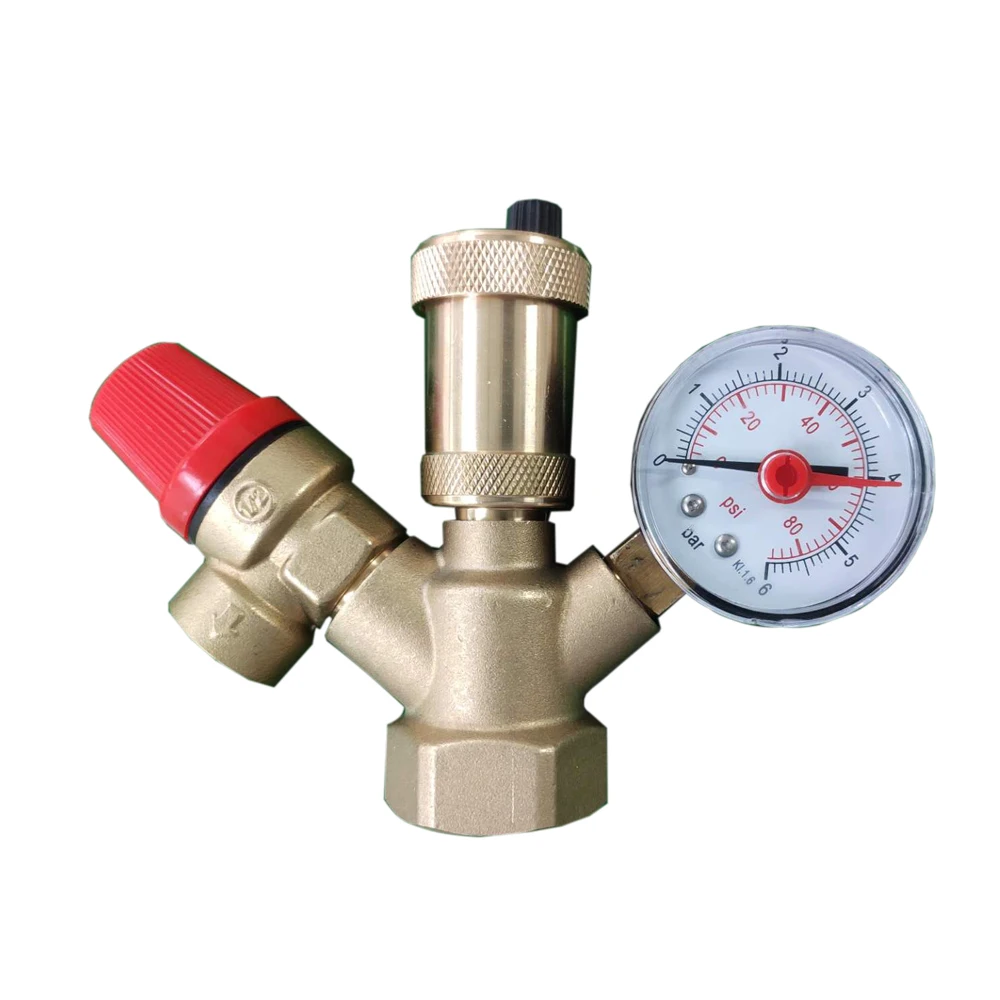

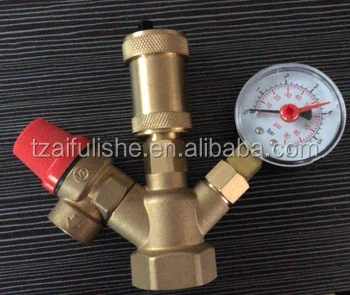

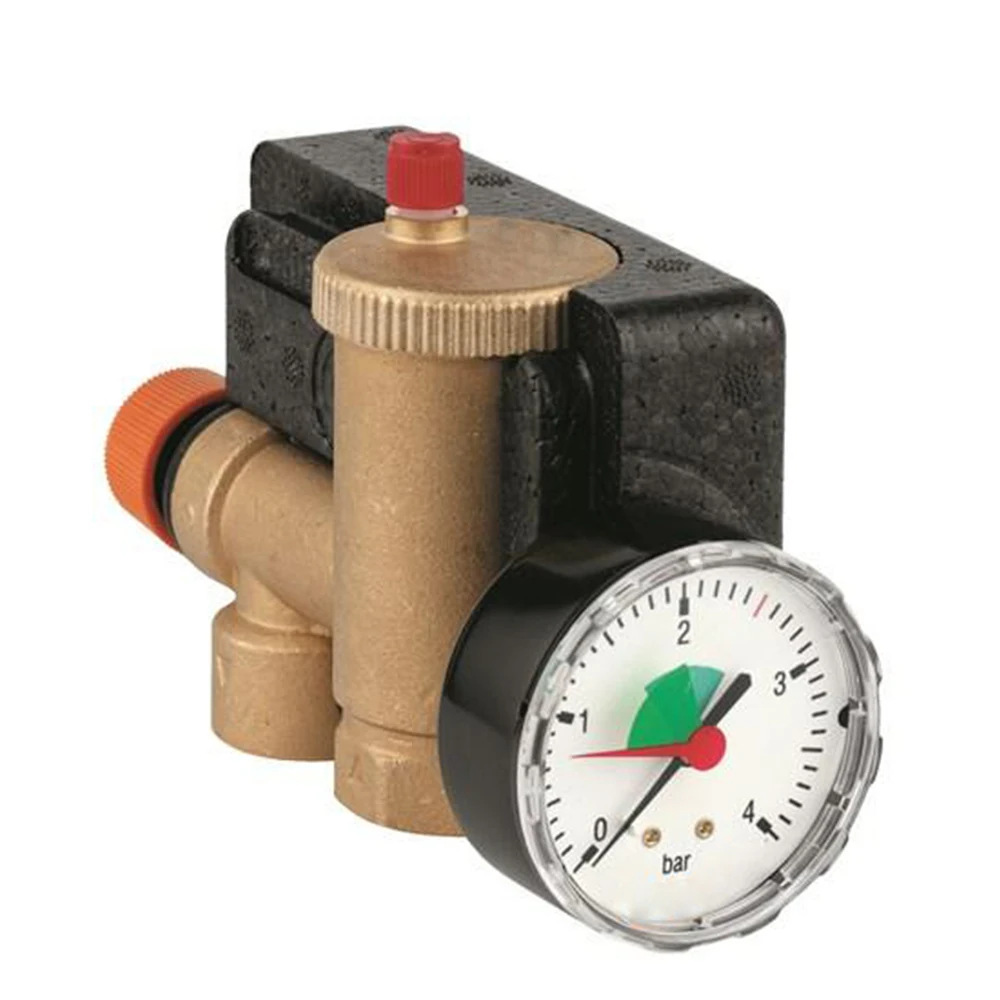

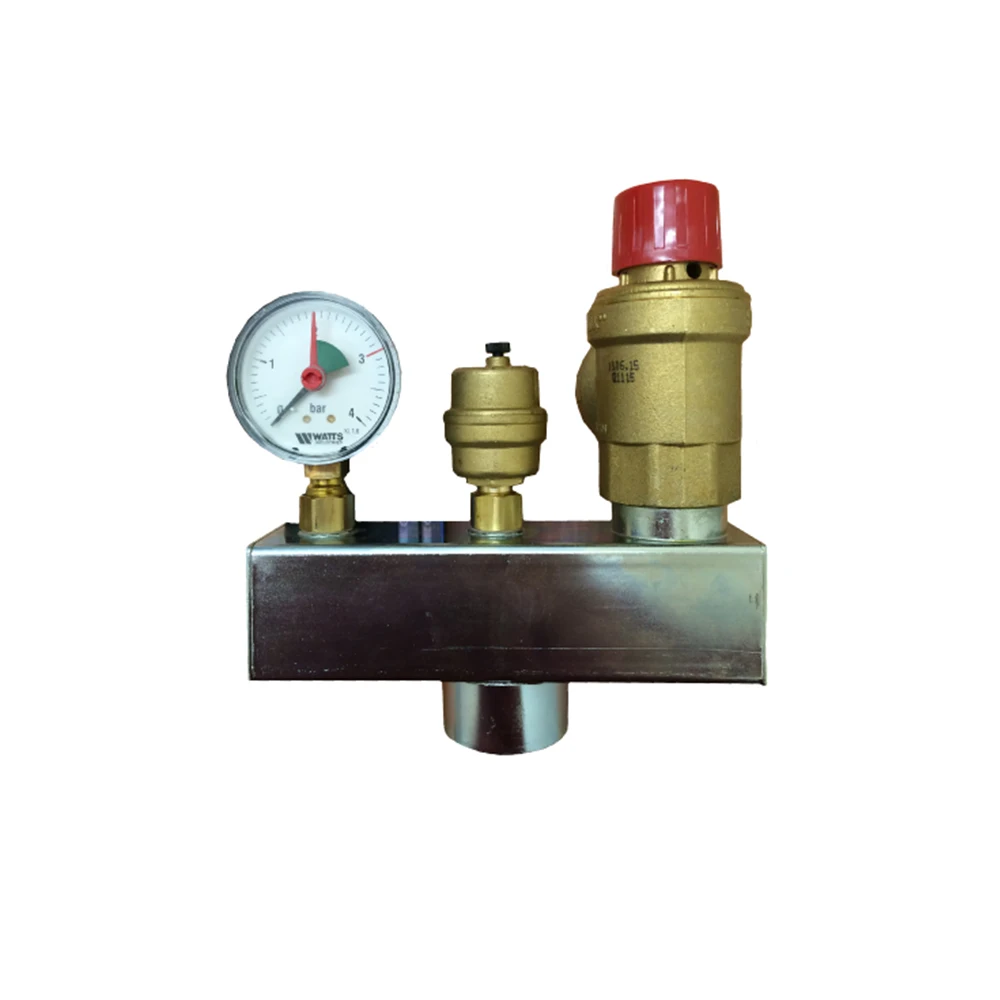

Afulise Brass Boiler Parts Set With Air Vent And 3 Bar Safety Valve For Floor Heating System

Boiler safety group

For sealed heating systems as per EN 12828 with a capacity of up to 50 kW.

Complete, pre-assembled, tightness-tested boilersafety group assembly. Consisting of carrier, pressure gauge for indicating the system pressure,quick air vent and diaphragm safety valve,including form-fit insulation. With self-sealing,mounting valves for easy replacement of pressure, gauge and air vent.

Boiler connection



G1 female thread

Operating temperature range

Max. 120 °C

Insulation

Expanded polypropylene EPP
Carrier
Brass
Diaphragm safety valve

Inlet x outlet: G½ x G¾

Seal: PTFE sealing ring, can be rotated

Response pressure: 1.5 bar,3 bar

Pressure gauge for heating installations

Range: 0/4 bar

Diameter: 63 mm–G3/8 bottom

Quick air vent

Inlet: G3/8

Nominal pressure: 12 bar

Products Show

Our Main Products

Brass Valves

Brass Valses of different Size and funciton

PEX PIPES

PEXC PEXB PERT PE AL

Radiant floor Heating Accessories

Manifolds, mixing valve center, circulating pumps, boiler filter and valve, radiator valve

Our Company

Factory

Our Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details  : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order of Solid bicycle tire tubes

1. Special logistics packaging

2. Interior Carton

3. Exterior Carton

Our Certifications

Best stainless

Our products has certificates like ISO9001, German TUV,  and DVGW, European CE certificate

Oversea Exhibition

2018 Russian Aqua-Therm

2019 Brazil Feicon-Batimat

2019 Hungary Builder Mart

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory with two workshops over 200 workers and 10 sales dedicated for your service.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=100USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shippment.
