cheap capacitive touch screen 15.6 inch for supermarket cashier machine
- Category: >>>
- Supplier: Shenzhen Yunlea Electronics Co. Ltd.
Share on (62178610203):
Product Overview
Description

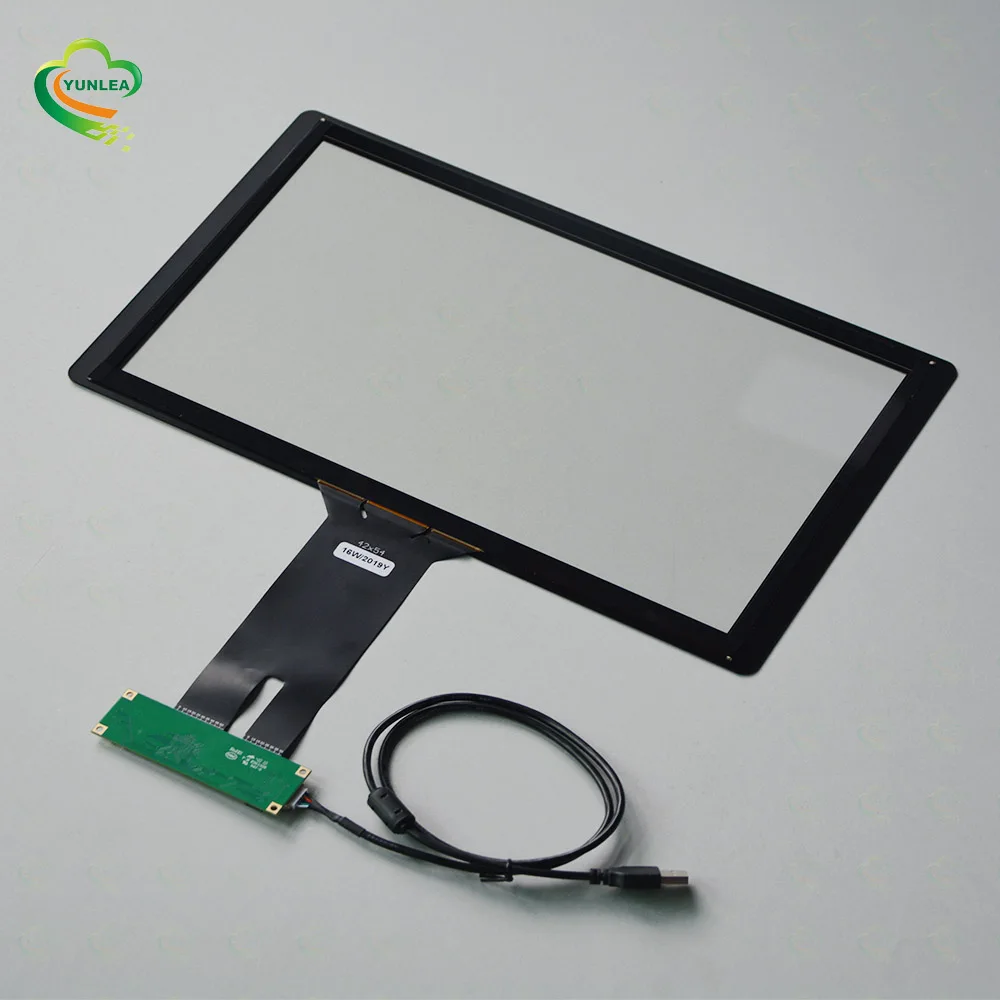

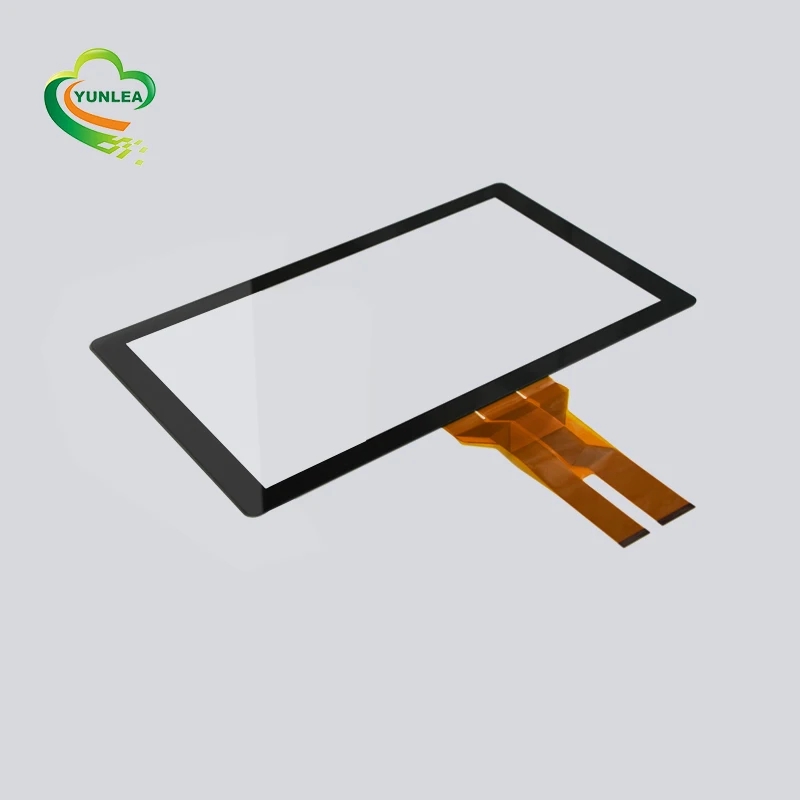

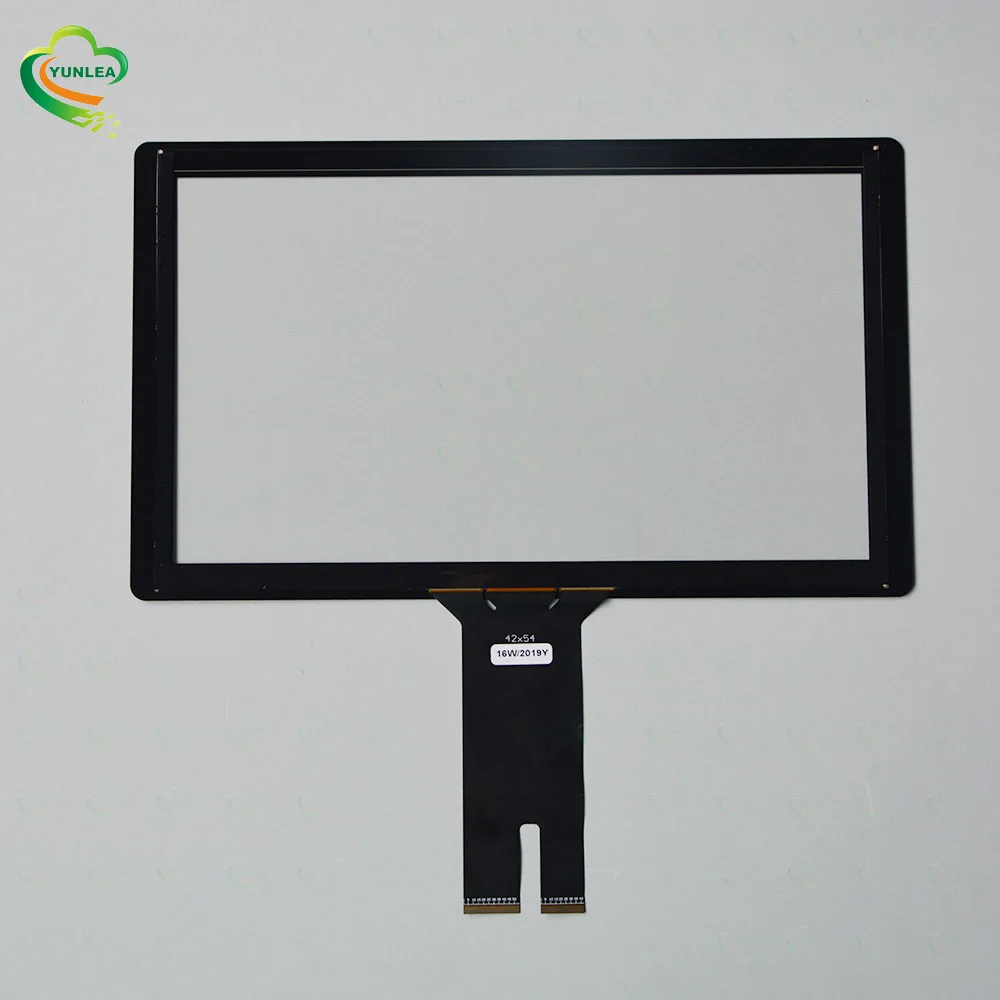

cheap capacitive touch screen 15.6 inch for supermarket cashier machine
Detailed Images
Customized solution
We have standard 3.5-55 inch Touch screen.So if our standard one can't fit with your project.We are welcome you to customized own touch screen.If you have any demand ,pls don't hesitate to contact with me.
We can according to your demand to customized your touch screen like customized cover glass's shape,silk-printing color,touch with water,touch with gloves and so on.If you are interested in,pls click it to watch the video.
Product Description
| The Specification of New-designed 15.6" touch screen | |
| Struture | CTP(Glass+Glass) |
| Sensor OD | 358x210 mm |
| Lens OD | 387x231 mm |
| Touch solution | COB(Chip on the board) |
| Touch controller | EETI/ILITEK |
| Operating systems | Win 7,win8,wince,andriod,linux |
| Interface of CTP | I2C/USB/RS232 |
| Surface Hardness | 6H |
| Transparency | 86%min |
| Touch Points | 10 points |
| Operating temp | -20 to 70 degree |
| General Business Clauses | |
| MOQ | 1 piece |
| Lead time | Samples in stocks,2~4 weeks for mass production |
| Trade Terms | EXW or FOB |
| Payment | 100% T/T or Western union in advanc for samples ,50% T/T in advance and 50% before delivery for mass production |
| Warranty | 12 months |
| Package | Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |

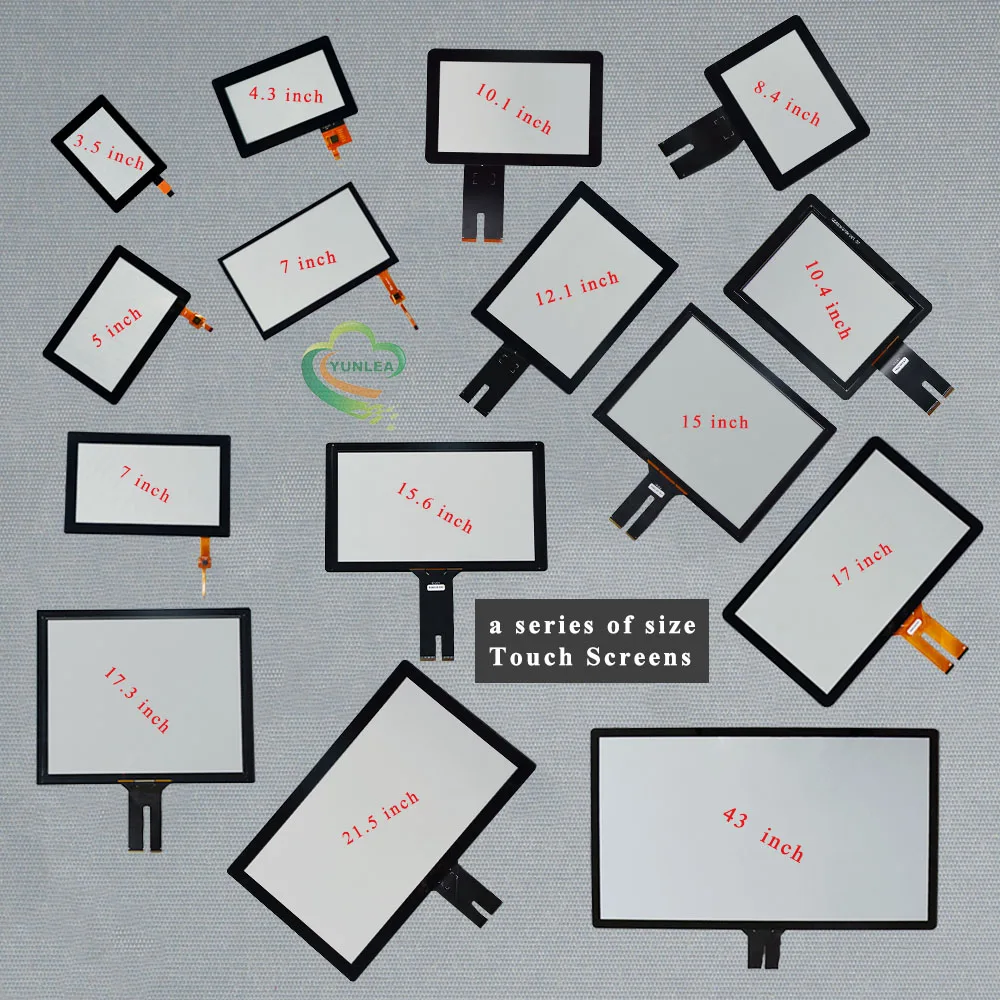

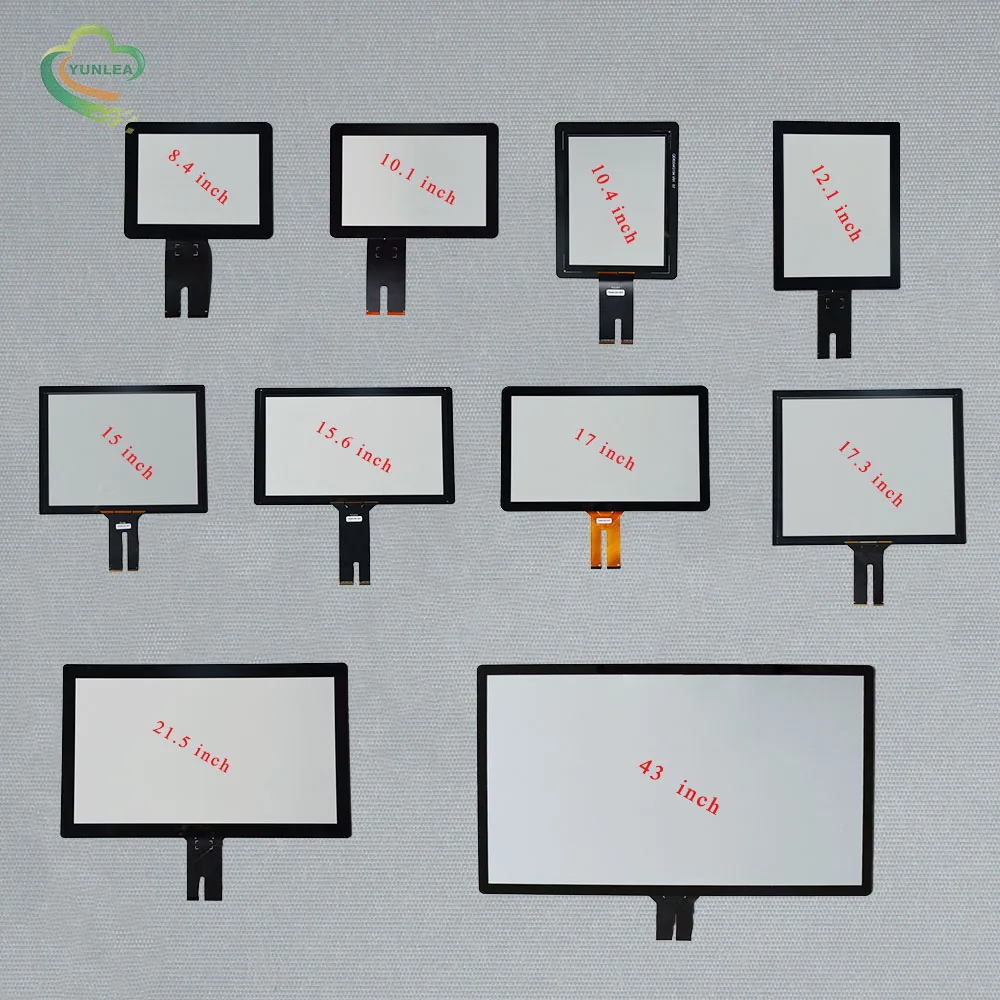

Product catalogue
| Size | Part No. | Sensor OD | Sensor (T) | Lens OD | Cover glass(T) | R angle | Window VA | Touchcontroller | |
| 3.5" | YL035CY03 | 82.34X56.86 | 0.4 | 94.94X66.86 | 0.7 | 74.94X50.36 | Mstar 2133A | click here | |
| 4.3" | S82327H | 103.10x85.40 | 0.7 | 114x77 | 0.7 | 96.04x53.86 | FT5346 | click here | |
| 5" | YL050CY01 | 120.7X75.8 | 0.55 | 127X85.80 | 0.7 | R5 | 109x65.8 | FT5436 | click here |
| 7" | YL070CY01 | 159.70X94.10 | 0.55 | 164.90X100 | 0.7 | 154.08X85.92 | FT5436 | click here | |
| 8.4" | 8333084V01 | 182X140.2 | 0.7 | 207X166 | 1.1 | R10 | 170.4x127.8 | EETI/ILITEK | click here |
| 10.1" | 8154101V02 | 239.6x158.20 | 0.7 | 254.96x172.6 | 1.1 | R10 | 217.96X136.6 | EETI/ILITEK | click here |
| 10.4" | 8334104V01 | 233.4X177.9 | 0.7 | 259.10X206.3 | 1.1 | R10 | 213.1X160.3 | EETI/ILITEK | click here |
| 12.1" | 8031121V01 | 280X210.5 | 0.7 | 220.5X290 | 1.1 | R4 | 246X184.5 | ILITEK | click here |
| 8335121V01 | 259.6X201.1 | 0.7 | 293X237 | 1.1 | R9 | 246X184.5 | EETI/ILITEK | click here | |
| 15" | 8001150V03 | 319X244 | 0.7 | 339.9X263.9 | 3 | R2 | 304X228 | ILITEK | click here |
| 8278150V01 | 329X245 | 0.7 | 339.9X263.9 | 3 | R2 | 304X228 | EETI/ILITEK | click here | |
| 15.6" | 8002156V02 | 358X210 | 1.1 | 387X231 | 3 | R16 | 344X194 | ILITEK | click here |
| 8156156V02 | 362X222 | 0.7 | 387X231 | 1.1 | R8 | 344X194 | EETI/ILITEK | click here | |
| 17" | 8003170V03 | 356.92x290.34 | 0.7 | 377x209 | 3 | R2 | 338.92x271.34 | ILITEK | click here |
| 8273170V01 | 366.58X299 | 0.7 | 377X309 | 3 | R2 | 338.92X271.34 | EETI/ILITEK | click here | |
| 17.3" | 8004173V02 | 398.9X235.8 | 1.1 | 423.21X256.2 | 3 | R16 | 383.21X216.2 | ILITEK | click here |
| 18.5" | 8005185V03 | 429.8X249.9 | 0.7 | 458X283 | 3 | R16 | 410.8X231.4 | ILITEK | click here |
| 8163185V02 | 430.8X261.4 | 0.7 | 440.8X271.4 | 1.1 | R8 | 410.80X231.4 | EETI/ILITEK | click here | |
| 19" | 8006190V03 | 398.32X321.06 | 0.7 | 421X346 | 3 | R2 | 377.32X302.06 | ILITEK | click here |
| 8200190V02 | 400.32X329.9 | 0.7 | 421X346 | 2 | R2 | 377.32X302.06 | EETI/ILITEK | click here | |
| 19.5" | 8007195V02 | 450.5X259.76 | 1.1 | 473.5X281.26 | 3 | R16 | 433.5X241.26 | ILITEK | click here |
| 21.5" | 8008215V02 | 496.42X287.43 | 0.7 | 524X321.8 | 3 | R16 | 477.6X269.10 | ILITEK | click here |
| 8160215V02 | 508X303.8 | 0.7 | 524X321.8 | 1.8 | R8 | 477.6X269.10 | EETI/ILITEK | click here | |
| 23.6" | 8010236V02 | 543.84X316 | 0.7 | 537X349 | 3 | R16 | 523.3X295.2 | ILITEK | click here |
| 23.8" | 8012238V01 | 544.03x315.5 | 1.1 | 573x349 | 3 | R16 | 525.5X297 | ILITEK | click here |
| 27" | 8014270V02 | 618X355.7 | 1.1 | 646X384 | 3 | R16 | 598X336 | ILITEK | click here |
| 8245270v01 | 619x362 | 1.1 | 646x384 | 3 | R16 | 598X336 | EETI/ILITEK | click here | |
| 32" | 8016320V02 | 719.7X414.3 | 1.1 | 746.7X441.3 | 3 | R16 | 698.7X393.3 | ILITEK | click here |
| 8246320V01 | 720.7X420.3 | 1.1 | 746.7X441.3 | 3 | R16 | 698.7X393.3 | EETI/ILITEK | click here | |
| 43" | 8018430V02 | 973X561.5 | 1.1 | 994.2X587.3 | 4 | R15 | 943.2X531.4 | ILITEK | click here |
| 55" | 8021550V01 | 1254.6X716.417 | 1.8 | 1287.6X758.4 | 4 | R8 | 1209.6X680.4 |
ITLITEK |
We can customize more sizes,click here to contact us.
Company Information
Shenzhen Yunlea Electronics Co., Ltd.
YUNLEA is is a leading designer and manufacturer of Capacitive Touch Panel, And we have rich experiences in medical & industrial & home automation& products supply.
Our strength lies in understanding the special needs of clients, to provide the most suitable products and professional technical supports.
Our customers
Customer feedback
Certifications
Packaging & Shipping
To keep you receive your parcel ASAP, we will send them by air , fast transportation is our promise . To keep you receive products with good quality, we use professional flight package.
Packing Details : Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton
Delivery Details : Shipped in 7 days after payment
FAQ
1.What is your delivery method?
DHL , UPS , FEDEX ,TNT
2. What is the lead time of the products?
Samples in stock will be sent within 3 days after payment.
Two to Four weeks for mass production
3. Payment methods?
T/T, Paypal and Western union etc.
For samples: payment in advance.
For mass production: 50% deposit and 50% balance before shipment.
4. How long is the warranty period?
Generally the warranty period is one year. It depends on different products.
5.What is the Product MOQ?
Different product has the different MOQ, please contact us sales for detailed information.
6.What is the products application?
Widely used in instrument, handheld devices, industrial control, medical, automotive, smart home and other fields.
