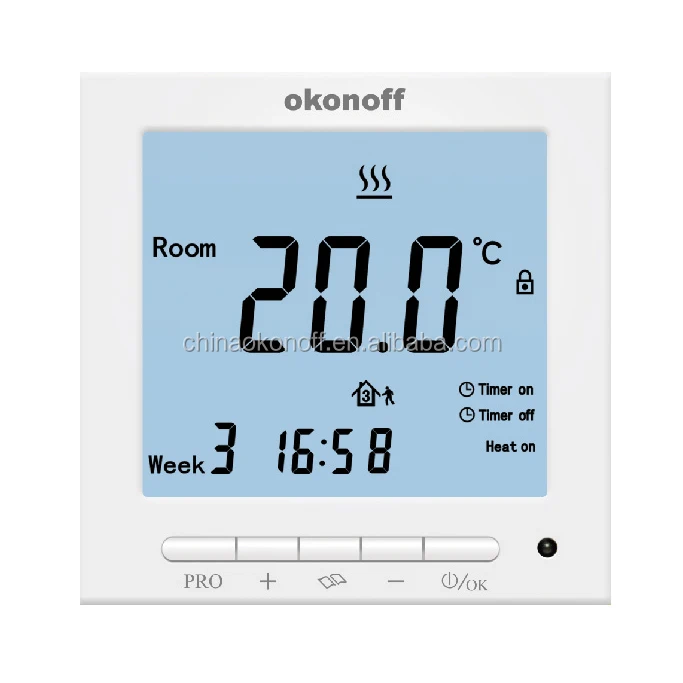

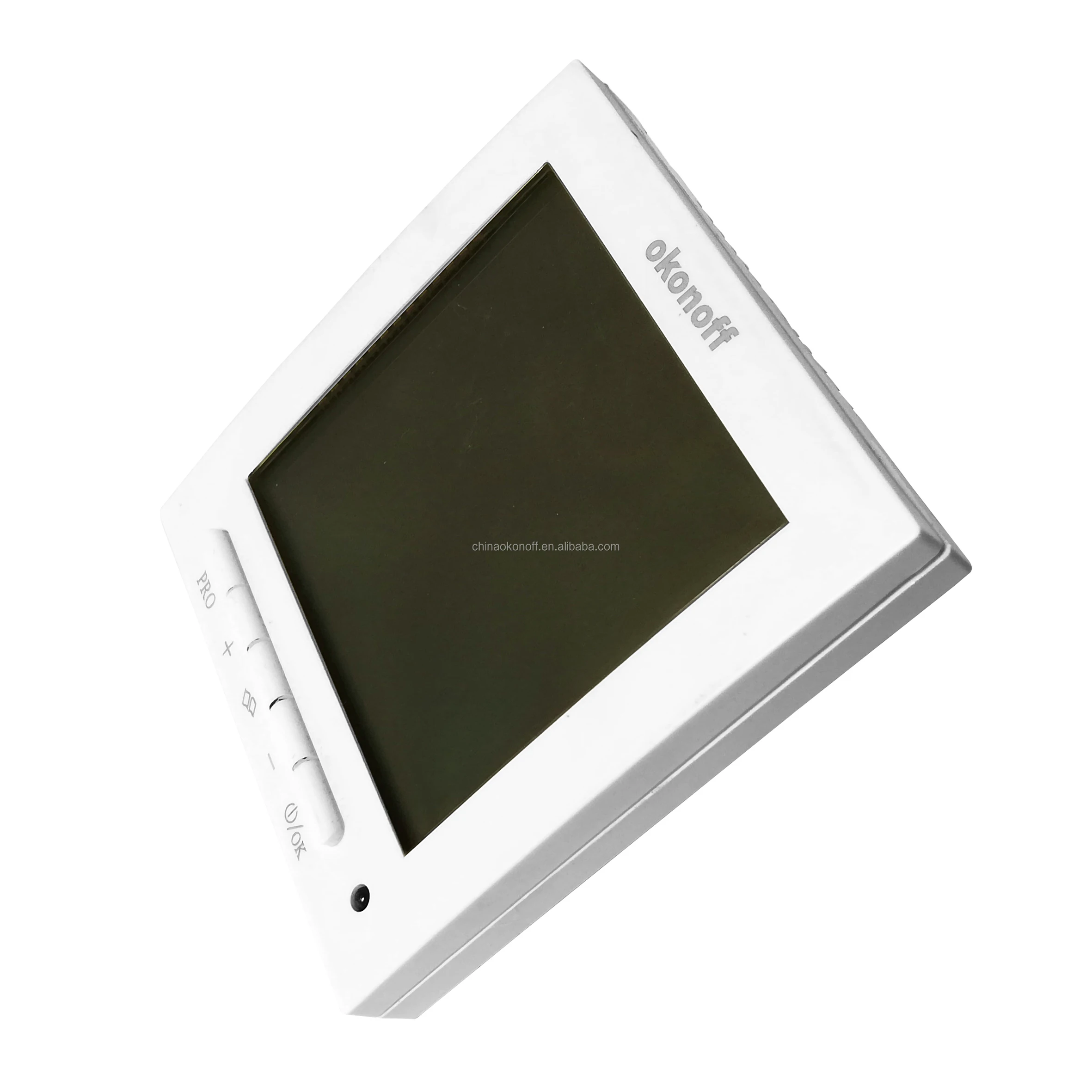

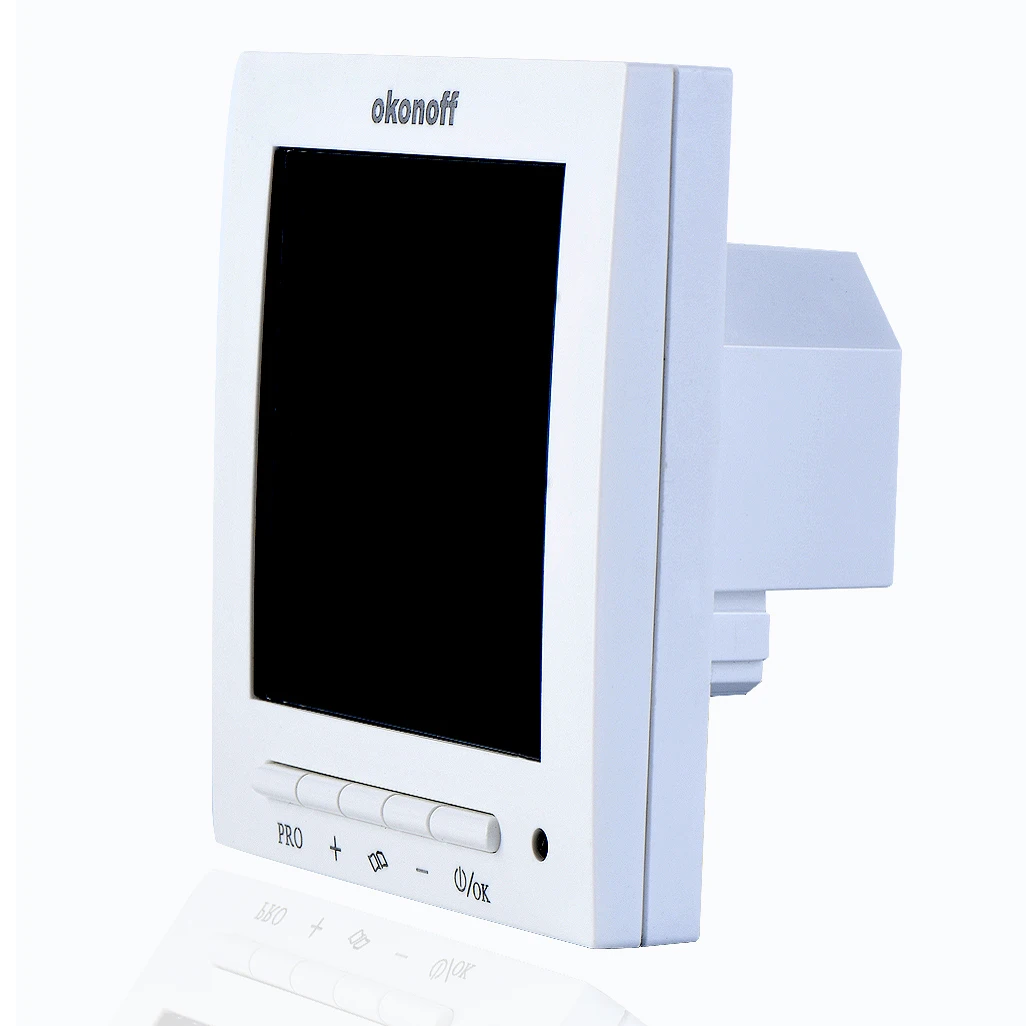

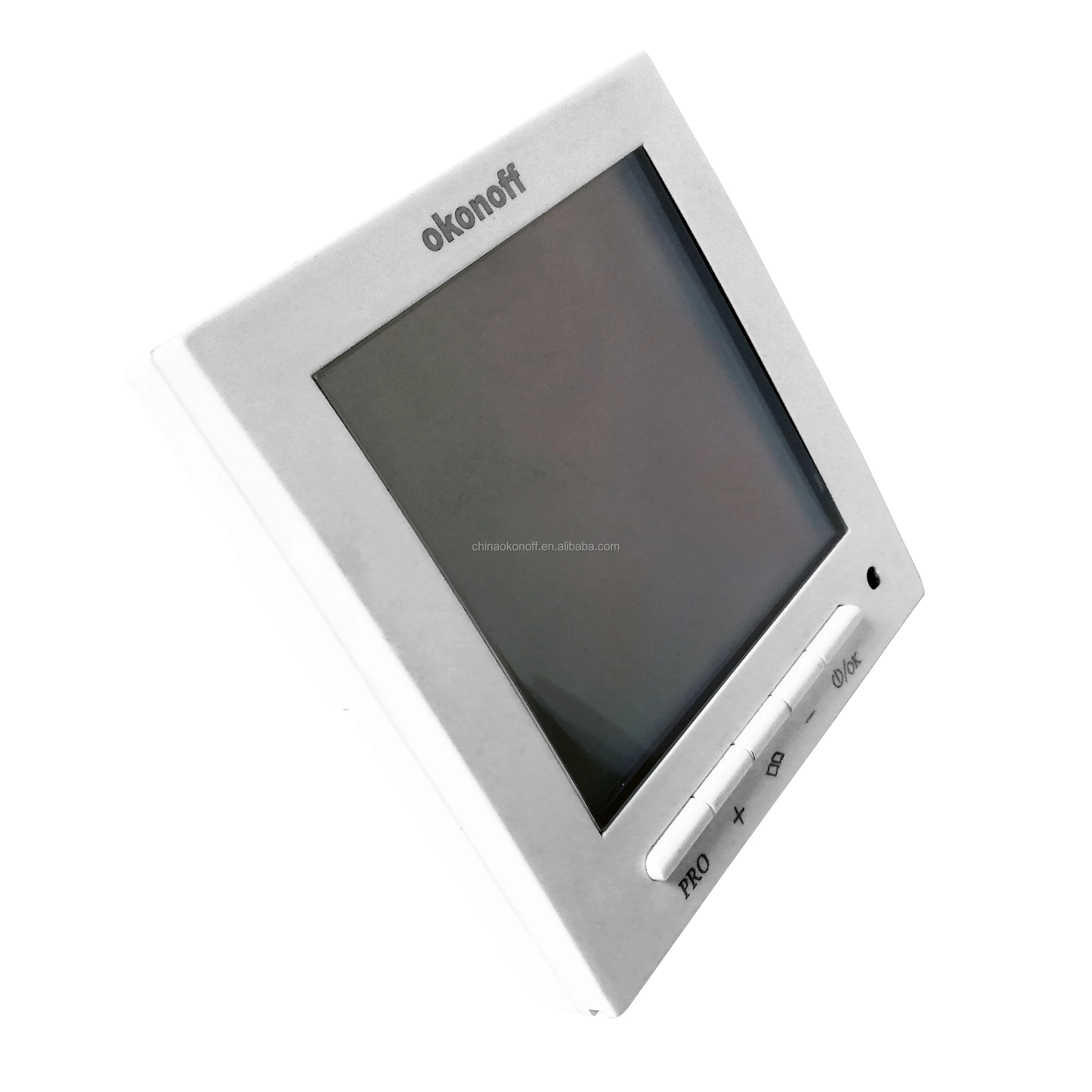

S603PE 220V 16A LCD screen electric floor heating digital smart room thermostat

S600PE(PW) [w/out back light] and S603PE(PW) [with back light]series of heating room thermostat apply to control the temperature of separate room in the houses and commercial buildings.

S600PE and S603PE apply to control the temperature in the electrical heating system

S600PW/S603PW/S603PWH apply to control the valve in the water circulation radiation heating system.

Model

Time period programming

External sensor

Back  light

Mainframe linkage

Current load

Wire diameter

S603PE

√

√

√

≤16A(resistive load)

2.5mm2(14AWG)

S603PW

√

√

≤3A(resistive load)

0.75mm2(18AWG)

S603PWH

√

√

√

≤3A(resistive load)

0.75mm2(18AWG)
