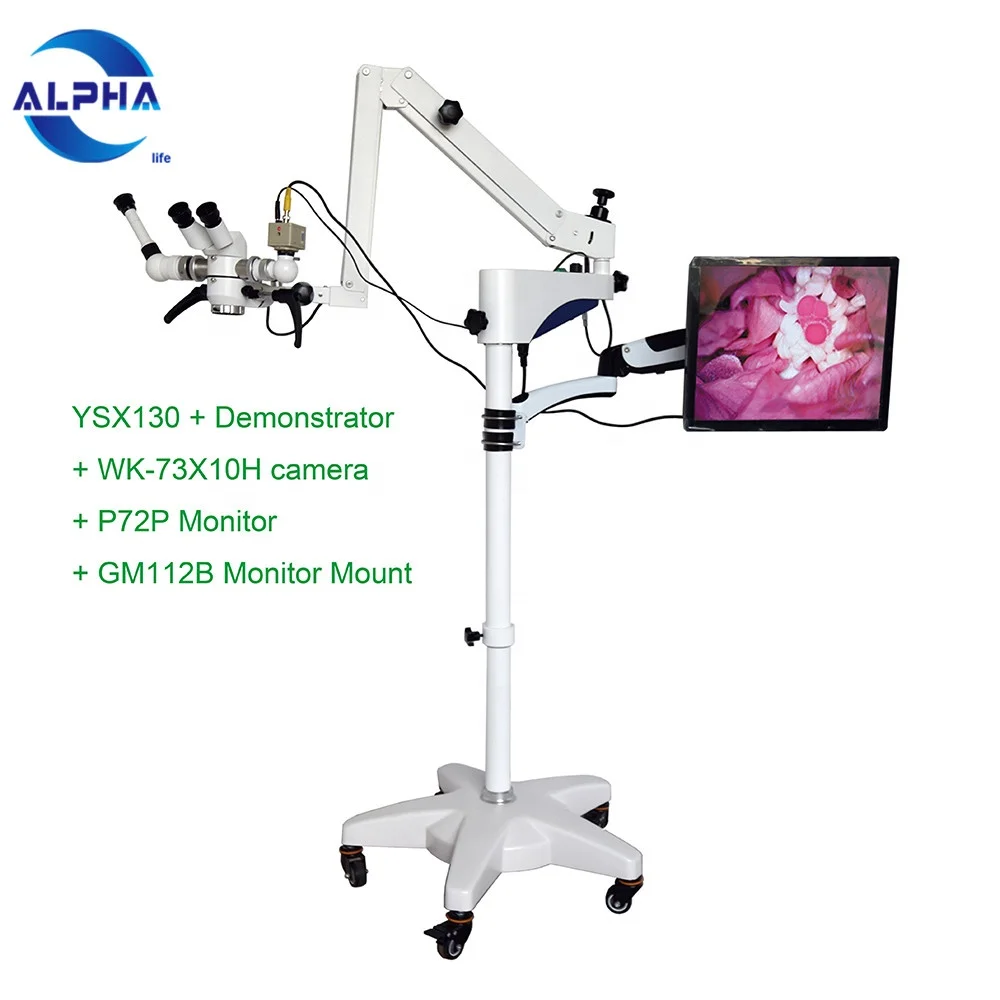

cheap price ophthalmic surgical dental microscope
- Category: >>>
- Supplier: Qingdao Alpha Medical Products Co. Ltd.
Share on (62178665281):
Product Overview
Description
Product Description
Product Application
RB Series Surgical Operation Microscopes using LED light source for coaxial illumination, have different working distance and magnification. They are featured for flexible handling and easy operation. They can be sued for micro-operation in ear-nose-throat, dental, ophthalmology, gynecology and surgery.

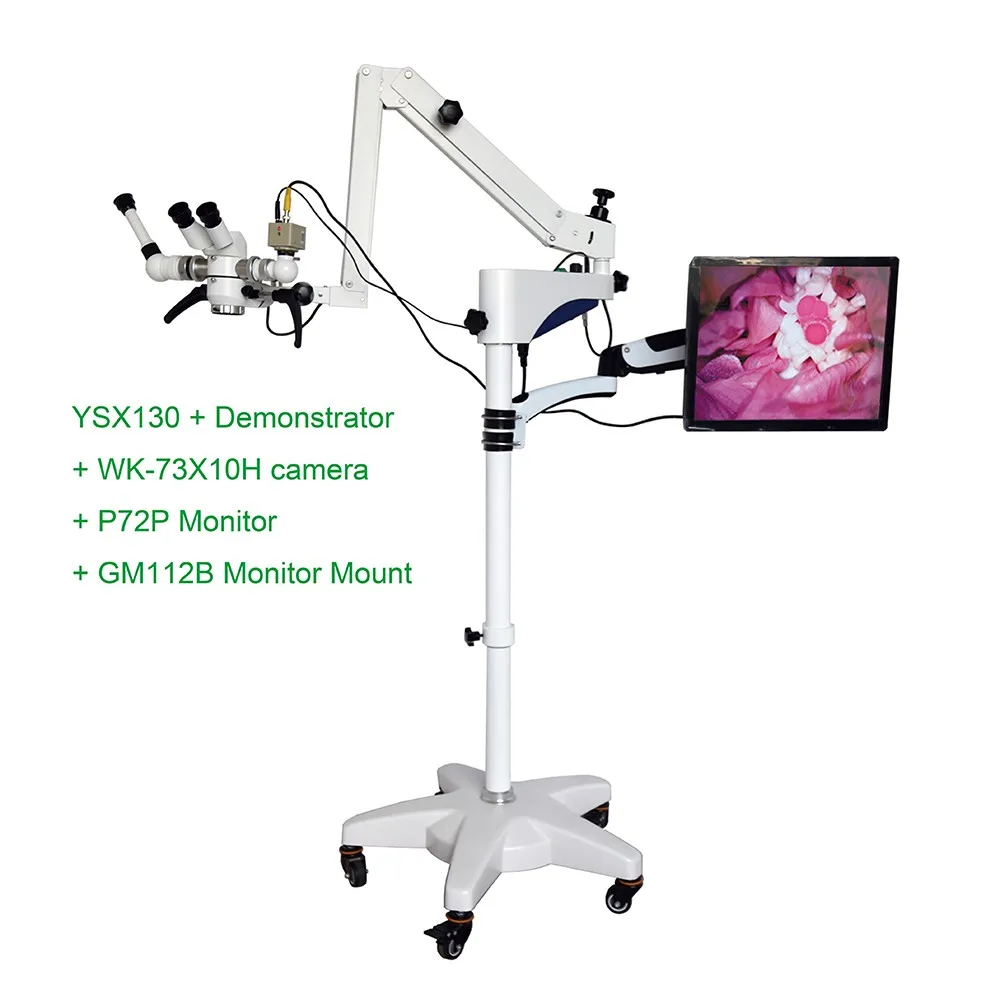

SPECIFICATIONS FOR RB-130 Surgical Operation Microscope | ||
Item | YSX130 | |
Binocular observation | 45º Tilted | |
Magnification of binocular | 6X | |
Interpupillary distance | 50mm-80mm | |
Diopter | ±5D | |
Magnification changer | 3-step magnification change: 0.6X,1X,1.6X | |
Focal length of objective | Two objectives: F=200 & F=300mm (M45x0.75mm) | |
Total magnification | 3X, 5X, 8X, 4.7X, 7.5X, 12X | |
Linear field | 60.8mm, 37.9mm, 23.6mm, 40.6mm, 25.3mm, 15.8mm | |
Beamsplitter | 50:50 Beamsplitter | |
Video camera adapter | C-mount 1/3 inch video camera attachable | |
Fine focusing range | 10mm | |
Filter | Built-in green and yellow filters | |
Balancing arm | 2-part arm with universal joints, counterweight adjustable and can be locked | |
Illumination system | Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx | |
Stand | 2-part column fitted on the five-star base with casters | |

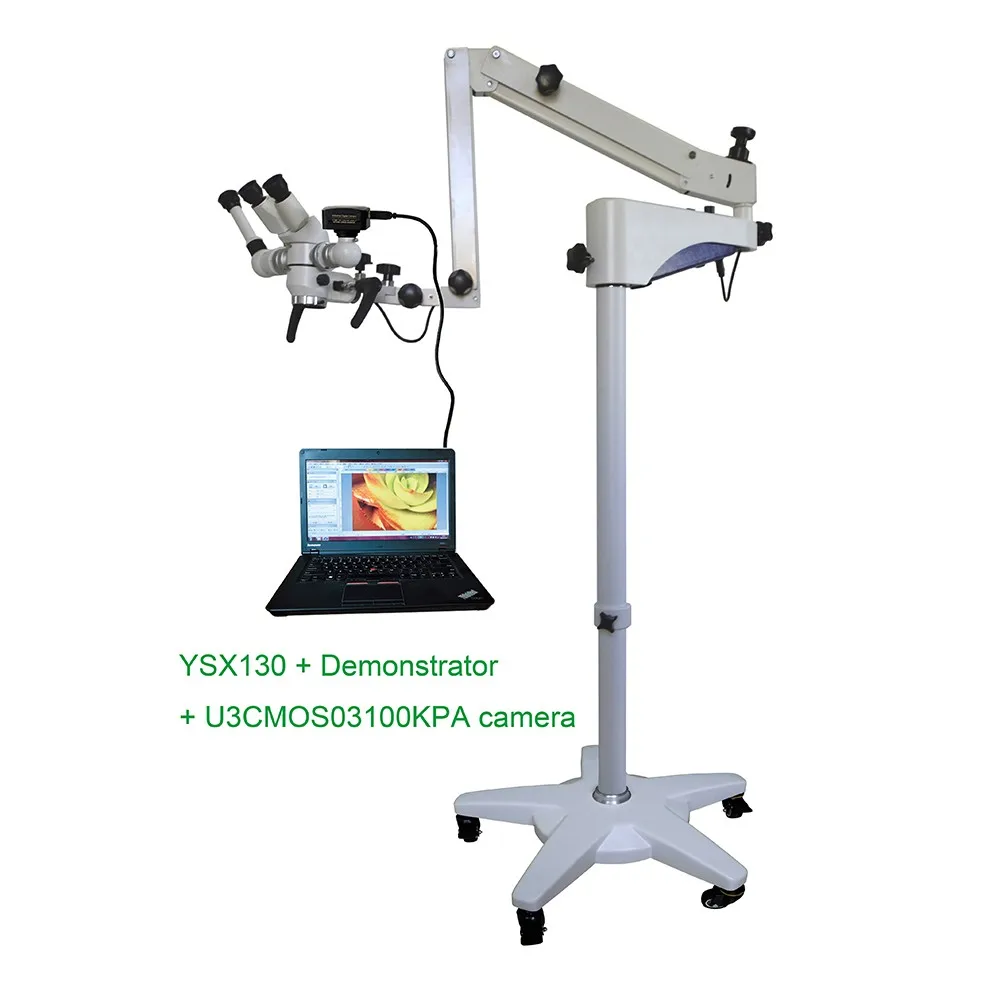

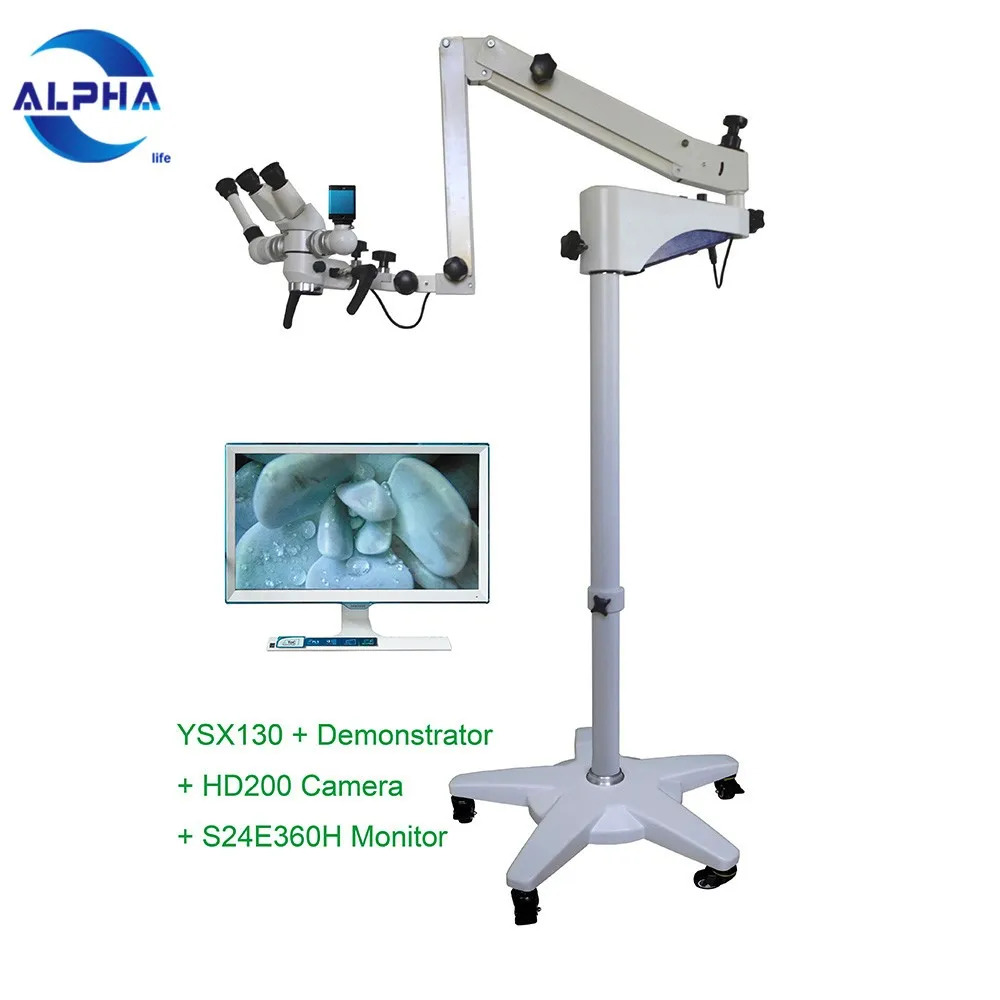

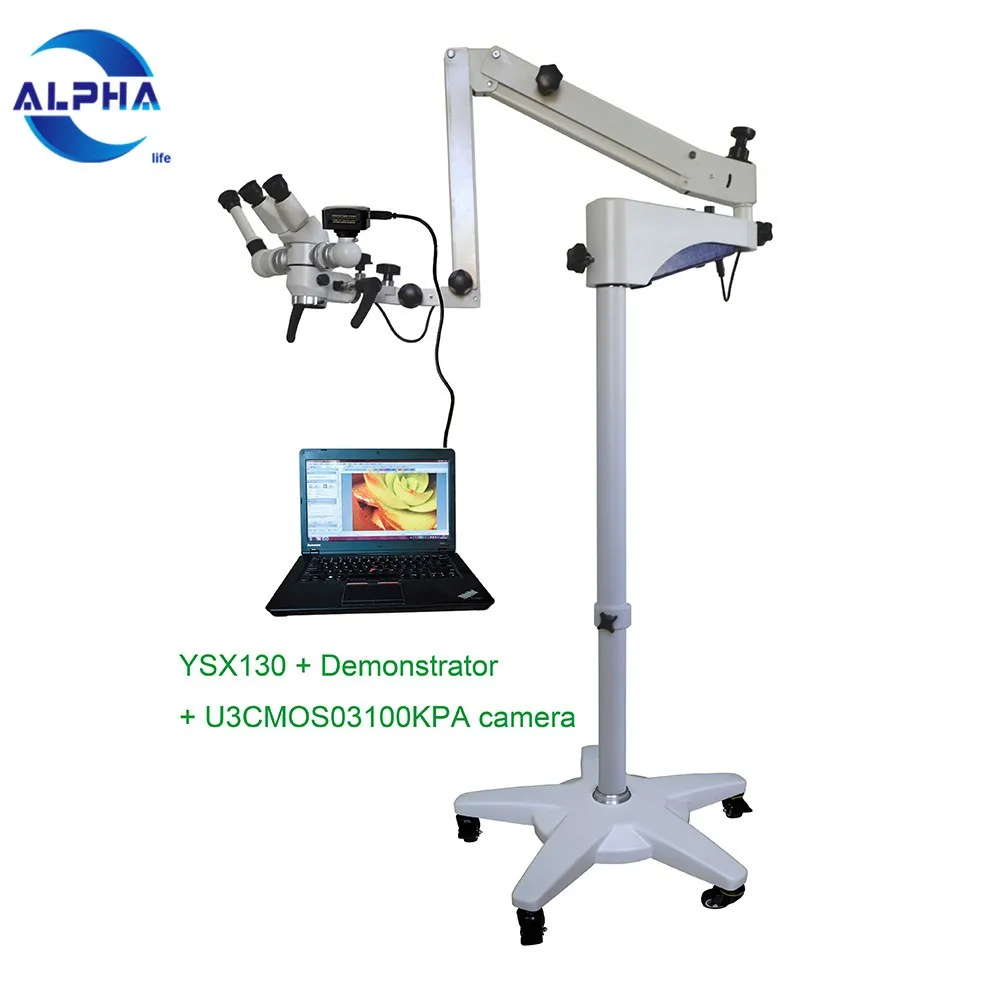

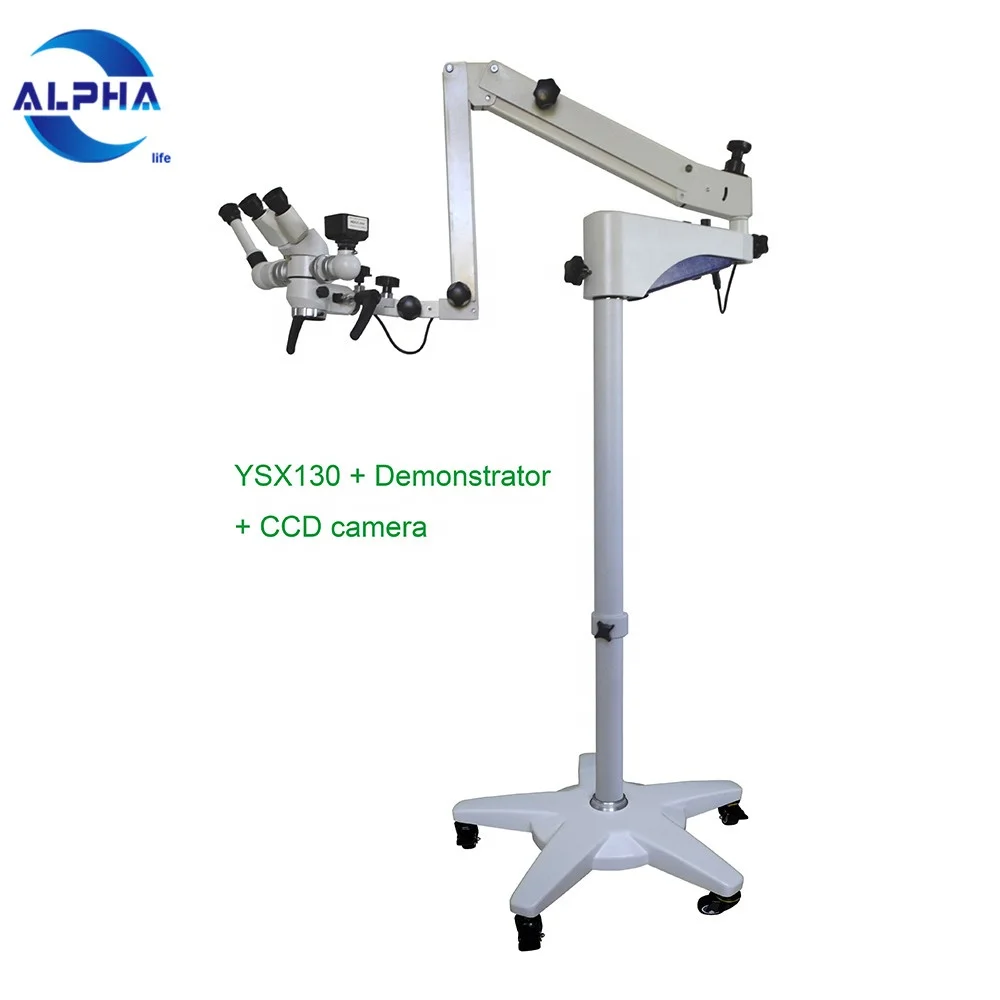

Optional accessories | Demonstrator, Camera (U3CMOS03100KPA, XCAM1080PHA, XFCAM1080HPD, WUCAM0720PA, ICMOS03100KPA, HD200, VGA200, WK-73X10, WK-73X10H), SLR camera adapter, Monitor (S24E360H, S24F350FH, P72P), Objective F=250mm & F=400mm, Table mount clamp, Table mount bracket | |
Certifications
Detailed Images
Balancing Arm
2-part arm with universal joints,
counterweight adjustable and can be locked

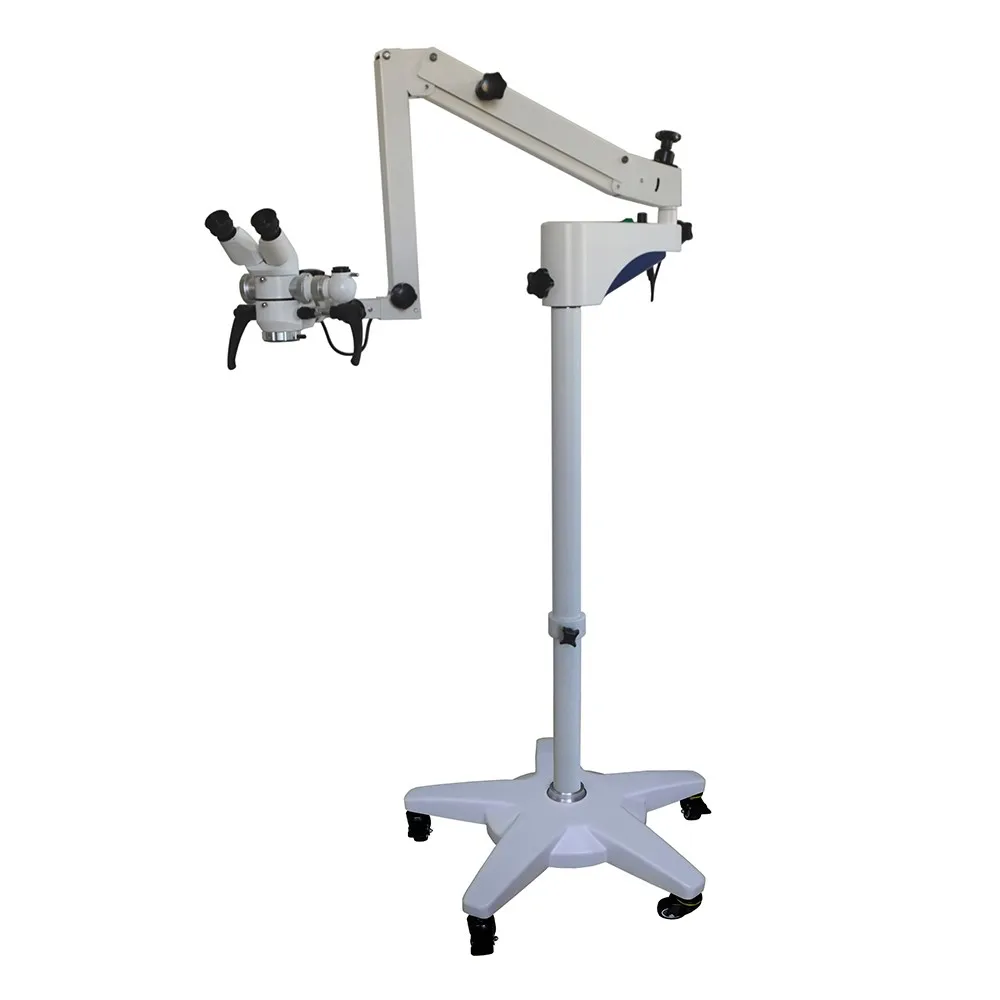

Floor Stand
2-part column fitted on the five-star base with casters

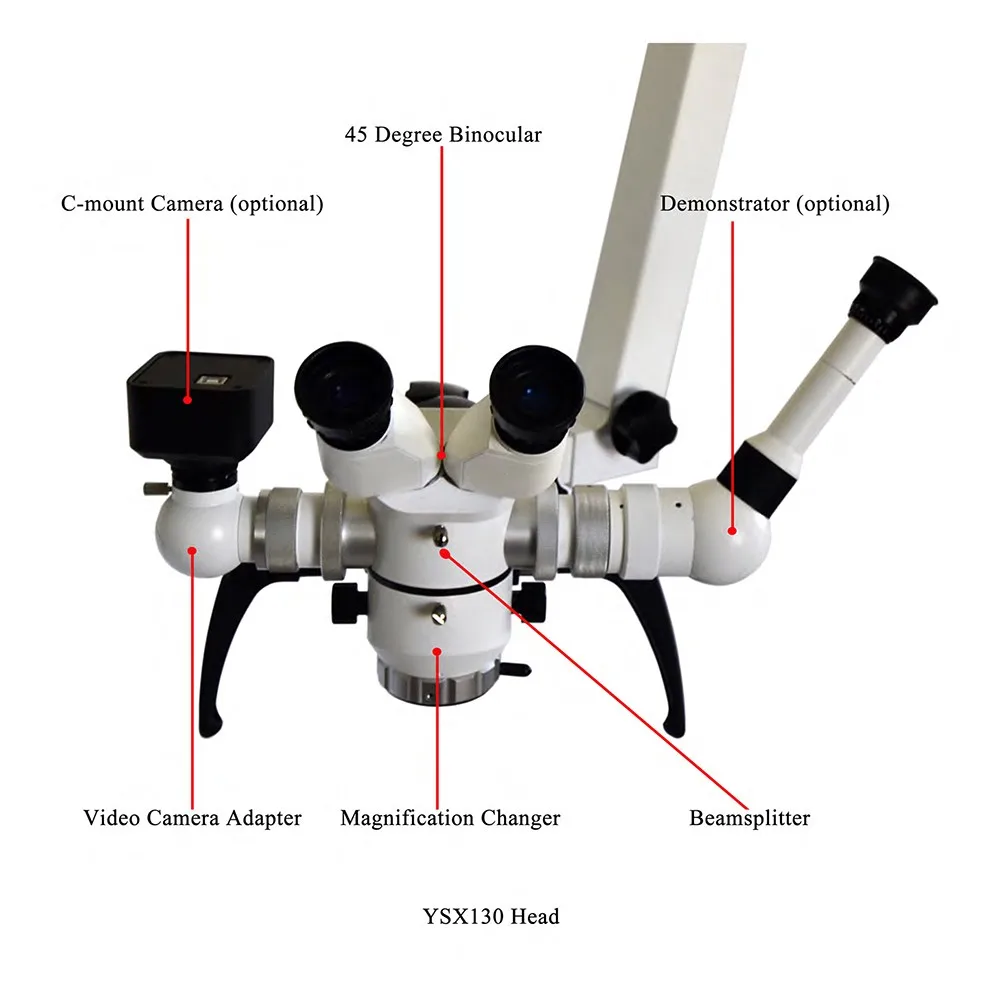

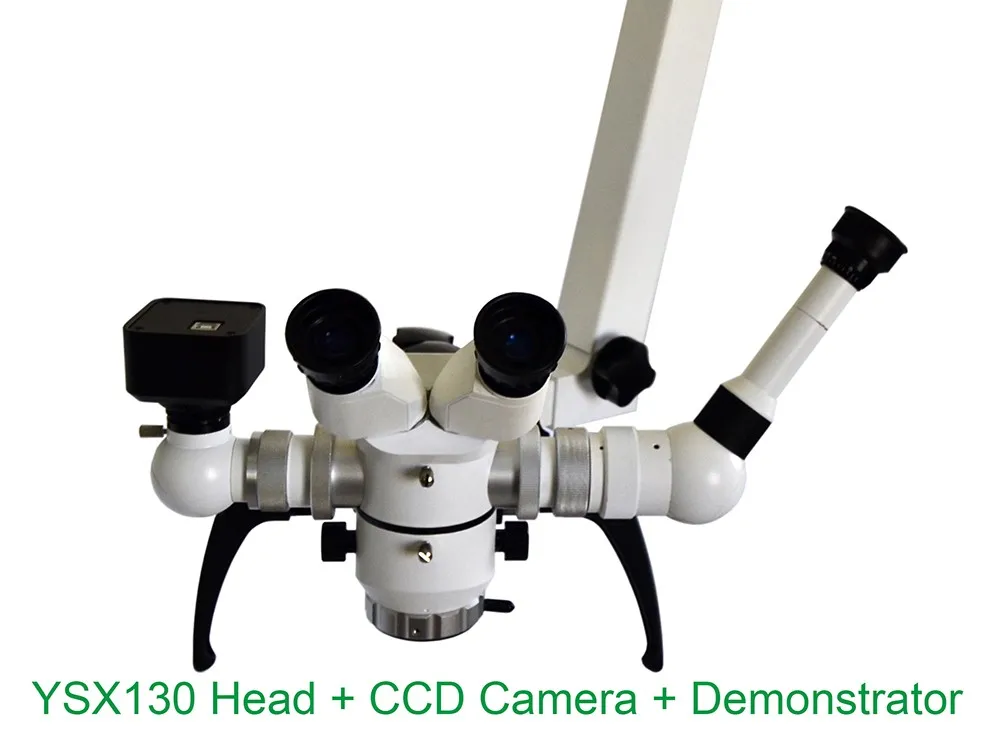

RB130 Head
Observation angle: 45°tilted
With beamsplitter and video camera adapter, C-mount 1/3 inch video camera attachable
Coaxial illumination with 10W LED lamp light source, brightness adjustable, illumination>30000lx
Packing & Delivery
Main Unit Packaging | ||
Size | 86cm (L) * 66cm(W) * 25cm (D) | |
Weight | 18kg | |
Packaging Details | The normal package is carton wooden ,If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Bracket Packaging | ||
Size | 73cm(L) * 68cm (W) * 26cm (D) | |
Weight | 26kg | |
Packaging Details | The normal package is carton wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
