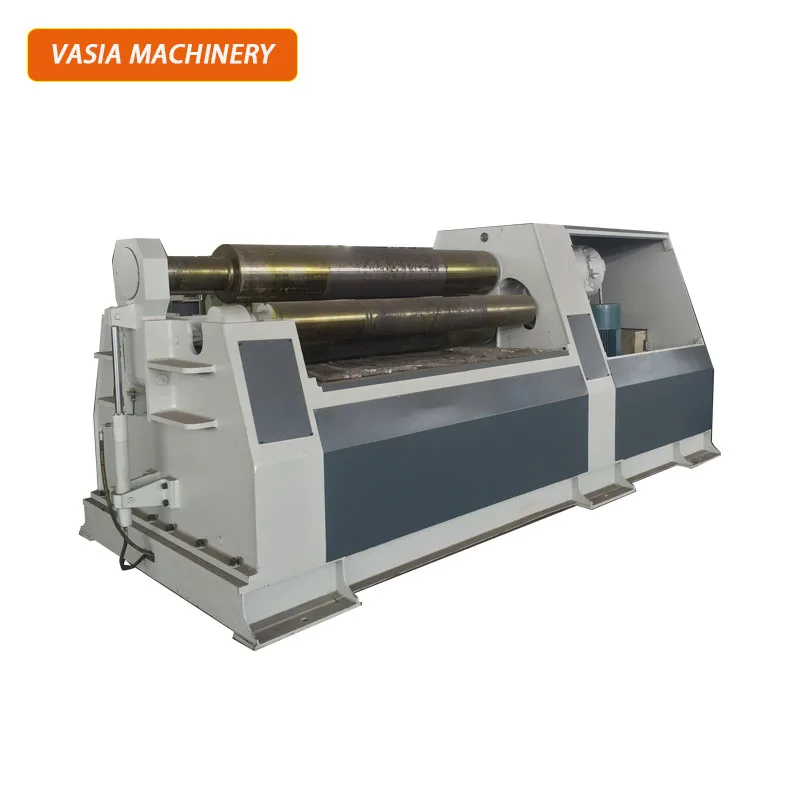

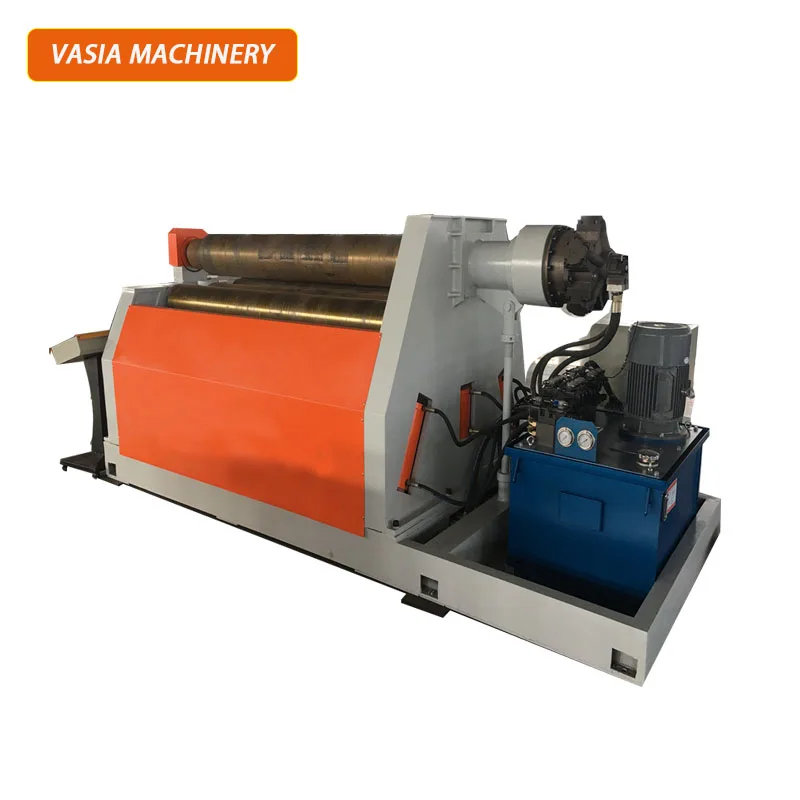

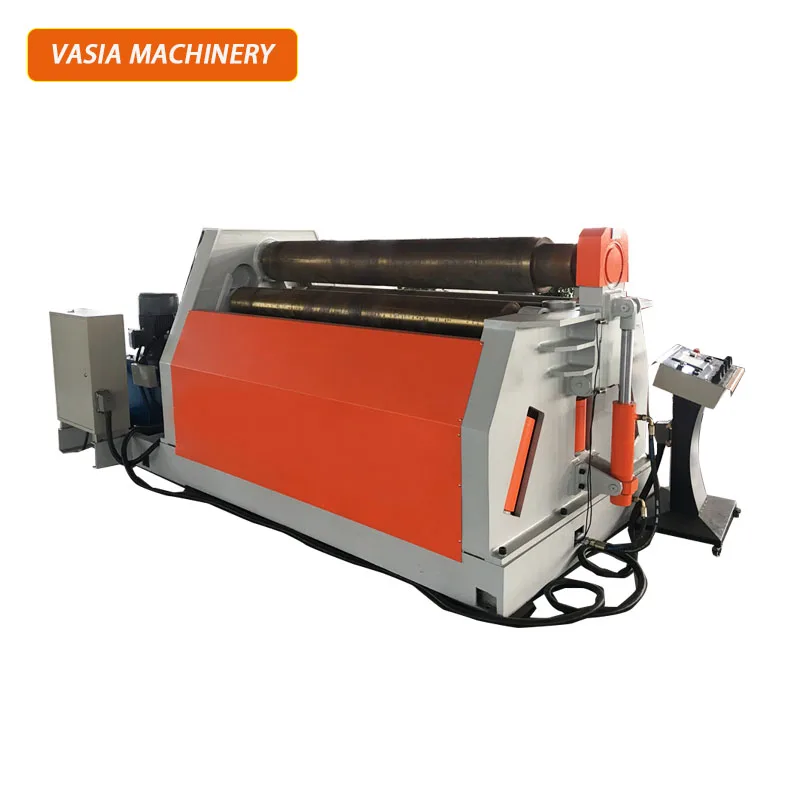

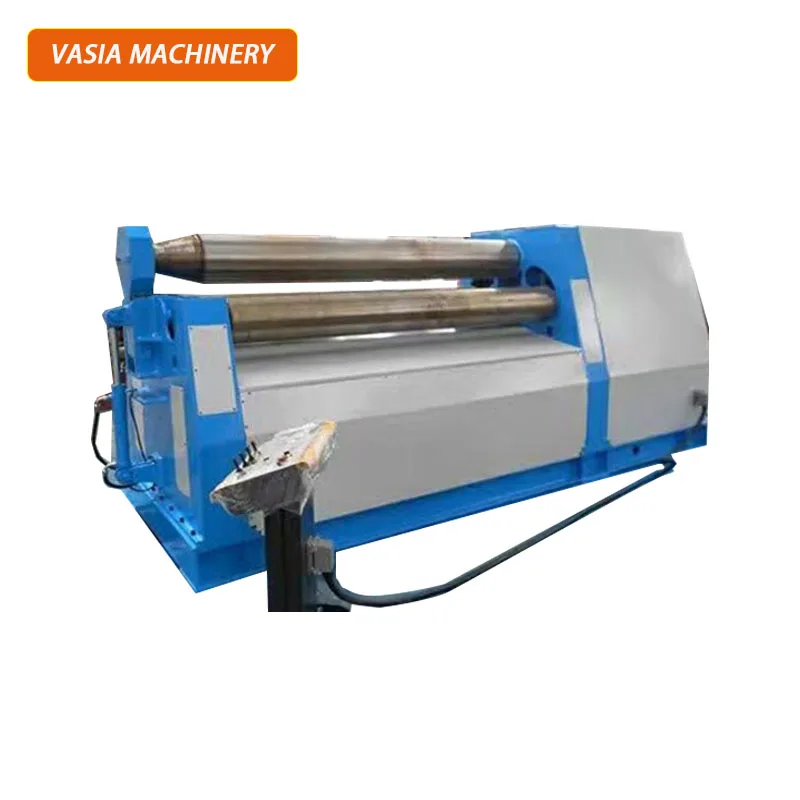

Hydraulic rolling machine with 4 rollers

Product Overview

Description

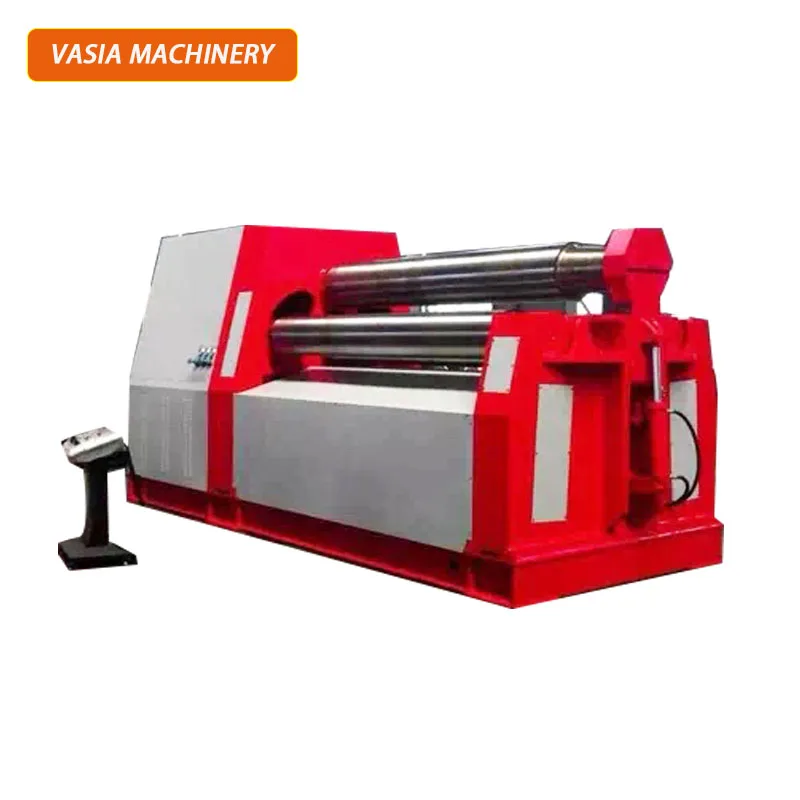

Hydraulic rolling machine with 4 rollers

Product Introduction:

This machine is with four rollers structure ,which can do pre-bending and bend works at one time .The upper roller is the main driving roller, down roller and two side rollers up-and-down movement are controlled by hydraulic motor. The up-and-down displacement of the down and side rollers are controlled by PLC.Automatic leveling,display by screen , high synchronization precision can reach ±0.2MM.Turnover bearing body dumping and reset is done through hydraulic transmission.

1.The four-roller bending machine adopts a torsion-axis synchronous structure, and the four-roller rolling machine has high precision and roundness .

2.Full hydraulic motor drive, four-roller rolling machine is environmentally and high efficiency.

3.The four-roller rolling process is completed in one time, including the works of pre-bending. It’s fast, efficient, and easy to operate,one operator can do all works .

4.With automatic alignment and clamping function, the plate will not slide and run off.

5.The four-roller bending machine has anti-overload and hydraulic protection functions.

6.It can do works of smaller diameter required by special demand .

Main Technical Parameters:

Model	Max rolling thickness/ length	Diameter of  Main Roller	Diameter of  Side Roller	Rolling Speed	Main Motor
	mm	mm	mm	m/min	KW
W12-4x1500	4x1500	140	120	4	2.2
W12-4x2000	4x2000	160	140	4	2.2
W12-4x2500	4x2500	190	150	4	3
W12-4x3000	4x3000	210	170	4	7.5
W12-4x4000	4x4000	270	210	4	5.5
W12-6x2000	6x2000	190	150	4	5.5
W12-6x2500	6x2500	210	170	4	7.5
W12-8x1500	8x1500	200	170	4	5.5
W12-8x2000	8x2000	210	180	4	7.5
W12-10X2000	10x2000	230	180	4	7.5
W12-10X2500	10x2500	270	210	4	11
W12-12x2000	12x2000	245	200	4	11
W12-12x2500	12x2500	265	220	4	11
W12-16x2000	16x2000	250	210	4	15
W12-16x2500	16x2500	300	240	4	15
W12-20x2000	20x2000	300	250	4	18.5
W12-20x2500	20x2500	350	280	4	18.5
W12-25X2000	25x2000	360	250	4	15
W12-25X2500	25x2500	390	300	4	18.5
W12-30x2500	30x2500	410	340	4	22
W12-30x3000	30x3000	450	380	4	30
W12-35x2000	35x2000	430	330	4	30
W12-35x2500	35x2500	460	360	4	30
W12-40x2500	40x2500	500	420	4	37
W12-40x3000	40x3000	540	440	4	45
W12-45x2500	45x2500	460	420	4	30
W12-45x3000	45x3000	510	460	4	37
W12-50x2500	50x2500	560	450	4	45
W12-50x3000	50x3000	600	480	4	55
W12-60x2500	60x2500	610	500	4	55
W12-60x3000	60x3000	650	520	4	75
W12-65x3000	65x3000	650	550	4	55
W12-85x3000	85x3000	760	680	4	75
