5.0HP Robin engine poker concrete vibrator

Product Overview

Description

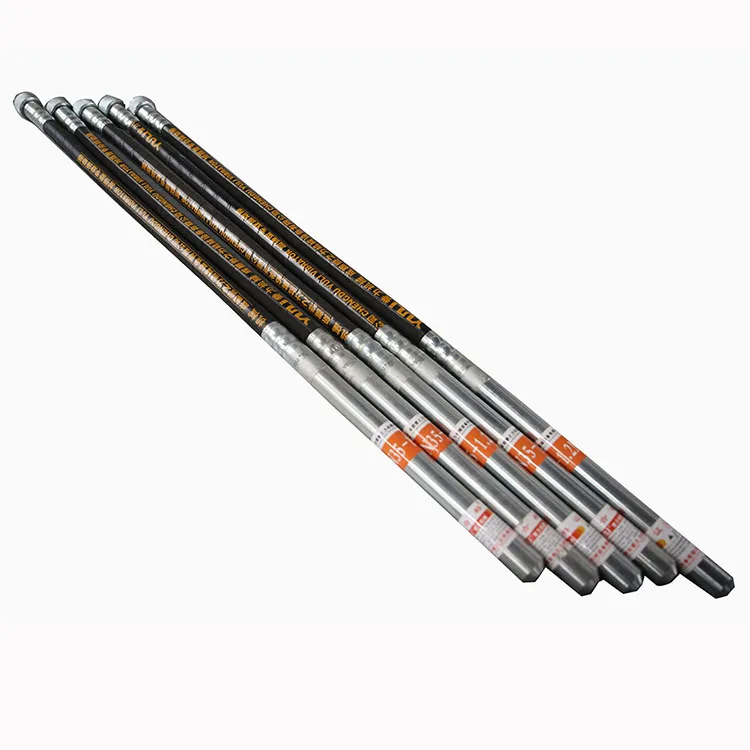

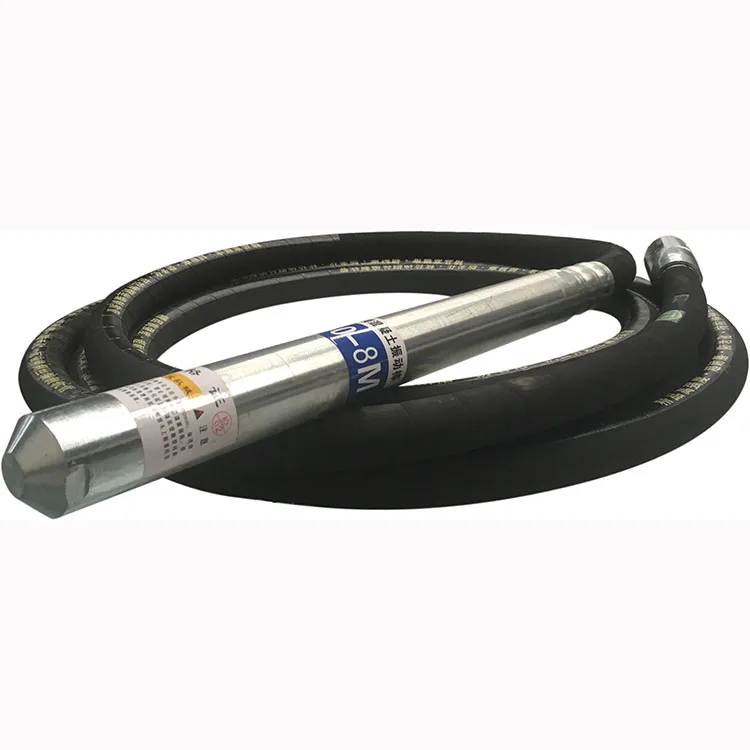

 concrete vibrator

Model	ZN35	ZN50	ZN70
Flexible shaft diameter(mm)	10	13	13
Flexible pipe external/inner diameter(mm)	30*16	36*20	36*20
External diameter	35	51	68
Frequency(>HZ)	200	183	183
Vibration Amplitude(mm)	0.8	1	1.2
Length (m)	6	6	6
Weight(kgs)	12	20	24

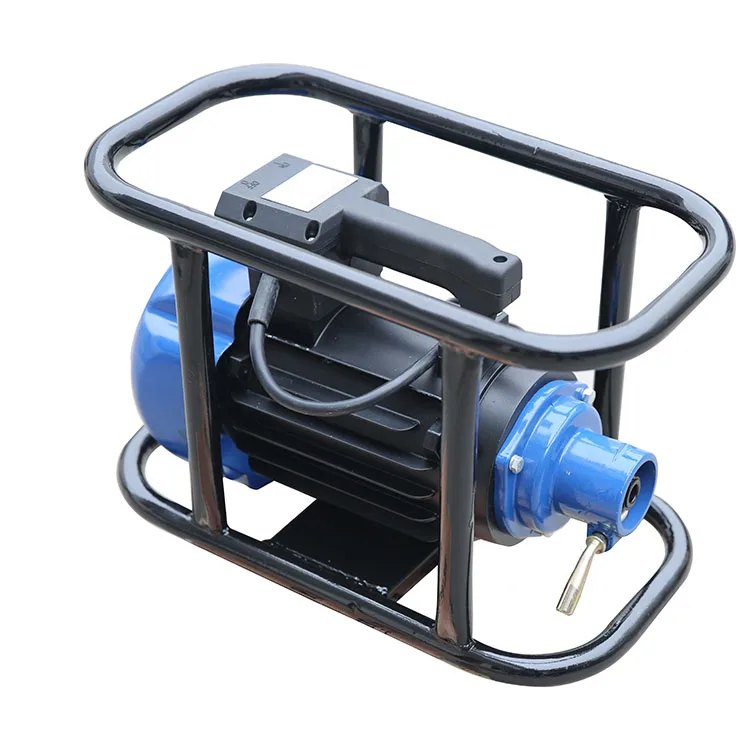

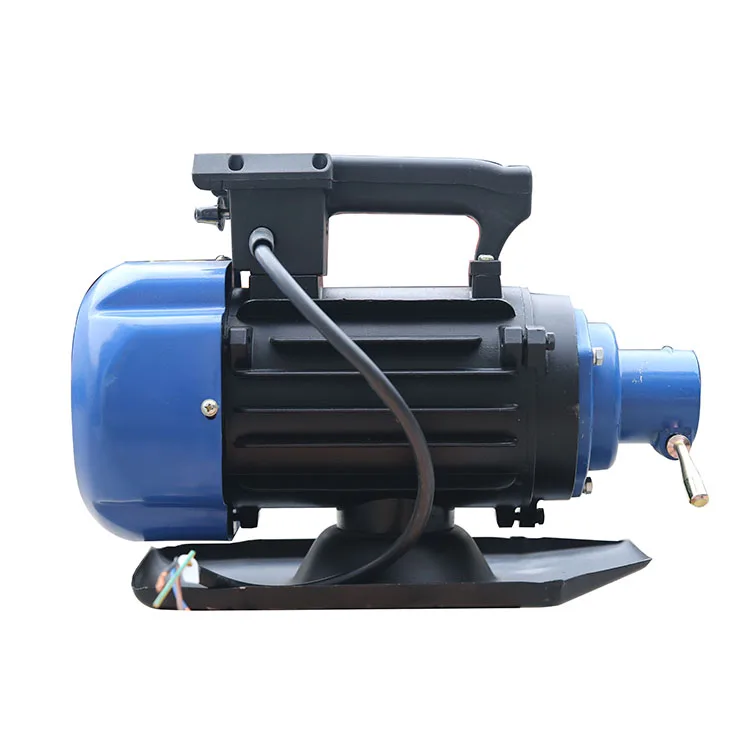

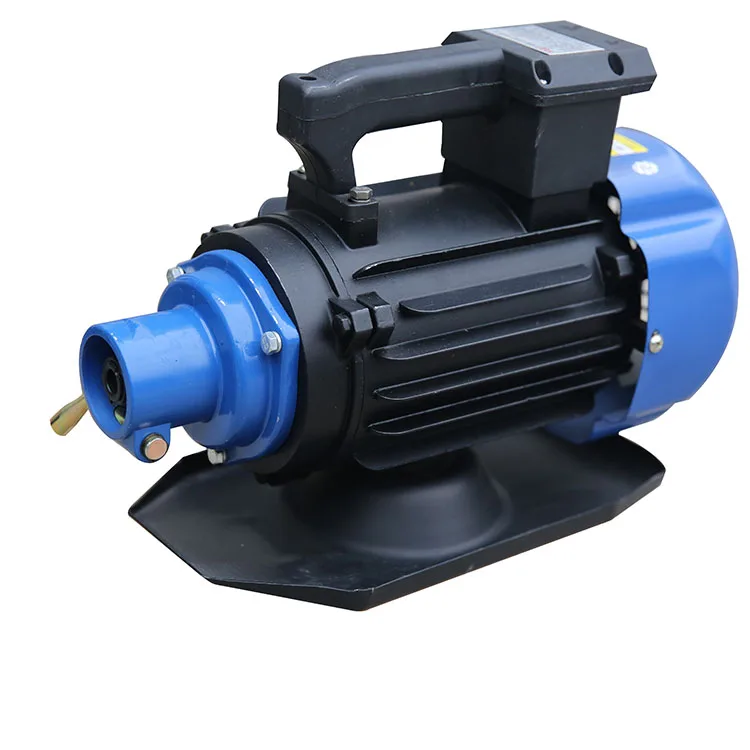

Motor Technical Parameter
Power (kw)	1.5		2.2		3
Voltage(v)	220	380	220	380	380
revolving speed(rpm)	2800	2840	2800	2840	2870
Electric current(AH)	9.44	3.4	13.5	4.7	6.4



we have vibrator model 25 ,35,50,70 with length1m,1.2m,1.5m,2m,4m,6m,8m,10m,12m,16m.
