4 inch 6 inch 8 inch 11 inch LED Recessed Ceiling Lights square slim Panel Light

Product Overview

Description

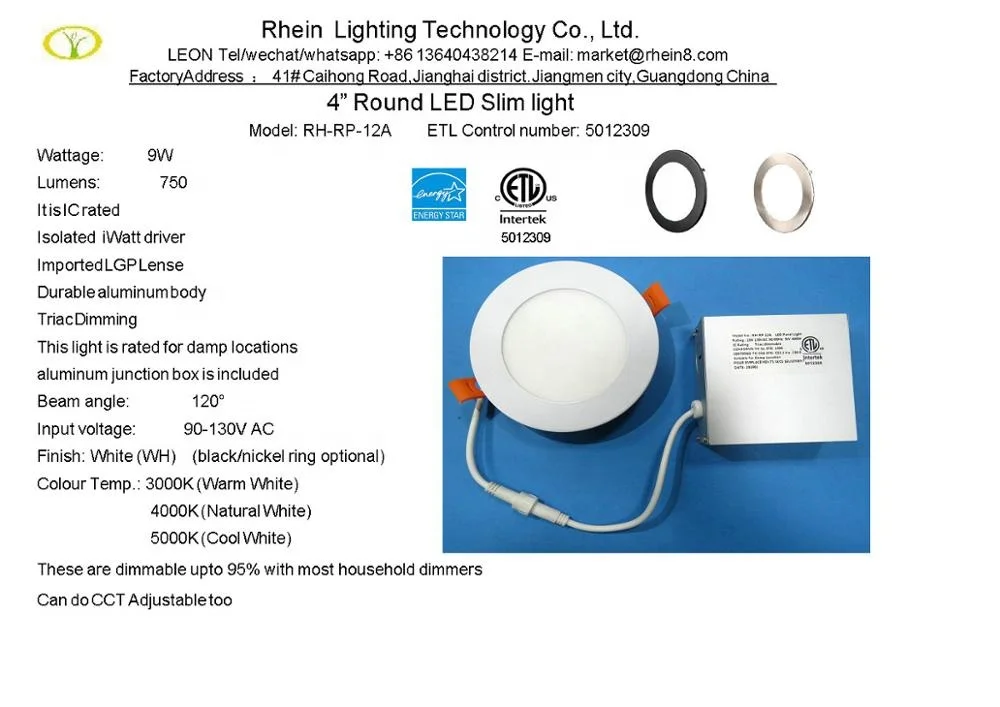

4 inch 6 inch 8 inch 11 inch  LED Recessed Ceiling Lights  square slim Panel Light

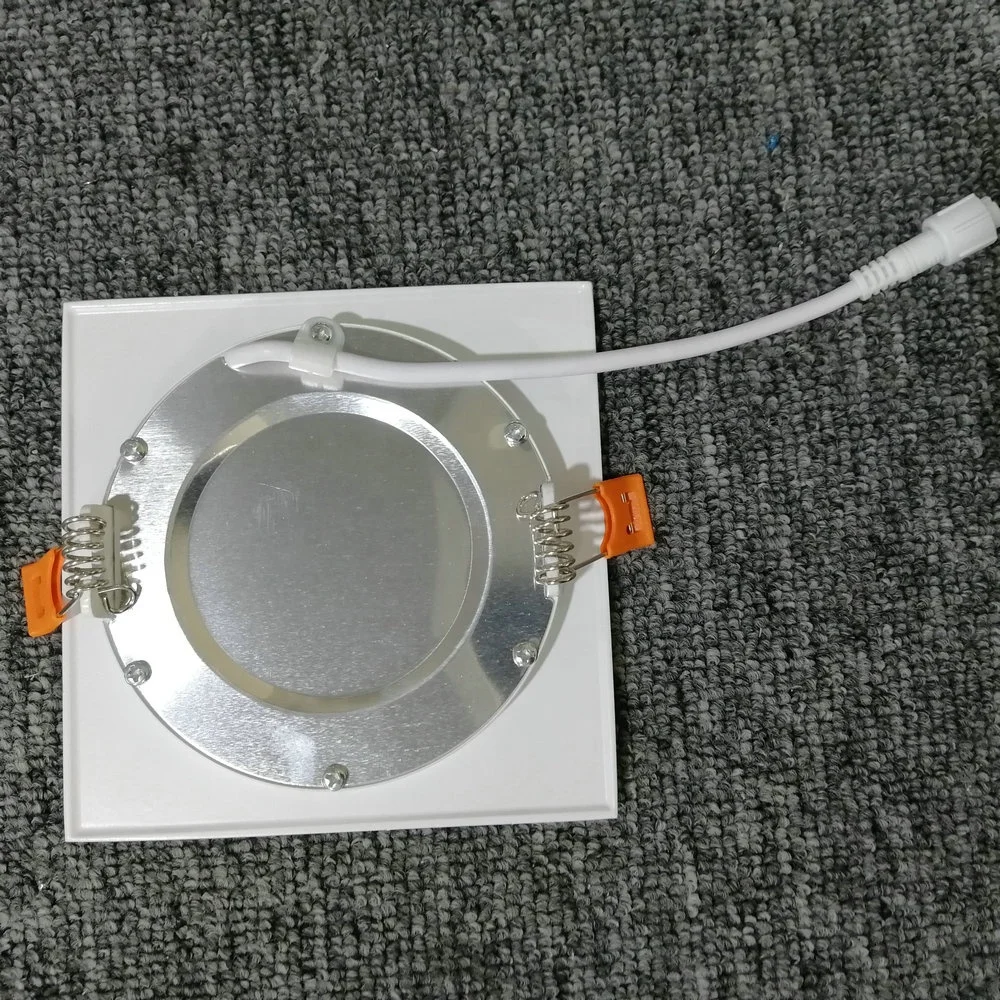

the back fram is round shape

Wattage:            9W
Lumens:              750
It is IC rated
Isolated  iWatt driver 5012309
Imported LGP Lense
Durable aluminum body
Triac Dimming
This light is rated for damp locations

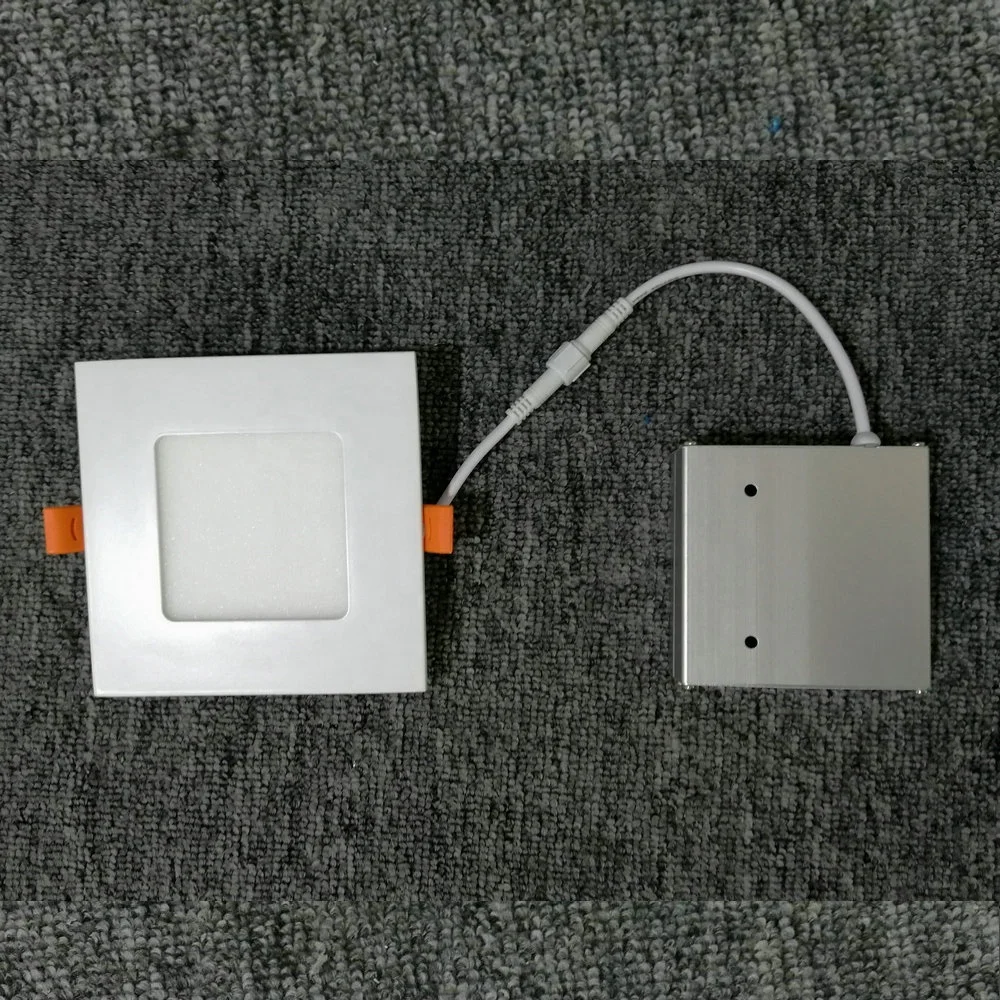

aluminum junction box is included
Beam angle:              120°
Input voltage:            90-130V AC
Finish: White (WH)    (black/nickel ring optional)
Colour Temp.: 3000K (Warm White)
                        4000K (Natural White)
                        5000K (Cool White)
These are dimmable upto 95% with most household dimmers
Can do CCT Adjustable too



Our LED panel light /120V led strip light / neon light all cETLus certified

light



Triac Dimming

1. AC90-130V AC

2. Thicker heat dissipation structure with Junction box

3. RA:> 80

4. Bean Angle: 120°

5. Color: 3000K/4000k/5000k/6000K

6. Recessed type installation



size:

Φ120*H12           Cut: Φ105

accept OEM order





Product Show

4 inch LED Recessed Ceiling Lights  Circle Panel Light LED Downlight

4 inch LED Recessed Ceiling Lights  Circle Panel Light LED Downlight

Power	Temperature	Diameter	Hole Size	CRI	Voltage	Lumen
3W	3000-6500K	85*85mm	75mm	80RA	AC 85-265V	240 LM
4W		105*105mm	95mm			320LM
6W		120*120mm	100mm			490 LM
9W		145*145mm	125mm			760 LM
12W		170*170mm	150mm			1080 LM
15W		190*190mm	180mm			1350 LM
18W		225*225mm	205mm			1620 LM
24W		300*300mm	280mm			2160 LM

Applications of panel light
