Custom module line character lcd 1602 16x2 lcd monitor 1602 5v i2c blue screen and white code
Product Description
Applicaion | Character,digit display for printer,equipment and so on |
| Backlihgtlight | Yellow green |
| Display Mode | Stn yellow green |
| Controller | HD44780 |
| Operating current | 2.0mA(5.0V) |
| Operating temp. | 0~50℃ |
| Storage temp. | -20~70℃ |
| OEM/ODM | Accecpted |
| System design | Lcd module related system software and hardware design accepted |
Warranty | 12 moths free, payed warranty lifttime |
Packaging | One module in a bag, bags in small carton foam protecting, small carton in big carton |
| carton size | 41.5x36x50cm |
| Sample lead time | 3-7 working days |
| Customize lead time | 15-30 working days |
| Production Lead time | 7 days for available designs,Customized: 35~40 days |
| Cetification | ISO |

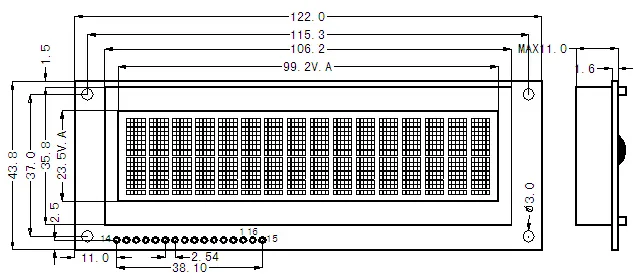

Mechanical Demesion
Pin Assignment
| Pin NO. | Pin Name | Pin Description |
| 1 | VSS | Negative power supply |
| 2 | VDD | Positive power supply |
| 3 | V0 | Lcd driving voltage input |
| 4 | RS | Command/data register selection |
| 5 | R/W | Read/write signal |
| 6 | E | Chip enable |
| 7-14 | D0-D7 | Data bus |
| 15 | BLA | Backlight positive power supply |
| 16 | BLK | Backlight negative power supply |
Product show
