4.41"*2.4"*1.23" dimensions hammond 1590B Waterproof Diecast Aluminum Enclosures

Share on (62179044385):


Price:RUB 165.75

Quantity:


Product Overview

Description

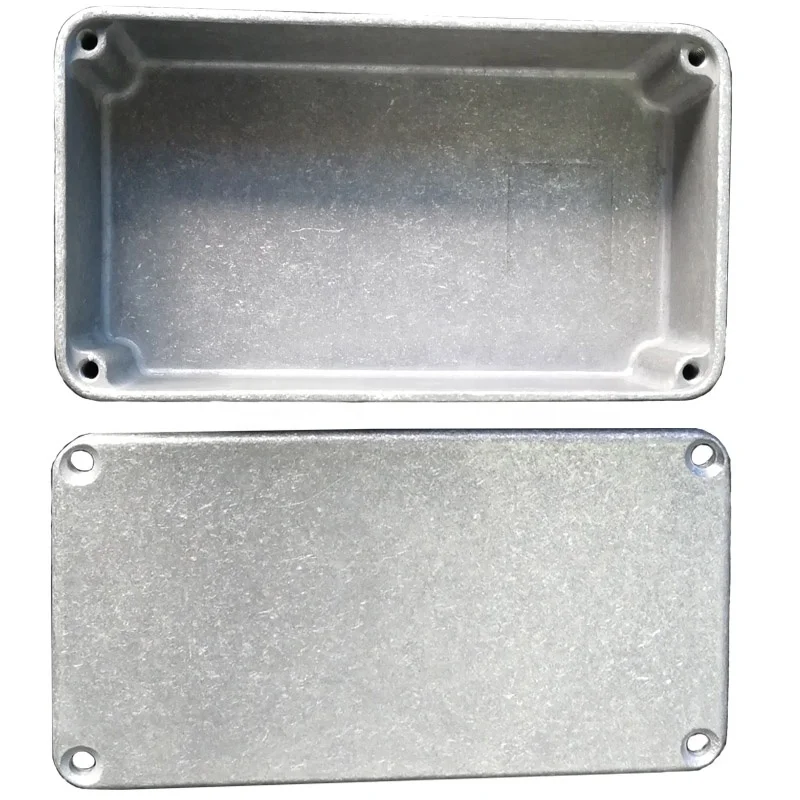

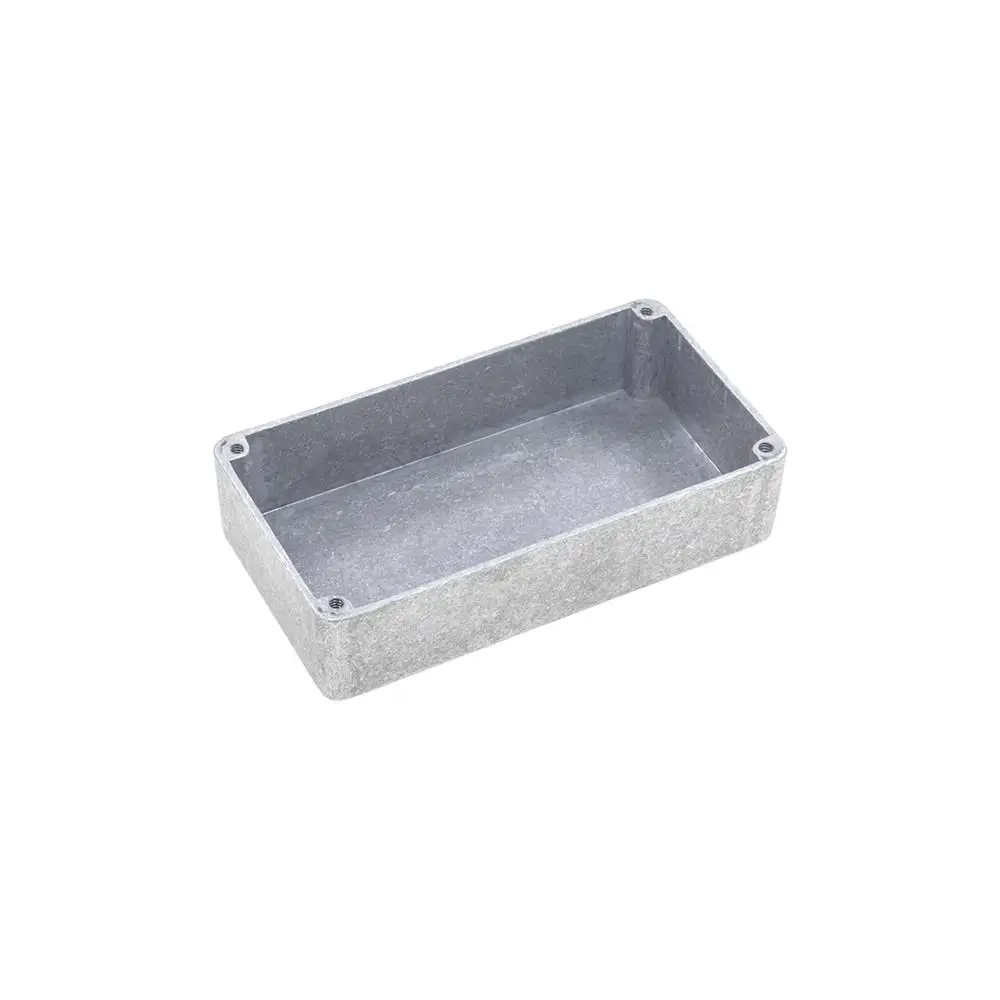

4.41"*2.4"*1.23" dimensions  hammond 1590B Waterproof Diecast Aluminum Enclosures

Product Description
  • Used by many of the top boutique guitar effects pedal manufacturers in the world;
  • 140 pcs in one carton;
  • LxWxD : 4.41"*2.4"*1.23";
  • Diecast Aluminium Alloy;

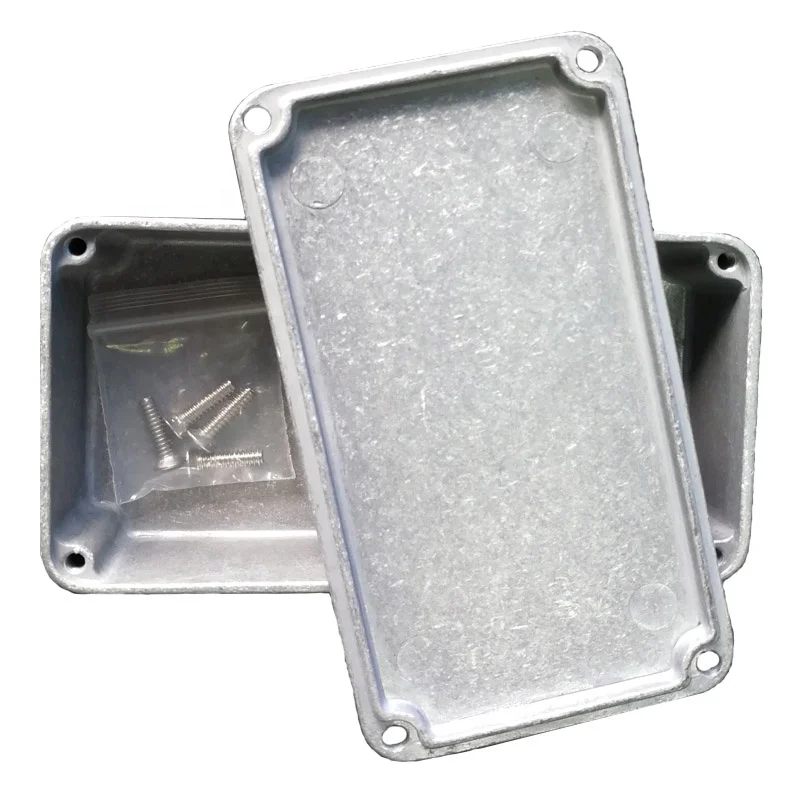

  • Including box, lid and 4pcs SS Screws;
  • ROHS Compliant;
  • Finish:Oxidized finish for uniform paint and powder coat adhesion.;
  • Drilled service: Cost-effective way by punching machine to save 85% of your machined holes.;
  • Similar as Hammond 1590B size / Mammoth 4S 1590B

 How to use for 1590B Diecast Alumium Enclosure Box

These Diecast Enclosure for Music Devices:
Bass Pedals, Chrorus, Phase Shifers,Flanges,Distrotion, Fuzz, Filters,Overdrive, Foot Switches,Foot controllers, Mutti Effect,Noise Gate,Noise Suppresion,Octave,Synthesis,Pitch Preamps,EQs & Tone Shaping, Reverb,Tremo & Vibrato, Tube Pedals,Vocal Processors,Etc.



drilling service



enclosures_MODELS





Technical Info

4.41"*2.4"*1.23" dimensions  hammond 1590B Waterproof Diecast Aluminum Enclosures

Siz Range Not normally over 2.7feet square
Parts Weight 0.01pounds to 14 pounds
Setup Cost New die casting tooling is free
Tolerances 0.02inch,add0.01inch to 0.015inch across parting line up to part size
Die Casting Finish 32~63 RMS
Minium Draft normally 1°
Billet normally 0.04inch
Normal Minimum Section Thickness

0.060inch for small parts;

0.090inch for medium parts
Ordering Quantity

For first trial order: not less than 100pcs;

Usually 1,000pcs or more.
Normal Leadtime

Tooling: 4~12 weeks update part size;

Samples: one week if no finish and CNC machining required;

Production:2~3weeks



Product Attribute Attribute Value
Series 1590 Series
Surface Particlulates Vibration grinding to Anti- Oxidation
Material Die-Cast Aluminum
IP Rating IP54
Size1 with Lid 4.41"*2.4"*1.23"
Size 2 with Lid 112mm*61mm*31.3mm
Size 3 without Lid 4.41"*2.4"*1.06"
Size 4 without Lid 112mm*61mm*27mm
Package 1 Enclosure+1 Lid+ 4 pieces SS Screws
Screw Type 6-32*1/2
Manufacturer or Trader Manufacturer
Notes 4 screws style similar with Hammond 1590B

































FAQ

4.41"*2.4"*1.23" dimensions  hammond 1590B Waterproof Diecast Aluminum Enclosures

1. Do we need to pay the tooling/mould cost?

For these enclosures(1590A, 1590B,1590BB,1590BBS,1590XX,1790 NS,125B,1590J,1590DD), you didn`t need to pay the tooling/mould cost.

2. Can we custom  Cast Aluminum Enclosure?

Custom enclosure is welcome and you should pay this tooling cost.
Die casting Tooling paid by our customer is the property of our customers.

3. How to custom Cast Aluminum Enclosure?

  • Customers send the IGS/STEP drawings or sample to us for offer;
  • Will talk about the details to meet castabilities;
  • After customer`s acceptance on our prices, we will send our 3D molding drawing for approval;
  • After approving the 3D molding drawing, we will start the production of the tooling/mold after the deposit of mold/tooling cost paid;
  • After mold/tooling finished, will send the samples for customer`s check;
  • After samples approved, will prepare the production on trial order after customer`s payment for the balance for the mold/tooling cost.

4. What about your prices?

Our price can satisfy customers who want to get competitvely priced aluminum die casting enclosures & free of defects.

5. What is your Quality?

We had supplied these die cast aluminum enclosures to our customers over ten years in USA. And we clearly learn all requirements on these enclosures.

6. How to do as the defective Die Cast Aluminum Box found?

We will remake these die cast aluminum enclosures to you for free.

7. What is your Trade Terms?

FOB, EXW, CFR, CIF, DDU, DDP are available.

8. What is your payment term?

For orders, if total value less than USD5,000, 100% paid as order confirmed. If more than USD5,000, payment terms can be available.

For tooling/mold cost, 50% as a deposit and the balance paid after samples approved by customer.

9. What are you value-added service?

Cost Effective Drilled service can be available.Equipped many punching machines are to decrease these drilled costs by CNC machining.

10. What is the delivery time?


In one week if we have some stocks;
Three weeks if out of stock without new tooling developing;
Five weeks if new tooling developed;
If you have urgent demands,we can make an exception.



11. Are you a trader?


No, we are a maunfactuer.
